Smarthome SL-9000 Operating Manual

Home theater master preprogrammed & learning remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Home Theater Master
Preprogrammed 6 Learning
Remote Control
Operating

Advertisement

Table of Contents
loading

Related Manuals for Smarthome SL-9000

Summary of Contents for Smarthome SL-9000

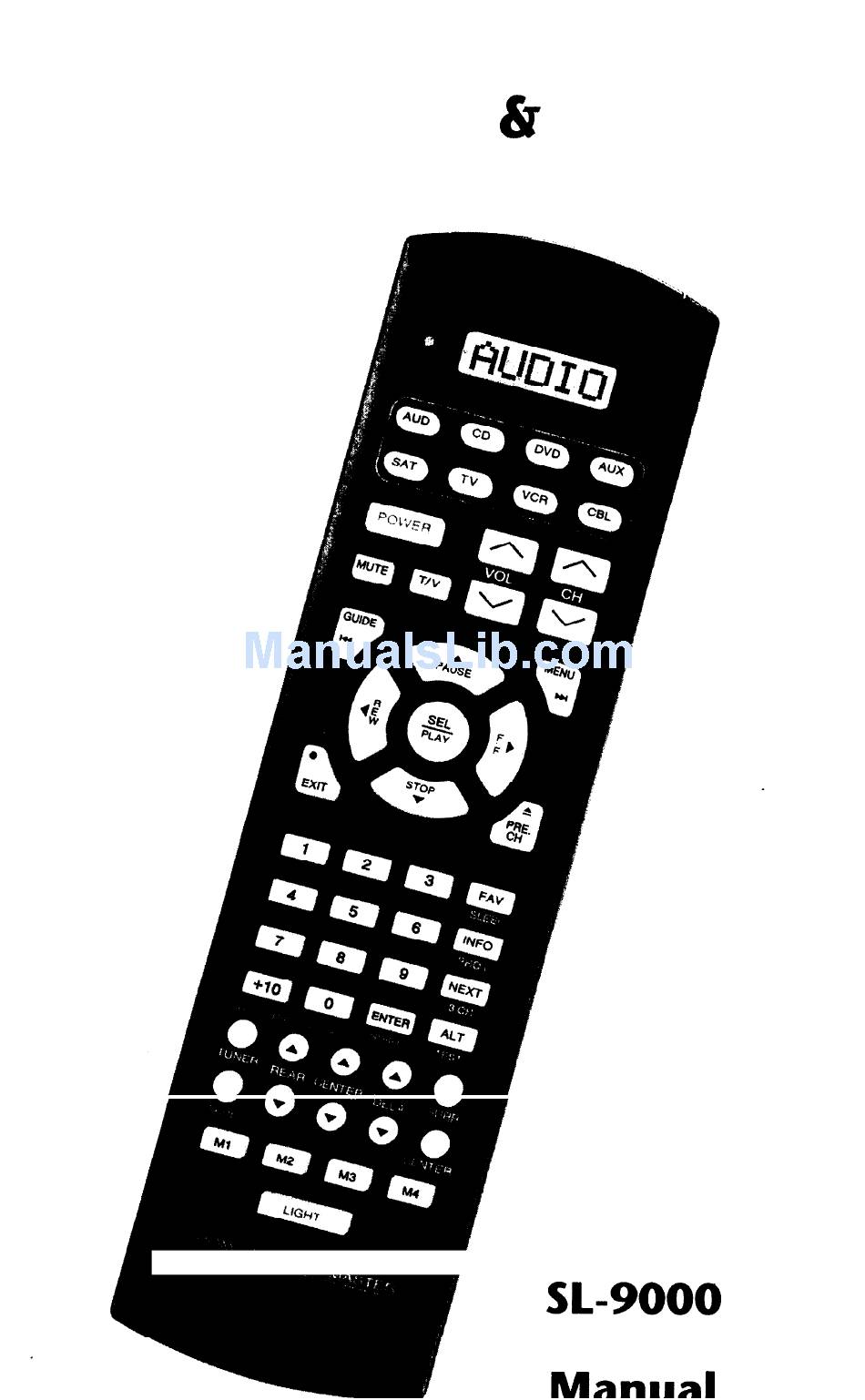

  • Page 1 Home Theater Master Preprogrammed 6 Learning Remote Control Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com SL-9000 Operating Manlral...

  • Page 2: Table Of Contents

    C. Changing the LCD Display -- 31 D. Programming a Second TV, VCR, etc. to other Device Buttons 32 Glossary Appendix Assignment of AudiolVideo Equipment Set Up Code Tables Audio -- Satellite VCR --- Cable AUX -- Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 3: Introduction

    The SL-9000 also has the ability to learn new functions from your original remote controls, allowing you to customize the remote to your own needs and update it as you add new equipment.

  • Page 4: Battery Installation

    Note: Batteries should last about 6 months under normal conditions. The SL-9000 remote control will retain its programmed memory for up to oue year after the batteries are removed and up to ten years after the batteries go “dead I’.
  • Page 5 Using Your Remote A: Function Table Reference SHIFT TEST -PpIP- TAPE CENTEI HOME THEATER MASTER LEARNING REVOTE CONTROL Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 6: Function Table Reference

    ) ^ - ^ * “<I 8~) _ ** / , Center Down Delete Down Cmter Delay Down Delay Down *\ qw I" ‘50 Center Center Mode Mi ' Me ’ Light Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 7: Function Tables

    Tape‘ Tape Rear Down Rear Down , x ) ^ - ^ * “<I 8~) _ ** Down Delete Down Center Cmter Delay Down Delay Down Center Center Mode Mi ’ ’ Light Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 8 Delay Up Tape Speed Record Surr. VCR Plus Tape Tracking + Rear Down Tracking - Center Down Auto Tracking Delay Down Slow - Center Slow + Index QTR On QTR Off Edit Light Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 9 Disc 4 Angle stop Surr. Disc 5 Slow REV. Play Tape Left Pause Rear Down Time Right Record Center Down Intro Subtitle Delay Down Edit Repeat Center Random A/B Repeat Title Memory Light Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 10: Preprogrammed Set Up

    SET will appear in the LCD. Device Brr ttom Mlrte Brrttorl Example: To set-up the remote to operate a TV, press the TV Device Button and Mute button, simultaneously. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 11 DEVICE Button to turn the equipment ON and press the POWER button to turn the equipment OFF. 7 Please repeat the above steps to program the remote control for each of your other devices. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 12: Auto Search Method

    Release the CHANNEL UP button as soon as the device turns off. Please confirm that you have the correct code by pressing the MUTE button on the remote. You should be able to turn your device on and off with this button. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 13 DEVICE Button to turn the equipment ON and press the POWER button to turn the equipment OFF. Please repeat the above steps to program the remote control for each of your other devices. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 14: Recalling The Set Up Code Number

    Set-Up Code Numbers: Audio Cable L - L - L - I L - L - L - J D V D L_l_L_l AUX L - L - L - l Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 15: Learning Set Up

    Using Your Remote C: learning Set Up The Home Theater Master SL-9000 has the ability to learn new functions from your original remote controls: There of learning with each page corresponding are 8 “pages,, the 8 Device modes on the remote control: AUDIO, CD, DVD, AUX, SAT, TV, VCR, CBL.
  • Page 16 Press and hold the button on the original remote control for about 3 seconds from which you are learning the new function. The LCD on the SL-9000 will show - - - - indicating that it is receiving the information from the original remote control.
  • Page 17 Note: If the LCD shows FAIL any time during the learning process, the SL-9000 was unable to learn the new jkzctions. Please repeat fvom Step 4. If the SL-9000 continues to show FAIL during the learning process, please try the following suggestions: Increase or decrease the head to head distance between the two remote controls, within a 1 to 5 inch range.

  • Page 18: Learning New Functions On Device Buttons

    LCD on the SL-9000 will show RETRY. Press and hold the same button on the original remote again, for about 3 seconds. The LCD on the SL-9000 will flash GOOD, the Device Mode and then return to LEARN, verifying that the new function has been learned.

  • Page 19: Erasing Learned Functions

    Device buttons, store the learned functions by pressing the AUDIO and SEL / PLAY buttons simultaneously, once again. The LCD in the SL-9000 will show SAVED and then return to the AUDIO mode. The remote has now returned to the original operating mode.

  • Page 20: Erasing All Buttons In One Device Mode

    When the LCD on the remote returns to TV, all the learned functions in all eight Device modes have been erased. All the buttons in all Device modes will now oper- ate with the preprogrammed functions in their respective modes. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 21: Operation

    However, some of the secondary functions might be stored under a button that has a different name from the one on your original remote control. Please refer to the Function Tables on pages (5 - 7) for details. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 22: Device Buttons

    Audio mode. Please refer to page 16 for details. Main Device Mode When the main Device mode is displayed in the LCD, the SL-9000 will operate in a standard operating mode and all the buttons will operate the preprogrammed, learned and punch through features for that Device mode.

  • Page 23: Backlighting

    Volume Buttons Surround Controls Backlighting All the buttons and the LCD on the SL-9000 are back-lit for 7 seconds when the LIGHT button is pressed. The back- light is extended an additional 7 seconds with any button press while the backlight is on.

  • Page 24: Volume "Punch Through

    Volume Control. AUDIO or TV will flash in tK e LCD, depending on which Device Button was selected. AUDIO or TV Volume Control will now override the original VOLUME and MUTE in this mode. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 25 Select the mode that you wish to program for Channel Control “Punch Through. ” Press the corresponding Device Button and the MUTE button, simultaneously. SET will appear in the LCD. Press the VOLUME DOWN button. PUNCH will appear in the LCD. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 26 LCD. The VCR or Cable Channel Control /‘Punch Through” is now turned off. The CHANNEL UP and DOWN of the original device will now operate on the remote control. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 27: Transport "Punch Through

    Press either the VCR Device Button to set-up for VCR Transport Control or the CD Device Button to set-up for CD Transport Control. VCR or CD will flash in the LCD, depending on the Device Button selected. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 28 4 Press the Device Button again. The Device Mode will flash in the LCD. The VCR CD Transport Control lfPunch Through” feature is now turned off. The original functions assigned to these buttons are restored. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 29: B. Memory Buttons

    Example: In the SAT mode, each of the Memory Buttons Ml, M2, M3, and M4 can provide direct access to a dif- ferent DSS satellite channel by sending out the three digit channel number for that channel with one button push. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 30 Memory Buttons can be programmed to store functions from one mode into other modes. Example: In the AUDIO mode, Memory Buttons can store various functions from the TV, VCR, and Satellite modes. Power Button Memory Bu ttorrs MI -M4 Buttons Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 31: Programming Memory Buttons

    To program Memory Button M2 in the Audio mode to send the following commands: turn on the Audio receiver, turn on the TV, turn on a VCR, and turn on a satellite receiver. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 32: Erasing Memory Buttons

    3 Press the CHANNEL UP button. SAVE will flash in the LCD. The Memory Button is now erased. Note: Any previously stored commands on a Memoy Button will be erased when new commands are stored on the same Memoy Button. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 33: Changing The Lcd Display

    C A B L E A U D I O C D VID4 TV-V3 AUDl AUD2 AUD4 AUD3 VID2 VIDEO RECVR TAPE VID3 VCR2 PROJ VCR2 AUD2 S U R R L A S E R Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 34: D. Programming A Second Tv, Vcr, Etc. To Other Device Buttons

    (38 - 55). S Point the remote toward the device and press in the first Set-Up Code number. SET, followed by the Set-Up Code number will appear in the LCD. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 35 Set-Up Code number. PASS will flash in the LCD to confirm the programming. The second device can now be operated by pressing the assigned Device Button and using the buttons within this mode. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 36 Model SL-9000, infrared remote control. Power Four 1.5 V AAA Batteries. Dimensions (h/w/d) 8.88 x 2.5 x 1.25 inches Weight (with batteries) 6.5 oz. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 37: Glossary

    Learning Transfer of a function from a button of an original remote control to a button on the SL-9000 remote control. Liquid crystal display window located at the top of the remote control. During normal operation the LCD indicates the mode.
  • Page 38 PLAY, STOP, etc., to determine if the correct Set- Up Code number has been selected. Transport Control Buttons that correspond to the PLAY, STOP, REWIND, FAST FORWARD, PAUSE, SEARCH/SKIP and RECORD functions on your audio / video equipment. Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 39: Assignment Of Audiolvideo Equipment

    CD Set-Up Code Table: CD Players, CD Changers DVD Set-Up Code Table: DVD Players, Laser Disc AUX Set-Up Code Table: Cassette Tape Players, DAT systems, MiniDisc, Switchers, Lighting, Home Control Devices, and Line Doublers Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 40: Set Up Code Tables 3

    029 047 180 214 FOSGATE 062 231232 GOLDSTAR HARMAN KARDON 118 121153 154 231233 254 HITACHI JC PENNY JENSEN 114 191240 KENWOOD 026066145146180190192197199222 KRELL 150 072 KYOCERA LEXICON 120 235 236 237 LINN Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 41 047 051059 SCOTT 019 081091 SEARS SHARP 026 094131175181 SHERWOOD 024 038 051055102103105106 SONY 015 018047093101160166218223247248 SOUNDESIGN SOUNDSTREAM SUM0 TEAC 005 019 049 111212 TECHNICS 122176177178193200219255 THETA DIGITAL TOSHIBA WARDS YAMAHA 001026067169173205253 ZENITH Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 42 M A C O M 010 059 063 064 065 MEMOREX NEXTWAVE 069 070 NORSAT PACE 060 142 PANASONIC PANSAT PERSONAL CABLE PHILIPS PICO 023 026 019 102 PRESIDENT 110 030 PRIMESTAR PROSAT 4 0 ’ Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 43: Satellite

    SONY STARCAST SUPERGUIDE TEE COM 023 026075 087088090 107130137 TOSHIBA 002 127 TOWN & COUNTRY 023 026 UNIDEN 016025042043 044045048049078079080086 101135 136 US ELECTRONICS VIEWSTAR WINEGARD 128 146 ZENITH 081082 083 084 091120 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 44 004 102 106 110 112 113 116 119 127 137 143 HALL MARK HITACHI 004 009 010 011012 023 075 143 158 163 166 INFINITY JCPENNY 001004 008 009 024 030 065 101143 156 160 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 45 RADIO SHACK 019 043 143 004 127 R C A 160 161165 065 156 144 001004 023 024 056 074 152 REALISTIC 007 019 043 047 ROCTEC RUNCO 168169178179180181182183 SAMPO 001058 004 SAMSUNG 004050089101105127133137143160 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 46 008 009 VIDEO CONCEPTS VIDIKRON 174 184 188 192 VIDTECH WARDS 004 008 009 019 028 060 061063 064 072 074 143 164 YAMAHA 001004 YORK YUPITERU ZENITH 072073095103157 Z O N D A Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 47: Vcr

    M A R A N T Z 012 031067 069 MARTA MATSUI 027 030 MEMOREX 003 010 014 031034 053 072 101102 134 139 M G A 045 046 059 MINOLTA 013 020 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 48 003 008 009 010 013 014 081101017 SHARP 031054 149 SHINTOM SIGNATURE SONY 003031052056057058076077078149154 SOUNDESIGN SYLVANIA 031034 059 067 SYMPHONIC TANDY 010 034 TATUNG 039 043 TEAC 034 039 043 TECHNICS 031070 TEKNIKA 019 031034 101 THOMAS Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 49 008013042047059079082112131 TOSHIBA 040 101 TOTEVISION UNITECH VECTOR RESEARCH VICTOR 012 034 046 141 VIDEO CONCEPTS VIDEOSONIC 003 013 017 024 031034 040 053 054 131 WARDS 012 034 039 043 YAMAHA 034048056058072080101 ZENITH Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 50: Cable

    MEMOREX MOVIE TIME 028 032 015 028038071073 O A K 016 031037 053 PANASONIC 044 047 PARAGON PHILIPS 006012013020065085090 PIONEER 001034051063076 POST NEWS WEEK PRUCER 011048 071073 074 PULSAR RECOTON REGAL 049 050 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 51 008 030 097 SYLVANIA TADIRAN TANDY TELECAPATION TEXSCAN 029 067 T O C O M 039 040 056 TOSHIBA 007 014 024 UNIKA UNITED CABLE 004 053 UNIVERSAL 005007014024026027032035 VIEWSTAR 012015018086087088089 ZENITH 052 060 093 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 52 004 022 136 163 213 214 KENWOOD 001007 013 023 055 071072 137 142 152 199 KOSS KRELL KYOCERA LOTTE LUXMAN 011070 076 162 059 180 MAGNAVOX 032 044 107 121 MARANTZ 027 041044 051077 107 209 211 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 53 ROTEL 044 107 RUNCO 044 107 SAMSUNG SANSUI 044069107125128171190 SANYO 050 075 SCOTT 069 102 SHARP 013 026 031051066 152 SHERWOOD 003 019 051096 112 115 119 166 SIGNATURE SONY 048053081097110126133164177225226 SOUNDESIGN SUM0 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 54 SYMPHONIC 074 195 TAEKWANG TANDY 015034036051052101131140 TEAC 008060068103113172192200 TECHNICS TECHWOOD THETA DIGITAL 032 234 235 006067091106148152160 TOSHIBA VECTOR RESEARCH 004 022 114 124 VICTOR 001033 WARDS 012 024 046 054 129 YAMAHA YORX Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 55: Dvd

    R C A 002 027 RUNCO SANYO SAMSUNG 056 229 SHARP 120 152 SONY 033 053 110 TECHNICS 008 068 113 THETA DIGITAL 032 235 THOMPSON 026 027 TOSHIBA 035 152 YAMAHA 042 001129 ZENITH Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...

  • Page 56: Aux

    026 054 055 138 PANASONIC 007010032088195 PHILIPS 027 087 PIONEER 003039047050066098222 POLK AUDIO QUASAR 007 088 SANSUI 027113119224 SHARP 026057131175181 SHERWOOD 001004 028 030 033 034 SONY 020022052084089164165166 TAEKWANG TEAC 009 059 212 Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
  • Page 57 Set-Up Code Number Manufacturer/Brand 007010076088109122193 TECHNICS TOSHIBA TURBOSCAN VICTOR x-10 XANTECH 168169170171172188189 021026 031067 YAMAHA Smarthome.com, Inc. (800) SMART-HOME (949) 221-9200 http://smarthome.com...
