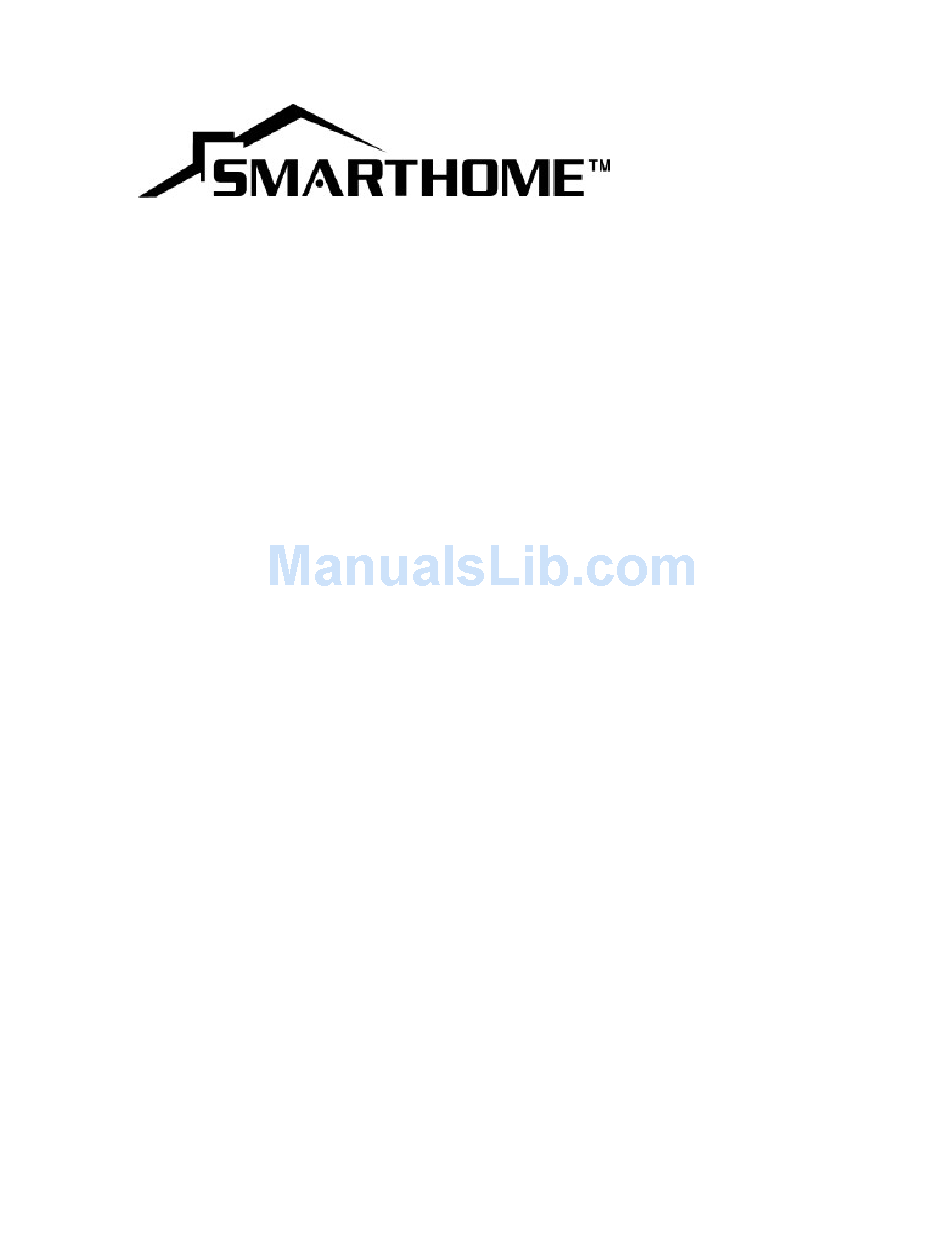

- Page 1 SLIMLINE REMOTE SR-525 Universal Remote Control With Touchscreen & Learning Function User’ s Guide SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 2 The SR-525 User’ s Guide Preface About this User’ s Guide This user’ s guide is designed to assist you in setting up your SR -525 Universal LCD Remote Control. Informa t ion in this document has been carefully checked for accuracy; however, no guarantee is given as to the correctness of the contents.
-
Page 3: Table Of Contents
Table of Contents PREFACE................... II CHAPTER 1................1 Unpacking the SR -525............2 SR-525 Features ..............2 Identifying Components ............3 CHAPTER 2................4 Power Supply..............4 Battery low icon............... 5 Power supply tips and precautions . - Page 4 The SR-525 User’ s Guide Frequently Asked Questions ..........39 APPENDIX D ................41 Pre-configured X10 Codes ..........41 APPENDIX E ................43 Application Note: Applying Sound Field (DSP) commands ® from SONY Amplifiers........
-
Page 5: Chapter 1
All you need is the SR -525. This remote control does it all for you! SR-525’ s operating concept is based on the combination of a user-friendly touch screen panel and easy -to-access hard buttons. -
Page 6: Unpacking The Sr-525
Direct access buttons for accessing frequently used functions such as volume, cha nnel, play, mute, power and stop. Intelligent power saving modes. Settings held in non -volatile flash memory. Keeps your configuration even when ba tteries fail or are replaced. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 7: Identifying Components
Tap either once to activate the UCommand-525 SR-525 Learning Eye Battery Cover Point your original Remove this cover remote control to to replace the four this eye for learning. AAA batteries. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 8: Chapter 2
This chapter will guide you through the steps for inserting the batteries and using the many features. Power Supply The SR-525 operates on four AAA batterie s. Batteries must be inserted before you can operate the SR - 525. To insert the batteries, refer to the following illustr ation: SMARTHOME™... -
Page 9: Battery Low Icon
Don’ t worry: When the batteries fail or are being replaced, the SR-525 does not lose its configuration, thanks to its non-volatile memory. Power supply tips and precautions SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 10 The settings of the backlight have a big impact on battery life. For longest battery life, set the backlight duration to “ short” and the ambient light sensitivity to “ least” sensitive. See “ Adjusting the LCD Backlight” . SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 11: Lcd Touch Screen Buttons
LCD panel the way you want. Turning the LCD on To turn the LCD panel on, simply tap the screen with your finger or press any button: Figure 2-3: Turning the LCD on SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 12: Touch Screen Precautions
“ REC” icon for three seconds. This is a safety feature to prevent unintended recording with your Tape Deck or VCR. This time delay is only active when the “ REC” icon is present. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 13: Sr-525 Buttons
Press any DEVICE button twice to activate the beep function. If you still don’ t hear a beep, press the button a little more firmly. SR- 525 Figure 2-4: SR-525 LCD panel layout SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 14: Chapter 3
” Using the delete function” . When using the learning function, you must press each button within 120 seconds. Otherwise, the SR -525 will exit learning mode and return to normal operation mode. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 15: Using The Learning Function
Note: It is helpful to customize the screen layout before learning the keys (see “ Changing the device layout” ). This way you don’ t have to delete and relearn buttons repeatedly in case you decide to change the layout. SR-5 2 5 SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 16 You hear a beep and then you see the unlock screen to the right. Note: This screen prevents you from unintentionally mod ifying the SR-525. Press each number button in any order until it disappears. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 17 LEARN under the LEARN button and the “ beep icon” starts blin king. The SR-525 is awaiting a signal from your device’ s remote control. Press the button for the device you wish to program. You can now start mapping SR-525 your device’...
- Page 18 The next button to be mapped will start blin king. Continue to press the buttons on your device remote control that correspond to the blinking buttons on the SR-525. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 19 SR-525, press the LEARN button. You hear three beeps, and the SR- exits learning function. If you see an “error” message when mapping a button or have trouble with the learning function, refer to the troubleshooting section in Appendix B.
-
Page 20: Using The Delete Function
Delete IR commands for all buttons for a device Delete the IR commands for all devices. The delete function only deletes the mapped data; it does not remove buttons. To learn how to remove buttons, refer to “ Changing the LCD Layout” SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 21: Deleting A Command Button
You hear a beep and then you see the unlock screen to the right. Note: This screen prevents you from accidentally modifying your SR-525. Press each number button in any order until it disappears. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 22: Changing The Lcd Layout
To learn how to remove buttons, refer to chapter “ Changing the LCD Layout ”. Continue to push buttons whose data you want to delete. When finished, press the LEARN button to exit Delete mode. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 23 DELETE button for three seconds. The display will flash and you will hear six beeps. All data has been erased. Exit Delete Fun ction To exit the delete function, press the LEARN button. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 24: Changing The Lcd Layout
The display will start flashing. SR-525 You hear a beep and then you see the unlock screen to the right. Note: This screen prevents you from accidentally modifying your SR-525. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 25 (figure C.) to represent the function. After you have made your changes, press the DEVICE button again. You hear three beeps and the SR-525 goes back to normal mode. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 26: Changing The Aux Device Layout
This device layout is copied to the AUX button. Press the AUX button again. You will hear three beeps and SR-525 will return to normal o perating mode. Macro Function The macro feature enables you to store up to 25 commands on any command button. -
Page 27: Macro Setup
You hear a beep and then you see the unlock screen to the right. Note: This screen prevents you from accidentally modifying your SR-525. Press each number button in any order until it disappears. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 28 If necessary, you can set a time delay between each macro command. Time delays are useful if your device needs time between two IR commands. For example, after powering up your TV, it might take a few seconds before it can recognize an Input SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 29 A. Press AUX to open the AUX screen Note: Do not use a device button as your macro run button. Using a device button will remove the button’ s function from the layout. For exampl e , if you SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 30 — Operating the SR-525 use the TV device button for the macro run key, you will not be able to use the SR-525 to control your TV set. B. Press 1 to assign the macro start button Press the TV button.
- Page 31 Push the MACRO button until the ten-second delay (C) appears. Note: You can set this time delay between any two commands. Press VCR to switch to the VCR device menu. Press power. This powers your VCR on. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 32 VCR turns on VCR starts playing tape The macro button’ s original function will not work unless you delete the macro using the DELETE button function. Refer to “ Using the Delete Function” . SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 33: Adjusting The Lcd Backlight
You hear a beep and then you see the unlock screen to the right. Note: This screen prevents you from accidentally modifying your SR-525. Press each number button in any order until it disappears. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 34 Press 1 for a 10-second delay. Press 2 for a 20-second delay. Press 3 for a 30-second delay. After you have made your adjustment, press the POWER button to move to the next screen. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
- Page 35 When set to 10, the backlight will automatically switch on after a large decrease in the ambient light brigh tness. When you have finished making your adjustment, press any of the DEVICE buttons to exit. SR-525 SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 36: Toggling The Beep Signal On/Off
The learned codes are not deleted; to delete those, refer to “ ‘ Using the Delete Function” To recall the original LCD layout, press the TV and DVD device buttons at the same time for five second s: SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 37 Note: This screen prevents you from accidentally modifying your SR-525. The SR-525 beeps several times and returns to normal view. The original LCD panel configuration has been recalled. SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 38: Appendix A
LCD off: 30 A Battery type 4 AAA alkaline batteries Dimensions 8.26” x 2.36” x 1” (210 x 60 x 26 mm) L x W x H Weight 5.4 oz. (157g) (without batteries) Safety Approvals CE, FCC SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... -
Page 39: Appendix B
A very few original remotes use an IR signal that is out of the range of the SR -525’ s capability. Some original remotes mix more than one command to perform a function; SR -525 may SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 40 Turn off the device while program ming, or go to another room. Alternately, move The SR-525 out of the line -of- sight of the device imm ediately after programming a button.
- Page 41 SONY Amplifiers The LCD screen The SR-525 is preset at the factory to turns off. automatically switch the LCD off after 20 minutes if left unused. Just tap the LCD screen to turn the SR -525 back on again.
-
Page 42: Appendix C
SR -525 remote controls via what is it used interface cable. for? What is that little It is used for the transfer interface cable. See round connector “ TRANS Button” above. on the front for? SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N... - Page 43 The SR-525 User’ s GuideManual Does the SR-525 have a built in timer? During battery No, the non-volatile memory keeps the data change, does the during battery change or failure SR-525 lose its data? SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 44: Appendix D
Appendix D Pre-configured X10 Codes The SR-525 comes with pre -defined device codes for X10 compatible infrared transceivers for light and appliance control. Such transcei v ers are available from different vendors. These IR codes cannot be learned during the normal learning proc e dure. - Page 45 The SR-525 User’ s GuideManual Channel Up Channel On Channel Down Channel Off SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
-
Page 46: Appendix E
7. Scroll down to "2CH" and press ENTER. Your macro 1 is now set to 2ch, and you will be able to teach the SR-525 to access the 2ch sound field directly by: Setting up the UC -515 to learn a command... - Page 47 From there you can use your arrow keys or +/ - keys, whatever you have assigned to move around with, to access the other DSP settings. SR-525 (8180N) Smarthome Slimline Remote User’ s Guide SMARTHOME™ 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com Order #8180N...
