Manual for G4 Remote Control
Manual version: V1.0
Updated date: May 4, 2012
Prepared by: Mendel Lin
Email:
Mendel@SmartHomeGroup.com
Copyright: Smart Group
SN
1
1.1
1.2
2
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
4
1. Product Picture

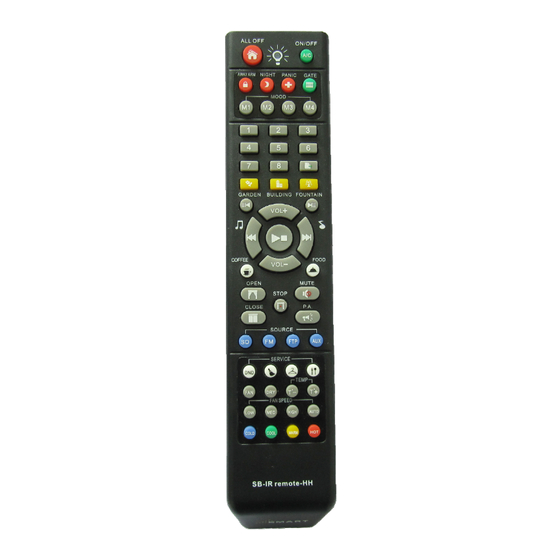

1.1 G4 Remote Control (Model#: SB-IR Remote-HH)
Content
Chapter
Page#
1
1
3
3
3
3
5
6
7
8
10
11
12
12
Advertisement
Table of Contents
Related Manuals for Smarthome SB-IR Remote-HH
Summary of Contents for Smarthome SB-IR Remote-HH
-
Page 1: Table Of Contents
G4 Remote Control DDP and IR Receiver Firmware Version Needed Functions Explanation for G4 Remote Control Lighting Control Air Conditioning Control Mood Security Z-Audio Motor Service Others P.A. and Panic Settings 1. Product Picture 1.1 G4 Remote Control (Model#: SB-IR Remote-HH) - Page 2 1.2 DDP and IR Receiver...
-
Page 3: Ddp And Ir Receiver
IR Receiver which is connected to the back of DDP The backside of DDP, the green connector is for IR Receiver 2. Firmware V ersion needed the firmware version of DDP needed: Smart G4 D DP Apr 12 2012 V1.39 or above the firmware version of Z-Audio needed: Smart G4 Z-Audio Apr 18 2012 V1.21 or Ab the Version of Smart Cloud software needed: V13.61 or above the version of devices that you have are lower than above version,... -
Page 4: Lighting Control
3.1 Lighting Control 3.1.1 ALL OFF Functions: All Light Off Programming: It depends on 1 command of the configuration of 4 buttons of 1st page on DDP, please see the picture below: Settings of button 1 of page 1: Settings of button 2 of page 1: Settings of button 3 of page 1: Settings of button 4 of page 1: 3.1.2 Number 1,2,3,4,5,6,7,8... -
Page 5: Air Conditioning Control
Linking to the right side of 2nd button Linking to the left side of 3rd button Linking to the right side of 3rd button Linking to the left side of 4th button Linking to the right side of 4th button 3.1.3 Dimming Button 1 and button 2 on Remote control are for 1 button on DDP,... -
Page 6: Mood
COOL Change the AC Mode to Cool preset temperature to 23c WARM Change the AC Mode to Heat and set the preset temperature to 25c Change the AC Mode to Heat and set the preset temperature to 27c LOW/MED/HIGH/AUTO Change the fan speed T-, T+ Change preset... -
Page 7: Security
To program it, go to smart cloud software, go to DDP, BUILDING please see the picture below: FOUNTAIN To program it, go to smart cloud software, go to DDP, please see the picture below: COFFEE To program it, go to smart cloud software, go to DDP, please see the picture below: FOOD To program it, go to smart cloud software, go to DDP,... -
Page 8: Z-Audio
Away To program it, go to smart cloud software, go to DDP, please see the picture below: Night To program it, go to smart cloud software, go to DDP, please see the picture below: Panic To program it, go to smart cloud software, go to DDP, please see the picture below: for the detail the settings, please see the below 4. - Page 9 Previo Previous Album/List Album Next Next Album/List Album VOL+ Turn up the volume Keep pressing works for this button VOL- Turn down the volume Keep pressing works for this button Previo Previous song of current album Song Next Next Song of current album Song Play/S Play or Stop...
-
Page 10: Motor
4. P.A. and Panic Settings To activate the P.A, keep pressing the P.A button for 3 seconds Music Source Changing Music Sourc SD: SD Card FM: FM Radio FTP: FTP Server Chang AUX: Audio In 3.6 Motor Button Picture Functions name OPEN Open the shades... -
Page 11: Service
3.7 Service Button Picture Functions name otel Service DND his function is not yet ready. To program it, go to smart clou d software, go to DDP, lease see the picture below: Clean Hotel Service Clean his function is not yet ready. To program it, go to smart clou d software, go to DDP, lease see the picture below:... -
Page 12: Others
Food Hotel Service Food Request This function is not yet ready. Request To program it, go to smart cloud software, go to DDP, please see the picture below: 3.8 Others Button Picture Functions name Next Page ext Page on DDP 4. - Page 13 the following is the files under folder Special on SD Card. So the settings of PA will be like the following So the settings of Panic will be like the following To activate the PA or Panic func tion, keep pressing the Panic button or PA button on G4 emote control for 3 seconds.
