I N T R O D U C T I O N
Your X-10 POWERHOUSE TM Motion
Detector gives your home a "lived-in"
look when you are away, The built-in
infrared sensor automatically turns on
your lighting whenever it de-
outdoor
tects movement within its sensing
range.
Your Motion Detector also sends sig-
nals over your existing house wiring to
control other lights connected to X-10
Modules.
Your Motion Detector can control up to
four sets of X-10 Modules when it de-
tects motion. and up to four additional
sets of Modules for dusk-to-dawn oper-
ation.
Your Motion Detector features:
Sensor Head - automatically senses
motion over a wide area (110°).
X-10 Control - lets you turn on the
floodlights from any X-10 controller,
anywhere in your home.
Additional Light Control - turns on
motion
up to four sets of lights when is
detected and can also turn on up to four
sets of tights at dusk and turn them off
at dawn.
Variable Timed Shut-off - lets you
set the length of time the lights stay on
after movement has stopped.
Photocell Control - prevents opera-
tion during daylight hours and senses
when to turn on and off lights for dusk-
to-dawn operation.
All Rights Reserved.
is a registered trademark of X-10 (USA) Inc.
CONTENTS
A Quick Look .................................. .
3
Covered Area ................................... 4
Installing the Motion Detector
Choosing a Location
..................... 5
Preparing the Junction Box x .......... 5
Assembling the Motion Detector
Wiring Diagram m ............................ 6
Installing the Motion Detector ......... 7
Adjusting the Motion Detector ........ 8
Operation Settings ............................ 9
Controlling the Motion Detector 10
Controlling Other Lights ................ 11
Code Selection Chart .................. 1 I
This is X-10 POWERHOUSE.. ...... 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Care and Maintenance . . . . . . . . . . . . . . . . . . . . 15

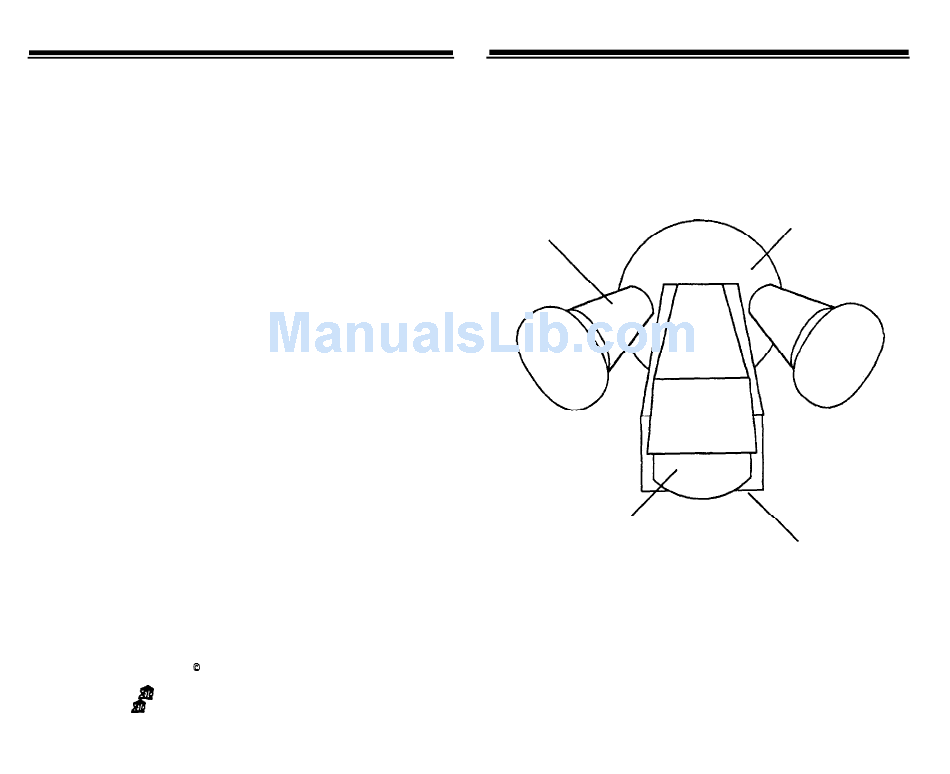

A QUICK LOOK AT YOUR MOTION DETECTOR
Lamp Holders
Rated for bulbs
up to 150W.
Sensor Head
Detects motion within its-
sensing area (up to 40 feet
distance and 110° angle
when mounted 6 feet off
the ground).
Mounting Plate
Fits over a standard
round electrical box.
Control Panel Cover
Waterproof cover to pro-
tect control panel (see
page 8 for control panel
details).
