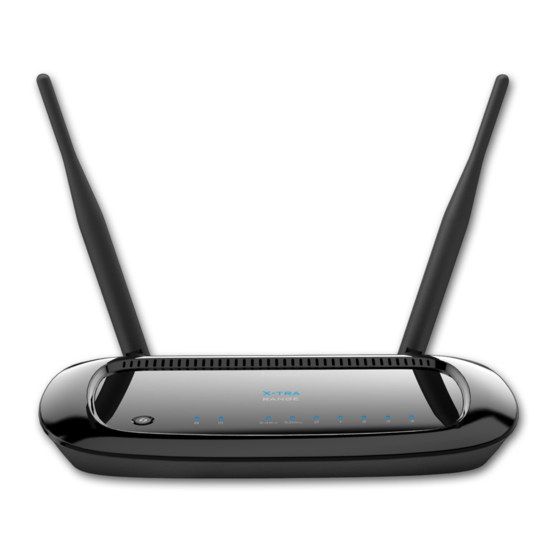

EnGenius X-TRA RANGE ESR600H Manual

Dual concurrent wireless media router
Hide thumbs Also See for X-TRA RANGE ESR600H:
Table of Contents

Advertisement

Quick Links

®
EnGenius
X-TRA RANGE
ESR600H/ESR750H
Dual Concurrent Wireless Media Router
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-TRA RANGE ESR600H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EnGenius X-TRA RANGE ESR600H

Summary of Contents for EnGenius X-TRA RANGE ESR600H

  • Page 1 ® EnGenius X-TRA RANGE ESR600H/ESR750H Dual Concurrent Wireless Media Router V1.0...

  • Page 2: Table Of Contents

    ESR600H/ESR750H U UIDE ABLE OF ONTENTS ABLE OF ONTENTS Conventions ..................0-xi Copyright .
  • Page 3 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Logging In..................4-1 Viewing the Dash Board.
  • Page 4 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Viewing System Status ............... . . 6-1 System .
  • Page 5 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Dynamic IP ................6-14 DNS Servers .
  • Page 6 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Wired Equivalent Privacy (WEP) ............. 6-33 Encryption: Wi-Fi Protected Access (WPA) Pre-Shared Key .
  • Page 7 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Configuring Client List ................6-54 Firewall Setup.
  • Page 8 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Port Triggering Setup................6-77 Application Layer Gateway Setup .
  • Page 9 ESR600H/ESR750H U UIDE ABLE OF ONTENTS USB Services USB Over IP..................7-2 Using the USB Device Server .
  • Page 10 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Play Music from iTunes............... 7-22 Multiple Speakers .
  • Page 11 ESR600H/ESR750H U UIDE ABLE OF ONTENTS Point-to-Point Protocol over Ethernet (PPPoE)........... . . C-2 Layer 2 Tunneling Protocol (L2TP) .

  • Page 12: Conventions

    ESR600H/ESR750H U UIDE ONVENTIONS Conventions The following conventions are used to give the user additional information about specific procedures or content. It is important to pay attention to these conventions as they provide information to prevent damage to equipment or personal injury.

  • Page 13: Typographical Conventions

    ESR600H/ESR750H U UIDE ONVENTIONS Example: Indicates information used to demonstrate or explain an associated concept. N/A: Indicates that a component or a procedure is not applicable to this model. Prerequisite: Indicates a requirement that must be addressed before proceeding with the current function or procedure.

  • Page 14: Copyright

    OPYRIGHT Copyright This user guide and its content is copyright of © EnGenius Networks, 2011. All rights reserved. Any redistribution or reproduction in part or in whole in any form is prohibited. Do not distribute, transmit, store in any form of electronic retrieval system or commercially exploit the content without the expressed written permission of EnGenius Networks.

  • Page 15: Product Overview

    Product Overview...

  • Page 16: Features

    The EnGenius ESR600H/ESR750H Dual Concurrent Wireless Router is a member of the X-TRA RANGE series of routers. The ESR600H/ESR750H offers 1 WAN and 4 LAN Gigabit connections and extended signal coverage with two external high gain 5dBi antennas. The ESR600H/ESR750H also features one USB port for SAMBA, NetUSB and shAir Music (ESR750H) functionality.
  • Page 17 RODUCT VERVIEW RODUCT VERVIEW QoS Wireless Multimedia  Wireless LAN Power Saving  Support IEEE802.1x Authentication  SAMBA and NetUSB  shAir Music (ESR750H only)  ESR600H/ESR750H UIDE...

  • Page 18: Package Contents

    RODUCT VERVIEW ACKAGE ONTENTS 1.2 Package Contents ITEM QUANTITY Dual Concurrent Wireless Router 5dBi Antennas Quick Installation Guide 12V/1.25A Power Adaptor Ethernet Cable User CD (with user manual) Technical Support Card ESR600H/ESR750H UIDE...

  • Page 19: Product Layout

    RODUCT VERVIEW RODUCT AYOUT 1.3 Product Layout WPS/Reset Button WLAN LEDs WAN LED LAN (1-4) LEDs Power LED WPS LED ESR600H/ESR750H UIDE...
  • Page 20 N/A 10~15 seconds To reset to factory settings, press button for > 15 seconds. Power status LED. Power LED WLAN LED Wireless LAN (WLAN) status LED. WAN LED Network status LED. LAN (1 – 4) LEDs LAN port status LED(s). ESR600H/ESR750H UIDE...
  • Page 21 Connects up to four computers (4) to a local area network (LAN) using Ethernet cable. Connects the router to a cable or DSL modem using an Ethernet cable. WAN Port USB Port Provides Samba, NetUSB and shAir connectivity to devices on the LAN. ESR600H/ESR750H UIDE...

  • Page 22: Installation

    Installation...

  • Page 23: System Requirements

    NSTALLATION YSTEM EQUIREMENTS 2.1 System Requirements To install the ESR600H/ESR750H, you need the following: Computer (Windows, Linux and MAC OS X Operating Systems)  CD-ROM*  Web Browser (Internet Explorer, FireFox, Chrome, Safari)  Network Interface Card with an open RJ-45 Ethernet Port ...

  • Page 24: Wall Mounting

    NSTALLATION OUNTING 2.2 Wall Mounting Mounting the ESR600H/ESR750H on a wall optimizes the wireless access range. Note: Choose a location that is within reach of an electrical outlet for the AC adapter and the DSL or Cable modem. To mount the device on the wall do the following: 1.

  • Page 25: Engenius Quick Start

    EnGenius Quick Start...

  • Page 26: Installing The Software

    Note: Before getting started, please power off the cable or DSL modem. Setup Notes When considering the placement of the ESR600H/ESR750H remember the following: It must be located close to a DSL or Cable modem.  It must be close to an electrical outlet.
  • Page 27 ENIUS UICK TART NSTALLING THE OFTWARE 1.Insert the ESR600H/ESR750H installation CD into the CD- ROM drive. 2.Click Quick Start. The wizard will guide you through set- ting up your ESR600H/ESR750H. ESR600H/ESR750H UIDE...

  • Page 28: Connecting Network Cables

    The Power LED lights up to show the device is active. Power LED 2. Plug one end of the Ethernet cable (1) into the WAN port on the back panel of the router. Plug the other end of the cable into the cable or DSL modem. ESR600H/ESR750H UIDE...
  • Page 29 Ethernet port of the computer. 4. Click Next to display the login screen. Note: If the browser does not show the login screen, enter the default router IP address, 192.168.0.1. Note: Make sure the network cable and power adapter are firmly connected. ESR600H/ESR750H UIDE...

  • Page 30: Web Configuration

    Web Configuration...

  • Page 31: Logging In

    If the login screen does not display, enter the default router IP address of 192.168.0.1. Note: The default user name is admin and the default password is admin. 1. At the login screen enter a user name and a password. 2. Click Login to continue. ESR600H/ESR750H UIDE...

  • Page 32: Viewing The Dash Board

    IEWING THE OARD 4.2 Viewing the Dash Board The main screen, or dashboard, provides access to all of the router’s services. Home Setup Wizard Logout Language Network Settings Start the setup wizard. View router information and connection status ESR600H/ESR750H UIDE...

  • Page 33: Services

    The Network Settings link displays the menus to manually configure the router. Refer to “Web Menus Overview” on page 4-4. Language The Language link displays the menu to set the OSD language. Refer to “Configuring Languages” on page 6-12. Logout The Logout link closes the router configuration software. ESR600H/ESR750H UIDE...

  • Page 34: Web Menus Overview

    Configure the wired network.  DHCP Configure dynamically allocated IP addresses.  View recorded system operations and network activity events.  Monitor View the current network traffic bandwidth usage.  Language Configure the application menu and GUI language.  ESR600H/ESR750H UIDE...

  • Page 35: Internet

    Static IP Setup a static IP connection to an ISP.  PPPoE Setup a PPPoE connection to an ISP.  PPTP Setup a PPTP connection to an ISP.  L2TP Setup an L2TP connection to an ISP.  ESR600H/ESR750H UIDE...

  • Page 36: Wireless 2.4G

    Configure a list of clients that are allowed to wirelessly connect to the network.  Automate the connection between the a wireless device and the router using an 8-  digit PIN. Client List View the 2.4G wireless devices currently connected to the network.  ESR600H/ESR750H UIDE...

  • Page 37: Wireless 5G

    Configure a list of clients that are allowed to wirelessly connect to the network.  Automate the connection between the a wireless device and the router using an 8-  digit PIN. Client List View the 5G wireless devices currently connected to the network.  ESR600H/ESR750H UIDE...

  • Page 38: Firewall

    Enable or disable the network firewall.  Advanced Configure virtual private network (VPN) packets.  Redirect packets from the WAN port IP address to a particular IP address on the LAN.  Enable or disable blocking of denial of service (DoS) attacks.  ESR600H/ESR750H UIDE...

  • Page 39: Virtual Private Network

    View the status of current VPN tunnels.  Profile Setting Manually configure VPN tunnels.  User Setting Configure users, user ID and password combinations, and assign access to  specific VPN tunnels. Wizard Automatically configure VPN tunnels with guidance from the software.  ESR600H/ESR750H UIDE...

  • Page 40: Advanced

    Configure the network quality of service (QoS) setting by prioritizing the uplink and  downlink bandwidth. Routing Configure static routing.  Configure wake on LAN (WOL) to turn on a computer over the network.  USB port Configure the router’s USB port to server or NetUSB mode.  ESR600H/ESR750H 4-10 UIDE...

  • Page 41: Tools

    Check if a specific computer is connected to the LAN.  Firmware Update the router’s firmware.  Backup Load or save configuration settings from a backup file or restore the factory default  settings. Reset Manually reset the router.  ESR600H/ESR750H 4-11 UIDE...

  • Page 42: Installation Setup Wizard

    Installation Setup Wizard...

  • Page 43: Detecting The Internet Connection

    Use the Wizard to automatically detect the type of Internet connection. 1. Insert the ESR600H/ESR750H Installation CD into your CD-ROM drive to display the EnGenius Smart Wizard screen. 2. Click Quick Start to continue an display the Wizard Introduction screen.
  • Page 44 NSTALLATION ETUP ETECTING THE NTERNET ONNECTION 3. Click Next to continue or Skip to cancel the wizard. ESR600H/ESR750H UIDE...
  • Page 45 NSTALLATION ETUP ETECTING THE NTERNET ONNECTION 4. The Wizard displays a progress bar while detecting the type of Internet connection. Progress Bar ESR600H/ESR750H UIDE...
  • Page 46 ONNECTION Note: This process may take several seconds. 5. If the ESR600H/ESR750H can not detect the type of Internet connection, the following screen is displayed. 6. Select a login method from the dropdown list. 7. Fill in the required information.
  • Page 47 IP” on page 6-14, “Configuring Static IP” on page 6-16, “Configuring PPPoE” on page 6-17 and “Configuring L2TP” on page 6-22. 8. Click Next to save these settings and continue to the next step; click Rescan to detect the Internet connection method; click Skip to discard changes and continue to the next step. ESR600H/ESR750H UIDE...
  • Page 48 ONNECTION 9. For the Wireless 2.4G connection, in the SSID text field enter a router name and in the Key text field enter a password. WARNING! Select High as the security level to best secure the wireless network. ESR600H/ESR750H UIDE...
  • Page 49 10.For the Wireless 5G connection, in the SSID text field enter a router name and in the Key text field enter a password. WARNING! Select High as the security level to best secure the wireless network. 11.Click Next to save these settings or click Skip to discard changes and continue to the next step. ESR600H/ESR750H UIDE...
  • Page 50 NSTALLATION ETUP ETECTING THE NTERNET ONNECTION 12.Review the settings. 13. Click Apply to save the information entered in the previous steps. The ESR600H/ESR750H setup is complete. ESR600H/ESR750H UIDE...

  • Page 51: Basic Network Settings

    Basic Network Settings...

  • Page 52: System Setup

    The status page shows the summary of the current system status including system (hardware/software version, date/time), Internet connection (WAN), wired network (LAN) and wireless network (WLAN) information. System Model The model name of the ESR600H/ESR750H.  Mode The router’s operating mode (AP / Router / WDS).

  • Page 53: Wan Settings

    YSTEM ETUP WAN Settings Attain IP Protocol Displays the IP protocol in use for the  ESR600H/ESR750H. It can be a dynamic or static IP address. IP Address The router’s IP address as designated by an  ISP provider. Subnet Mask The router’s WAN subnet mask as desig-...

  • Page 54: Lan Settings

    BSSID The unique ID of the BSS using the above channel  value on this router. The ID is the MAC address of the BSSs access point. Associated Clients The number of clients associated  with this SSID. ESR600H/ESR750H UIDE...

  • Page 55: Wireless 5G Setting

    BSSID The unique ID of the BSS using the above channel  value on this router. The ID is the MAC address of the BSSs access point. Associated Clients The number of clients associated  with this SSID. ESR600H/ESR750H UIDE...

  • Page 56: Configuring Lan

    Configure the router’s LAN Subnet Mask 802.1d Spanning Tree The 802.1d Spanning Tree settings is disabled by default. When enabled, the spanning tree pro- tocol is applied to prevent network loops (transmissions won’t pass the same node twice to reach the destination). ESR600H/ESR750H UIDE...

  • Page 57: Dhcp Server

    Start IP The first IP address in the range of addresses assigned by the router. End IP The last IP address in the range of addresses assigned by the router. Domain Name: The domain name of the router. ESR600H/ESR750H UIDE...

  • Page 58: Dns Server

    Relay to forward all queries to a relay, which in turn sends them to an ISP’s DNS server; select None to assign no server. First DNS Server Configure the first, or primary, DNS server. (Default = Relay) Second DNS Server Configure the second, or secondary, DNS server. (Default = None) Click Apply to save the settings. ESR600H/ESR750H UIDE...

  • Page 59: Configuring Dhcp

    DHCP server on the LAN. Click Refresh to update the table. Enable Static DHCP IP Click Enable Static DHCP IP to add more static DHCP IP addresses. Click Reset to return the table to its previous state. ESR600H/ESR750H UIDE...

  • Page 60: Current Static Dhcp Table

    Active static DHCP addresses are listed along with the asso- ciated MAC addresses. Click Delete Selected to remove a selected address. Click Delete All to remove all addresses from the table. Click Reset to return the table to its previous state. Click Apply to save the settings. ESR600H/ESR750H UIDE...

  • Page 61: Configuring Logging

    Shows the current system operations and network activity. Click Save to store data to a log file. Click Clear to empty the log file. Click Refresh to empty the log file and begin updating it with new data. ESR600H/ESR750H 6-10 UIDE...

  • Page 62: Monitoring Bandwidth Usage

    ASIC ETWORK ETTINGS ONITORING ANDWIDTH SAGE 6.1.5 Monitoring Bandwidth Usage View bandwidth usage for LAN and WLAN traffic. Displays the bandwidth usage for the WLAN and LAN net- works. ESR600H/ESR750H 6-11 UIDE...

  • Page 63: Configuring Languages

    ASIC ETWORK ETTINGS ONFIGURING ANGUAGES 6.1.6 Configuring Languages The router supports multiple languages for using the graphical user interface (GUI). Select the language to use from the dropdown list. ESR600H/ESR750H 6-12 UIDE...

  • Page 64: Configuring Wan Settings

    The WAN Settings, or Internet Status, page shows a summary of the current Internet connection information. This section is also shown on the System Status page. WAN Settings Attain IP Protocol Display the IP Protocol type used for  the ESR600H/ESR750H (Dynamic IP Address Static IP Address). IP Address The router’s WAN IP address. ...

  • Page 65: Configuring Dynamic Ip

    Some ISP providers require registering the MAC address of the network interface card (NIC) connected directly to the cable or DSL modem. Clone MAC masks the router's MAC address with the MAC address of the device’s NIC. ESR600H/ESR750H 6-14 UIDE...

  • Page 66: Dns Servers

    Configure the type of DNS server. (Default =  From ISP) First DNS Server Configure the first, or primary, DNS  server. Second DNS Server: Configure the second, or secondary,  DNS server. Click Apply to save the settings. ESR600H/ESR750H 6-15 UIDE...

  • Page 67: Configuring Static Ip

    The maximum transmission unit (MTU) specifies the  largest packet size permitted for an internet transmission. The factory default MTU size for static IP is 1500. The MTU size can be set between 512 and 1500. Click Apply to save the settings. ESR600H/ESR750H 6-16 UIDE...

  • Page 68: Configuring Pppoe

    (PPPoE default: 1492). The MTU size can be set between 512 and 1492. Authentication Type Select the type of authentication  provided by the ISP: Auto, PAP, or CHAP. If unsure of the best setting, select Auto. ESR600H/ESR750H 6-17 UIDE...
  • Page 69 (NIC) connected directly to the cable or DSL modem. Clone MAC masks the router's MAC address with the MAC address of the device’s NIC. Click Apply to save the settings or Cancel to discard the changes. ESR600H/ESR750H 6-18 UIDE...

  • Page 70: Configuring Pptp

    Some ISP providers require registering the MAC address of the network interface card (NIC) connected directly to the cable or DSL modem. Clone MAC masks the router's MAC address with the MAC address of the device’s NIC. ESR600H/ESR750H 6-19 UIDE...

  • Page 71: Static Ip Address

     assign a specific IP address for the router. My IP Address Enter the custom IP address.  My Subnet Mask Enter the custom subnet mask.  Gateway IP Address Enter the custom gateway IP  address. ESR600H/ESR750H 6-20 UIDE...

  • Page 72: Pptp Settings

    Internet connection. The Internet connection will be dropped when the maximum idle time is reached. Valid values are between one and one thousand. Click Apply to save the settings or Cancel to discard the changes. ESR600H/ESR750H 6-21 UIDE...

  • Page 73: Configuring L2Tp

    Some ISP providers require registering the MAC address of the network interface card (NIC) connected directly to the cable or DSL modem. Clone MAC masks the router's MAC address with the MAC address of the device’s NIC. ESR600H/ESR750H 6-22 UIDE...

  • Page 74: Static Ip Address

     assign a specific IP address for the router. My IP Address Enter the custom IP address.  My Subnet Mask Enter the custom subnet mask.  Gateway IP Address Enter the custom gateway IP  address. ESR600H/ESR750H 6-23 UIDE...

  • Page 75: L2Tp Settings

    Internet connection. The Internet connection will be dropped when the maximum idle time is reached. Valid values are between one and one thousand. Click Apply to save the settings or Cancel to discard the changes. ESR600H/ESR750H 6-24 UIDE...

  • Page 76: Wireless 2.4G Lan Setup

    Two modes are available: Access Point or Wireless Distri- bution System (WDS) mode. Provides a connection access point for wireless  devices. Allows the wireless network to be expanded  using multiple access points without wired connec- tions. ESR600H/ESR750H 6-25 UIDE...

  • Page 77: Access Point Mode

    Channel When auto channel is disabled, select a  channel to assign to the wireless network. Valid value are from one to eleven in the US and one to thirteen in the EU. ESR600H/ESR750H 6-26 UIDE...

  • Page 78: Wireless Distribution System Mode

    Set Security Click Set Security to display the WDS  security settings screen. For security configuration set- tings, refer to “WDS Security Settings Screen” on page 6- Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-27 UIDE...
  • Page 79 Select the default encryption key for wire-  less transactions. Encryption Key [#] Enter the encryption key(s) used to  encrypt the data packets during data transmission. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-28 UIDE...
  • Page 80 WPA type. Pre-Shared Key Type Select the type of pre-shared key  as Passphrase (ASCII) or Hexadecimal. Pre-Shared Key Enter the pre-shared Key value.  Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-29 UIDE...

  • Page 81: Configuring Advanced Settings

    RTS Threshold Enter the RTS threshold. If the packet  size is smaller than the RTS threshold, the ESR600H/ ESR750H does not use RTS/CTS to send the data packet. Beacon Interval Enter the beacon interval. This is the ...
  • Page 82 DVANCED ETTINGS N Data Rate Select the N data rate. This is the rate in  which the ESR600H/ESR750H will transmit data packets to wireless N compatible devices. Channel Bandwidth Select the channel bandwidth. The  factory default is Auto 20/40MHz. The default setting provides the best performance by auto selecting channel bandwidth.

  • Page 83: Configuring Security

     server (QoS) to optimize the streaming for bandwidth sensitive data such as HDTV video streaming, online gaming, VoIP, videoconferencing, and etc. Encryption Select the encrypt type for the router.  Click Apply to save the settings. ESR600H/ESR750H 6-32 UIDE...

  • Page 84: Encryption Type

    Open System Wireless stations can associate with  the ESR600H/ESR750H without WEP encryption Shared Key Devices must provide the corresponding  WEP key(s) when connecting to the ESR600H/ ESR750H. Auto  Key Length Select between 64-bit and 128-encryption.  Key Type Select the type of characters used for the ...

  • Page 85: Encryption: Wi-Fi Protected Access (Wpa) Pre-Shared Key

    WPA type. Pre-Shared Key Type Select the type of pre-shared key  as Passphrase (ASCII) or Hexadecimal. Pre-Shared Key Enter the pre-shared Key value.  Click Apply to save the settings. ESR600H/ESR750H 6-34 UIDE...

  • Page 86: Encryption: Wpa Radius

    Enter the IP address of the  server. RADIUS Server Port: Enter the port number of the  server. RADIUS Server Password: Enter the password of the  server. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-35 UIDE...

  • Page 87: Configuring Filter

    Enter a description of the device allowed to  connect to the network. MAC Address Enter the MAC address of the wireless  device. Click Add to append a new device to the list or Reset to dis- card changes. ESR600H/ESR750H 6-36 UIDE...

  • Page 88: Mac Address Filtering Table

    Click Delete Selected to remove selected devices from the list. Click Delete All to remove all devices form the list. Click Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-37 UIDE...

  • Page 89: Configuring Wi-Fi Protected Setup

    ETUP 6.3.5 Configuring Wi-Fi Protected Setup Wi-Fi protected setup (WPS) is an easy way to allow wireless clients to connect to the ESR600H/ESR750H. Automate the connection between the device and the ESR600H/ESR750H using a button or a PIN. Enable or disable WPS.

  • Page 90: Configuring Client List

    ASIC ETWORK ETTINGS ONFIGURING LIENT 6.3.6 Configuring Client List View the 2.4G wireless devices currently connected to the ESR600H/ESR750H. Interface The type of network connected to the device.  MAC Address The MAC address of device connected to  network.

  • Page 91: Wireless Lan 5G Setup

    Two modes are available: Access Point or Wireless Distri- bution System (WDS) mode. Provides an access point for wireless devices to  connect to. Access points expand the wireless coverage  area by connecting to each other and acting as one. ESR600H/ESR750H 6-40 UIDE...

  • Page 92: Access Point Mode

    Channel When auto channel is disabled, select a  channel to assign to the wireless network. Wireless Distribution System Mode Configure the wireless settings of the router in WDS mode. ESR600H/ESR750H 6-41 UIDE...
  • Page 93 Set Security Click Set Security to display the WDS  security settings screen. For security configuration set- tings, refer to “WDS Security Settings Screen” on page 6- Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-42 UIDE...
  • Page 94 Select the default encryption key for wire-  less transactions. Encryption Key [#] Enter the encryption key(s) used to  encrypt the data packets during data transmission. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-43 UIDE...
  • Page 95 WPA type. Pre-Shared Key Type Select the type of pre-shared key  as Passphrase (ASCII) or Hexadecimal. Pre-Shared Key Enter the pre-shared Key value.  Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-44 UIDE...

  • Page 96: Configuring Advanced Settings

    RTS Threshold Enter the RTS threshold. If the packet  size is smaller than the RTS threshold, the ESR600H/ ESR750H will not use RTS/CTS to send the data packet. Beacon Interval Enter the beacon interval. This is the ...
  • Page 97 DVANCED ETTINGS Data Rate: Select the data rate. This is the rate in which  the ESR600H/ESR750H will transmit data packets to wireless devices. N Data Rate Select the N data rate. This is the rate in  which the ESR600H/ESR750H will transmit data packets to wireless N compatible devices.

  • Page 98: Configuring Security

     server (QoS) to optimize the streaming for bandwidth sensitive data such as HDTV video streaming, online gaming, VoIP, videoconferencing, and etc. Encryption Select the encrypt type for the router.  Click Apply to save the settings. ESR600H/ESR750H 6-47 UIDE...

  • Page 99: Encryption Type

    Wireless stations can associate with  the ESR600H/ESR750H without WEP encryption Shared Key Devices must provide the corresponding  WEP key [up to 4] when connecting to the ESR600H/ ESR750H. Auto The ESR600H/ESR750H automatically gener-  ates a passphrase. Key Length Select between 64-bit and 128-encryption.

  • Page 100: Encryption: Wi-Fi Protected Access (Wpa) Pre-Shared Key

    WPA type. Pre-Shared Key Type Select the type of pre-shared key  as Passphrase (ASCII) or Hexadecimal. Pre-Shared Key Enter the pre-shared Key value.  Click Apply to save the settings. ESR600H/ESR750H 6-49 UIDE...

  • Page 101: Encryption: Wpa Radius

    Enter the IP address of the  server. RADIUS Server Port: Enter the port number of the  server. RADIUS Server Password: Enter the password of the  server. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-50 UIDE...

  • Page 102: Configuring Filters

    Enter a description of the device allowed to  connect to the network. MAC Address Enter the MAC address of the wireless  device. Click Add to append a new device to the list or Reset to dis- card changes. ESR600H/ESR750H 6-51 UIDE...

  • Page 103: Mac Address Filtering Table

    Click Delete Selected to remove selected devices from the list. Click Delete All to remove all devices form the list. Click Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-52 UIDE...

  • Page 104: Configuring Wi-Fi Protected Setup

    ETUP 6.4.5 Configuring Wi-Fi Protected Setup Wi-Fi protected setup (WPS) is an easy way to allow wireless clients to connect to the ESR600H/ESR750H. Automate the connection between the device and the ESR600H/ESR750H using a button or a PIN. Enable or disable WPS.

  • Page 105: Configuring Client List

    > C ASIC ETWORK ETTINGS ONFIGURING LIENT 6.4.6 Configuring Client List View the 5G wireless devices currently connected to the ESR600H/ESR750H. Interface The type of network connected to the device.  MAC Address The MAC address of device connected to ...

  • Page 106: Firewall Setup

    6.5.1 Configure Basic Settings The ESR600H/ESR750H firewall automatically detects and blocks Denial of Service (DoS) attacks. URL blocking, packet fil- tering and stateful packet inspection (SPI) are also supported. The details of the attack and the timestamp are recorded in the security log.

  • Page 107: Configuring Advanced Settings

    Click Select to allow an  IPSec connection method over a VPN. Click Apply to save the settings or Cancel to discard changes. Note: VPN L2TP Pass-through, VPN PPTP Pass-through, and VPN IPSec Pass-through are enabled by factory default. ESR600H/ESR750H 6-56 UIDE...

  • Page 108: Configuring Demilitarized Zone

    DMZ host. Enable DMZ Click Enable DMZ to activate DMZ func-  tionality. Local IP Address Enter an IP address of a device on the  LAN. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-57 UIDE...

  • Page 109: Configuring Denial Of Service

    DoS attacks can flood the internet connection with the continuous transmission of data. Blocking these attacks ensures that the internet connection is always available. WAN Settings Block DoS Enable or disable blocking DoS attacks. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-58 UIDE...

  • Page 110: Virtual Private Network Setup

    A Virtual Private Network (VPN) provides a secure connection between two remote locations or two users over the Internet. It provides authentication to securely encrypt data communicated between the two remote endpoints. The ESR600H/ESR750H supports up to 5 VPN tunnels, making it ideal for small-office and home-office (SOHO) users.

  • Page 111: Using The Virtual Private Network Wizard

    The virtual private network (VPN) wizard guides the administrator through setting up a VPN over four different connection methods. The VPN setup wizard introduction screen. Click Next to continue. Create a name for the VPN tunnel in the Name field. ESR600H/ESR750H 6-60 UIDE...
  • Page 112 ETTINGS SING THE IRTUAL RIVATE ETWORK IZARD Click Back to return to the previous step; Click Next to continue with the setup; Click Cancel to stop the setup. Select the type of VPN connection method to setup. ESR600H/ESR750H 6-61 UIDE...

  • Page 113: L2Tp

    Server IP Enter an IP address which is different from the  router’s LAN IP address. For example: ESR600H/ESR750H default IP: 192.168.0.1 Configure the IP address as 10.0.174.45 Remote IP Range Enter an IP range under the same  subnet as the above server IP.
  • Page 114 If the setup is successful, the following screen is displayed. To enable the VPN policy immediately, click the check box. Click Back to return to the previous step. Click Apply to save the settings and continue. Click Cancel to stop the setup. ESR600H/ESR750H 6-63 UIDE...

  • Page 115: Pptp

    Server IP: Enter an IP address which is different from the  router’s LAN IP address. For example: ESR600H/ESR750H default IP: 192.168.0.1 Configure the IP address as 10.0.174.45 Remote IP Range: Enter an IP range under the same  subnet as the above server IP.
  • Page 116 If the setup is successful, the following screen is displayed. To enable the VPN policy immediately, click the check box. Click Back to return to the previous step. Click Apply to save the settings and continue. Click Cancel to stop the setup. ESR600H/ESR750H 6-65 UIDE...

  • Page 117: Configuring A Vpn Tunnel Profile

    Manually configure a VPN tunnel profile. Click Add to begin creating a new VPN tunnel profile. On the General tab, enter the following information: Name The name of the VPN tunnel profile.  Connection Type: Select a connection type.  ESR600H/ESR750H 6-66 UIDE...

  • Page 118: Pptp

    Select the users in the list to include in the VPN tunnel, then click >> to add users to the Member field. Click << if you want to remove users from the Member box. Click Add to manually add available users. ESR600H/ESR750H 6-67 UIDE...
  • Page 119 Server IP Enter an IP address which is different from the  router’s LAN IP address. For example: the default LAN IP of the ESR600H/ ESR750H is 192.168.0.1. set the server IP address as 10.2.2.1. Remote IP Range Enter an IP range under the same ...

  • Page 120: L2Tp

    VPN tunnel, and click the forward arrow to then add them to the Member Box. Click the backward arrow if you want to remove users from the Member box. Click Add to manually add available users. ESR600H/ESR750H 6-69 UIDE...
  • Page 121 IP address which is different from  your router’s LAN IP address. For example: If the LAN IP of the ESR600H/ESR750H is 192.168.0.1, configure the server IP address as 10.2.2.1. Remote IP Range: enter an IP range under the same ...

  • Page 122: Configuring A User Profile

    Table of Current VPN Users Click Delete Selected to remove selected devices from the list. Click Delete All to remove all devices form the list. Click Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-71 UIDE...

  • Page 123: Advanced Network Settings

    Public IP Addresses. NAT provides firewall protection from hacker attacks and allows for mapping LAN IP addresses to WAN IP addresses with key services such as websites, FTP, video game servers, etc. Click Enable or Disable to activate or deactivate the NAT. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-72 UIDE...

  • Page 124: Port Mapping Setup

    Select the protocol to use for mapping from the  following: TCP, UDP or Both. Port Range Enter the range of ports to be forwarded.  Click Add to append a new device to the list or Reset to dis- card changes. ESR600H/ESR750H 6-73 UIDE...
  • Page 125 Click Delete Selected to remove selected devices from the list. Click Delete All to remove all devices form the list. Click Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-74 UIDE...

  • Page 126: Port Forwarding Setup

    Enter the LAN port number that WAN client  packets will be forward to. Public Port Enter the WAN port number that clients will  send their packets to. Click Add to append a new configuration to the table or Reset to discard changes. ESR600H/ESR750H 6-75 UIDE...
  • Page 127 The table of current port forwarding configurations. Click Delete Selected to remove selected devices from the list. Click Delete All to remove all devices form the list. Click Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-76 UIDE...

  • Page 128: Port Triggering Setup

    Sending packets out over the local port triggers the router to open an incoming local port that is mapped to the same public port and application as the outgoing local port(s). The local application can communicate over the incoming and outgoing ports without the need for creating a fixed address. ESR600H/ESR750H 6-77 UIDE...
  • Page 129 2300-2400 or 47624. Public Type Select the protocol to use for the inbound  port from the following: TCP, UDP or Both. Click Add to append a new configuration to the table or Reset to discard changes. ESR600H/ESR750H 6-78 UIDE...
  • Page 130 The list of current port triggering configurations. Click Delete Selected to remove selected devices from the list. Click Delete All to remove all devices form the list. Click Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-79 UIDE...

  • Page 131: Application Layer Gateway Setup

    Select the listed applications that need ALG support and then the router will authorize them to pass through the NAT gateway. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-80 UIDE...

  • Page 132: Universal Plug And Play Setup

    UPnP helps internet devices, such as gaming and videoconferencing, to access the network and connect to other registered UPnP devices. Click Enable or Disable to activate or deactivate UPnP. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-81 UIDE...

  • Page 133: Internet Group Multicast Protocol Setup

    Internet Group Multicast Protocol (IGMP) is a network-layer protocol used to establish membership in a multicast group. Click Enable or Disable to activate or deactivate IGMP. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-82 UIDE...

  • Page 134: Quality Of Service Setup

    Total Bandwidth Settings Uplink Select the maximum bandwidth speed for outbound traffic. Downlink Select the maximum bandwidth speed for inbound traffic. Note: Click Disabled if you do not want to prioritize any data or protocol. ESR600H/ESR750H 6-83 UIDE...

  • Page 135: Priority Queue

    Enter the local IP address of a device  on the network. This device’s activity is not restricted by the QoS feature. High/Low Priority Queue: Specify the priority for differ-  ent protocols. Additional protocols and port ranges can be added. ESR600H/ESR750H 6-84 UIDE...

  • Page 136: Bandwidth Allocation

     (bps), of the current configuration. Click Add to save the settings and list the configuration in the Current QoS table or Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-85 UIDE...

  • Page 137: Routing Setup

    6.7.9 Routing Setup Typically static routing does not need to be setup because the ESR600H/ESR750H has adequate routing information after it has been configured for Internet access. Static routing is only necessary if the router is connected to network under a different subnets.

  • Page 138: Nat Enabled

    Click Add to save the settings and list the configuration in the Current Static Routing table or Reset the discard changes. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-87 UIDE...

  • Page 139: Wake On Lan Setup

    Enter the server port of the device to activate. Wake MAC Address Enter the MAC address of the device to activate. Click Start to activate the device. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-88 UIDE...

  • Page 140: Usb Port Setup

    The USB Port feature allows the router to be used as a file server or a virtual USB port on a local device. To enable NetUSB mode, the Control Center software must be installed on the intended device. For more information about the ESR600H/ ESR750H’s wireless services, refer to “USB Services”...
  • Page 141 Click Server Mode to enable the router’s USB port as a server. NetUSB Mode Click NetUSB Mode to enable the router’s USB port as a virtual, local USB port. Click Apply to save the settings or Cancel to discard changes. ESR600H/ESR750H 6-90 UIDE...

  • Page 142: Tools Setup

    Enable: Select to enable remote management.  Click Apply to save the settings or Cancel to discard changes. Note: To access the settings of the ESR600H/ESR750H remotely, enter the router’s WAN IP address and port number. ESR600H/ESR750H 6-91 UIDE...

  • Page 143: Configuring The Router's Time

    ASIC ETWORK ETTINGS ONFIGURING THE OUTER 6.8.2 Configuring the Router’s Time Change the system time of the ESR600H/ESR750H and setup automatic updates through a network time protocol server (NTP). Time Setup Select how the router obtains the current  time.

  • Page 144: Configuring Dynamic Domain Name Service

    Select the DDNS Server Address.  Host Name Enter the DDNS provider static domain  name. Username Enter the username given by the DDNS pro-  vider. Password Enter the password given by the DDNS pro-  vider. ESR600H/ESR750H 6-93 UIDE...

  • Page 145: Diagnosing A Network Connection

    If the ping result returns alive, it means a device is on line. This feature does not work if the target device is behind a firewall or has security software installed. Address to Ping Enter IP address of the device to ping.  Ping Result View the result message from the ping test.  ESR600H/ESR750H 6-94 UIDE...

  • Page 146: Upgrading Firmware

    To update the firmware version, follow these steps: 1. Download the appropriate firmware approved by EnGe- nius Networks from an approved web site. 2. Click Choose File. 3. Browse the file system and select the firmware file. 4. Click Apply. ESR600H/ESR750H 6-95 UIDE...

  • Page 147: Backing Up Settings

    Click Reset to restore the  ESR600H/ESR750H to factory defaults. Backup Settings Click Save to save the current configu-  ration on the ESR600H/ESR750H to a *.dlf file. Restore Settings To restore saved settings, do the fol-  lowing: a. Click Choose File.

  • Page 148: Rebooting The Device

    > R ASIC ETWORK ETTINGS EBOOTING THE EVICE 6.8.7 Rebooting the Device This feature allows the administrator to reboot the router in the event of a system hang up. Click Apply to reset the device. ESR600H/ESR750H 6-97 UIDE...

  • Page 149: Usb Services

    USB Services...
  • Page 150 ERVICES The ESR600H/ESR750H provides two ways to access USB devices over a network: server mode and NetUSB mode. In server mode, the router allows USB storage devices to act as a file servers which can be shared by users connected to the same network.

  • Page 151: Usb Over Ip

    Connect & Disconnect Connecting to a USB device with the EnGenius USB Control Center simulates plugging a USB device into a PC. Similarly, disconnecting a USB device simulates unplugging a USB device from a PC. Once connected, the USB device can be used as if it were physically connected to the PC.

  • Page 152: Installation Of A Usb Device Driver

    4. In the Control Center, click the USB device server that has the USB device attached. 5. Click the USB device as in the following figure. 6. Click Connect. The message Manually Connect by your_computer_name is shown, as the following figure. ESR600H/ESR750H ANUAL...
  • Page 153 7. The installation program detects the USB device and continues the installation. 8. After the installation is complete, select the USB device in the Control Center and click Disconnect to disconnect the USB device. The USB device driver has been successfully installed. ESR600H/ESR750H ANUAL...

  • Page 154: Using The Usb Device Server

    6. To finish using the USB device, Select the USB device in the Control Center and click Disconnect to disconnect the USB device. Other PCs can not connect to the USB device while it is in use by another PC. ESR600H/ESR750H ANUAL...

  • Page 155: Printer And Scanner Sharing

    1. Connect the USB printer to the device server’s USB port. 2. Open the Control Centre software to perform a search of available devices. 3. In the Control Center, select the USB device server that has the printer attached. 4. Select the printer. ESR600H/ESR750H UIDE...
  • Page 156 IRELESS ERVICES RINTER AND CANNER HARING 5. Click Auto Connect Printer. ESR600H/ESR750H UIDE...
  • Page 157 6. Select Set Auto-Connect Printer on the context menu to display the Add to Auto-Connect Printer List dialogue. Note: The selected printer in the dialogue must match the physical printer attached to the USB device server. 7. Select a printer from the list. 8. Click Apply. ESR600H/ESR750H UIDE...
  • Page 158 IRELESS ERVICES RINTER AND CANNER HARING 9. The printer is displayed in the list with the label Auto-Connected Printer in red. ESR600H/ESR750H UIDE...

  • Page 159: Viewing A List Of Auto-Connected Printers

    To remove a printer from the list, do the following: 1. Click the Tools menu item on the Control Centre. 2. Click the Auto-Connect Printer List submenu item to display the Auto-Connect Printer List dialogue. 3. Select the printer to remove. 4. Click Delete. ESR600H/ESR750H 7-10 UIDE...

  • Page 160: Printing To An Auto-Connected Printer

    Perform a print operation in the usual manner but make sure to select auto-connected printer in the software’s printer options. The Control Centre manages the auto-connect operation with the USB device printer each time a print job is requested, so no manual intervention is required. ESR600H/ESR750H 7-11 UIDE...

  • Page 161: Configuring The Control Centre As A Windows Service

    1. Click the Tools menu item on the Control Centre. 2. Click the Configuration submenu item to display the Control Centre - Configure dialogue. 3. Click Automatically execute when logging on Windows. 4. To complete the operation, do the following: ESR600H/ESR750H 7-12 UIDE...
  • Page 162 RINTER AND CANNER HARING Click OK to save the settings and close the dialogue.  Click Cancel to discard changes and close the dialogue.  Click Apply to save the settings but keep the dialogue open.  ESR600H/ESR750H 7-13 UIDE...

  • Page 163: Network Scanners

    1. Connect the USB scanner to the device server’s USB port. 2. Open the Control Centre software to perform a search of available devices. 3. In the Control Center, select the USB device server that has the scanner attached. 4. Select the scanner. ESR600H/ESR750H 7-14 UIDE...
  • Page 164 IRELESS ERVICES RINTER AND CANNER HARING 5. Click Network Scanner to connect to the device and display the following dialogue. 6. Select a scanner device in the list. ESR600H/ESR750H 7-15 UIDE...
  • Page 165 7. Click OK to display the scanner device configuration dialogue. 8. Perform the scan operation. 9. After the scan operation is complete, close the Auto-Connect Scanner dialogue (step 5). 10.The Control Centre automatically disconnects the scanning device. ESR600H/ESR750H 7-16 UIDE...

  • Page 166: Storage

    If the USB storage device is a flash drive, the new disk is a displayed as a removable disk. The USB storage device can be viewed the system tray in the Remote Devices icon. Remove the USB storage device in the usual manner. ESR600H/ESR750H 7-17 UIDE...

  • Page 167: Request To Connect

    If a USB device is manually connected by another user, it can not be connected by another PC. There is a way to send a mes- sage to the PC using the device and request control. In the Control Centre, click Request to Connect to display the follow- ing dialogue. ESR600H/ESR750H 7-18 UIDE...

  • Page 168: Quitting The Control Center

    Exit submenu item. Limitations There are some limitations to using the NetUSB technology. 1. It supports Windows 2000/XP/2003/Vista and above. 2. Only one PC can get the ownership of the same USB device at the same time. ESR600H/ESR750H 7-19 UIDE...

  • Page 169: Shair Music

    1. Connect the USB speakers to the device server’s USB port. 2. Open the Control Centre software to perform a search of available devices. 3. In the Control Center, select the USB device server that has the speakers attached. ESR600H/ESR750H 7-20 UIDE...
  • Page 170 IRELESS ERVICES USIC 4. Select the USB speaker device. 5. Click Connect. The message Manually Connect by your_computer_name is shown. 6. The USB speaker device is available for use with iOS devices. ESR600H/ESR750H 7-21 UIDE...

  • Page 171: Play Music From Itunes

    2. Launch iTunes and click the AirPlay icon displayed in the lower right of the window and select your shAir Music device from the list. 3. Choose a song and click play in iTunes. 4. The music will stream to your shAir Music Server. ESR600H/ESR750H 7-22 UIDE...

  • Page 172: Multiple Speakers

    You can easily stream music from iTunes to multiple speakers in your home. 1. Click the AirPlay icon and select Multiple Speakers from the list. 2. Click the speakers you want to use. Figure 7-1. shAir Music Server Connected to iTunes ESR600H/ESR750H 7-23 UIDE...

  • Page 173: Streaming Music Stored From An Ios Device Directly To The Shair Music Server

    Streaming Music Stored from an iOS Device Directly to the shAir Music Server If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later, you can stream music stored in your “iPhone/iPod touch/ iPad” directly to your shAir Music Server. 1. Tap the AirPlay icon ESR600H/ESR750H 7-24 UIDE...
  • Page 174 IRELESS ERVICES USIC 2. Select the speaker you want to use. ESR600H/ESR750H 7-25 UIDE...

  • Page 175: Samba

    1. This product supports file formats FAT12/16/32 and NTFS. The NTFS write operation is only supported in NetUSB mode. 2. EnGenius Networks is not responsible for the loss or corruption of data in memory devices, including hard disks; EnGe- nius Networks is not responsible for the leaking, manipulation, loss, or corruption of data in memory devices connected to the Server after unauthorized access.

  • Page 176: Connecting Usb Mass Storage To The Server

    IRELESS ERVICES AMBA Connecting USB Mass Storage to the Server Server USB Storage ESR600H/ESR750H 7-27 UIDE...

  • Page 177: Supported Codepages

    3. The Web manager will show, click Config button and enter the server administrator username (default: admin) and password (default: admin). 4. After you have logged in successfully, setting General configuration dialog appears. 5. Select your codepage form File Server Codepage box and click Apply. ESR600H/ESR750H 7-28 UIDE...

  • Page 178: Using Shared Storage By Usb Server Mode For Windows

    Server’s User Account. 8. The shared folders will be listed as sdax where x represents the x-th disk with respect to the USB port. 9. Perform Open, Paste, Remove or Copy the files to the shared folders. ESR600H/ESR750H 7-29 UIDE...

  • Page 179: Federal Communication Commission Interference Statement

    PPENDIX EDERAL OMMUNICATION OMMISSION NTERFERENCE TATEMENT Appendix A Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion.
  • Page 180 PPENDIX EDERAL OMMUNICATION OMMISSION NTERFERENCE TATEMENT FCC Radiation Exposure Statement Important: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2).

  • Page 181: Industry Canada Statement

    Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. ESR600H/ESR750H ANUAL...

  • Page 182: Link Layers

    MTU: Maximum Transmission Unit. It specifies the largest packet size permitted for internet transmission. The factory default MTU size of Static IP is 1500. If you wish to manually change the MTU size, set it between 512 and 1500. ESR600H/ESR750H UIDE...

  • Page 183: Point-To-Point Protocol Over Ethernet (Pppoe)

    MTU: Maximum Transmission Unit. It specifies the largest packet size permitted for internet transmission. The factory default MTU size of Static IP is 1500. If you wish to manually change the MTU size, set it between 512 and 1500. ESR600H/ESR750H UIDE...
