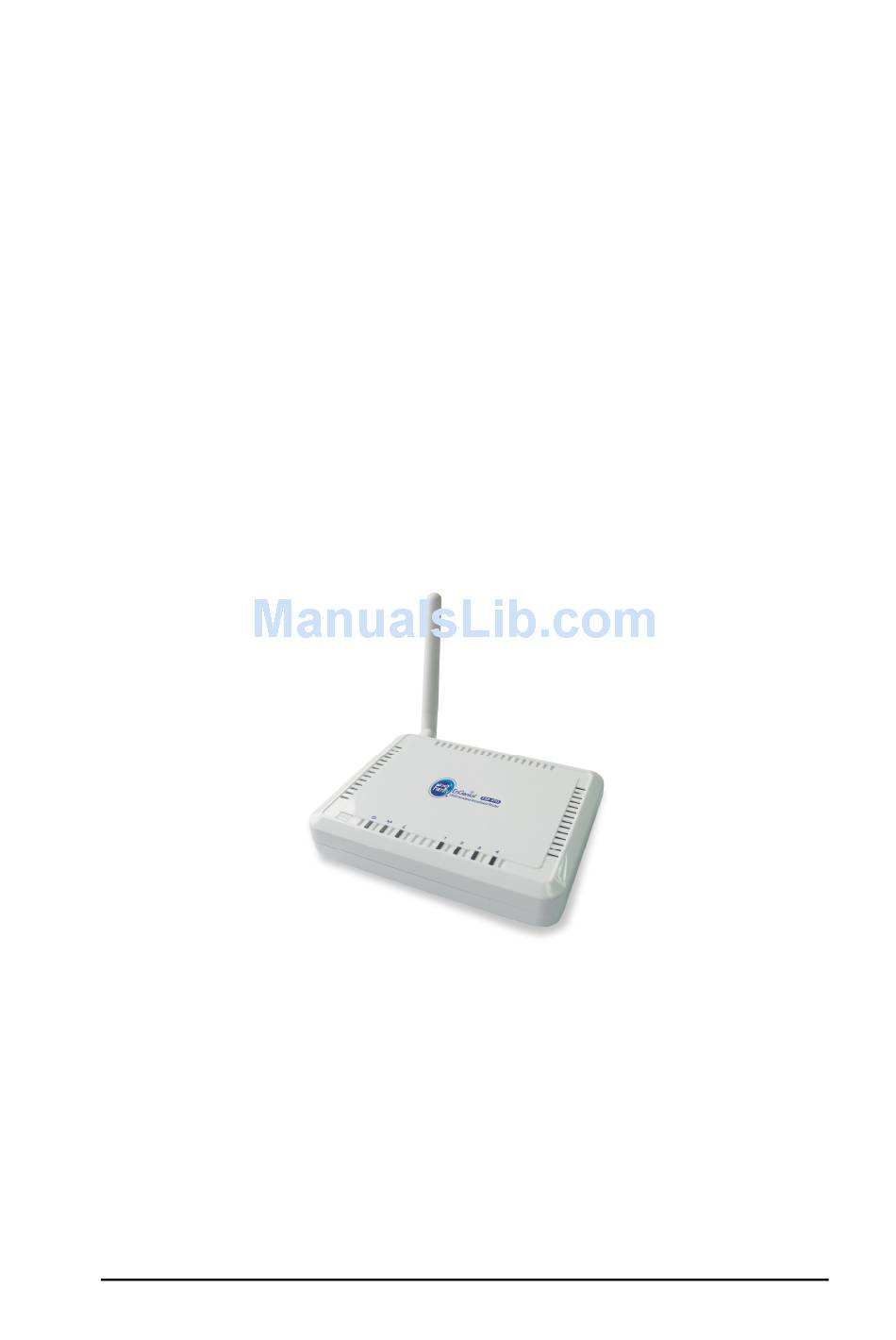

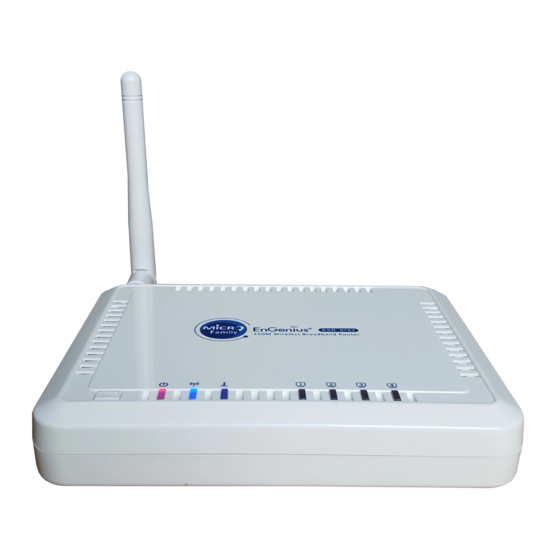

ESR-9753
Wireless Broadband Router
Ultra Speed
(IEEE 802.11 b/g)
User Manual
Version: 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESR-9753 and is the answer not in the manual?

Questions and answers

Related Manuals for EnGenius ESR-9753

Summary of Contents for EnGenius ESR-9753

  • Page 1 ESR-9753 Wireless Broadband Router Ultra Speed (IEEE 802.11 b/g) User Manual Version: 1.0...

  • Page 2: Table Of Contents

    PRODUCT LAYOUT ........................7 NETWORK + SYSTEM REQUIREMENTS................9 ESR-9753 PLACEMENT......................9 SETUP LAN, WAN ........................10 PC NETWORK ADAPTER SETUP (WINDOWS XP) ............11 BRING UP ESR-9753 .........................13 SMART WIZARD ........................13 INITIAL SETUP ESR-9753 .......................22 12 AP ROUTER MODE........................24 13 REPEATER MODE ........................77 APPENDIX A – FCC INTERFERENCE STATEMENT..............93...

  • Page 3: Revision History

    Revision History Version Date Notes November 18, 2008 Modified from existing UM.

  • Page 4: Introduction

    1 Introduction Congratulations on your purchase of ESR-9753 Wireless Network Broadband Router. ESR-9753 is compatible with 802.11g & 802.11b gadgets. ESR-9753 is not only a Wireless Access Point, but also doubles as a 4-port full-duplex Switch that connects your wired-Ethernet devices together at incredible speeds.

  • Page 5: Key Features

    2 Key Features Features Advantages Incredible Data Rate up to 150Mbps** Heavy data payloads such as MPEG video streaming IEEE 802.11b/g Compliant Fully Interoperable with IEEE 802.11b / IEEE 802.11g compliant devices with legacy protection Scalability, extend your network. Four 10/100 Mbps Fast Switch Ports (Auto-Crossover) Firewall supports, DMZ, MAC Filter, IP Avoids the attacks of Hackers or...

  • Page 6: Package Contents

    3 Package Contents Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package. 1. SOHO Router 2.

  • Page 7: Product Layout

    4 Product Layout...
  • Page 8 Description POWER Lights up when powered ON. Blinks on TEST/RESET WLAN Lights up in ORANGE when WLAN is enabled. Blinks on traffic LAN PORT ACTIVY Blinks on traffic for specific LAN PORT 100 Mbps Lights up when 100 Mbps data rate enabled on that specific port ITEM Description...

  • Page 9: Network + System Requirements

    Few Ethernet compatible CAT5 cables. 6 ESR-9753 Placement You can place ESR-9753 on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.

  • Page 10: Setup Lan, Wan

    7 Setup LAN, WAN LAN connection: Connect Ethernet cable between your PC/Notebook LAN port & one of the 4 available LAN ports on ESR-9753. WAN connection: Connect Ethernet cable between WAN ports of your ADSL/CABLE modem & INTERNET port of ESR-9753. Make sure your ADSL/CABLE modem is working well.

  • Page 11: Pc Network Adapter Setup (Windows Xp)

    8 PC Network Adapter setup ( Windows XP Enter [Start Menu] select [Control panel] select [Network]. Select [Local Area Connection]) icon=>select [properties]...
  • Page 12 Select [Internet Protocol (TCP/IP)] =>Click [Properties]. Select the [General] tab. a. ESR-9753 supports [DHCP] function, please select both [Obtain an IP address automatically] and [Obtain DNS server address automatically].

  • Page 13: Bring Up Esr-9753

    Microsoft Windows compatible PC/Notebook with UPnP enabled network adapter. CAT 5 network cable(s), RJ45 port on PC/Notebook. STEP 1 Connect ESR-9753 WAN port & your modem LAN port with RJ45 cable. STEP 2 Power up ESR-9753.POWER led on front panel lights up & remains stable. STEP 3...
  • Page 14 Explorer and find the root directory of CD. Double click on Wizard.exe icon to run it. Double click on Wizard.exe icon to run it. Click Setup Wizard to setup your ESR-9753. Click User Manual to open user manual. Click Adobe Reader to install Adobe Acrobat reader on your PC/Notebook.
  • Page 15 Setup Wizard Click <Next> to proceed. Click <Exit> to abort.
  • Page 16 ESR-9753 should be setup as depicted above. Make sure your DSL/CABLE modem is setup and working. Else take the help of your internet service provider. Click <Next> to proceed. Check the MODEM and ESR-9753 connection. It should be as shown below.
  • Page 17 Check power connection for modem as well as ESR-9753. Make sure the antenna is connected to rear panel of ESR-9753. Click <Next> to proceed. Notice the LED will light up at this stage. If not, check your procedures again. Click <Next> to configure WAN & Wireless settings.
  • Page 18 User name and password are admin/admin. Click <OK>. Your default browser will connect to ESR-9753 Web Server http://192.168.0.1...
  • Page 19 Click <Next> to enter mode selection. Select the mode that ESR-9753 is going to be and set its configurations. AP Repeater mode does not enable WAN interface, Setup Wizard will skip WAN Configuration. Click <Next> to automatically detect your Internet Network settings.
  • Page 20 You could choose your service type or select Others to setup WAN configurations manually. Smart Wizard has detected DHCP client. Configure the host name and MAC address of ESR-9753. Click Next to proceed. Smart Wizard has finished setting up WAN Configuration. Click <Next> to proceed.
  • Page 21 Enter the name for your wireless network (SSID) and security key Click <Next> to proceed To apply the entire configuration, click <Reboot>. NOTE: After Wireless settings are applied, you need to connect from your WLAN client with the security settings you just finished configuring. Remember the type of security &...

  • Page 22: Initial Setup Esr-9753

    11 Initial Setup ESR-9753 ESR-9753 uses web-interface for configuration to be accessed through your web browser, such as Internet Explorer or Firefox. - LOGIN Procedure 1. OPEN your browser (e.g. Internet Explorer). 2. Type http://192.168.0.1 in address bar and hit [Enter] button on your...
  • Page 23 3. Click <OK> to navigate into ESR-9753 configuration home page. 4. You will see the home page of ESR-9753 as follows.

  • Page 24: Ap Router Mode

    12 AP Router Mode System - Status This page allows you to monitor the current status of your router. System: You can see the Uptime, hardware information, serial number as well as firmware version information. WAN Settings: This section displays whether the WAN port is connected to a Cable/DSL connection.
  • Page 25 LAN Settings: This section displays the Broadband router LAN port’s current information. It also shows whether the DHCP Server function is enabled / disabled. WLAN Settings: This section displays the current WLAN configuration settings. Wireless configuration details such as SSID, Security settings, BSSID, Channel number and mode of operation are briefly shown.
  • Page 26 - LAN The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry level user, try accessing a website from your browser. If you can access website without a glitch, just do not change any of these settings. Click <Apply>...
  • Page 27 DHCP Server DHCP Server: This can enable or disable the Dynamic Pool setting. Lease time: This is the lease time of each assigned IP address. Start IP: This is the beginning of the IP pool for DHCP client hosts. End IP:. This is the end of the IP pool for DHCP client hosts Domain name: The Domain Name for the existing or customized network.
  • Page 28 - Schedule This page allows users to set up schedule function for Firewall and Power Saving...
  • Page 29 Edit schedule options to allow configuration of firewall and power savings services. Fill in the schedule and select type of service. Click <Apply> to keep the settings.

  • Page 30: Event Log

    The schedule table lists the pre-schedule service-runs. You can select any of the schedule record using the check box. - Event Log View operation event log. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save>...
  • Page 31 - Monitor Show histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently. - Language This Wireless Router support multiple language of web pages, You could select your native language here.
  • Page 32 Wizard Click Wizard to configure the Broadband Router. Setup wizard will now be displayed; check that the modem is connected and click <Next>. The details please refer to Smart Wizard <Page 13>.
  • Page 33 INTERNET - Status This page shows the current Internet connection type and status - Dynamic IP Use the MAC address when registering for Internet service, and do not change it unless required by your ISP. If your ISP used the MAC address of the Ethernet card as an identifier, connect only the PC with the registered MAC address to the broadband router and click the <Clone MAC Address>...
  • Page 34 - Static IP If your ISP Provider has assigned a fixed IP address, enter the assigned IP address, Subnet mask, Default Gateway IP address, and Primary DNS and Secondary DNS (if available) of your ISP provider. - Point-to-Point over Ethernet Protocol (PPPoE)
  • Page 35 Login / Password: Enter the PPPoE username and password assigned by your ISP Provider. Service Name: This is normally optional. Maximum Transmission Unit (MTU): This is the maximum size of the packets. Type: Enable the Automatic Connection option to automatically re-establish the connection when an application attempts to access the Internet again.

  • Page 36: Wireless Settings

    Click <Apply> to save configuration and connect to ISP provider. Wireless Settings - Basic In basic setting page, you can set wireless Radio, Mode, Band, SSID, and Channel. Radio: You can turn on/off wireless radio. If wireless Radio is off, you cannot associate with AP through wireless.
  • Page 37 2.4 GHz(B): If all your clients are 802.11b, select this one. 2.4 GHz(N): If all your clients are 802.11n, select this one. 2.4 GHz(B+G): Either 802.11b or 802.11g wireless devices are in your environment. 2.4 GHz(G): If all your clients are 802.11g, select this one. 2.4 GHz(B+G+N): Either 802.11b, 802.11g, or 802.11n wireless devices are in your environment.
  • Page 38 - WDS with AP Router Wireless Distribution System, system that enables wireless interconnection of access point, allows a wireless network to be extended using multiple APs without a wired backbone to link them. Each WDS AP needs same channel and encryption type settings. MAC address 1~4: Please enter the MAC address(es) of the neighboring APs which participate in WDS.
  • Page 39 - Advanced This tab allows you to set the advanced wireless options. You should not change these parameters unless you know what effect the changes will have on the router. Fragment Threshold: This specifies the maximum size of a packet during the fragmentation of data to be transmitted.
  • Page 40 DTIM Period: Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM). A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages. Data Rate: The “Data Rate” is the rate that this access point uses to transmit data packets.
  • Page 41 Disabling “Broadcast ESSID” can provide better security. WMM: Wi-Fi MultiMedia if enabled supports QoS for experiencing better audio, video and voice in applications. Encryption: When you choose to disable encryption, it is very insecure to operate ESR-9753.
  • Page 42 Enable 802.1x Authentication IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not encrypt the data during communication. WEP Encryption When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to encrypt data.
  • Page 43 Authentication Type: There are two authentication types: "Open System" and "Shared Key". Both AP and wireless client must be configured with the same authentication type. Key Length: You can select the WEP key length for encryption, 64-bit or 128-bit. The larger the key will be the higher level of security is used, but the throughput will be lower.
  • Page 44 WPA-Radius Encryption Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. Press <Apply>...

  • Page 45: Mac Address Filtering

    - MAC Address Filtering This wireless router supports MAC Address Control, which prevents unauthorized clients from accessing your wireless network. Enable wireless access control: Enable the wireless access control function Adding an address into the list Enter the "MAC Address" and "Description" of the wireless station to be added and then click <Add>.

  • Page 46: Wi-Fi Protected Setup (Wps)

    - Wi-Fi Protected Setup (WPS) WPS is the simplest way to establish a connection between the wireless clients and the wireless router. You don’t have to select the encryption mode and fill in a long encryption passphrase every time when you try to setup a wireless connection.
  • Page 47 WPS: Check the box to enable WPS function and uncheck it to disable the WPS function. WPS Current Status: If the wireless security (encryption) function of this wireless router is properly set, you’ll see a ‘Configured’ message here. Otherwise, you’ll see ‘UnConfigured’. Self Pin Code: This is the WPS PIN code of the wireless router.

  • Page 48: Client List

    - Client List This WLAN Client Table shows the Wireless client associate to this Wireless Router. - Policy The Broadband router can allow you to set up the Wireless Access Policy. WAN Connection: Allow Wireless Client on specific SSID to access WAN port. Communication between Wireless...

  • Page 49: Firewall Settings

    Firewall Settings The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).
  • Page 50 - Demilitarized Zone (DMZ) If you have a client PC that cannot run an Internet application (e.g. Games) properly behind the NAT firewall, then you can open up the firewall restrictions to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN.
  • Page 51 - Denial of Service (DoS) The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. Ping of Death: Protections from Ping of Death attack. Discard Ping From WAN: The router’s WAN port will not respond to any Ping requests Port Scan: Protects the router from Port Scans.

  • Page 52: Mac Filter

    - MAC Filter If you want to restrict users from accessing certain Internet applications / services (e.g. Internet websites, email, FTP etc.), and then this is the place to set that configuration. MAC Filter allows users to define the traffic type permitted in your LAN.
  • Page 53 Add PC MAC Address Fill in “LAN MAC Address” and <Description> of the PC that is allowed / denied to access the Internet, and then click <Add>. If you find any typo before adding it and want to retype again, just click <Reset> and the fields will be cleared.
  • Page 54 - IP Filter Enable IP Filtering: Check to enable or uncheck to disable IP Filtering. Deny: If you select “Deny” then all clients will be allowed to access Internet except for the clients in the list below. Allow: If you select “Allow” then all clients will be denied to access Internet except for the PCs in the list below.

  • Page 55: Url Filter

    - URL Filter You can block access to some Web sites from particular PCs by entering a full URL address or just keywords of the Web site. Enable URL Blocking: Enable or disable URL Blocking Add URL Keyword Fill in “URL/Keyword” and then click <Add>. You can enter the full URL address or the keyword of the web site you want to block.
  • Page 56 Remove URL Keyword If you want to remove some URL keywords from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click <Delete Selected>. If you want remove all URL keywords from the table, click <Delete All> button. If you want to clear the selection and re-select again, just click <Reset>.

  • Page 57: Advanced Settings

    Advanced Settings - Network Address Translation (NAT) Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.

  • Page 58: Port Mapping

    - Port Mapping Port Mapping allows you to re-direct a particular range of service port numbers (from the Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the router NAT firewall. Enable Port Mapping: Enable or disable port mapping function. Description: description of this setting.
  • Page 59 Add Port Mapping Fill in the "Local IP", “Protocol”, “Port Range” and "Description" of the setting to be added and then click "Add". Then this Port Mapping setting will be added into the "Current Port Mapping Table" below. If you find any typo before adding it and want to retype again, just click <Reset>...
  • Page 60 Enable Port Forwarding: Enable or disable Port Forwarding. Description: The description of this setting. Local IP / Local Port: This is the LAN Client/Host IP address and Port number that the Public Port number packet will be sent to. Protocol: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default “both”...
  • Page 61 - Port Triggering (Special Applications) Some applications require multiple connections, such as Internet games, video Conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Enable Trigger Port: Enable or disable the Port Trigger function. Trigger Port: This is the outgoing (Outbound) range of port numbers for this particular application.
  • Page 62 Popular Applications: This section lists the more popular applications that require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-5) in the “Add” selection box and then click the <Add> button.
  • Page 63 - Application Layer Gateway (ALG) You can select applications that need ALG support. The router will let the selected application to correctly pass through the NAT gateway. - UPNP With UPnP, all PCs in you Intranet will discover this router automatically. So, you don’t have to configure your PC and it can easily access the Internet through this router.
  • Page 64 Enable/Disable UPnP: You can enable or Disable the UPnP feature here. After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without having to configure anything. The NAT Traversal function provided...
  • Page 65 Priority Queue This can put the packets of specific protocols in High/Low Queue. The packets in High Queue will process first. Unlimited Priority Queue: The LAN IP address will not be bounded in the QoS limitation. High/Low Priority Queue: This can put the packets in the protocol and port range to High/Low QoS Queue.
  • Page 66 Bandwidth Allocation: This can reserve / limit the throughput of specific protocols and port range. You can set the upper bound and Lower bound. Type: Specify the direction of packets. Upload, download or both. IP range: Specify the IP address range. You could also fill one IP address Protocol: Specify the packet type.
  • Page 67 Disabled: This could turn off QoS feature. - Routing You can set enable Static Routing to let the router forward packets by your routing policy. Destination LAN IP: Specify the destination LAN IP address of static routing rule. Subnet Mask: Specify the Subnet Mask of static routing rule. Default Gateway: Specify the default gateway of static routing rule.

  • Page 68: Tools Settings

    TOOLS Settings - Admin You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive. Old Password: Fill in the current password to allow changing to a new password. New Password: Enter your new password and type it again in Repeat New Password for verification purposes...
  • Page 69 Remote managemen This allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Host Address: This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site.

  • Page 70: Time Setup

    - Time The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings. Time Setup: Synchronize with the NTP server Time Zone: Select the time zone of the country you are currently in. The router will set its time based on your selection.
  • Page 71 Synchronize with PC You could synchronize timer with your Local PC time. PC Date and Time: This field would display the PC date and time. Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
  • Page 72 - DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS, TZO and other common DDNS service providers.
  • Page 73 - Power Saving power in WLAN mode can be enabled / disabled in this page. - Diagnosis This page could let you diagnosis your current network status.
  • Page 74 - Firmware This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page.
  • Page 75 - Back-up This page allows you to save the current router configurations. When you save the configurations, you also can re-load the saved configurations into the router through the Restore Settings. If extreme problems occur you can use the Restore to Factory Defaults to set all configurations to its original default settings.
  • Page 76 - Reset You can reset the broadband router when system stops responding correctly or stop functions.

  • Page 77: Repeater Mode

    13 Repeater Mode Repeater mode has limited settings compared to the AP mode. Choose “Repeater mode” on the top right corner of the configuration page. System restarts and connects to the IP address http://192.168..0.1 You will see the configuration homepage under “REPEATER” mode now. System - Status System status section allows you to monitor the current status of your router.
  • Page 78 WLAN Settings: Wireless configuration details such as SSID, Security settings, BSSID, Channel number, mode of operation are briefly shown. - LAN The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry level user, try accessing a website from your browser. If you can access website without a glitch, just do not change any of these settings.
  • Page 79 802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is enabled, this router will use the spanning tree protocol to prevent network loops. - Schedule Add schedule, edit schedule options allow configuration of power savings services. Fill in the schedule and select type of service.
  • Page 80 - Event Log View operation log of ESR-9753. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save> to a local file for further processing or the system log can be cleared <Clear>...
  • Page 81 - Monitor Show the network packets histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently. - Language This Wireless Router support multiple language of web pages, you could select your native language here.
  • Page 82 Wireless -Basic You can set parameters that are used for the wireless stations to connect to this router. The parameters include Mode, ESSID, Channel Number and Associated Client. Radio: Enable or Disable Wireless function Band: Allows you to set the AP fixed at 802.11b, 802.11g or 802.11n mode. You can also select B+G mode to allow 802.11b and 802.11g clients at the same time.
  • Page 83 Site Survey: You can scan the current Wireless Access Point and connect on it. -Client List This WLAN Client Table shows the Wireless client associate to this Wireless Router.
  • Page 84 -Policy The Broadband router can allow you to set up the Wireless Access Policy. Communication between Wireless clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID. Communication between Wireless clients and wired clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID and Wired Client on the switch.
  • Page 85 Tools - Admin You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive. Old Password: Fill in the current password to allow changing to a new password. New Password: Enter your new password and in Repeat New Password for verification purposes Click <Apply>...
  • Page 86 Remote managemen This allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Host Address: This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site.
  • Page 87 - Time The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Event Log entries and Schedule settings. Time Setup: Synchronize with the NTP server Time Zone: Select the time zone of the country you are currently in. The router will set its time based on your selection.
  • Page 88 Synchronize with PC You could synchronize timer with your Local PC time. PC Date and Time: This field would display the PC date and time. Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
  • Page 89 - Power Saving power in WLAN mode can be enabled / disabled in this page. - Diagnosis This page could let you diagnosis your current network status.
  • Page 90 - Firmware This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file on your PC.
  • Page 91 - Back-up The page allows you to save (Backup) the router’s current configuration settings. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. If extreme problems occur you can use the Restore to Factory Defaults selection, this will set all configurations to its original default settings (e.g.
  • Page 92 - Reset You can reset the broadband router when system stops responding correctly or stop functions.

  • Page 93: Appendix A - Fcc Interference Statement

    Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 94: Appendix B - Ic Interference Statement

    Appendix B – IC Interference Statement Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
