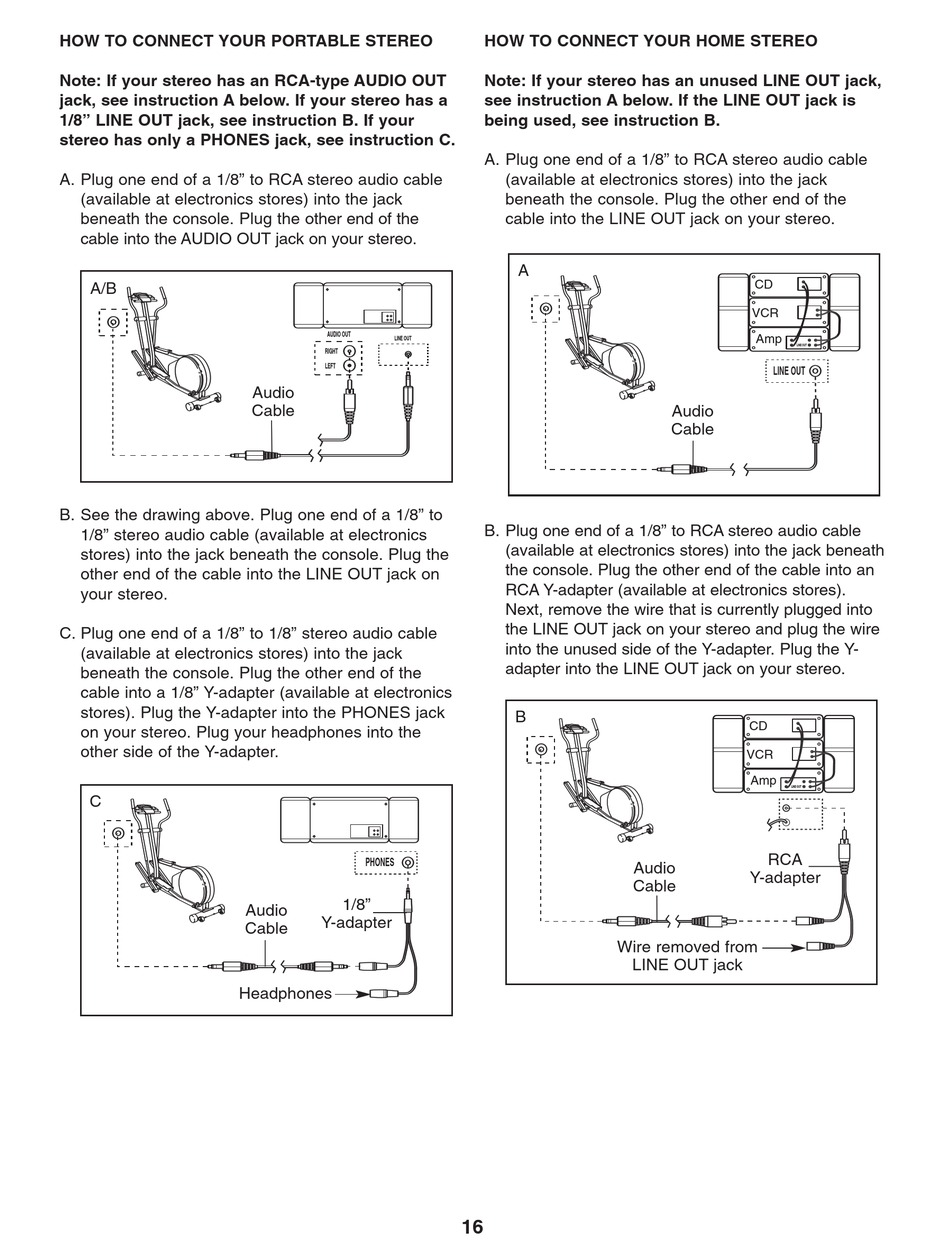

Pro-Form PFCCEL3805.0 User Manual page 16

HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
A/B
B. See the drawing above. Plug one end of a 1/8" to
1/8" stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
C
AUDIO OUT
LINE OUT
RIGHT
LEFT
AUDIO OUT
LINE OUT
RIGHT
LEFT
Audio
A
Cable
A LINE OUT
LINE OUT
B
B
PHONES
1/8"
Audio
Y-adapter
Cable
Headphones PHONES
C
C
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
A
B. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Y-
adapter into the LINE OUT jack on your stereo.
B
Audio
Cable
Wire removed from
LINE OUT jack
16
CD
CD
VCR
VCR
Amp
LINE OUT
Amp
LINE OUT
LINE OUT
LINE OUT
Audio
Cable
A
A
CD
CD
VCR
VCR
Amp
LINE OUT
Amp
LINE OUT
RCA
Y-adapter
B
B
