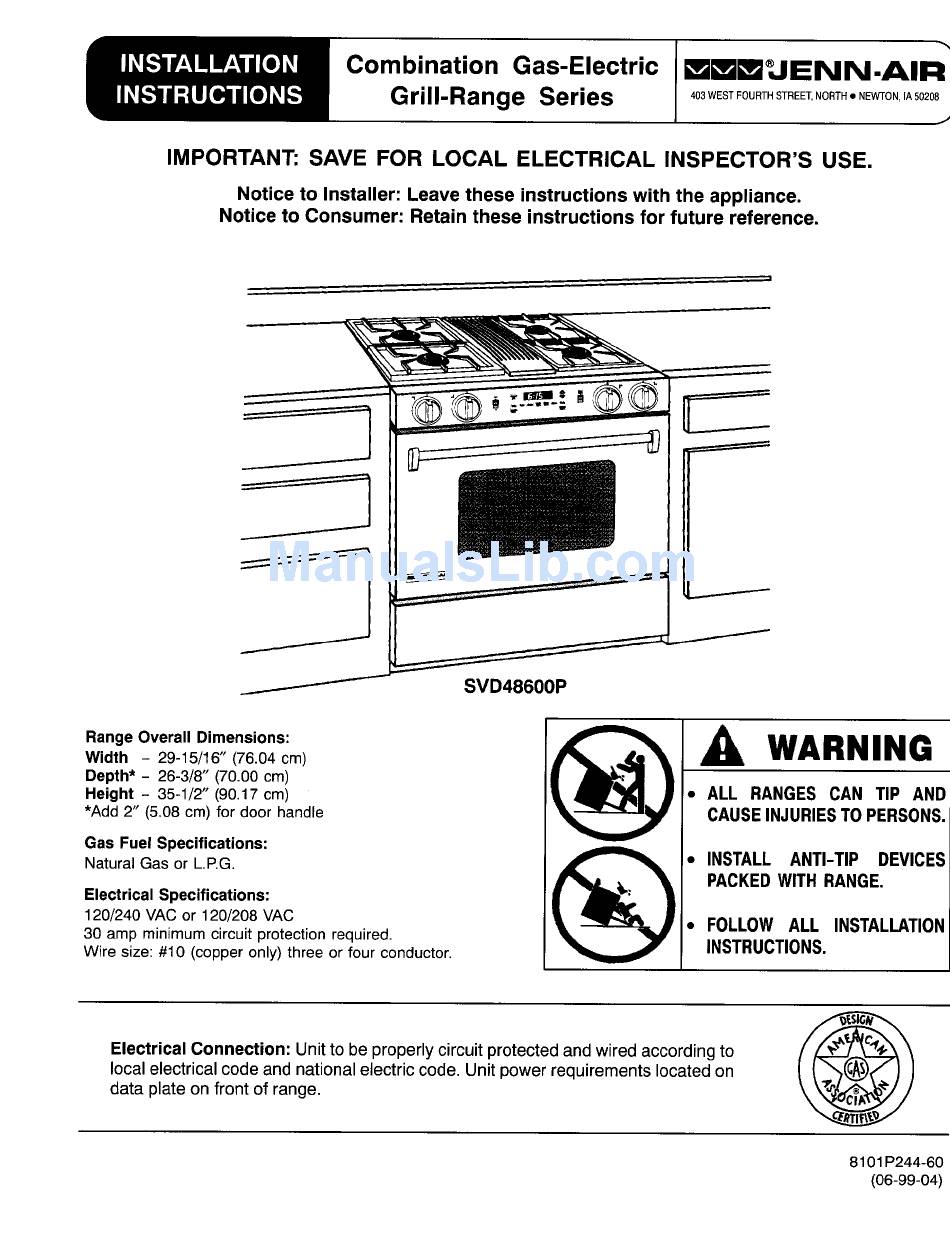

Jenn-Air SVD48600P Installation Instructions Manual

Combination Gas-Electric L_[][]_JENN.AI R
Grill-Range Series .03 wEsT FOORTH STREET NORT..._O_ ,_ _0_0_
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
Notice to Installer: Leave these instructionswith the appliance.
Notice to Consumer: Retain these instructions for future reference.

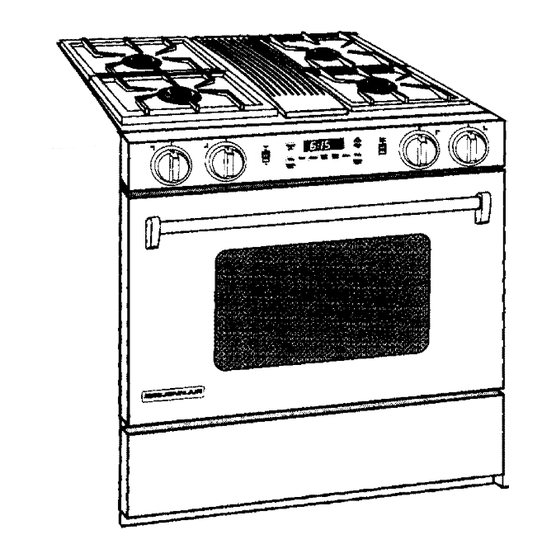

.__ SVD486OOP
Range Overall Dimensions: J _ _ i
Width - 29-15/18" (76.04 cm) A WARNING
Depth* - 26-3/8" (70.00 cm) I
Height- 35-1/2" (90.17cm) ,e ALL RANGES CAN TIP AND
*Add 2" (5.08 cm) for door handle CAUSEINJURIESTO PERSONS.
Gas Fuel Specifications:
NaturalGas or L.P.G. __) " PACKEDINSTALL WITHANTI-TIPRANGE.DEVIC
Electrical Specifications: (
120/240VAC or 120/208VAC
30 amp minimum circuit protection required. •
FOLLOWALL INSTALLATION
Wire size: #10 (copperonly) three or four conductor. INSTRUCTIONS.
Electrical Connection: Unit to be properly circuit protected and wired according to /' ___ \
local electrical code and national electric code. Unit power requirements located on
data plate on front of range.
8101P244-60
(06-99-04)
