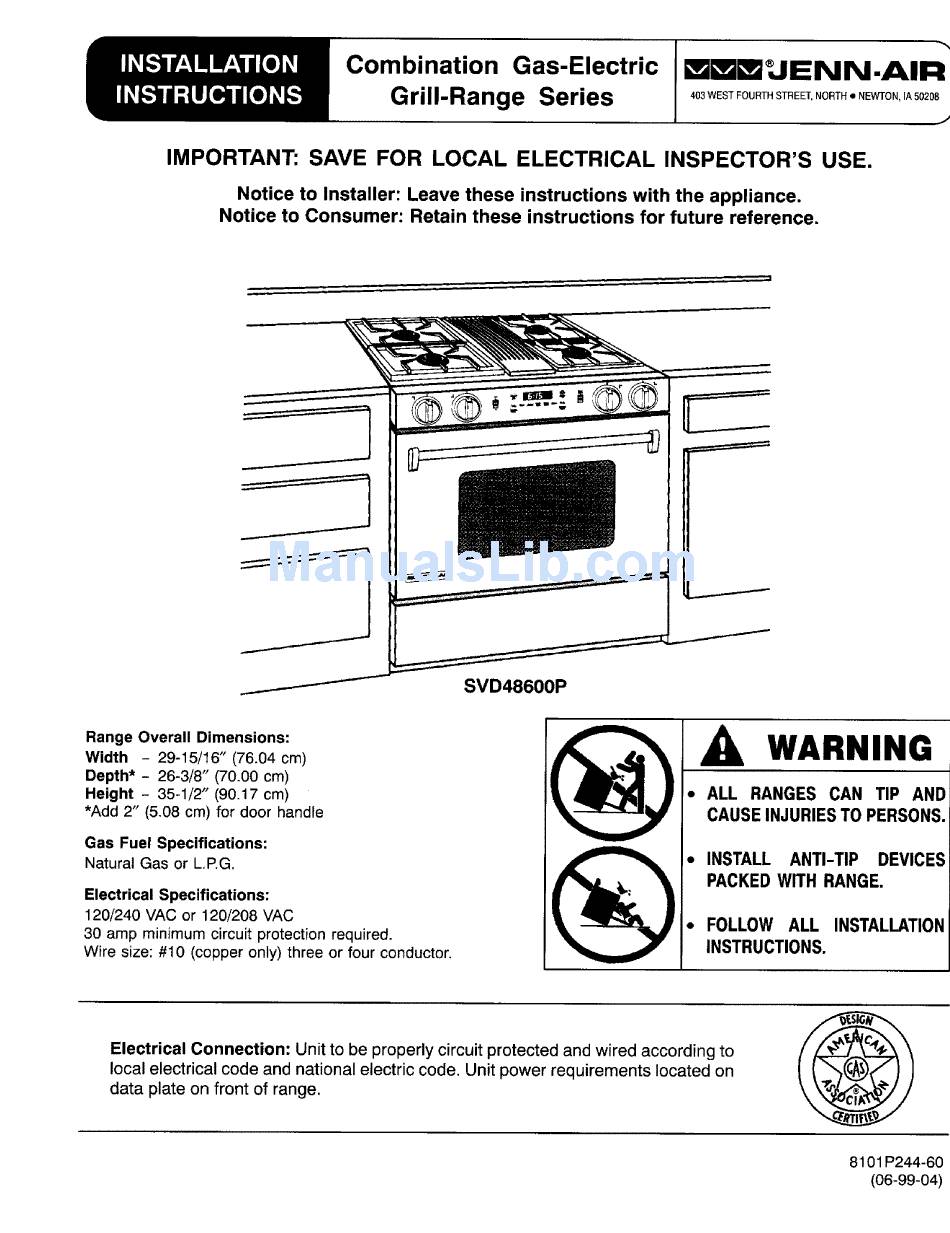

Jenn-Air SVD48600P Installation Instructions Manual

Combination Gas-Electric
Grill-Range Series
mm UENN.AIR
403 WEST FOURTH STREET,NORTH • NEWTON,IA 50208
J
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
Notice to Installer: Leave these instructions with the appliance.
Notice to Consumer: Retain these instructions for future reference.
J

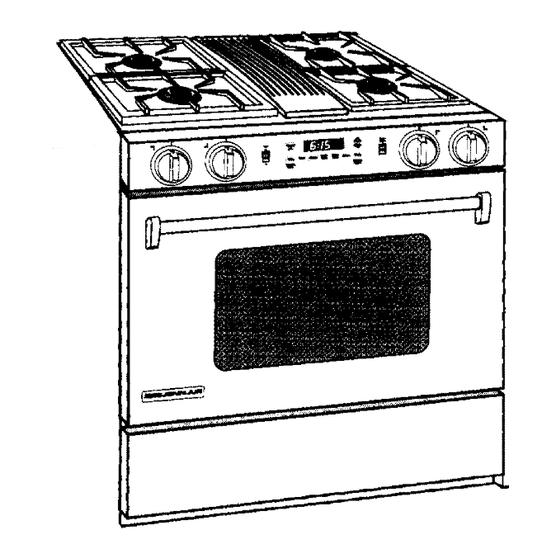

SVD486OOP
Range Overall Dimensions:
Width - 29-15/16" (76.04 cm)
Depth* - 26-3/8" (70.00 cm)
Height - 35-1/2" (90.17 cm)
*Add 2" (5.08 cm) for door handle
Gas Fuel Specifications:
Natural Gas or L,P.G.
Electrical Specifications:
120/240 VAC or 120/208 VAC
30 amp minimum circuit protection required.
Wire size: #10 (copper only) three or four conductor.
WARNING
ALL RANGES CAN TIP AND
CAUSE INJURIES TO PERSONS.
INSTALL ANTI-TIP DEVICES
PACKED WITH RANGE.
FOLLOW ALL INSTALLATION
INSTRUCTIONS.
Electrical Connection: Unit to be properly circuit protected and wired according to
local electrical code and national electric code. Unit power requirements located on
data plate on front of range,
8101 P244-60
(06-99-04)
