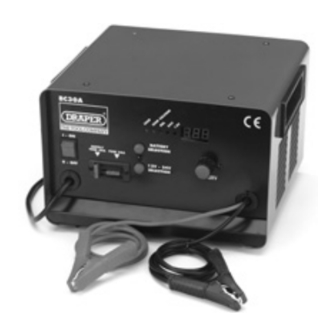

Draper BC30A Instructions Manual

Draper BC30A Instructions Manual

230v automatic

Advertisement

230V AUTOMATIC
BATTERY CHARGER
■ STOCK No.78667
■ PART No.BC30A
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS TOOL.
11/2004

GENERAL INFORMATION

This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed
and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary
information to ensure its correct and safe use. We recommend that this manual is read before any operation or,
before performing any kind of adjustment to the product and prior to any maintenance tasks. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together with
longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC30A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Draper BC30A

  • Page 1: General Information

    11/2004 GENERAL INFORMATION This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references. This manual describes the purpose for which the product has been designed and contains all the necessary information to ensure its correct and safe use.
  • Page 2: Table Of Contents

    Safety Features ........................ 5 Getting to Know Your Battery Charger ................6 Operation and Use ..................... 7-10 DECLARATION OF CONFORMITY Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. England. Declare under our sole responsibility that the product: Stock No:- 78667.
  • Page 3: Specification/Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period.
  • Page 4: Power Supply

    (i.e. red). Fuse covers are available from your Draper Tools stockist. If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted.
  • Page 5: General Safety Instructions

    IMPORTANT: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.
  • Page 6: Safety Features

    SAFETY FEATURES This battery chargers is fitted with the following safety features: 1. Polarity inversion protection. 2. Short circuit overload protection. 3. Thermal overload protection. Explanation of Symbols Featured on Rating Label: This is an indication that the machine is fitted with automatic overload protection. NOTE: After an extended period of charging especially in the "fast"...
  • Page 7: Getting To Know Your Battery Charger

    GETTING TO KNOW YOUR BATTERY CHARGER (10) (1) On/Off switch. (6) Charge capacity dial. (2) Battery selector button. (7) Insulated battery clamps. (3) Indicator LED's. (8) Voltage selector button. (4) Digital display. (9) 30A Fuses. (5) Handle. (10) BS Moulded plug and cable. UNPACKING: After removing the packing material, make sure the product is in perfect condition and that there are no visible damaged parts.
  • Page 8: Operation And Use

    Loss of codes for audio and security systems can be avoided by connecting a Draper Memory Saver (Part No.CMS1 - Stock No.38330) or similar product before disconnecting the battery. Check the car battery voltage matches that of the charger's capability.
  • Page 9 OPERATION AND USE It is recommended to remove the battery from the vehicle. With the machine disconnected from the power supply, connect the positive red clamp (+) to the positive terminal of the battery and connect the negative black clamp (-) to the negative/earth terminal of the battery.
  • Page 10 OPERATION AND USE BATTERY CAPACITY SELECTION (FIG.3.): Rotate dial until the batteries Ah (amp hour) rating is displayed (30 - 200Ah). The Ah rating is usually marked on the battery by the voltage information. Once set the charger will input the appropriate current into the battery according to it's size/capacity.
  • Page 11 OPERATION AND USE NOTE: If the charger is accidentally operated when not connected to a battery, power to the leads is denied to prevent sparking or short circuit. FUSE (FIG.5.): Fig.5. As an additional protection method the unit is fitted with 30 amp blade fuse. If a problem is encountered the fuse will blow to avoid damage to the charger or battery.
  • Page 12 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
