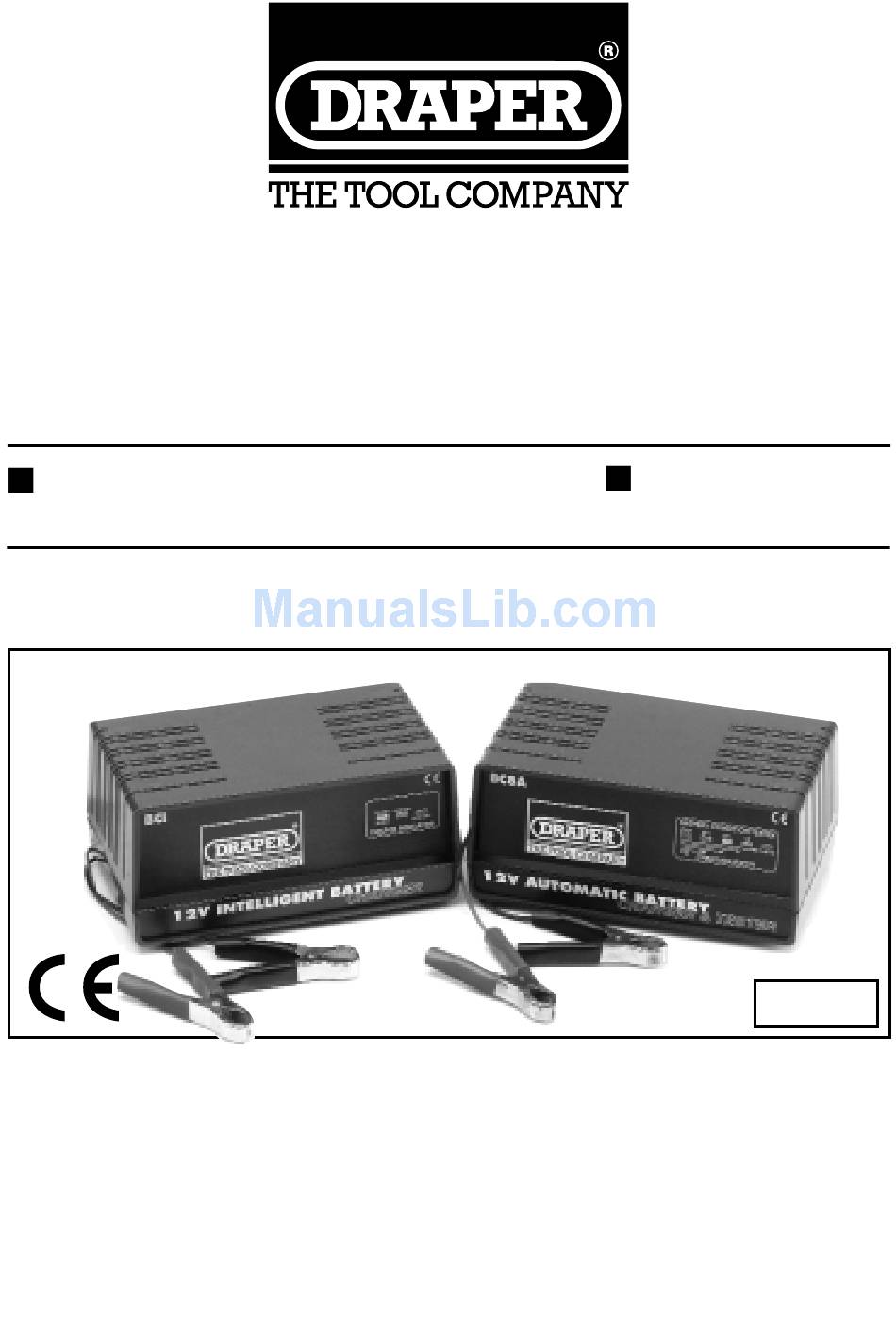

AUTOMATIC/
INTELLIGENT
BATTERY CHARGERS
PART No.BC8A
PART No.66800
66806
BCI
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS TOOL.
10/2001
GENERAL INFORMATION
This manual has been compiled by Draper Tools and is an integrated part of the equipment, which should be
kept with the product.
This manual describes the purpose for which this tool has been designed and contains all the necessary
information to ensure its correct and safe use.We recommend that this manual is read before any operation of
the machine, before performing any kind of adjustment to the machine, and prior to any maintenance tasks. By
following all the general safety instructions contained in this manual, it will ensure both machine and operator
safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tool
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 66800
Summary of Contents for Draper 66800
-
Page 1: General Information
10/2001 GENERAL INFORMATION This manual has been compiled by Draper Tools and is an integrated part of the equipment, which should be kept with the product. This manual describes the purpose for which this tool has been designed and contains all the necessary information to ensure its correct and safe use.We recommend that this manual is read before any operation of... -
Page 2: Table Of Contents
Power Supply ....................5 Getting to Know Your Battery Charger..............6 Operation & Use ..................7-10 DECLARATION OF CONFORMITY Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. England. Declare under our sole responsibility that the product: Stock Nos. :- 66800 & 66806. -
Page 3: Specification/Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period. -
Page 4: General Safety Information
IMPORTANT Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you. -
Page 5: Safety Features
SAFETY FEATURES SAFETY FEATURES Both battery chargers are fitted with the following safety features: 1. Polarity inversion protection (BCI model has audible protection). Short circuit overload protection. 3. Thermal overload protection. Explanation of Symbols Featured on Rating Label This symbol indicates machine is for indoor use only. Indication that the machine is double insulated. -
Page 6: Power Supply
(i.e. red). Fuse covers are available from your Draper Tools stockist. If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted. -
Page 7: Getting To Know Your Battery Charger
GETTING TO KNOW YOUR BATTERY CHARGER Fig.1 ✘✌ ✕✌ ✗✌ ✖✌ Fig.1 1. Charging unit. 2. Insulated battery clips. 3. LED display. 4. BS Non removable moulded plug & cable. - 6 -... -
Page 8: Operation & Use
OPERATION & USE BATTERY INFORMATION Before proceeding with the charging of the battery ensure that the battery to be charged is within the recommended amperage range for the charger (see table below). RECOMMENDED RECOMMENDED PART NO. MIN. Ah MAX. Ah. 20Ah 55Ah BC8A... - Page 9 OPERATION & USE Battery testing (Only Available on BC8A Fig.2. ✫✌ Model) (Fig.2) To use the battery testing facility on the charger. Firstly ensure the charger is disconnected from the mains power supply (230V AC). Connect the positive charging lead ✪✌ (RED) to the positive terminal ✪✌...
- Page 10 These batteries often have cells with no filler caps and therefore cannot be topped up with distilled water. For charging these types of batteries we strongly advise the use of a Draper Automatic Charger (Part No. BC8A) or Draper Intelligent Charger (Part No.BCI). These chargers have been designed to monitor the status of the battery during charging.
-
Page 11: Operation & Use
OPERATION AND USE CHARGING YOUR BATTERY Fig.3. NOTE: Whilst carrying out the actions ensure ✮✌ the battery charger is NOT connected to the mains supply (230V AC). While connected to the vehicle If you intend to charge the battery whilst it is still connected to the vehicle, make sure that all electrical loads are switched off. - Page 12 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
