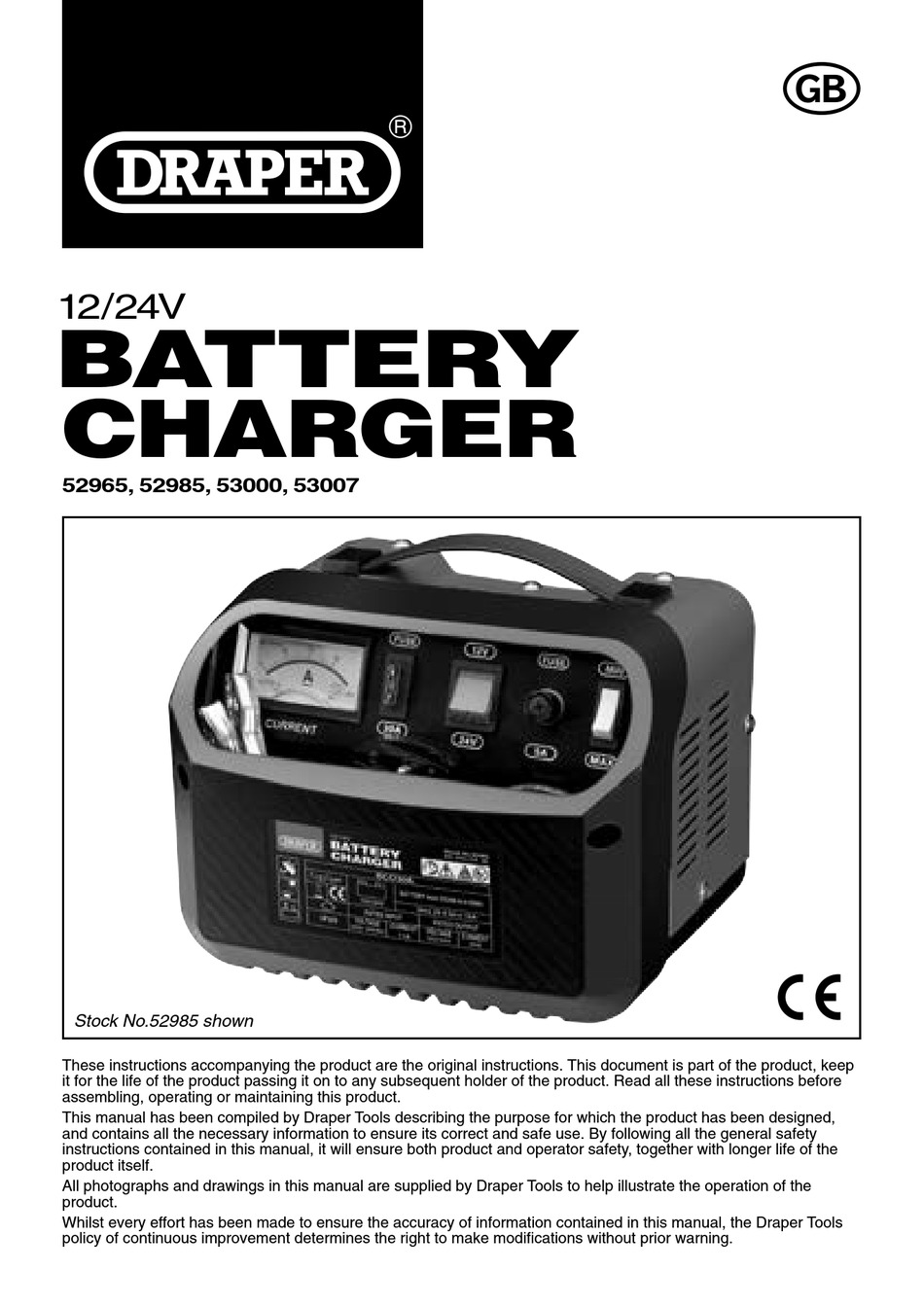

Stock No.52985 shown
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper BCD18A
Summary of Contents for Draper BCD18A
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE .................. -
Page 4: Warranty 3.1 Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
Any application other than that it was intended for, is considered misuse. SPECIFICATION Stock No:....52965 ......52985 ......53000 ....... 53007 Part No:....BCD18A ....BCD30A .....BCD40A ......BCD50A Rated input: Rated voltage ...230V ......230V ......230V .........230V Rated frequency ..50Hz ......50Hz ...... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 7: Additional Safety Instructions For Battery Chargers
Do not tamper with this product. Repairs and maintenance must be carried out by an authorized service agent. Only use genuine Draper spare parts. Do not modify this product in any way. Wear approved safety goggles (not safety glasses) and latex/nitrile gloves. Before charging a maintenance type battery the electrolyte (battery acid) must be filled to the maximum marked levels. -
Page 8: Residual Risk
HEALTH AND SAFETY INFORMATION The battery terminal not connected to the chassis has to be connected first. The other connection is to be made to the chassis, remove from the battery and fuel line. The battery charger is then to be connected to the mains. -
Page 9: Technical Description

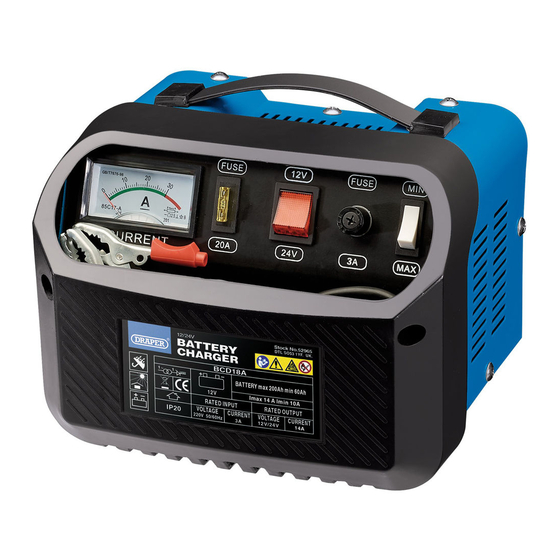

TECHNICAL DESCRIPTION IDENTIFICATION (10) Stock No.52985 shown (1) Carry handle. (2) Input fuse. (3) Power boost switch. (4) Ventilation grilles. (5) Mains plug and cable. (6) 12/24V Selection switch. (7) Output fuse. (8) Ammeter – output charge current. (9) Positive (Red) clamp. (10) Negative (Black) clamp. -
Page 10: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 11: Operation
OPERATION BEFORE CHARGING YOUR BATTERY We recommend that the battery is disconnected from the vehicle, this will avoid any possible damage to the alternator. Loss of codes for audio and security etc, can be prevented by connecting a memory saving device, or similar. -
Page 12: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING MAINTENANCE AND STORAGE After use, the machine should be cleaned of any dirt or grease before coiling up the leads and storing in a dry, clean environment, out of the reach of children. TROUBLESHOOTING GUIDE Remove the plug from the power supply before carrying out any adjustment, servicing or maintenance. -
Page 13: Explanation Of Symbols
10. EXPLANATION OF SYMBOLS 10.1 EXPLANATION OF SYMBOLS Read the instruction manual. Protect from sunlight. Warning! Reverse polarity protection. Do not use near naked flames. Class1 (earthed). WEEE – Warning! Risk of explosive Waste Electrical & Electronic Equipment. gases. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. -
Page 14: Disposal
11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 15 NOTES – 15 –...
