Summary of Contents for Chauvet Intimidator Wash Zoom 250 IRC

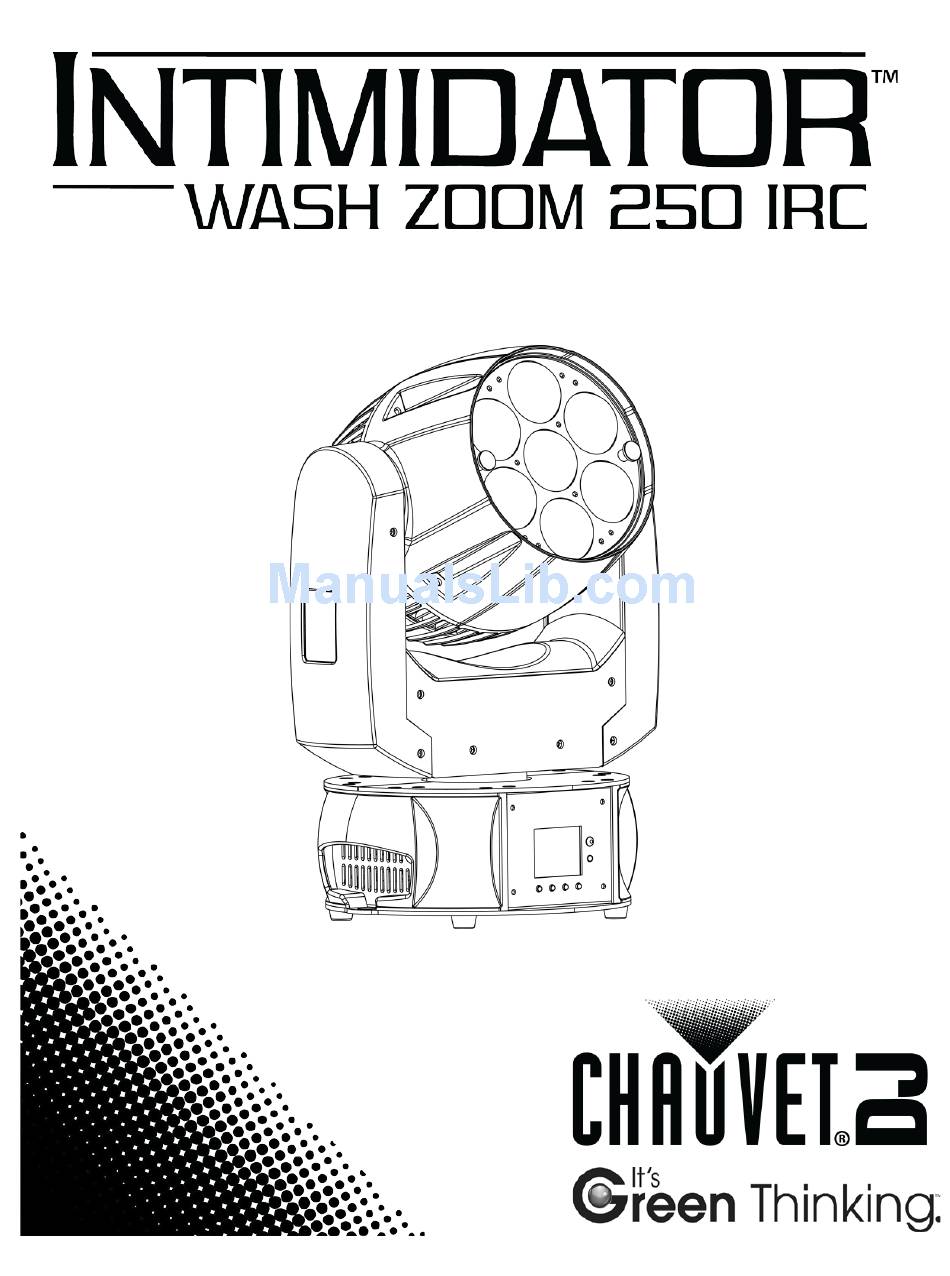

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ..................... 4 What is Included ............................. 4 Unpacking Instructions ..........................4 Claims ..............................4 Text Conventions ............................ 4 Symbols ..............................4 Disclaimer ............................... 4 Product at a Glance ..........................5 Safety Notes ............................5 2.
  • Page 3 Display Orientation .......................... 23 Dimming Curve ..........................24 Dimming Speed ..........................24 Color Balance ..........................24 Sensitivity ............................25 Reset..............................25 Reset to Factory Defaults ........................ 25 System Information ..........................25 5. Technical Information .................... 26 Product Maintenance ..........................26 6.

  • Page 4: Before You Begin

    Claims mishandling, save all packaging and file a claim with the carrier immediately, do not notify CHAUVET®. Failure to report damage to the carrier immediately or failure to have all packaging available for inspection may invalidate your claim. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET®...

  • Page 5: Product At A Glance

    Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave These notes include important information about the mounting, use, and maintenance of Safety Notes this product. Read these notes before using the product. ·...

  • Page 6: Introduction

    2. I NTRODUCTION Overview Manual Zoom Knobs Yoke Handles Ventilation Fans IR Sensor Indicator Light Display Control Buttons Fuse DMX In Power In Holder Back Panel View DMX Out Power Out Page 6 of 29 Intimidator™ Wash Zoom 250 IRC User Manual Rev. 1...

  • Page 7: Dimensions

    Dimensions 9.4 in 240 mm 13 in 330 mm 7.1 in 180 mm Intimidator™ Wash Zoom 250 IRC User Manual Rev. 1 Page 7 of 29...

  • Page 8: Setup

    3. S ETUP The Intimidator™ Wash Zoom 250 IRC has an auto-ranging power supply that works AC Power with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the values listed on the label affixed to the product’s back panel, or refer to the product’s Specifications.

  • Page 9: Power Linking

    The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region Intimidator™...

  • Page 10: Mounting

    When mounting the product overhead, always use a safety cable and make sure the product is attached securely. When mounting the product on a truss or pipe, use a mounting clamp with the appropriate weight capacity. CHAUVET® has a full range of mounting clamps. See http://www.chauvetlighting.com/cables-clamps-main.html for the complete selection.

  • Page 11: Operation

    4. O PERATION The manual zoom lens sets the size of the light beam in a range from 14° to 58°. Moving Manual Zoom the zoom lens deeper into the product makes the light beam wider. The lens can be Lens adjusted when the product is turned off or when it is turned on and emitting light, but do not adjust the zoom lens while it is moving.

  • Page 12: Control Panel

    The control panel is used to set the operating mode, and the configuration settings of the Control product. Use the 4 buttons underneath the LCD display to access the control panel and Panel navigate the menu map. For specific instructions see the Configurations sections below. Button Function <MENU>...

  • Page 13: Configuration (Dmx)

    The highest configurable DMX address in 7-channel mode is 506. The highest configurable DMX address in 14-channel mode is 499. For more information about DMX download the CHAUVET® DMX Primer from the CHAUVET® web site http://www.chauvetlighting.com/download. To set the DMX starting address, do the following: If the display shows a number from 001–512, go to step 5.

  • Page 14: Dmx Channel Assignments And Values

    DMX Channel Assignments and Values Channel Function Value Percent/Setting 000 ó 255 0 to 540° 000 ó 255 Tilt 0 to 270° 000 ó 255 Speed Pan/Tilt (fast to slow) 000 ó 004 No function 005 ó 009 Color 1 010 ó...
  • Page 15 Channel Function Value Percent/Setting 7CH (cont.) 000 ó 255 Dimmer 0 to 100% 000 ó 019 Closed 020 ó 024 Open 025 ó 064 Strobe effect (decreasing speed) 065 ó 069 Open 070 ó 084 Fast on, slow off (decreasing speed) 085 ó...

  • Page 16: 14Ch

    Channel Function Value Percent/Setting 14CH 000 ó 255 0 to 540° 000 ó 255 Fine Pan Fine control of panning 000 ó 255 Tilt 0 to 270° 000 ó 255 Fine Tilt Fine control of tilting 000 ó 255 Speed Pant/Tilt speed (fast to slow) 000 ó...
  • Page 17 Channel Function Value Percent/Setting 14CH (cont.) 000 ó 255 Dimmer 0 to 100% 000 ó 019 Closed 020 ó 024 Open 025 ó 064 Strobe effect (decreasing speed) 065 ó 069 Open 070 ó 084 Fast on, slow off (decreasing speed) 085 ó...
  • Page 18 Channel Function Value Percent/Setting 14CH (cont.) 000 ó 007 No function 008 ó 023 Auto movement macro 1 024 ó 039 Auto movement macro 2 040 ó 055 Auto movement macro 3 056 ó 071 Auto movement macro 4 072 ó 087 Auto movement macro 5 088 ó...

  • Page 19: Configuration (Standalone)

    Configuration Use standalone configurations to operate the product without a DMX controller. (Standalone) Never connect a product operating in a standalone mode (Sound, Auto, or IR) to a DMX chain that includes a DMX controller. Products in standalone mode can transmit DMX signals that interfere with the DMX signals from the controller Sound mode sets the product to respond to sounds and music.

  • Page 20: Irc-6 Operation

    IRC-6 Operation Be sure the IRC-6 remote is pointing directly at the product and there is nothing in between the remote and the product. Some of the buttons on the remote work differently than what is indicated on their labels. For example: ·...

  • Page 21: Configuration (Master/Slave)

    Master/Slave mode allows a single Intimidator™ Wash Zoom 250 IRC (the master) to Configuration control the actions of one or more Intimidator™ Wash Zoom 250 IRCs (the slaves) (Master/Slave) without a DMX controller. In Master/Slave mode the master is set to operate in Auto mode, Sound mode, or IR mode and the slaves are set to operate in Slave mode.

  • Page 22: Configuration (Settings)

    The Intimidator™ Wash Zoom 250 IRC can be customized with settings such as for Configuration movement, speed, display, and fan operation. Below are instructions for all the settings (Settings) available in the Setup menu. Reversing the pan movement is useful when 2 lights are facing each other and they both Pan Reverse need to turn toward the same direction.

  • Page 23: Movement Speed

    Movement The movement, or pan and tilt speed, can be adjusted and will affect the speed of the Auto and Sound modes. Speed To set the pan and tilt speed, do the following: Press <MENU> repeatedly until 4 icons show on the display. Use <UP>...

  • Page 24: Dimming Curve

    Dimming Curve The dimming curve can be adjusted to change how the light brightens and dims. If the factory default is not a suitable setting, and the dimming curve of this light needs to match more closely to that of another light, adjust this setting as follows. To adjust the dimming curve, do the following: Press <MENU>...

  • Page 25: Sensitivity

    Sensitivity The sensitivity setting adjusts the sensitivity of the product’s microphone. If the product is not responding to the beat of the music in Sound mode, set the sensitivity to a higher number until the product responds. To adjust the sensitivity setting, do the following: Press <MENU>...

  • Page 26: Technical Information

    5. T ECHNICAL NFORMATION Dust build-up on the lens reduces light output. Dust build-up on the body and fans can Product cause overheating and mechanical wear, which can reduce the usable life of the Maintenance product. To maintain optimum performance and minimal wear in a normal environment, clean the product at least twice a month.

  • Page 27: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Length Width Height Weight Dimensions and 7.1 in (180 mm) 9.4 in (240 mm) 13 in (330 mm) 12.2 lb (5.6 kg) Weight Note: Dimensions in inches are rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Switching (internal)

  • Page 28: Returns

    You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.

  • Page 29: Contact Us

    Voice: (954) 577-4455 Email: Fax: (954) 929-5560 Toll free: (800) 762-1084 www.chauvetlighting.com World Wide Web UNITED KINGDOM AND IRELAND - CHAUVET® Europe Ltd. General Information Technical Support uktech@chauvetlighting.com Address: Unit 1C Email: Brookhill Road Industrial Estate www.chauvetlighting.co.uk Pinxton, Nottingham, UK...
