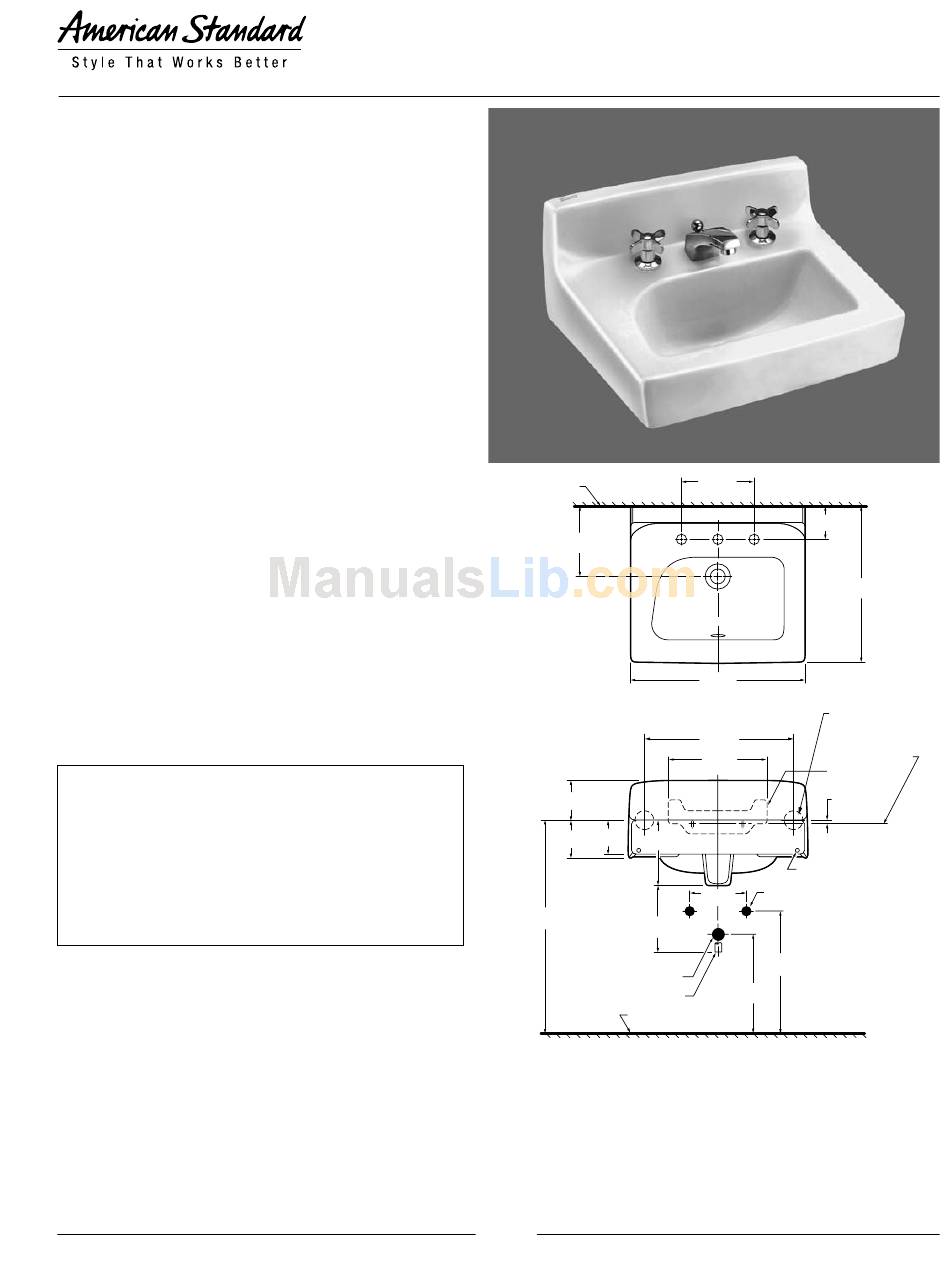

American Standard Penlyn Wall-Hung Lavatory 0373.027 Specification Sheet

PENLYN™ WALL-HUNG LAVATORY
• Wall-hung sink
• Vitreous china
• Front overflow
• Integral back splash
• Faucet ledge
Shown with 4801.862 Amarilis Heritage
faucet with Triune Cross handles
(not included)
Faucet holes on 102mm (4") centers:
❏ 0373.027 For wall hanger (included)
❏ 0373.050 For concealed arms support
❏
0373.950 For concealed arms support
• Less overflow
Nominal Dimensions:
457 x 403mm
(18" x 15-7/8")
Bowl sizes:
340mm (13-3/8") wide
216mm (8-1/2") front to back
127mm (5") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2 for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:
❏ Concealed Arms Support (by others):
* See faucet section for additional models available
© 2008 AS America Inc.
WALL-HUNG LAVATORY
FINISHED WALL
178 mm
(7)
102 mm
(4)
102 mm 95 mm
175 mm
(3-3/4)
(4)
(6-7/8)
787 mm
178 mm
(31)
(7)
1-1/4 O.D. WASTE
1-1/4 O.D. TAILPIECE
FINISHED FLOOR
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP
ARE SUGGESTED.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
M25
PENLYN™
VITREOUS CHINA
203 mm
(8)
88 mm
(3-7/16)
403 mm
(15-7/8)
C/L
457 mm
(18)
54mm (2-1/8) DIA.
HOLES FOR
CONCEALED ARMS
381 mm
(15)
C/L OF HANGER
267 mm ANCHORING SLOTS
(10-1/2)
HANGER
3 mm
(1/8)
HOLES FOR ANCHOR
SCREWS IN BACK DRAPERY
203 mm
SUPPLIES AS REQUIRED
(8)
*
502 mm
(19-3/4)
*
460 mm
(18-1/8)
Revised 8/05
