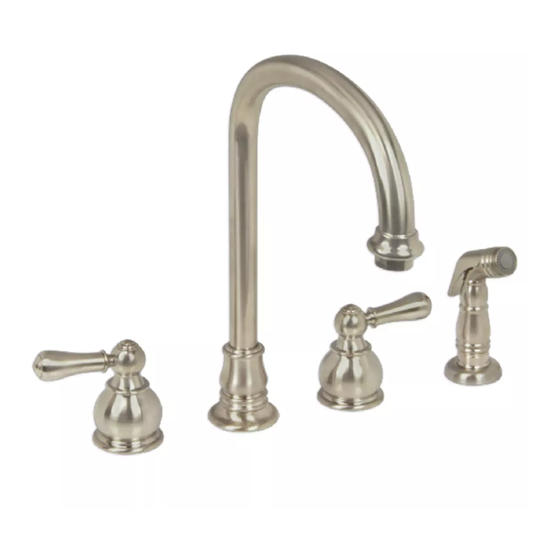

American Standard Hampton 4751.732F15 Installation Instructions

KITCHEN FAUCETS
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Channel Locks
1

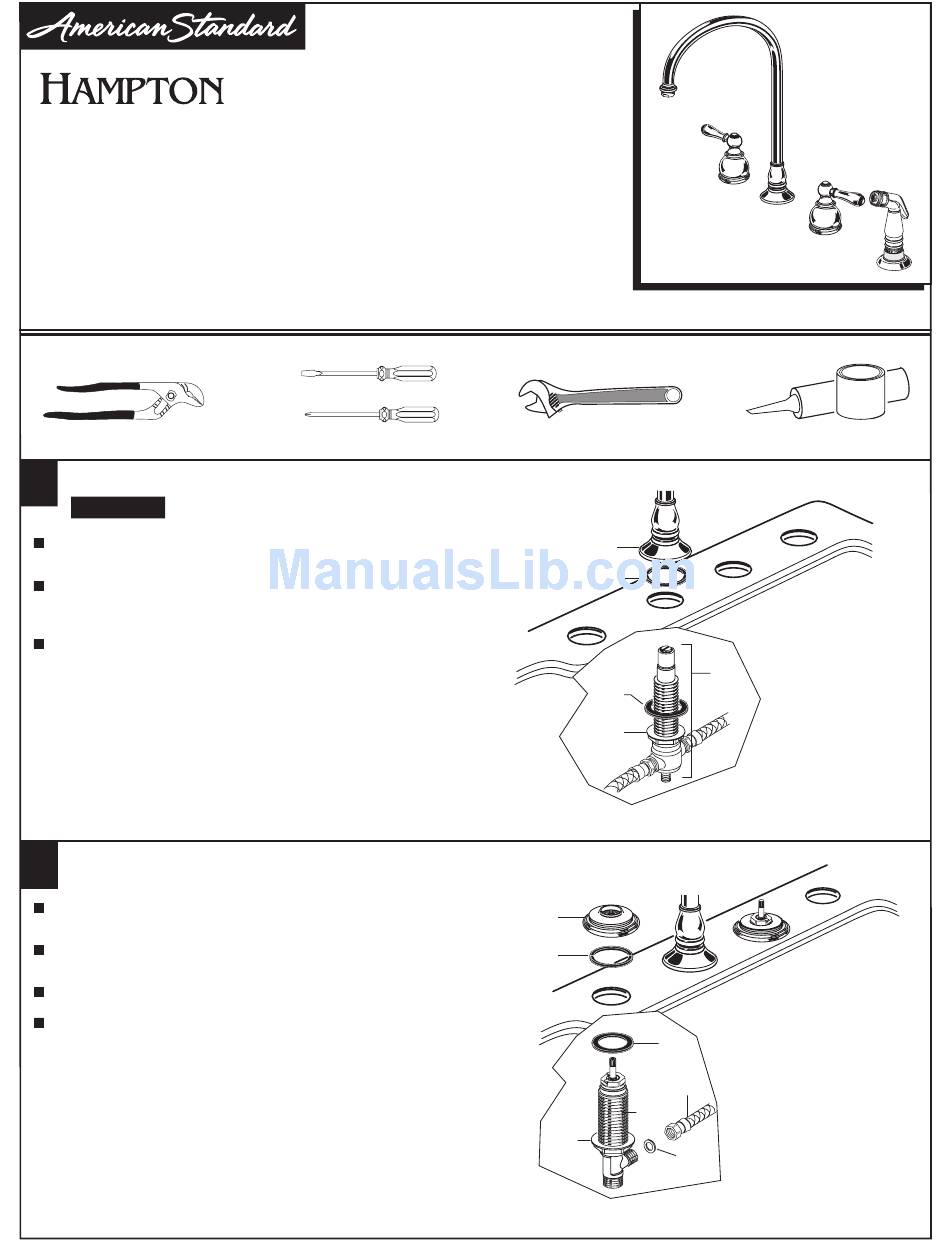

INSTALL FAUCET
Turn off hot and cold water
CAUTION
supplies before beginning.
Install LOCK NUT (1) and RUBBER WASHER (2) onto SPOUT BODY (3).
Insert SPOUT BODY (1) through hole from underside of SINK.
Place RUBBER RING (4) into SPOUT ESCUTCHEON (5) and screw
ESCUTCHEON (5) onto SPOUT BODY (3) until snug against
internal stop.
From under sink tighten LOCK NUT (1) to secure SPOUT.
2
INSTALL VALVE BODIES
Install LOCK NUT (1) and RUBBER WASHER (2) onto VALVE BODIES (3).
Insert VALVE BODY (3) through hole from underside of SINK.
Place RUBBER RING (4) into ESCUTCHEON (5) and screw
ESCUTCHEON (5) onto VALVE BODY (3) until snug against internal stop.
From under sink tighten LOCK NUT (1) to secure VALVE BODY (3).
Insert SEAL WASHERS (6) into SPOUT BODY SUPPLY HOSES (7) and
tighten connection to VALVE BODIES (3).
Instructions
®
Flat Blade Screwdriver
Phillips Screwdriver
Installation
4751.732
4751.732F15
Adjustable Wrench
5
4
1
Certified to comply with ASME A112.18.1M
Plumbers' Putty or Caulking
5
4
3
2
1
2
7
3
6
M 9 6 8 7 2 1 R E V. 1. 4
