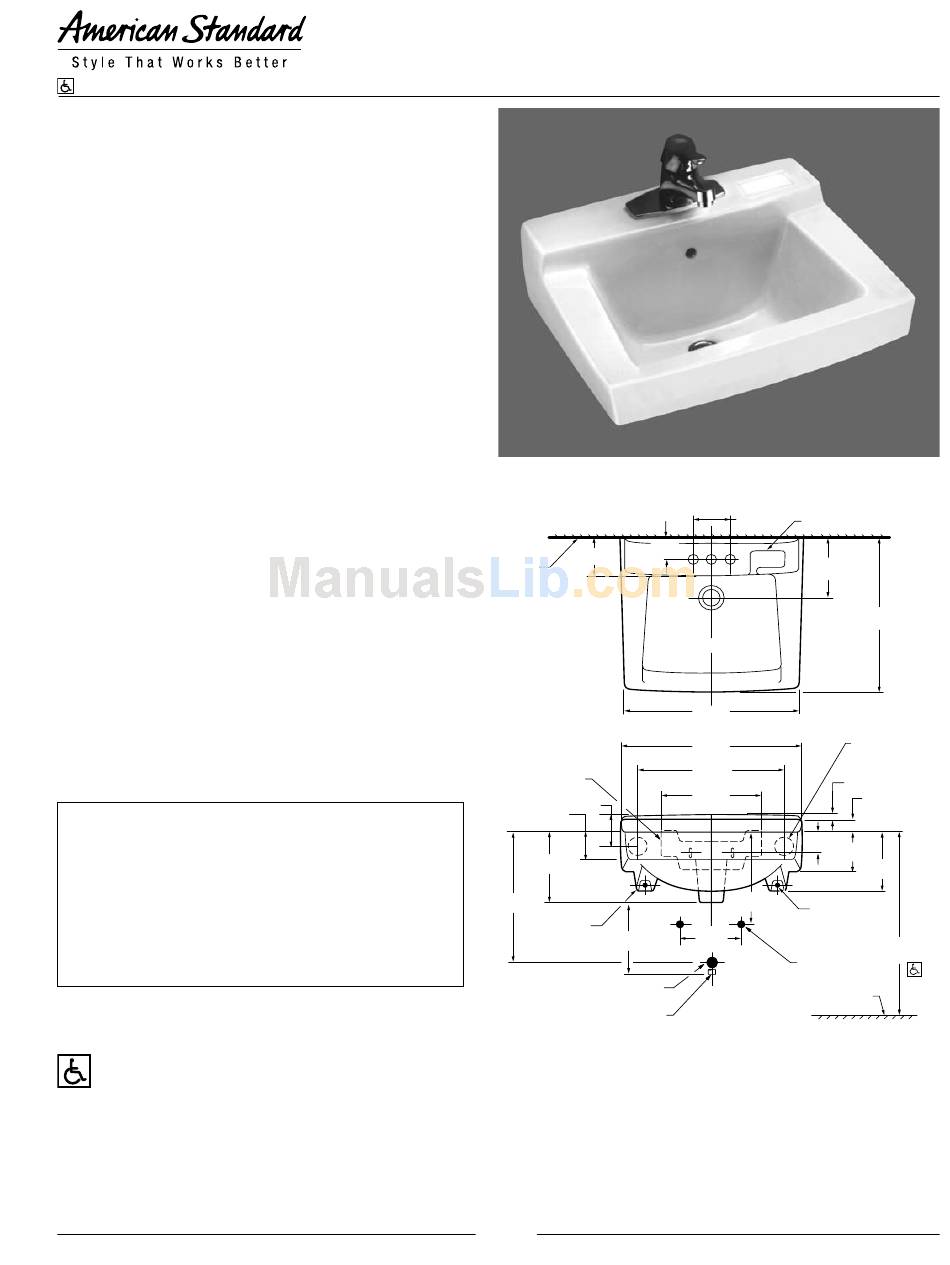

American Standard Declyn Wall-Hung Lavatory 0321.026 Specification Sheet

BARRIER FREE
DECLYN™ WALL-HUNG LAVATORY
• Wall-hung sink
• Vitreous china
• Rear overflow
• Soap depression
• Faucet ledge
Shown with 2000.101 Ceramix faucet
(not included)
❏ 0321.026 With wall hanger (Illustrated)
Faucet holes on 102mm (4") centers
❏ 0321.075 For concealed arms support
Faucet holes on 102mm (4") centers
Nominal Dimensions:
470 x 432mm
(18-1/2" x 17")
Bowl sizes:
362mm (14-1/4") wide
273mm (10-3/4") front to back
152mm (6") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2 for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Silver
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:
❏ Concealed Arms Support (by others):
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDE-
LINES AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Top of front rim mounted 864mm (34") from finished floor.
© 2008 AS America Inc.
WALL-HUNG LAVATORY
57mm
114mm
(2-1/4)
(4-1/2)
FINISHED
WALL
HANGER
89mm
(3-1/2)
76mm
(3)
197mm
(7-3/4)
*
343mm
(13-1/2)
INTEGRAL
BRACKETS
178mm
(7)
1-1/4 O.D.
WASTE
1-1/4 O.D.
TAILPIECE
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP
ARE SUGGESTED.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
M27
DECLYN™
VITREOUS CHINA
102mm
SOAP DEPRESSION
(4)
178mm
(7)
432mm
(17)
C/L
470mm
(18-1/2)
54mm (2-1/8) DIA.
483mm
HOLES FOR
(19)
CONCEALED ARMS
406 mm
(16)
19mm
(3/4)
267mm
38mm
(10-1/2)
(1-1/2)
70mm
(2-3/4)
114mm
(4-1/2)
165mm
(6-1/2)
*
235mm
11mm (7/16) DIA.
(9-1/4)
ANCHOR SCREW
HOLES
203mm
(8)
SUPPLIES
AS REQ'D.
FINISHED
FLOOR
Revised 7/07
787mm (31)
864mm (34)
