HOLLYWOOD RACKS
Sport Rider
Model HR1000 – 2 Bike Hitch Rack
Not to be used on any trailer, fifth
wheel or vehicle being towed by
another vehicle
Weight Limit 45lbs/20 kg per bike
2 bike maximum capacity
Optional locking kits available

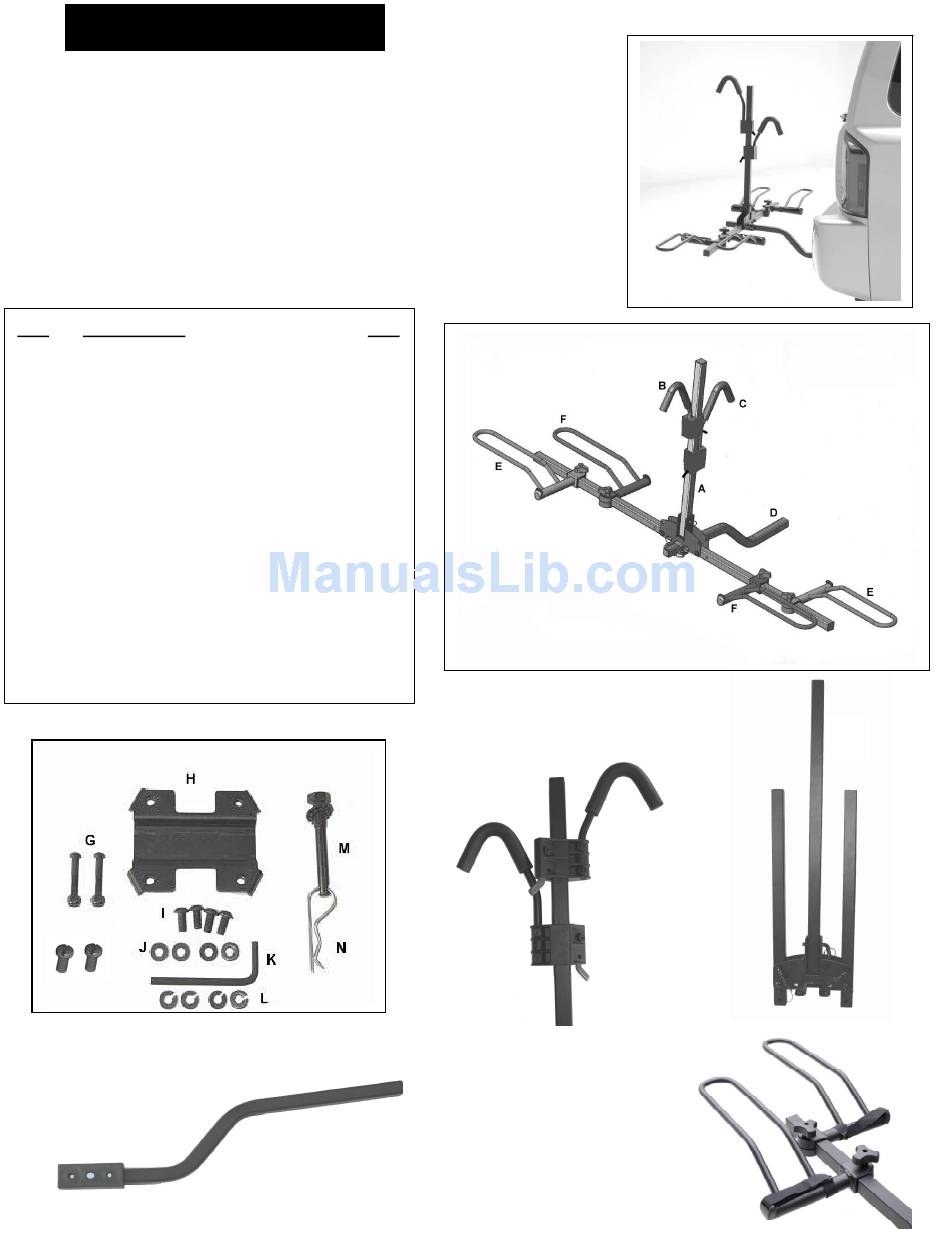

ID#
Description
A
MAIN RACK ASSY
B
SHORT FRAME HOOK
C
LONG FRAME HOOK
D
RECEIVER TUBE & SPACER
E
LEFT SIDE WHEEL TRAY
F
RIGHT SIDE WHEEL TRAY
G
REC. TUBE STOP BOLTS
H
LOWER BRACKET
I
8MM BOLTS
J
FLAT WASHERS
K
5MM HEX KEY
L
LOCK WASHERS
M
½-13 THREADED HITCH PIN
N
HITCH PIN CLIP
P
WHEEL TUBE STOP SCREWS
O
D
Instruction Manual
Qty
Pour instructions en Français, continuer aux pages 6 et 7.
with ratcheting hooks
1
1
1
1
2
2
2
1
4
4
1
2
1
1
2
C
B
E
A
F
1
Advertisement
Table of Contents
Related Manuals for Hollywood Sport Rider HR1000
Summary of Contents for Hollywood Sport Rider HR1000
- Page 1 HOLLYWOOD RACKS Sport Rider Instruction Manual Model HR1000 – 2 Bike Hitch Rack Not to be used on any trailer, fifth wheel or vehicle being towed by another vehicle Weight Limit 45lbs/20 kg per bike 2 bike maximum capacity ...
- Page 2 Fig. 1 Assembly & Installation Procedure: Fig. 2 Step 1: Locate holes on main rack assembly, bracket and hardware (Fig. 1) Step 2: Loosely assemble bracket to main rack as shown in Fig. 2 & 3. Bolts (I) inserts through lock washer (L), then flat washer (J), then top plate and into bottom plate Do Not tighten! Step 3: Slide main rack assembly onto...
- Page 3 Step 6: Install frame hooks: Slide long frame hook down vertical post facing vehicle. Then slide short frame hook onto post, facing away from vehicle. You should hear be able to hear the spring loaded lever engaging the teeth on the post as shown in fig.
- Page 4 Folding Down Vertical Post For easy access to the cargo area, the vertical post can be folded down. To fold down vertical post, rotate and remove the side-retaining pin as shown in Fig. 16a-16d. Be sure to re-tighten the thumbscrew after replacing pin. Folding Up the Wheel Holders To fold up the wheel holders, rotate and remove the front retaining pins.
- Page 5 Installing Bikes on the Rack Pre-position the wheel trays to fit the bike’s wheel base (center to center distance between the wheel axels) such that they are directly beneath each wheel. To adjust the wheel trays, loosen the knobs and slide along the wheel holder support tube. Tighten knobs securely. To fit the first bike (closest to the vehicle) more easily, the vertical post may be tilted down (away from vehicle).
- Page 6 Aligner les trous et inserer la cheville anti-jeu et serrer fermement avec une clef de ¾” (Fig 14). Important! La cheville doit passer en premier à travers le tube métallique de l’atelage avant la pièce en plastique (Fig 13) Hollywood Sport Rider Quantité...
- Page 7 Inclinaison du mât central. For un accès facile a la porte arrière, le mât central s’incline en tournant et en enlevant la broche comme sur Fig 16a-16d. Assurez vous de reserrer la vis après avoir redresser le mât. Rangement des support de roues Pour ranger les supports de roues, tounez et enlevez les broches de devant.
- Page 8 Hollywood Racks will remedy defects in materials and workmanship by repairing or replacing (at its option) a defective part or the complete rack without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
