Hollywood SR1 Installation Instructions

Hollywood SR1 Installation Instructions

Spare tire bicycle carriers

Advertisement

Available languages

Available languages

When using the Hollywood SR1 Spare Tire rack, always remember the following points:
Max Capacity: 35 lbs per Bike. Two Bikes.
Keep bicycle tires at least 1 ft (30cm) away from exhaust pipe
Tighten all straps before and after mounting bikes
Check the rack, bicycles and strap tightness/condition regularly during use
Drive slowly when used on bumpy or dirt roads
NOT TO BE USED ON ANY TRAILER, FIFTH WHEEL OR TOWED VEHICLE
Caution: Be sure that the spare tire is properly mounted to the vehicle and that the mounting
bracket/apparatus is suitable and strong enough to support the entire weight of the spare tire, bike rack
and bicycle(s). Contact the vehicle manufacturer if there are any questions regarding the strength of the
tire mounting apparatus.
Tools Needed: 9/16" socket wrench or and adjustable wrench

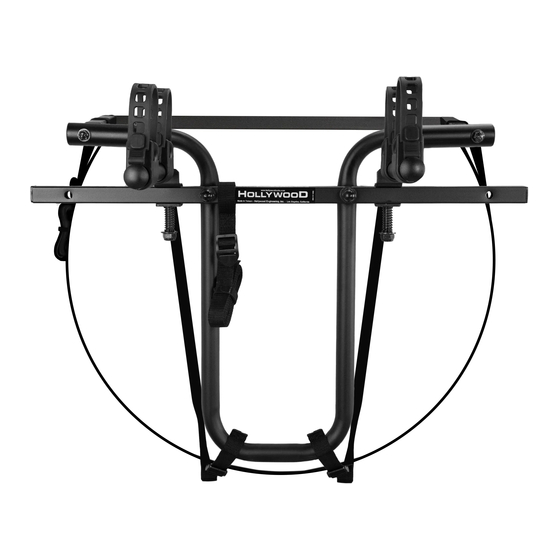

The Hollywood Spare Tire Rack comes fully assembles from the factory, and set up for "center mounted"
spare tires. If your spare tire is side mounted, see assembly step 7. The rack easily attaches to the spare
tire using an adjustable rear brace in conjunction with three nylon attachment straps.

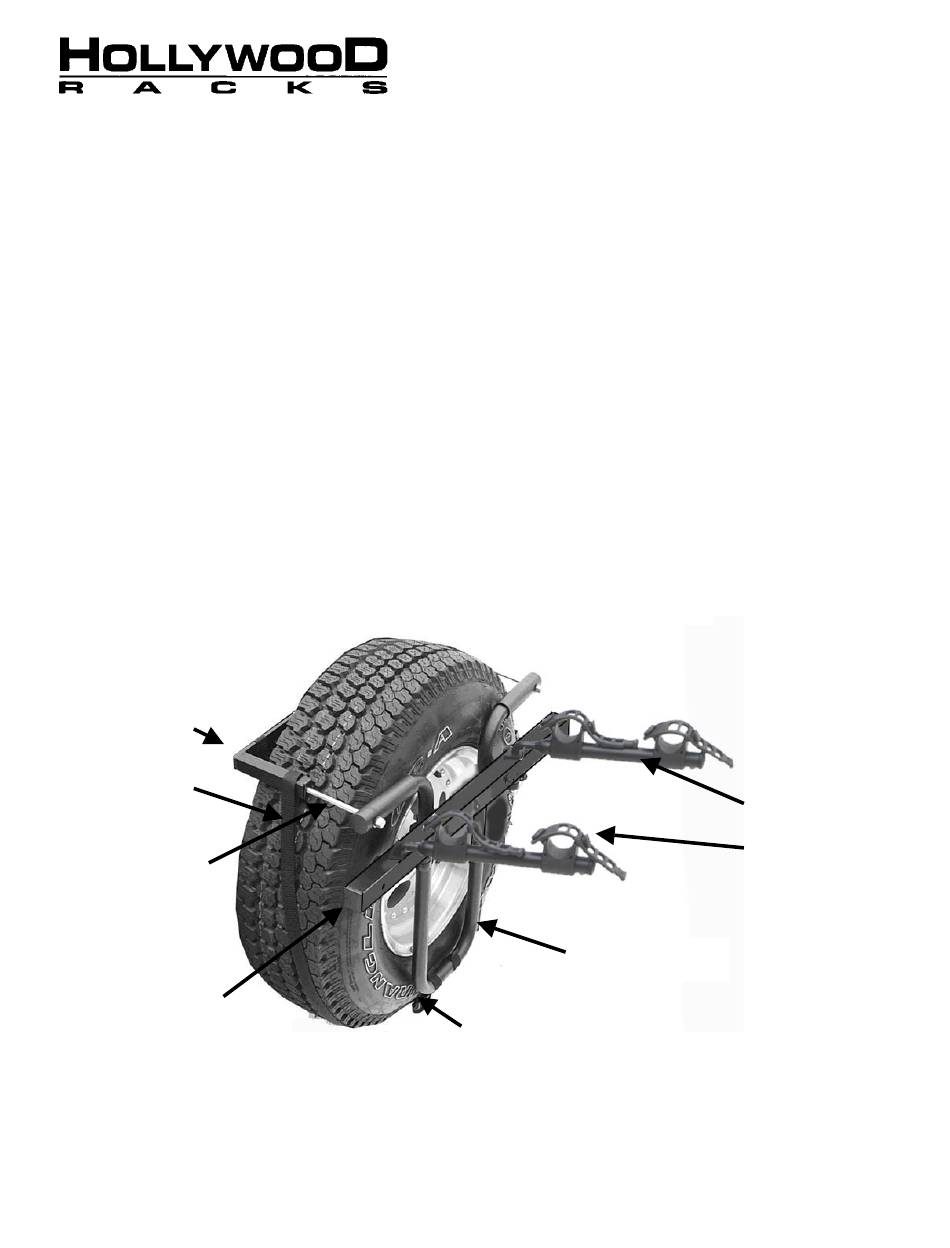

Rear Straps
(not shown)
Rear Brace
Side Strap
Adjustment
Bolt
Support
Bar
Fig.1

Installation Instructions

for Hollywood SR1 Spare Tire
Bicycle Carriers
Side Buckle
(not shown)
Main Frame
Rear Buckles
The "side" attachment strap goes around
the tire and prevents rotational movement.
The two "rear" straps pass behind the tire
and keeps the rack tight and secure
against the front of the spare tire.
Support Arm
Bike Cradle
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hollywood SR1

  • Page 1: Installation Instructions

    Tools Needed: 9/16” socket wrench or and adjustable wrench The Hollywood Spare Tire Rack comes fully assembles from the factory, and set up for “center mounted” spare tires. If your spare tire is side mounted, see assembly step 7. The rack easily attaches to the spare tire using an adjustable rear brace in conjunction with three nylon attachment straps.
  • Page 2 1. If the Spare tire on your vehicle is side mounted, go to instruction step 7 2. Place the rear brace around the spare tire (loosen adjustment bolts if necessary), then snug the adjustment bolts up using the wrench. Do not over-tighten! 3.
  • Page 3 Herramientas que nesecitas un cubo 9/16’’ o una llave ajustable. La hollywood sr1 viene completamente ensamblada de fabrica y lista ‘montada al centro’si tu neumático esta a los lados mira los pasos 7.el porta bici es facil colocarla a tu neumático de repuesto con una barra para la parte trasera y sus correas La correa de el lado ba alrededor del neumático ipidiendo el moviminto de rotacion...
  • Page 4 3. Répéter les mêmes instructions pour le prochain vélo en le mettant dans l’autre sens (guidon vers le passager). 4. Après avoir mis les vélos, attacher la sangle d’attache de vélos à travers les roues des vélos ET du cadre principal du SR1 et serrer fermement (longue sangle de 2m avec boucle a une extrémité). Attention: Toujours vérifier les sangles après installation et après avoir installer les vélos.
  • Page 5 (at its option) a defective part or the complete rack without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
