Hollywood Sport Rider

Model HR1000 - 2 Bike Hitch Rack

 Not to be used on any trailer, fifth

wheel or vehicle being towed by

another vehicle.

 Weight Limit 45 lbs/20 kg per

bike - 2 bike maximum capacity

 Fits both 1 ¼" and 2" hitch

 Optional Locking Kits Available

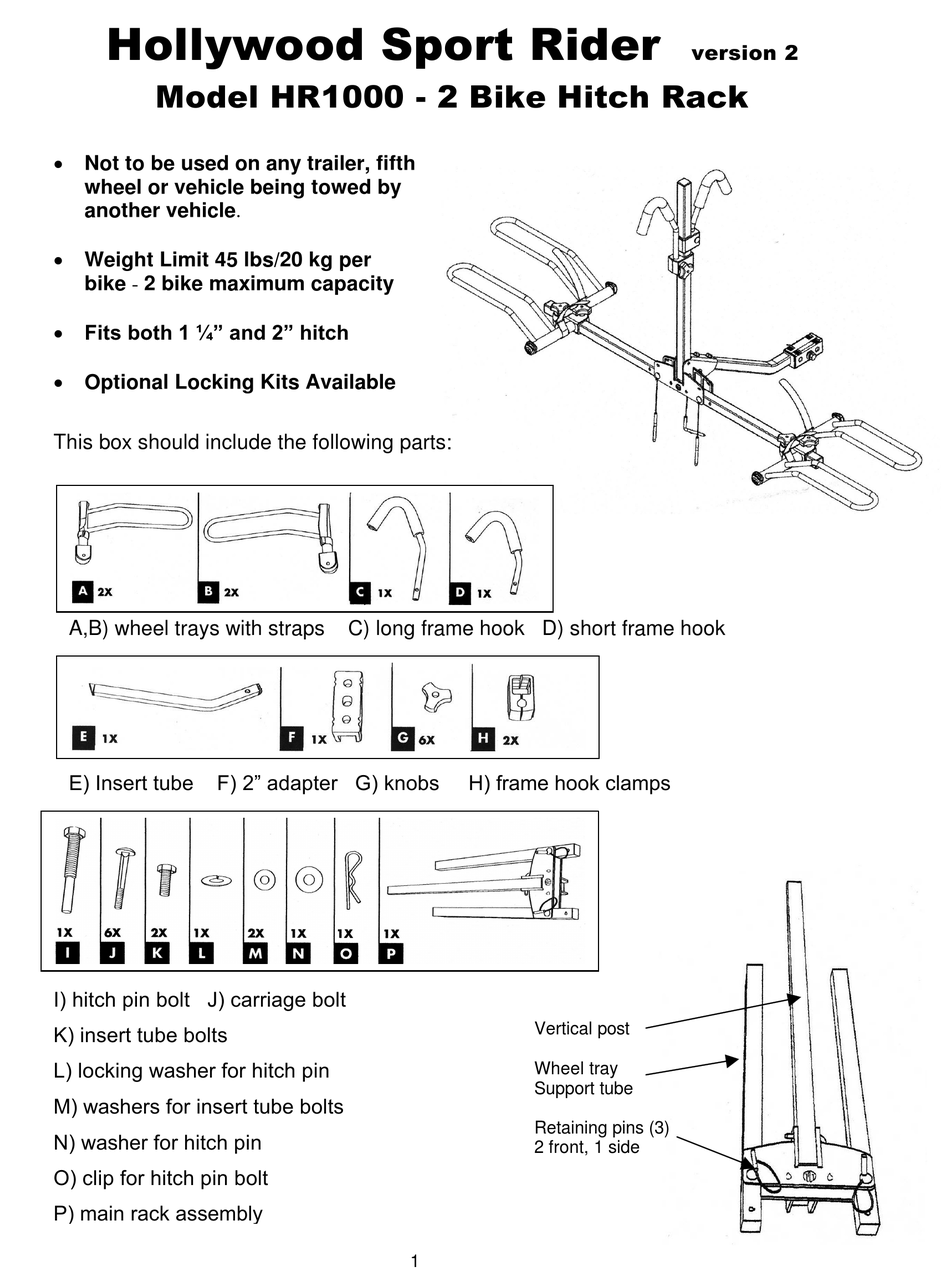

This box should include the following parts:

A,B) wheel trays with straps

E) Insert tube

F) 2" adapter G) knobs

I) hitch pin bolt J) carriage bolt

K) insert tube bolts

L) locking washer for hitch pin

M) washers for insert tube bolts

N) washer for hitch pin

O) clip for hitch pin bolt

P) main rack assembly

C) long frame hook D) short frame hook

H) frame hook clamps

version 2

Vertical post

Wheel tray

Support tube

Retaining pins (3)

2 front, 1 side
