Valcom VIP-9890-CB Quick Manual page 4

NETWORK
INTERFACE
FRONT SIDE
NETWORK
STATUS
ACT
LINK
AUX
Intercom Unit
V
ALCOM
1. (Optional) If a door strike/release is to be utilized, connect wiring
to operate door strike. Connect to Normally Open or Normally Closed (as required)
and Common. Relay contacts are rated for a maximum of 1Amp at 24VDC.
2. Connect the Intercom unit to the Network Interface. If the Intercom unit is close to
the Network Interface, a standard Patch Cable may be used to connect between
them. For longer distances, the VM-186 RJ45 Junction Boxes can be used to
extend up to 900' between the Intercom unit and Network Interface.
Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of
normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund
of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts
and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to
additional charges for parts and labor).
This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any
anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,
maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the
specific Product covered by the warranty.
Disclaimer. Except for the Limited Warranty provided herein, the product is provided "as-is" without any warranty of any kind whatsoever including, without
limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified
immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
Step 3
Network Port
(802.3af Compatible PoE)
Patch Cable
RJ45
BROWN
BROWN BROWN
WHITE/BROWN WHITE/BROWN
GREEN GREEN
WHITE/GREEN WHITE/GREEN
ORANGE ORANGE
WHITE/ORANGE WHITE/ORANGE
BLUE BLUE
WHITE/BLUE WHITE/BLUE
BLUE
VM-186

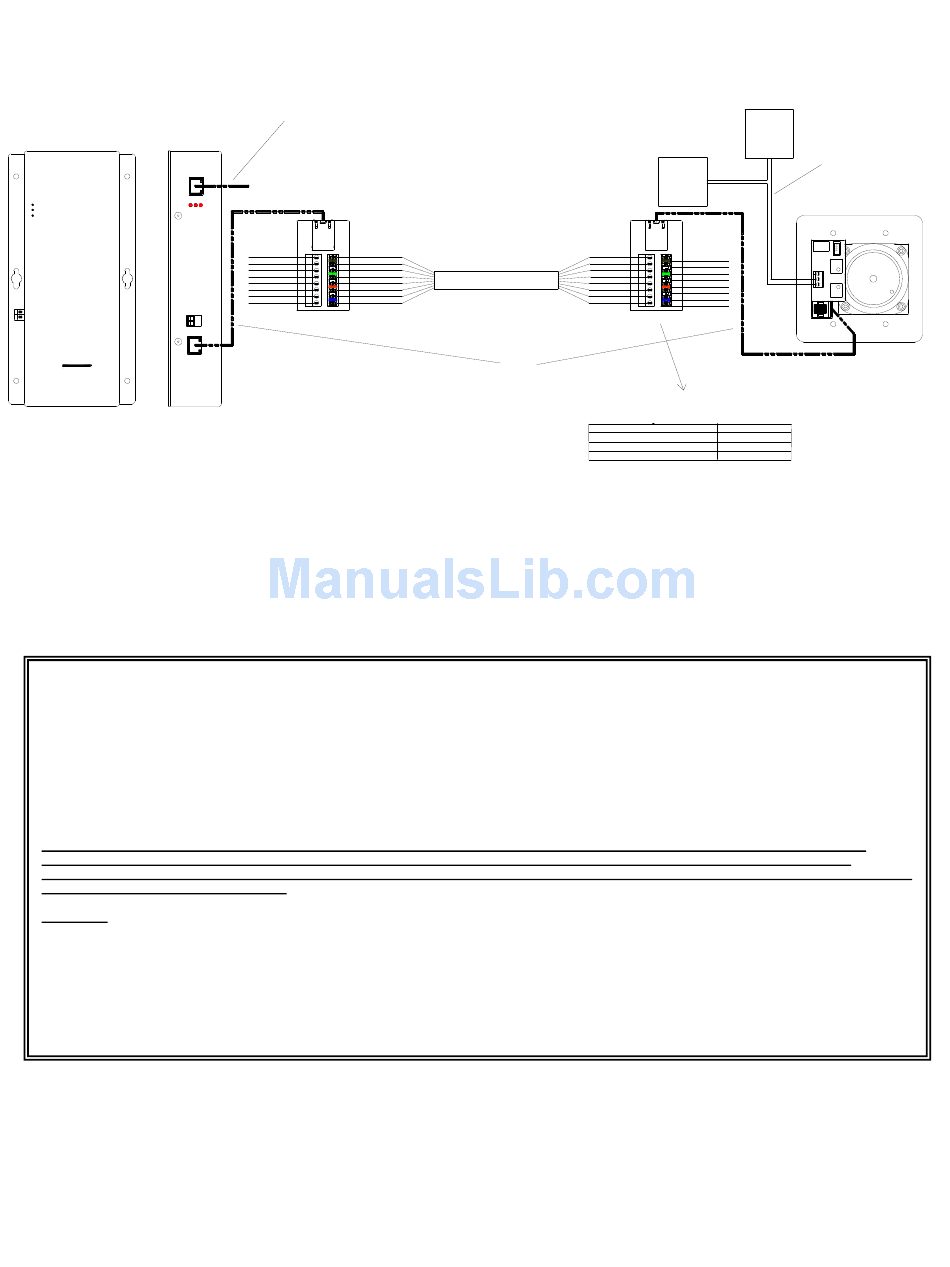

FIGURE 1. VIP-9890-CB QUICK START INSTALLATION
VALCOM LIMITED WARRANTY
5614 Hollins Road Roanoke, VA 24019-5056
Phone: (540) 563-2000 FAX: (540) 362-9800
NOTE: CONSULT MANUFACTURER'S
CONNECTION DIAGRAM FOR CONNECTION OF
STRIKEPLATE. THE N.C. CONNECTION MAY BE
REQUIRED ON SOME STRIKEPLATES INSTEAD
OF N.O.
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
CAT 3/5/6 UTP
ORANGE
WHITE/ORANGE
BLUE
900' MAXIMUM DISTANCE
WHITE/BLUE
Step 2
BROWN & WHITE / BROWN
GREEN & WHITE / GREEN
ORANGE & WHITE / ORANGE
BLUE & WHITE / BLUE
3. Connect RJ45 connector from network. Power over Ethernet (PoE) is required;
if PoE is not available from the switch, an inline power injector will be required.
4. Program the VIP-9890-CB using the VIP-102B IP Solutions Setup Tool.
Headquarters:
Valcom, Inc.
4
STRIKE PLATE
POWER SUPPLY
ELECTRIC
STRIKE PLATE
SOLENOID
RJ45
BROWN
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
NOTE: THE # DIGIT
WHITE/ORANGE
ACTIVATES THE
BLUE
RELAY.
WHITE/BLUE
BLUE
VM-186
Patch Cable
VM-186 COLOR CODES
COLOR CODES FUNCTION
AUDIO
RELAY CONTROL
LED
CALL SWITCH
947704
Step 1
VIP-9890-CB
INTERCOM UNIT
N/C
COM
N/O
