Summary of Contents for Culligan Good Water Machine

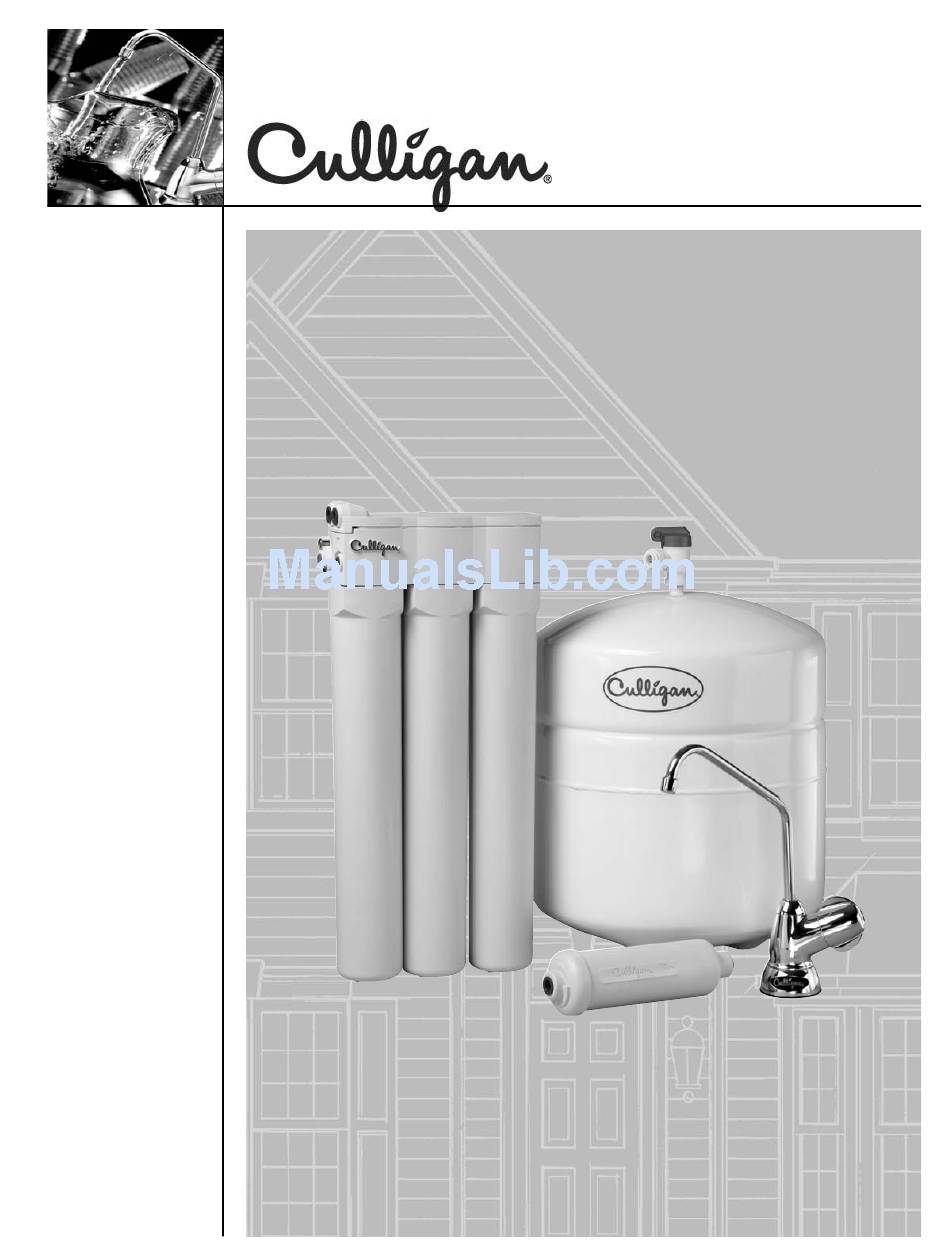

- Page 1 Culligan ® Good Water Machine ® Drinking Water System Owners Guide...
- Page 2 Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are protected by patents issued or pending in the United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time, without prior notice. Culligan, Good Water Machine, Aqua...
-
Page 3: Table Of Contents
Table of Contents Safety/Warnings ......... . ii System Specifications . -
Page 4: System Specifications
......Cullar G Activated Carbon Dispensing Faucet......Culligan Aqua-Cleer Faucet Rotary Operation,... -
Page 5: Introduction
It makes the Good Water Machine extremely space efficient and simplifies filter changes. Storage Tank The storage tank holds up to 2 gallons of triple-filtered Culligan water under pressure for rapid delivery. Optional three and nine-gallon tanks are available. Polishing Filter The Good Water Machine includes a second activated carbon filter as added assurance that your water will be crystal clear. -
Page 6: Certified Performance
The special drinking water faucet mounts conveniently on your kitchen sink. A simple twist of (cont.) the handle is all it takes to enjoy refreshing Culligan drinking water. Certified Performance The Culligan Good Water Machine Model AC-30, AC-30M, AC-30L, AC-30 Plus, AC-30M Plus and AC-30L Plus Drinking Water Systems have been tested and certified by WQA to NSF/ANSI 372, and CSA B483.1, and NSF/ANSI Standard 58... -
Page 7: How To Use Your System
To check the performance of your Good Water Machine, it is necessary to measure the total dissolved solids (TDS) level of the filtered water. This simple test can be done quickly by your dealer. -
Page 8: Installation
• Post Installation Performance Measurements Application Guidelines The Good Water Machine is designed for use on potable water supplies meeting the guidelines outlined in Table 1. The system should be installed on your home’s cold water line. The flushing stream should discharge through an approved siphon break as illustrated in Figure 1. - Page 9 ® ® near a sink for easy access to cold water and drain lines. Lengths of 1/4-inch and 3/8 inch OD plastic tubing will be required to make this installation. A length of Culligan drain ® tubing is required to install the air gap siphon break.
-
Page 10: Servicing Your System
Filter Replacement Culligan recommends that you have your Good Water Machine serviced by your local Culligan Man. You can rely on his or her experience and expertise to keep your system in top operating condition. If you wish to service your system, the filters are available from your Culligan dealer. - Page 11 Tubing Connectors Servicing Your System The Good Water Machine features easy-to-use push-in tubing connectors (Fig. 2) on the manifold assembly (cont.) and the polishing filter. To disconnect the connector, hold the collar against the fitting body and pull the tube from the fitting.
- Page 12 Servicing Preparation Your System 1. Locate the system’s supply valve and turn off the system’s water supply. (cont.) 2. Using the graduated cylinder, add 5 ml (about 1 teaspoon) of bleach to the 1-gallon container. Open the dispenser faucet and fill with one gallon of product water. If there is not enough RO water, fill the container the rest of the way with soft water.
- Page 13 Sanitizing the Manifold Assembly Servicing Your System 1. Using the flat-blade screwdriver, pull the u-clips from all three housings. Insert the u-clip into the two square holes at the bottom rear of the manifold and push up to release the (cont.) filter housings.
-
Page 14: Parts List
Parts List Item Description Part Number Mounting Bracket 01-0040-81 Faucet - Chrome 01-0184-01 Faucet - White 01-0184-02 Faucet - Chrome w/ Light 01-0184-68 Faucet - White w/ Light 01-0184-69 Polishing Filter 01-0042-91 Plastic Ball Valve 01-0045-50 Storage Tank - Std. 01-0050-95 Storage Tank - Medium 01-0047-76... -
Page 15: Service Log
Model Serial No. Culligan ® Good Water Date Installed Machine ® For Service Call Culligan At: (_______) Service Log Filter(s) Changed Date Serviced Sanitized Activated Carbon RO Membrane Particulate Filter Polishing Filter Filter Filter... -
Page 16: Performance Data Sheet
Performance Important Notice: Read this Performance Data Sheet and compare the capabilities of the unit with your actual water treatment needs. Culligan recommends that you have your water supply tested to Data Sheet determine these needs before purchasing a water treatment unit. - Page 17 Performance These systems have been tested and certified by WQA according to NSF/ ANSI 372, and CSA B483.1, and NSF/ANSI Standard 58 for the reduction of the Data Sheet substances listed below. The concentration of the indicated substances in (cont.) water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Substance Removal...
- Page 18 Refer to your Installation and Operating Instructions and printed limited Warranties for more specific product information. To avoid contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man. Performance will vary based on local water conditions. The substances reduced by this...
- Page 19 A softener is strongly recommended for water over 10 gpg. Application Guidelines The Good Water Machine is designed for use on potable water supplies meeting the guidelines outlined in Table 1. The system should be installed on your home’s cold water line.
-
Page 20: California Certificates
Certificate Number 08 - 1900 Date Issued: August 13, 2008 Trademark/Model Designation Good Water Machine AC-30 Good Water Machine AC-30 PLUS Replacement Elements: Particulate Prefilter: 00-4015-38 GAC Prefilter: 01-0125-80 RO Module: 01-0074-02 or 01-0167-31 GAC Postfilter: 01-0042-91 Manufacturer: Culligan International... - Page 21 Certificate Number 08 - 1901 Date Issued: August 13, 2008 Trademark/Model Designation Good Water Machine AC-30M Good Water Machine AC-30M Plus Replacement Elements: Particulate Prefilter: 00-4015-38 GAC Prefilter: 01-0125-80 RO Module: 01-0074-02 or 01-0167-31 GAC Postfilter: 01-0042-91 Manufacturer: Culligan International...
- Page 22 Certificate Number 08 - 1909 Date Issued: August 13, 2008 Trademark/Model Designation Good Water Machine AC-30L Good Water Machine AC-30L PLUS Replacement Elements: Particulate Prefilter: 00-4015-38 GAC Prefilter: 01-0125-80 RO Module: 01-0074-02 or 01-0167-31 GAC Postfilter: 01-0042-91 Manufacturer: Culligan International...
-
Page 23: Warranty
Lifetime You have just purchased one of the finest drinking water systems made. As an expression of our confidence in Culligan products, your drinking water system is warranted to the original Limited end-user, when installed in accordance with Culligan International Company specifications,... - Page 24 This page contains materials and DCO information. IT DOES NOT PRINT AS PART OF THE DOCUMENT! Materials & Description: Good Water Machine Owners Guide 01018588 Size: 11” x 17” Booklet folded to 8.5” x 11” Color: Black; 2 Sided Stock:...
Need help?
Do you have a question about the Good Water Machine and is the answer not in the manual?
Questions and answers
The best way to flush out the water lines and tank?
The best way to flush out the water lines and tank of a Culligan Good Water Machine is to follow the flushing procedure for pre-filters. The activated carbon cartridge requires a 10-minute flush to remove carbon dust, the reverse osmosis membrane filter needs a minimum 24-hour flush to remove the preservative solution, the polishing filter requires a 2-gallon flush to remove carbon dust, and the particle filter needs a 10-minute flush. Additionally, it is recommended to contact a local Culligan dealer for assistance with the flushing procedure.
This answer is automatically generated
