Summary of Contents for Buffalo WCR-GN

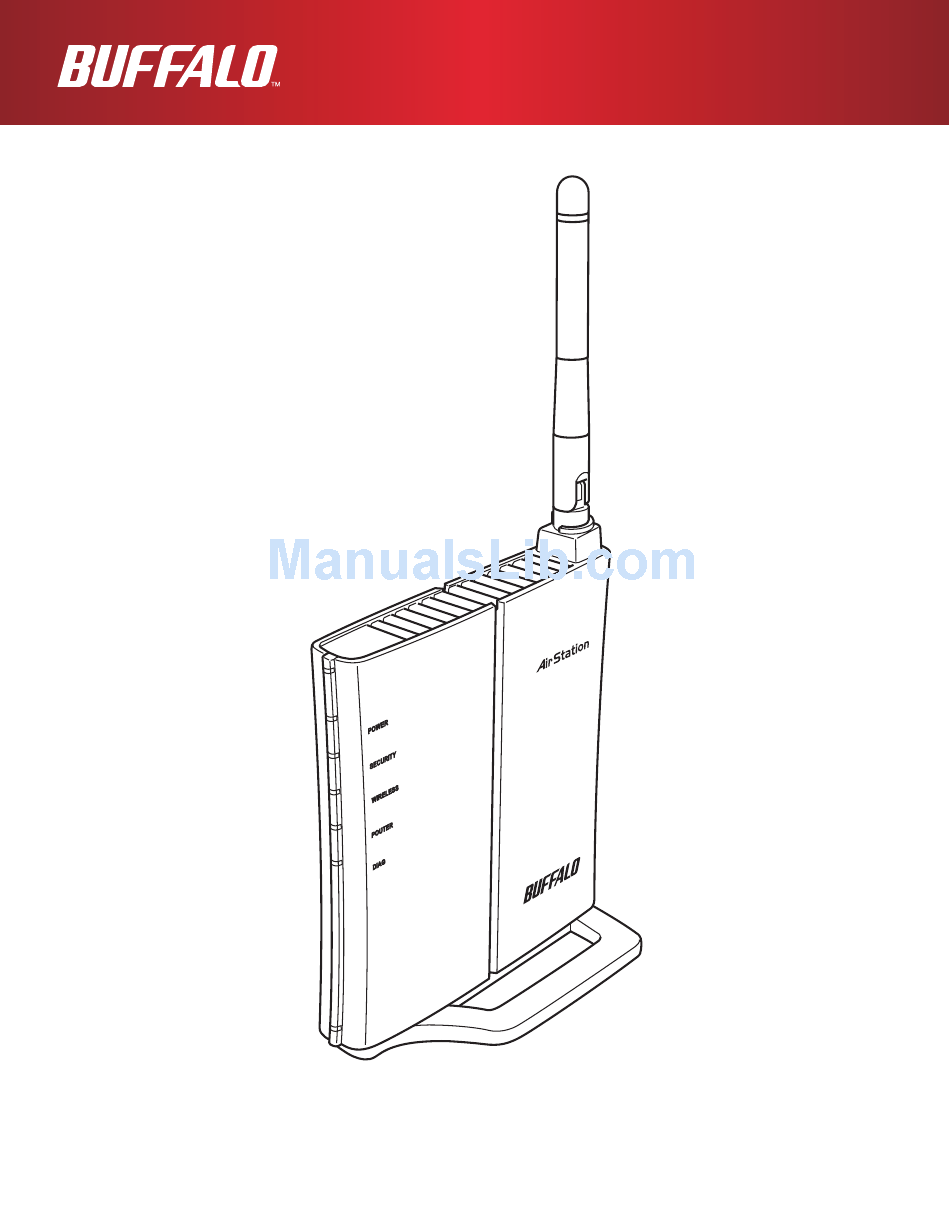

- Page 1 User Manual WCR-GN AirStation N Technology Wireless N150 Router Access Point & Bridge www.buffalotech.com 35011144 ver.01 v1.0...
-
Page 2: Table Of Contents
WDS Setup ................17 CD Setup ..................18 Manual Setup ................. 20 Chapter 4 Configuration ..........23 How to Access the Web-Based Configuration Utility ....23 Configuration Menu (Router Mode) ......... 25 Configuration Menu (Bridge Mode) ......... 27 Setup ..................29 WCR-GN User Manual... - Page 3 UPnP (Router Mode only) .............. 60 QoS (Router Mode only) ..............61 Admin Config ................62 Name ..................... 62 Password ..................63 Time/Date ..................64 NTP ....................65 Access ................... 66 Log ....................67 Save/Restore ................. 68 Initialize/Restart ................69 WCR-GN User Manual...
- Page 4 You forgot AirStation's SSID, Encryption Key, or Password. .. 86 The link speed is slower than 150 Mbps (Maximum link speed is only 72Mbps)................86 Other Tips ................86 Appendix A Specifications ..........90 Appendix B Default Configuration Settings ....91 WCR-GN User Manual...
- Page 5 Appendix D Restoring the Default Configuration ..99 Appendix E Regulatory Compliance Information ..100 Appendix F Environmental Information ......105 Appendix G GPL Information .......... 106 Appendix H Warranty Information ........107 Appendix I Contact Information ........108 WCR-GN User Manual...
-
Page 6: Chapter 1 Product Overview
These automatic connection standards make connection with compatable wireless devices easier. Security Features The AirStation is equipped with following security features: • AOSS • WPS • WPA-PSK (TKIP/AES) • WPA2-PSK(TKIP/AES) • WPA/WPA2 mixed PSK • WEP(128/64bit) • Privacy Separator • MAC address access restriction • Deny Any Connection/SSID stealth feature • Web configuration screen with password • Firewall feature with easy rules Automatic Channel Selection Monitors wireless interference and automatically assigns the clearest, best channel. WCR-GN User Manual... -
Page 7: Air Navigator Cd Requirements
The AirStation wireless router and access point works with most wired and wireless devices. The automatic installation program on the CD requires Windows 7, Vista or XP to run. Client Manager software is included for Windows 7, Vista and XP. The use of other operating systems may require that the AirStation be manually configured from a browser window. 150 Mbps High Speed Mode 150 Mbps is the link speed of WCR-GN when using Wireless-N mode. It represents actual wireless data speeds, including overhead. Because the overhead is not available for user data transfer, usable wireless throughput will be substantially slower. WCR-GN User Manual... -
Page 8: Package Contents
Chapter 1 Product Overview Package Contents Following items are included in your AirStation. If any of the items are missing, please contact your vender. • Main unit ....................1 • Stand .....................1 • AC adapter ...................1 • LAN cable .....................1 • Air Navigator CD ................1 • Quick Setup Guide................1 WCR-GN User Manual... -
Page 9: Hardware Overview
Router functionality is enabled Off: Router functionality is disabled DIAG LED (Red) This indicates the status of the unit depending on the number of blinks per cycle. Note: When the unit is first turned on or restarted, the Diag LED will blink for almost a minute during boot. This is normal. WCR-GN User Manual... - Page 10 2 blinks * Flash ROM error Cannot read or write to the flash memory. 3 blinks * Ethernet (wired) LAN Ethernet LAN controller is malfunctioning. error 4 blinks * Wireless LAN error Wireless LAN controller is malfunctioning. 5 blinks IP address setting error Because the network addresses of both the Ineternet port (WAN port) and the LAN port are the same, it is not possible to establish communication. Change the LAN side IP address of this unit. Continuously Updating the firmware Updating the firmware. blinking Saving settings Saving the settings. Initializing settings Initializing the settings. Unplug the AC adapter from the wall socket, wait for a few seconds, and then plug it again. If the light still flashes, please contact technical support. Never unplug the AC adapter while the Diag LED is blinking continuously. WCR-GN User Manual...
-
Page 11: Back Panel
AOSS or WPS compatible devices. LAN Port Connect your computer, hub, or other Ethernet devices to these ports. This switching hub supports 10Mbps and 100Mbps connections. ADSS INTERNET Port 10Mbps and 100Mbps connections are supported. Note: In bridge/AP mode, the Internet port becomes a regular LAN port, for a total of 5 usable LAN ports. Power Connector INTERNET Connect the included AC adapter. POWER WCR-GN User Manual... -
Page 12: Bottom
Chapter 1 Product Overview Bottom RESET Button Holding this button until the Diag LED comes on, while the unit's power is on, will initialize its settings. WCR-GN User Manual... -
Page 13: Right Side
Chapter 1 Product Overview Right Side This sticker shows the default information of AirStation’s SSID Factory Default Settings and WPS PIN. WCR-GN User Manual... -
Page 14: Chapter 2 Placing Your Airstation
Chapter 2 Placing Your AirStation Note all the illustrations refer to WCR-GN. Vertical Placement To place unit vertically, refer to the following figure to place the vertical stand. WCR-GN User Manual... -
Page 15: Horizontal Placement
Horizontal Placement Place the unit horizontally as the figure below. WCR-GN User Manual... -
Page 16: Chapter 3 Installation
Turn off your computer and modem. Unplug the LAN cable which connects 2) disconnect 1) turn o the computer 2) disconnect your computer and modem. computer modem Plug one end of the LAN cable into your modem and the other side to the Internet port of the AirStation. Turn on your modem. modem LAN cable 1) connect 2) connect INTERNET port AirStation wireless router (rear side) WCR-GN User Manual... - Page 17 PO W modem power outlet Wait for a while, and then make sure that the AirStation’s LEDs are lit as described below: POWER Green light is on WIRELESS Green light is on ROUTER Green light is on DIAG LAN Green light is on or blinking INTERNET Green light is on or blinking ※ Refer to page 8 and 10 for LED locations and other details. Launch a web browser. If the “home” setup screen is displayed, setup is complete. If a user name and password screen are displayed, enter "root" (in lower case) for the user name, leave the password blank, and click “OK”. Follow the instructions on the screen to complete setup. You’ve completed initial setup of your AirStation. Refer to Chapter 4 for advanced settings. WCR-GN User Manual...
-
Page 18: Wds Setup
Refer to the following procedure to set up WDS connection. Note: Confirm the target wireless AP supports WDS. W ER RI TY LE SS W EI DI AG Extend the wireless coverage Internet modem wireless AP computer computer wireless connection blocked WCR-GN (WDS enabled computer WCR-GN User Manual... -
Page 19: Cd Setup
Chapter 3 Installation CD Setup Insert the CD into your PC and follow the instructions on the screen. When the below screen appears, click “Start” and follow the instruction on the screen by clicking “Next“. When the below screen appears, click “WDS Setup”. The wizard will guide you through connection and LED’s meanings. WCR-GN User Manual... - Page 20 AOSS button on the target AP. If the target AP is not the AirStation, select “Manual Configuration“ then click “Scan for SSID“. A list of available wireless AP will be generated. Select the target AP’s SSID from the list and click “Next“ to continue with security information settings. Step through the wizard to complete the setup. If you’ve selected “AOSS configuration“ during the setup, the existing AOSS connection between the target wireless AP and computers has been disconnected. Set up AOSS connection again (page 77). WCR-GN User Manual...
-
Page 21: Manual Setup
Turn on the AirStation, wait one minute, and then turn on your computer. AirStation wireless router (rear side) 1) connect 1) connect Ethernet cable 2) connect the power supply power outlet Wait for a while, and then make sure that the AirStation’s LEDs are lit as described below: POWER Green light is on WIRELESS Green light is on ROUTER Green light is on DIAG ※ Refer to page 8 and 10 for LED locations and other details. WCR-GN User Manual... - Page 22 Chapter 3 Installation Open the web configuration screen. Refer to page 23 for the instruction as necessary. In the "Mode information" menu, select "Bridge Mode" and click "Apply". When this below screen appears, re-enter the user name "root" and password set up for web configuration screen. Click "OK". Web configuration screen will open again. Click "Wireless Config" , then "WDS". Check "Use" option and select "Manual" from the "Connection type". Click "Search" WCR-GN User Manual...
- Page 23 Chapter 3 Installation A list of available wireless APs will be generated. Select the target AP and click "Select". Click "Search again" if no APs are found. Configure the security information of the target AP and click "Apply". Revert to the original IP adress setting. Refer to Appendix C (page 96) again. ex) IP address obtain an IP address automatically Subnet mask obtain DNS server address automatically You’ve completed the WDS setup. Refer to Chapter 4 for advanced settings. WCR-GN User Manual...
-
Page 24: Chapter 4 Configuration
･ By default, the password is blank (not set). Note: ･ If you forget your password, hold down the Reset button (page 11) to initialize all settings. The password will then be blank. Note that all other settings will also revert to their default values. WCR-GN User Manual... - Page 25 Chapter 4 Configuration The configuration screen is displayed. Help is always displayed on the right side of the configuration screen. Refer to the Help screens for more information on each page in the web-based configuration screens. WCR-GN User Manual...
-
Page 26: Configuration Menu (Router Mode)
Page 48 Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia) Page 49 MAC Filter Limit access to specific devices Page 51 Security Firewall Protect your computer from outside intruders Page 54 IP Filter Edit IP filters which relates to the packets passing through the LAN side Page 56 and the Internet side Configure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough Page 57 Pass Through LAN Config Port Forwarding Configure port translation and exceptions for games and other programs Page 58 WCR-GN User Manual... - Page 27 Page 67 Save/Restore Save or restore the AirStation’s configuration from a configuration file page 68 Initialize/Restart Initialize the AirStation or reboot it Page 69 Update Update the AirStation’s firmware Page 70 Diagnostic System Info View current system information for the AirStation Page 71 Logs Check the AirStation’s logs Page 73 Packet Info View all packets transferred by the AirStation Page 74 Client Monitor View all devices currently connected to the AirStation Page 75 Ping Test the AirStation’s connection to other devices on the network Page 76 Logout Click this to log out of the AirStation’s configuration screens WCR-GN User Manual...
-
Page 28: Configuration Menu (Bridge Mode)
Page 63 screens Time/Date Configure the AirStation’s internal clock Page 64 Configure the AirStation to synchronize with an NTP server to Page 65 automatically set the AirStation’s internal clock Access Configure access restrictions to the AirStation’s configuration screens Page 66 Configure a syslog server to manage the AirStation’s logs Page 67 Save/Restore Save or restore the AirStation’s configuration from a configuration file page 68 Initialize/Restart Initialize the AirStation or reboot it Page 69 Update Update the AirStation’s firmware Page 70 Diagnostic System Info View current system information for the AirStation Page 71 Logs Check the AirStation’s logs Page 73 Packet Info View all packets transferred by the AirStation Page 74 WCR-GN User Manual... - Page 29 Chapter 4 Configuration Client Monitor View all devices currently connected to the AirStation Page 75 Ping Test the AirStation’s connection to other devices on the network Page 76 Logout Click this to log out of the AirStation’s configuration screens WCR-GN User Manual...
-
Page 30: Setup
Chapter 4 Configuration Setup The home page of the configuration screen. You can verify settings and the status of the AirStation here. Parameter Meaning Internet/LAN (LAN Config) Click this tab to display the configuration screen for the Internet port and LAN ports. Wireless Config Click this tab to display the configuration screen for wireless set- tings. Security Click this tab to display the configuration screen for security. LAN Config Click this tab to display the configuration screen to open ports for games and applications. WCR-GN User Manual... - Page 31 *Router mode only WIRELESS Displays the current wireless settings. AOSS Click this button to display the AOSS configuration screen. Click this button to display the WPS configuration screen. Language Enable you to select the language you use. If Auto is selected, the same language displayed on the browser will be selected automatically. Logout Log out from the configuration screen of the AirStation. If the web configuration screen is not used for 5 minutes, it will log out automatically. WCR-GN User Manual...
-
Page 32: Internet/Lan (Lan Config)
Chapter 4 Configuration Internet/LAN (LAN Config) Internet (Router Mode only) The screen to configure a port of the Internet side. Parameter Meaning Method of Acquiring IP Address Specify how the Internet side IP address is obtained. Default Gateway Configure an IP address for the default gateway. Address of DNS Name Server Specify an IP address of the DNS server. Internet MAC Address Configure the Internet side MAC address. Note: Configuring an improper MAC address may make the AirStation unusable. Change this setting at your own risk. MTU size of Internet Port Configure the MTU value of the Internet port from the range of 578 to 1500 bytes. WCR-GN User Manual... -
Page 33: Pppoe (Router Mode Only)
Enter the name to identify the connected destination. You may enter up to 32 alphanumerical characters and symbols. User Name Set the user name which is specified by your provider, used for a PPPoE certification. You may enter up to 32 alphanumerical characters and symbols. Password Set the password specified by your provider for PPPoE certification. You may enter up to 32 alphanumerical characters and symbols. Service Name Fill in this field only when your provider specifies a Service Name. Leave blank otherwise. You may enter up to 32 alphanumerical characters and symbols. Connection Type Specifies the timing for the AirStation to connect to your provider. WCR-GN User Manual... - Page 34 Sets the timer for disconnection if the connection method is set to “Connect on Demand” or “Manual”. You can enter up to 1440 minutes. Authorization Configure an authorization method with a provider. MTU Size Configure MTU value in the range of 578 to 1492, which is used for communication on PPPoE. MRU size Configure MRU (Maximum Receive Unit) value in the range of 578 to 1492, which is used for communication on PPPoE. Keep Alive The AirStation will request LCP echo to the PPP server once in a minute. Internet connection will be automatically cut off if the connection server does not respond for more than 6 minutes. Disable this function if the PPP connection is cut at short intervals. WCR-GN User Manual...
-
Page 35: Ddns (Router Mode Only)
* Only when DynDNS is selected hyphens, and periods. Email Address Enter the email address which is registered to the Dynamic DNS service. You may enter up to 64 alphanumerical characters and * Only when selecting TZO symbols. TZO Key Enter the TZO Key which is registered to the Dynamic DNS service. You may enter up to 64 alphanumerical characters and symbols. * Only when selecting TZO WCR-GN User Manual... - Page 36 0 (zero) day is set, no periodic update is performed. Internet Side IP Address The WAN-side IP address of the AirStation’s Internet port. This address is sent to the dynamic DNS service provider. Domain Name The domain name assigned by the dynamic DNS Service provider. The AirStation can be accessed from the Internet using this domain name. Status Display the status of dynamic DNS service. WCR-GN User Manual...
-
Page 37: Lan
* Router Mode only 0-253 may be entered. Advanced Settings Select Display to display the advanced settings options for the DHCP server. * Router Mode only Lease Period Set the effective period of an IP address assigned by the DHCP server. Up to 999 hours may be entered. * Router Mode only Default Gateway Set the default gateway IP address for the DHCP server to issue to clients. * Router Mode only WCR-GN User Manual... - Page 38 Set the dDNS server IP address for the DHCP server to issue to clients. * Router Mode only WINS Server Set the WINS server IP address for the DHCP server to issue to clients. * Router Mode only Domain Name Set the domain name for the DHCP server to issue to clients. You may enter up to 127 alphanumerical characters, hyphens, and * Router Mode only periods. Default Gateway Set the default gateway IP address. * Bridge Mode only DNS Server Address Set the DNS server IP address. * Bridge Mode only WCR-GN User Manual...
-
Page 39: Dhcp Lease (Router Mode Only)
Chapter 4 Configuration DHCP Lease (Router Mode only) The screen to configure DHCP lease. Parameter Meaning IP Address Enter an IP address to lease manually. The IP address should be from the same subnet as the DHCP scope, but not be within the range that DHCP is assigning to other devices. MAC Address Enter the MAC address which identifies the client. Current DHCP Client Information Displays information for current leases. An IP address which is leased automatically can be changed to be leased manually by clicking “Manual Assignment”. WCR-GN User Manual... -
Page 40: Nat (Router Mode Only)
Chapter 4 Configuration NAT (Router Mode only) The screen to configure settings relating to the network address translation function which is used to connect the LAN side to the Internet. Parameter Meaning Address Translation Enable to use Network Address Translation. Log Output of Deleted Packets Enable to log deleted packets (such as errors) during address translation. WCR-GN User Manual... -
Page 41: Route
Adds a gateway address to a routing table. Metric The metric is the maximum number of router hops a packet may take on the way to its destination address. Values between 1 and 15 may be entered. The default value is 15. Routing Information Manual entries will appear here after being added. WCR-GN User Manual... -
Page 42: Wireless Config
Parameter Meaning Enable to use WPS automatic configuration. External Registrar Enable to accept the external configure requests from other WPS devices. Note: External configure requests will not be accepted if AOSS is in use. AirStation PIN Displays the PIN code of the AirStation. Clicking “Generate PIN” will generate a new PIN code. This code can be entered into other wireless devices that support WPS. Enrollee PIN Enter the PIN code for the other wireless device and click “OK”. WPS status Displays WPS security information. “configured“ or “unconfigured“ will appear depending on the connection status. Refer to the online help for more detail. WCR-GN User Manual... -
Page 43: Aoss
The screen to see the detailed settings and status of AOSS. Parameter Meaning Initiates AOSS automatic wireless configuration. Click this, then press or click the AOSS button on your AOSS-compatible wireless client. Repeat for additional AOSS clients. Click this button to disconnect AOSS connections. Note: If AOSS connections are disconnected, the SSID and encryption keys will be restored to their most recent settings before using AOSS. WCR-GN User Manual... - Page 44 AOSS Button on the AirStation Unit Determine whether configure AOSS or not when the physical AOSS button is pressed. Current Encryption Information Displays the encryption type, SSID, an encryption key configured by AOSS. * AOSS Connection only [Random] Click to enter random values for SSID, encryption key, and other settings. [Reset] Click to return the SSID, encryption key, and other wireless settings to their previous values. AOSS Client Information Displays AOSS clients connected to the AirStation and information of the devices which are wirelessly communicated. * AOSS Connection only WCR-GN User Manual...
-
Page 45: Basic
Chapter 4 Configuration Basic The screen to configure a basic wireless settings. WCR-GN User Manual... - Page 46 AirStation. Security can be disabled if necessary. SSID2 SSID2 can use WPA-PSK-TKIP or WPA/WPA2-Mixed for wireless security. Security can be disabled if necessary. SSID3 SSID3 can use WPA-PSK-AES for wireless security. SSID4 SSID4 can use WEP for wireless security. Separate feature When "Enabled", wireless devices connected to the AirStation can communicate only with the Internet side, not with each other. This parameter does not function if WDS is enabled. SSID Set SSID using 1-32 alphanumeric character (s). Authentication Specifies an authentication method used when connecting to a wireless device. WCR-GN User Manual...
- Page 47 Wireless authentication. AES is more secure than TKIP, and faster. Use a pre-shared-key to communicate with a wireless device. AES can be selected only when WPA-PSK or WPA2-PSK is selected for Wireless authentication. TKIP/AES mixed mode TKIP/AES mixed mode allows both TKIP and AES authentication and communication. TKIP/AES mixed mode can be selected only when WPA/WPA2 mixed mode - PSK is selected for Wireless authentication. WPA-PSK (Pre-Shared Key) Enter a pre-shared key for use with wireless authentication. * Use 8 to 63 alphanumeric characters (case-sensitive) for a preshared key when you select character type as an input method. Enter 64 digits using 0 to 9 and a to f (not case-sensitive) when you select hexadecimal type as an input method. WCR-GN User Manual...
- Page 48 Enter an encryption key to encrypt wireless data. * Use 5 or 13 alphanumeric characters (case-sensitive) for an encryption key when you select character type as the input method. Enter 10 or 26 digits using 0 to 9 and a to f (not case-sensitive) when you select hexa- decimal type as the input method. Rekey interval Set the interval between 0 and 1440 (minutes) to update a communication encryption key. WCR-GN User Manual...
-
Page 49: Advanced
Privacy Separator If enabled, the Privacy Separator blocks communication between wireless devices connected to the AirStation. Wireless devices will be able to connect to the Internet but not with each other. Devices that are connected to the AirStation with wired connections will still be able to connect to wireless devices normally. WCR-GN User Manual... -
Page 50: Wmm
Chapter 4 Configuration The screen to set the priorities for specific communications the AirStation performs. WCR-GN User Manual... - Page 51 The unit is 32 ms. The longer this time, the more frames can be sent per right to send. However, the que may interfere with other packet transmissions. If TXOP Limit is set to 0 (zero), only one frame can be sent per right to send. WCR-GN User Manual...
-
Page 52: Mac Filter
The screen to configure the access restrictions from wireless devices. Parameter Meaning Enforce MAC Filtering Enable to restrict wireless connections to devices with registered MAC addresses. Registration List Displays the MAC addresses of registered devices which are permitted to connect wirelessly. [Edit Registration List] Click this button to add a MAC address of a wireless device to the list of permitted devices. MAC Addresses to be Registered Enter a MAC address of a wireless device you permit to connect to the AirStation. Click "Register" to add that MAC address to the list. List of all clients that are associated Display the list of all MAC addresses of wireless devices connected with this AirStation to the AirStation. WCR-GN User Manual... -
Page 53: Wds (Bridge Mode Only)
The screen to configure WDS settings, which supports communication between Wireless AP. Refer to page 17 for setup process. Parameter Meaning check to use WDS connection. Connection type Select AirStation's connection method for WDS. Manual Specify the target wireless AP's SSID and security information manually. AOSS Connect with the AirStation using AOSS. If this option is selected, a special AOSS button will appear. This button can be used for WDS connection only. Refer to page 17 for setup process. Once AOSS connection is set up, WCR-GN will have the same security setting as the target wireless AP. WCR-GN User Manual... - Page 54 Chapter 4 Configuration Parameter Meaning Connection Status Displays the WDS connection status. SSID Configure the target Airstation's SSID. [ Search ] Click this button to search the target AirStation's SSID. Authentication Configure the target AirStation's wireless authentication method. Encryption for wireless Configure the target AirStation's Encryption method. WPA-PSK (Pre-shared KEY) Set the target AP's Encryption key if necessary. WEP encryption key setting Set the target AP's WEP key if necessary. WCR-GN User Manual...
-
Page 55: Security (Router Mode Only)
Firewall (Router Mode only) The screen to configure firewall features of the AirStation. Parameter Meaning Log Output Enable to output a log of firewall activity. Basic Rules Enable to use any of the quick filters. Preconfigured quick filters include: Prohibit NBT and Microsoft-DS Routing When this is enabled, you cannot use the Microsoft network feature from the Internet side to the LAN side and from the LAN side to the Internet. You can configure this with PPPoE if you select “Use PPPoE Client” or “Use IP Unnumbered” in Method of Acquiring IP address (on page 31), or if Easy Setup identified a PPPoE connection during setup. WCR-GN User Manual... - Page 56 Enable this option if you experienced slower transfer speed for network application such as sending mail, using ftp or displaying on browser. If you have configured transfer of IDENT requests to the LAN side computer in the address translation settings (DMZ or TCP port:113), that setting has higher priority, and overrides this setting. Block Ping from Internet If this is enabled, the AirStation will not respond to pings from the Internet side. You can configure this with PPPoE if you select “Use PPPoE Client” in Method of Acquiring IP address (page 25), or if Easy Setup identified a PPPoE connection during setup. WCR-GN User Manual...
-
Page 57: Ip Filter (Router Mode Only)
IP Filter (Router Mode only) The screen to edit IP filters which relates to the packets passing through the LAN side and the Inter- net side. Parameter Meaning Log Output If enabled, IP filter activity is saved to a log. Operation Specify how to process target packets. Direction Specify the transmission direction of target packets. IP Address Specify the sender's IP address and receiver's IP address of the target packets. Protocol Select a protocol for target transmission packet. IP Filter Information Display the list of IP filters which have been registered. WCR-GN User Manual... -
Page 58: Vpn Pass Through (Router Mode Only)
VPN Pass Through (Router Mode only) The screen to configure IPv6 pass through, PPPoE pass through, and PPTP pass through. Parameter Meaning IPv6 Pass Through Enable to use IPv6 Pass Through for address translation. PPPoE Pass Through Enable to use PPPoE bridge. Using PPPoE bridge lets you automatically obtain an IP address from your provider using the PPPoE protocol from your computer connected to the LAN side because all PPPoE packets can pass through between the Internet and LAN. PPTP Pass Through Enable to use the PPTP Pass Through for address translation. WCR-GN User Manual... -
Page 59: Lan Config (Router Mode Only)
Chapter 4 Configuration LAN Config (Router Mode only) Port Forwarding (Router Mode only) The screen to configure the port translation. Parameter Meaning Group Specify a group name for a new rule to belong to. Select "New Group" and enter the new group name in the Group Name field to create a new group. A group name can include up to 16 alphanumeric letters. Internet Side IP Address Enter the Internet side IP address (before translation) for the port translation table entry. Protocol Select the Internet side protocol (before translation) for the port translation table entry. WCR-GN User Manual... -
Page 60: Dmz (Router Mode Only)
Port Forwarding Registration Shows current entries in the port translation table. Information DMZ (Router Mode only) The screen to configure a destination to transfer communication packets without a LAN side destination. Parameter Meaning IP Address of DMZ Enter the IP address of the destination to which packets which are not routed by a port translation table are forwarded. Note: RIP protocol packets (UDP port number 520) will not be forwarded. WCR-GN User Manual... -
Page 61: Upnp (Router Mode Only)
Chapter 4 Configuration UPnP (Router Mode only) The screen to configure UPnP (Universal Plug and Play). Parameter Meaning UPnP Enable or disable Universal Plug and Play (UPnP) functionality. WCR-GN User Manual... -
Page 62: Qos (Router Mode Only)
Specify the upstream bandwidth in kbps from the AirStation to the internet side. * Set the actual value for the upstream bandwidth. Enable Enable or disable this entry. application name Enter an application name. Names may use up to 32 alpha numerical characters, double or single tick marks ("'), quotation marks (“), and semicolons (;). protocol Select either TCP or UDP. WCR-GN User Manual... -
Page 63: Admin Config
Select high, medium or low. * If packets do not qualify for classification as a type on the list, then their priority is treated as a level between medium and low. Admin Config Name The screen to configure the AirStation’s name. Parameter Meaning AirStation Name Enter a name for the AirStation. Names may include up to 64 alpha- numeric characters and hyphens (-). WCR-GN User Manual... -
Page 64: Password
Chapter 4 Configuration Password The screen to configure the password to login to the configuration screen of the AirStation. Parameter Meaning Administrator Name The user name to log in to the configuration screen of the AirStation. This name is fixed as “root”. Administrator Password The password to log in to the configuration screen of the AirStation. The password may contain up to 8 alphanumeric characters and underscores (_). WCR-GN User Manual... -
Page 65: Time/Date
You may manually set the date of the AirStation’s internal clock. Local Time You may manually set the time of the AirStation’s internal clock. Time Zone Specify the time zone (offset of Greenwich Mean Time) of the AirStation's internal clock. WCR-GN User Manual... -
Page 66: Ntp
Enter the name of the NTP server as a host name, host name with domain name, or IP address. Up to 255 alphanumeric characters, hyphens (-), and underscores (_) may be used. Update Interval How often should the AirStation submit a time request to the NTP server? Intervals of 1 - 24 hours may be set. WCR-GN User Manual... -
Page 67: Access
Enabling outputs a log of changes to access settings. Prohibit configuration from wireless If enabled, prevents access to settings screens from wirelessly connected devices (only wired devices may configure). Prohibit configuration from wired If enabled, prevents access to settings screens from wired devices (only wirelessly connected devices may configure). Permit configuration from wired If enabled, allows access to settings screens from network devices Internet on the Internet side. *Router mode only Permitted IP address Displayed only if Internet side configuration is enabled. Enter the IP address of the device that is permitted to configure the AirStation *Router mode only remotely from the Internet side. Permitted Port Displayed only if Internet side configuration is enabled. Set a port *Router mode only number (1 - 65535) if configuring the AirStation from the Internet side. WCR-GN User Manual... -
Page 68: Log
Chapter 4 Configuration The screen to transfer the log information of the AirStation by the syslog. Parameter Meaning Log Transfer Enable to send logs to a syslog server. Syslog Server Indentify the syslog server by host name, host name with domain name, or IP address. You may enter up to 255 alphanumeric characters, hyphens (-), and underscores (_). Transfer Logs Choose which logs will be transferred to the syslog server. WCR-GN User Manual... -
Page 69: Save/Restore
Chapter 4 Configuration Save/Restore The screen to save to or restore from an AirStation configuration file. Parameter Meaning Save current settings Clicking "Save" will save the current configuration of the AirStation to a file. If the “Encrypt the configuration file with a password” option is checked, then the configuration file will be password protected with the specified password. Restore Configuration from Backup Restore the configuration of the AirStation from a saved File configuration file by clicking the "Browse" button, navigating to the configuration file, and then clicking Restore. If the configuration file was password protected, then put a check next to "To restore from the file you need the password", enter the password, and click “Open”. WCR-GN User Manual... -
Page 70: Initialize/Restart
Chapter 4 Configuration Initialize/Restart The screen to initialize and restore the AirStation. Parameter Meaning Restart Click "Restart Now" to restart the AirStation. Initialize Click "Initialize Now" to initialize and restart the AirStation. WCR-GN User Manual... -
Page 71: Update
Chapter 4 Configuration Update The screen to update the AirStation’s firmware. Parameter Meaning Firmware Version Displays the current firmware version of the AirStation. Firmware File Name Click "Browse" to specify a firmware file and click "Update Firmware." This will update the firmware. WCR-GN User Manual... -
Page 72: Diagnostic
Chapter 4 Configuration Diagnostic System Info The screen to verify the system information of the AirStation. WCR-GN User Manual... - Page 73 Chapter 4 Configuration Parameter Meaning Model Displays the product name of the AirStation and the firmware version. AirStation Name Displays AirStation Name (refer to page 62). Operational Mode Displays the current operational mode of the AirStation. Internet Displays the information about the Internet port. *Router mode only Displays the information about the LAN port. Wireless Displays the wireless status. Displays the WDS status. *Brdige mode only WCR-GN User Manual...
-
Page 74: Logs
Chapter 4 Configuration Logs The screen to check log information recorded by the AirStation. Parameter Meaning Display log info Choose the types of log information to display. Logs Displays the log information recorded in the AirStation. WCR-GN User Manual... -
Page 75: Packet Info
Chapter 4 Configuration Packet Info The screen to verify the total amount of packets the AirStation transfers. Parameter Meaning Sent Displays the number of packets sent to the Internet side of Ethernet, the LAN side of the Ethernet, and the LAN side of the wireless connection. Received Displays the number of packet received from the Internet side of Ethernet, the LAN side of the Ethernet, and the LAN side of the wireless connection. WCR-GN User Manual... -
Page 76: Client Monitor
Chapter 4 Configuration Client Monitor This screen shows devices that are connected to the AirStation. Parameter Meaning Client Monitor Displays information ( MAC address, lease IP address, host name, communication method, wireless authentication and 802.11n) for devices that are connected to the AirStation. WCR-GN User Manual... -
Page 77: Ping
Chapter 4 Configuration Ping A Ping test checks whether the AirStation can communicate with a specific network device. Parameter Meaning Destination Address Enter an IP address or a host name of the device for which you try to verify the connection, and click "Execute". The result will be displayed in the “Result” field. WCR-GN User Manual... -
Page 78: Chapter 5 Connect To A Wireless Network
Wi-Fi Alliance. Internet Modem AirStation PC or Game console (AOSS Devices) • Before using AOSS/WPS to connect to a Buffalo wireless client, install Client Manager software from the included AirNavigator CD. Consult your wireless client’s documentation for more information. • Buffalo’s Client Manager software can be used with the wireless LAN devices built into your computer. However, it is not guaranteed to work with all wireless LAN devices available. Note: When setting WDS connection, only the AOSS button displayed in the WDS configuration screen functions properly. Refer to the setup process in page 17. If you’ve completed WDS setup by AOSS method, the existing AOSS connection between the target AP and computers has been disconnected. Refer to the following procedure to set up the connection again. WCR-GN User Manual... -
Page 79: Windows 7/Vista (Client Manager V)
Chapter 5 Connect to a Wireless Network Windows 7/Vista (Client Manager V) If you are using Windows 7/Vista, use the included Client Manager V software to connect wirelessly with AOSS/WPS. Click the icon in the system tray, or navigate through “Start” menu > All Programs > BUFFALO > AirStation Utility > ClientManagerV. When the screen at left is displayed, click “Create Profile”. When the message "A Program needs your permission to continue" appears, click “Continue”. When the screen shown at left is displayed, click the “WPS AOSS “ button. Follow the instructions displayed on the screen. After you configure the settings and the Security LED (page 8) stops flashing and is lit, the AOSS/WPS connection is completed. WCR-GN User Manual... -
Page 80: Windows Xp (Client Manager 3)
Chapter 5 Connect to a Wireless Network Windows XP (Client Manager 3) If you are using Windows XP, use the included Client Manager 3 software to connect wirelessly with AOSS/WPS. Right click on the icon displayed in the system tray, and select “Profile”. When the screen shown at left is displayed, click “WPS AOSS” button. Follow the instructions displayed on the screen. After you configure the settings and the SECURITY LED (on page 8) stops flashing and is lit, the AOSS/WPS connection is completed. Other Devices (e.g. Game Console) If you are using a game machine which supports AOSS or WPS, refer to that device’s manual to initiate AOSS/WPS. When instructed, hold down the AOSS button (page 10) on the AirStation for 1 second. After you configure the settings and the SECURITY LED (on page 8) stops blinking and is lit, the AOSS/WPS connection is completed. WCR-GN User Manual... -
Page 81: Manual Setup
You can also connect to the AirStation without installing Client Manager V or Client Manager 3 by using Windows standard utility. The procedure varies depending on which version of Windows you are using. Windows 7 (WLAN AutoConfig) Use Windows standard utility (WLAN AutoConfig) to connect to the AirStation. Click on the network icon in the system tray . Select the target AirStation’s name and click “Connect“. For future use, checking “Connect automatically “ is recommended. WCR-GN User Manual... -
Page 82: Windows Vista (Wlan Autoconfig)
(such as WEP key or pre- shared key) and click “OK”. Windows Vista (WLAN AutoConfig) Use Windows standard utility (WLAN AutoConfig) to connect to the following AirStation. Right click on the wireless network icon in the system tray . Click “Connect to a network”. When the screen at left is displayed, select the network to connect to and click “Connect”. WCR-GN User Manual... - Page 83 Chapter 5 Connect to a Wireless Network If the screen below is displayed, click “I want to enter the network key or passphrase instead”. (If this screen is not displayed, go to step 4) WCR-GN User Manual...
- Page 84 Chapter 5 Connect to a Wireless Network When the screen at left is displayed, enter an encryption key (such as WEP key or pre-shared key) and click “Connect”. Follow the instructions displayed on the screen to finish configuration. (If the Set Network Location screen is displayed, select “Home”, “Work”, or “Public location“ depending where you’re using the AirStation. WCR-GN User Manual...
-
Page 85: Windows Xp (Wireless Zero Configuration)
Click “View Available Wireless Networks”. When the screen at left is displayed, select the network to connect to and click “Connect”. When the screen at left is displayed, enter the encryption key (such as WEP key or pre-shared key) and click “Connect”. Follow the instructions displayed on the screen to finish configuration. WCR-GN User Manual... -
Page 86: Chapter 6 Trouble Shooting
Cannot access the web-based configuration utility. • Display the configuration screen by following the procedure on page 23. • Enter the correct user name and password to login to the configuration screen. If you are using AirStation in factory default settings, enter "root" (in lower case) for the user name and leave the password blank (enter nothing) • Verify that your web browser is not set to use proxies. • Make sure that your computer is configured to “Obtain an IP Address Automatically." (page 96) • Restart your AirStation. Cannot connect to the network wirelessly. • Configure your wireless device with the same SSID, encryption type, and encryption key as used for your AirStation. WCR-GN User Manual... -
Page 87: You Forgot Airstation's Ssid, Encryption Key, Or Password
72Mbps). By default, the AirStation’s 150 Mbps mode is not enabled. To enable it, use the following procedure: 1. Open the configuration screen of your AirStation (page 23). 2. Click "Wireless SSID & Channel (11n 150Mbps Mode)" in Easy Setup. 3. Change the value in "150 Mbps Mode" - "Band Width" to 40 MHz and click "Apply". If you still cannot connect at 150 Mbps, check the settings of your wireless client device. Other Tips WCR-GN User Manual... - Page 88 Answer: Log in to the wireless router with your browser. Go to the Wireless Config tab and then select the Basic tab. Buffalo recommends the use of WPA/WPA2 mixed for wireless encryption. The passphrase/ key should be at least 8 characters in length. Issue: How do I change my wireless router's broadcasted network name (SSID)? Answer: Log in to the wireless router with your browser. Go to the Wireless Config tab and then select the Basic tab if necessary. Find the settings area called SSID. Select the "Use" check box and enter the name you wish to use for your network in the text field provided. Click "Apply" to save the settings. Once the wireless router has rebooted, you will need to manually select the new network name for all wireless devices and enter your encryption key if necessary. WCR-GN User Manual...
- Page 89 Power on the computer. Open a browser on the computer and navigate to a familiar website to verify whether the Internet connection is functioning normally. If after these steps, an Internet connection is still unavailable, power off the Cable or DSL modem and computer again and directly connect your computer to the Cable or DSL modem with a cable between the computer and the port on the modem. Power on the modem and wait one minute. Power on the computer and again check for an Internet connection. If an Internet connection IS NOT available with a direct connection to the computer, please call the Internet Service Provider who installed the modem. If an Internet connection IS available with a direct connection to the computer, please call our customer support. WCR-GN User Manual...
- Page 90 Chapter 6 Trouble Shooting Issue: Where can I download the latest drivers, firmware and instructions for my Buffalo wireless products? Answer: The latest drivers and firmware are available online at www.buffalotech.com WCR-GN User Manual...
-
Page 91: Appendix A Specifications
128/64bit WEP, Mac Address Filter Wired LAN Interface Standard Compliance IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) Transmission Rate 10 / 100Mbps Transmission Encoding 100BASE-TX 4B5B/MLT-3, 10BASE-T Manchester Cording Access Method CSMA/CD Speed and Flow Control 10/100, Auto Sensing, Auto MDIX Number of LAN Ports LAN Port Connector RJ-45 Other Power Supply External AC 100-240V Universal, 50/60Hz Power Consumption Approx. 5.8W (Max) Dimensions 110mm x 103mm x 23mm (4.6 x 4.1 x 0.9 in.) Weight 144g (4.5oz.) *stand not included Operating Environment 0-40°C (32-104°F) , 20-80% (non-condensing) WCR-GN User Manual... -
Page 92: Appendix B Default Configuration Settings
MRU size 1454 Bytes Keep Alive Enable DDNS Dynamic DNS Service Disable (Router Mode only) Current Dynamic DNS Information none LAN Side IP Address Router Mode: 192.168.11.1 (255.255.255.0) Bridge Mode 192.168.11.100 (255.255.255.0) DHCP Server Function Enable (Router Mode only) DHCP IP Address Pool 192.168.11.2 for up to 64 Addresses (Router Mode only) Lease Period 48 hours Router Mode only) WCR-GN User Manual... - Page 93 (Router Mode only) Log Output of Deleted Packets Disable Route Routing Information none Enable External Registrar Enable AirStation PIN An 8-digit random value (Printed on the label of the AirStation) WPS Security Information WPS status: unconfigured AOSS Encryption level expansion Enable function Dedicated WEP SSID isolation Disable AOSS Button on the AirStation Unit Enable WCR-GN User Manual...
- Page 94 No encryption Rekey interval 60 minutes Advanced Multicast Rate 1Mbps DTIM Period Privacy Separator Disable Enable WMM-EDCA Parameters For AP For STA (Priority AC_BK (Low) ) CWmin CWmax 1023 1023 AIFSN TXOP Limit WMM-EDCA Parameters For AP For STA (Priority AC_BE (Normal) ) CWmin CWmax 1023 AIFSN TXOP Limit WCR-GN User Manual...
- Page 95 PPTP Pass Through Disable Port Forwarding Port Forwarding Registration Infor- none mation (Router Mode only) IP Address of DMZ none (Router Mode only) UPnP UPnP Enable (Router Mode only) QoS for transmission to the Inter- Disable (Router Mode only) Name AirStation Name AP + AirStation's MAC Address Password Administrator Name root (fixed) Administrator Password none WCR-GN User Manual...
- Page 96 NTP Functionality Disable NTP Server none Update Interval 24 hours Access Log Output Disable Limitation Item Prohibit configuration from wireless LAN Disable Prohibit configuration from wired LAN Disable Permit configuration from wired Internet Disable Log Transfer Disable Syslog Server none Transfer Logs Router Mode: Address Translation, IP Filter, Firewall, PPPoE Cli- ent, Dynamic DNS, DHCP Client, DHCP Server, AOSS, Wireless Client, Authentication, Setting Changes, System Boot, NTP Client, and Wired Link Bridge Mode: IP Filter, DHCP Client, AOSS, Wireless Client, Au- thentication, Setting Changes, System Boot, NTP Client, and Wired Link WCR-GN User Manual...
-
Page 97: Appendix Ctcp/Ip Settings In Windows
Select “Internet Protocol Version 4 (TCP/IPv4)” then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK” in normal situations. If you fix the IP address, enter the value as necessary. ex) If the router's IP address is 192.168.11.1, IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway blank Preferred DNS server blank Alternate DNS server blank Click “OK”. WCR-GN User Manual... -
Page 98: Windows Vista
Select “Internet Protocol Version 4 (TCP/IPv4)” then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK” in normal situations. If you fix the IP address, enter the value as necessary. ex) If the router's IP address is 192.168.11.1, IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway blank Preferred DNS server blank Alternate DNS server blank Click “Close”. WCR-GN User Manual... - Page 99 Right click on “Local Area Connection”, then click “Properties”. Select “Internet Protocol (TCP/IP)”, then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, and then click “OK” in normal situations. If you fix the IP address, enter the value as necessary. ex) If the router's IP address is 192.168.11.1; IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway blank Preferred DNS server blank Alternate DNS server blank Click “Close”. WCR-GN User Manual...
-
Page 100: Appendix D Restoring The Default Configuration
Appendix D Restoring the Default Configuration Hold down this button for 3 seconds. The AirStation will be initialized. WCR-GN User Manual... -
Page 101: Appendix E Regulatory Compliance Information
This equipment should be installed and operated with minimum distance 20cm between the radia- tor and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or trans- mitter. The availability of some specific channels and/or operational frequency bands are country depen- dent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. WCR-GN User Manual... -
Page 102: European Union Notice
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. WCR-GN User Manual... - Page 103 Dansk[Danish] Undertegnede Buffalo Technology Inc. erklærer herved, at følgende udstyr AirStation WCR-GN overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch[German] Hiermit erklärt Buffalo Technology Inc. dass sich das Gerät AirStation WCR-GN in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti[Estonian] Käesolevaga kinnitab Buffalo Technology Inc. seadme AirStation WCR-GN vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, Buffalo Technology Inc. declares that this AirStation WCR-GN is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español[Spanish] Por medio de la presente Buffalo Technology Inc. declara que el AirStation WCR-GN cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/ Ελληνική[Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Buffalo Technology Inc. ΔΗΛΩΝΕΙ ΟΤΙ AirStation WCR-GN ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français[French] Par la présente Buffalo Technology Inc. déclare que l’appareil AirStation WCR-GN est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano[Italian] Con la presente Buffalo Technology Inc. dichiara che questo AirStation WCR-GN è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski[Latvian] Ar šo Buffalo Technology Inc. deklarē, ka AirStation WCR-GN atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. WCR-GN User Manual...
- Page 104 Appendix E Regulatory Compliance Information Lietuvių[Lithuanian] Šiuo Buffalo Technology Inc. deklaruoja, kad šis AirStation WCR-GN atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands[Dutch] Hierbij verklaart Buffalo Technology Inc. dat het toestel AirStation WCR-GN in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti[Maltese] Hawnhekk, Buffalo Technology Inc. , jiddikjara li dan AirStation WCR-GN jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar[Hungarian] Alulírott, Buffalo Technology Inc. nyilatkozom, hogy a AirStation WCR-GN megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski[Polish] Niniejszym, Buffalo Technology Inc. , deklaruję, że AirStation WCR-GN spełnia wymagania zasadnicze oraz stosowne postanowienia zawarte Dyrektywie 1999/5/EC. Português[Portuguese] Buffalo Technology Inc. declara que este AirStation WCR-GN está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko[Slovenian] Buffalo Technology Inc. izjavlja, da je ta AirStation WCR-GN v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky[Slovak] Buffalo Technology Inc. týmto vyhlasuje, že AirStation WCR-GN spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi[Finnish] Buffalo Technology Inc. vakuuttaa täten että AirStation WCR-GN tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svensk[Swedish] Härmed intygar Buffalo Technology Inc. att denna AirStation WCR-GN står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. WCR-GN User Manual...
- Page 105 Appendix E Regulatory Compliance Information For Taiwan 警語 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加 大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 WCR-GN User Manual...
-
Page 106: Appendix F Environmental Information
Environmental Information • The equipment that you have purchased has required the extraction and use of natural resources for its production. • The equipment may contain hazardous substances that could impact health and the environment. • In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. • The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way. • The crossed-out wheeled bin symbol invites you to use those systems. • If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. WCR-GN User Manual... -
Page 107: Appendix Ggpl Information
Appendix G GPL Information The source code for Buffalo products that use GPL code is available at http://opensource.buffalo.jp/ . WCR-GN User Manual... -
Page 108: Appendix H Warranty Information
Appendix H Warranty Information Buffalo Technology (Buffalo Inc.) products come with a two-year limited warranty from the date of purchase. Buffalo Technology (Buffalo Inc.) warrants to the original purchaser the product; good op- erating condition for the warranty period. This warranty does not include non-Buffalo Technology (Buffalo Inc.) installed components. If the Buffalo product malfunctions during the warranty period, Buffalo Technology/(Buffalo Inc.) will, replace the unit, provided the unit has not been subjected to misuse, abuse, or non-Buffalo Technology/(Buffalo Inc.) authorized alteration, modifications or re- pair. All expressed and implied warranties for the Buffalo Technology (Buffalo Inc) product line including, but not limited to, the warranties of merchantability and fitness of a particular purpose are limited in duration to the above period. Under no circumstances shall Buffalo Technology/(Buffalo Inc.) be liable in any way to the user for damages, including any lost profits, lost savings or other incidental or consequential damages aris- ing out of the use of, or inability to use the Buffalo products. -
Page 109: Appendix I Contact Information
TEL: 02-2057-2095 e-mail: support@buffalotech.co.kr Singapore TEL: 65-6297-2085 e-mail: buffalo@blumm.com Taiwan TEL: 0800-660-886 e-mail: support@buffalo-tech.com.tw Thailand TEL: 02-716-6669 Other Areas Please contact the shop or distributor where you purchased the unit, re- ferring to the attached warranty card issued by the distributor. WCR-GN User Manual...
