Connecting to an HDTV with a DVI Connector

WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or disconnecting
any device cables to the set-top.
Required cables:
•
1 HDMI-to-DVI or 1 HDMI cable and 1 DVI adapter
•
1 audio Left/Right cable

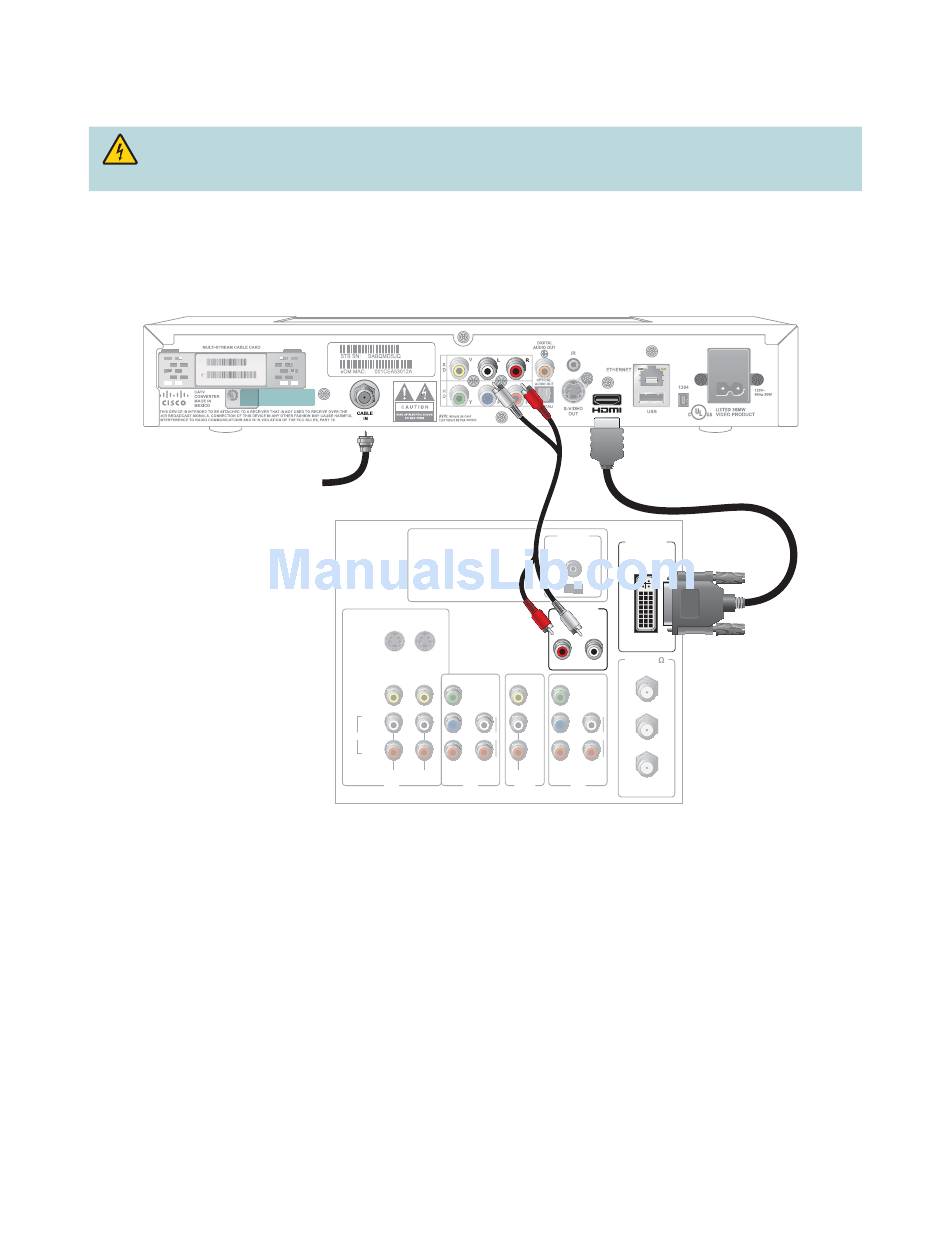

Back of Set-Top
M-CARD SN: PKCPTMFDV M-CARD SN: PKCPTMFDV
M-CARD MAC: 001BD746C7CB M-CARD MAC: 001BD746C7CB
Cable Input
Back of HDTV
Notes:
•
When you connect the HDMI connector to the DVI connector on your HDTV, you need an HDMI-to-DVI adaptor and
a separate audio connection.
•
Digital content is encrypted with High-Bandwidth Content Protection (HDCP) on the DVI/HDMI port. This set-top is
not compatible with devices that do not support HDCP. You must use either the YPbPr or 1394 connection (which
uses Digital Transmission Content Protection, or DTCP) to connect the set-top to these devices.
•
Also refer to the Important Note Regarding the HDMI Interface on the Set-top on page 12.
S-VIDEO
VIDEO
Y
VIDEO
L/
P L
B MONO
L/
MONO
AUDIO AUDIO
R
P
R
R
R
HD 1
IN IN OUT
AUDIO
DVI/HDCP
CENTER
IN
CHANNEL IN
ON OFF
AUDIO IN AUDIO IN
DVI/HDCP DVI/HDCP
R R L L
ANT (75 )
Y
ANT-1
P L
B
AUDIO
P
R
OUT
R
HD 2
ANT-2
IN
T14892
13
