© 2013 Char-Broil, LLC Columbus, GA 31902

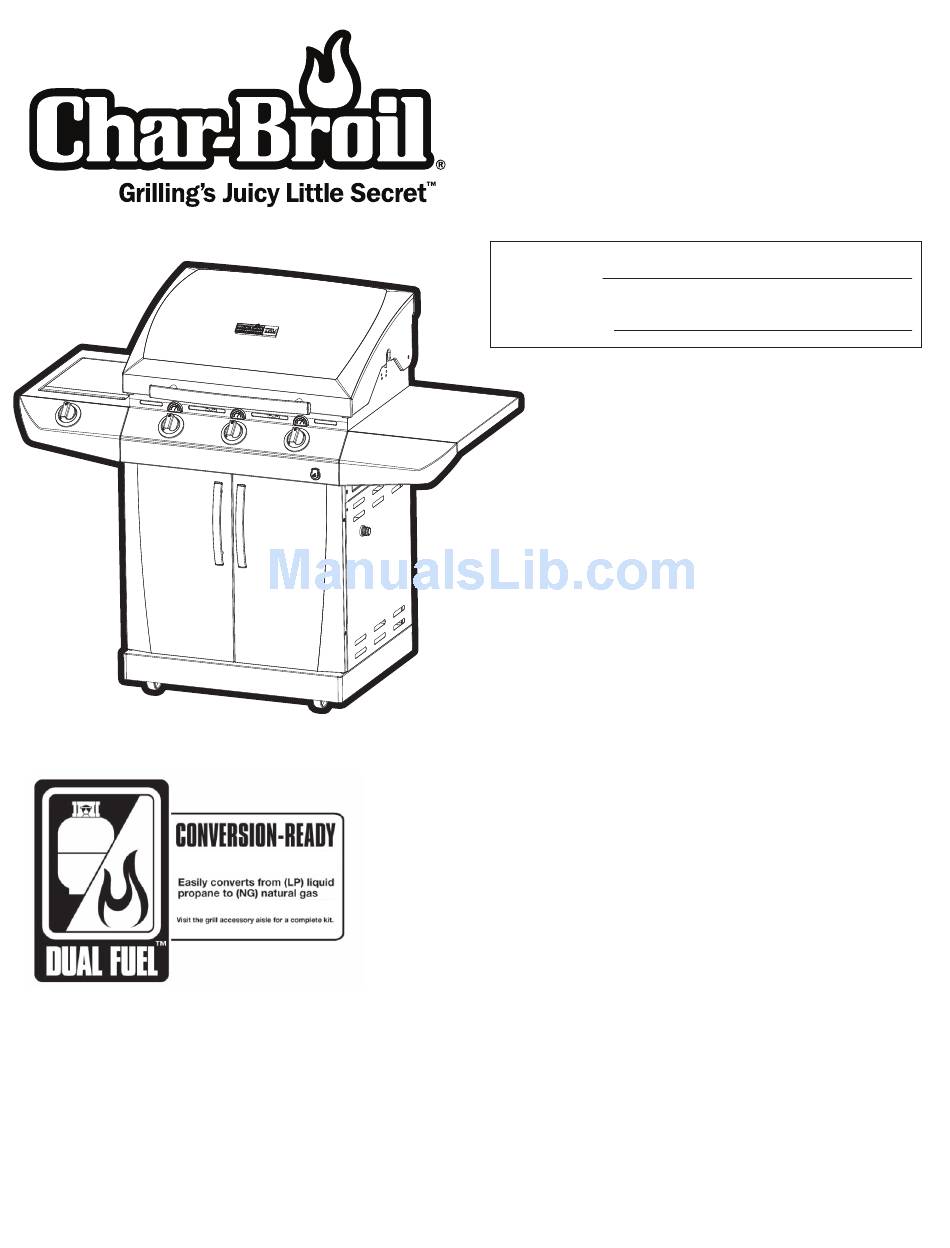

PRODUCT GUIDE
MODEL 463270913
Char-Broil Performance T-36D
IMPORTANT: Fill out the product record information below.
Serial Number
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-888-430-7870.
Printed in China
See rating label on grill for serial number.
Assembly instructions © 2013
08/01/12 • G519-001-350801

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 463270913 and is the answer not in the manual?

Questions and answers

Related Manuals for Char-Broil 463270913

Summary of Contents for Char-Broil 463270913

  • Page 1 PRODUCT GUIDE MODEL 463270913 Char-Broil Performance T-36D IMPORTANT: Fill out the product record information below. Serial Number See rating label on grill for serial number. Date Purchased For support and to register your grill, please visit us at www.charbroil.com If you have questions or need assistance during assembly, please call 1-888-430-7870.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DANGER For Your Safety ........2-3 If you smell gas: Use and Care .

  • Page 3: Grease Fires

    WARNING CAUTION Using pots larger than 6 quarts in capacity could CALIFORNIA PROPOSITION 65 exceed weight limit of the 1. Combustible by-products produced when using side burner shelf this product contains chemicals known to the State or side shelf, of California to cause cancer, birth defects, or resulting in failure other reproductive harm.
  • Page 4 LP Cylinder USE AND CARE •The LP cylinder used with your grill must meet the following requirements: DANGER •Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. •...

  • Page 5: For Your Safety

    LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing 1.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 6 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 7 Safety Tips WARNING ▲ Before opening LP cylinder valve, check the coupling nut for tightness. ▲ When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious cylinder valve. Injury: ▲...
  • Page 8 Burner Flame Check • Remove cooking grates and flame tamers. Light burners, rotate WARNING knobs from HIGH to LOW. You should see a smaller flame in LOW position than seen on HIGH. Perform burner flame check Turn controls and gas source or tank OFF when not on sideburner, also.

  • Page 9: Spider Alert

    3. Remove carryover tubes and burners. CAUTION Detach electrode from burner. NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below. 5. Carefully lift each burner up and away from valve openings. SPIDER ALERT! We suggest three ways to clean the burner tubes. Use the one easiest for you.

  • Page 10: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.

  • Page 11: Parts List

    PARTS LIST Description Description TOP LID UPPER DOOR BRACE LOGO PLATE DOOR, LEFT, NO HANDLE HANDLE, TOP LID HANDLE F/ DOOR, SB LID HARDWARE F/ TOP LID ASSEMBLY DOOR, RIGHT, NO HANDLE RUBBER BUMPER, RECTANGLE, F/ SIDEBURNER TOP LID ELECTRODE, F/ SIDEBURNER RUBBER BUMPER, ROUND ELECTRONIC IGNITION MODULE FIREBOX...

  • Page 12: Parts Diagram

    PARTS DIAGRAM...

  • Page 13: Assembly

    ASSEMBLY Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster clockwise into the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters. Make sure the two locking casters are secured at the rear and the non-locking casters are secured at the front.
  • Page 14 Place lower back panel between side panels at rear of bottom shelf. Secure lower back panel to side panels using two 1/4-20x1/2” screws on each side. Lower back panel 1/4-20x1/2" screw This step requires two people to lift and position grill head onto cart. Carefully lower the grill head onto the cart, aligning slots at bottom of grill head with posts on cart side panels.
  • Page 15 Insert temperature gauge stem into the bigger hole above knob, shown A. Make sure the gauge is pushed in as far as it will go, then push the gauge downward until it clips into the panel, as shown in B/C. Temperature gauge stem Temperature gauge Back of the panel...
  • Page 16 Insert flange on right side shelf into side shelf brackets on side of firebox, shown A. Attach right side shelf using three 1/4-20x1/2” screws and 1/4” nuts, shown B. Attach rear of shelf using one 1/4-20x1½” screw, shown C. Attach front of shelf and fascia using one #8x3/8” self-tapping screw with large flat washer and using one 1/4- 20x1/2”...
  • Page 17 Insert flange on left sideburner shelf into side shelf brackets on side of firebox, shown A. Attach left sideburner shelf using three 1/4-20x1/2” screws and 1/4” nuts, shown B. Attach rear of shelf using one 1/4-20x1 ½" screw, shown C. Attach front of shelf using one #8x3/8”...
  • Page 18 First, remove the two screws and washers factory attached to the sideburner valve bracket. Position sideburner valve bracket beneath sideburner shelf fascia so that valve stem comes through larger center hole in fascia. Align the holes on valve bracket with left and right holes on fascia. Secure using screws and washers that were removed from bracket.
  • Page 19 Under sideburner shelf, attach sideburner ignitor wire to electrode, shown A. Place sideburner grate onto sideburner shelf, aligning grate legs with holes in shelf, shown B. Sideburner grate Electrode Sideburner Ignitor Wire Insert front brace under control panel and between cart panels. Make sure door hinge pin is on the top side and facing the front.
  • Page 20 Inside of cart, insert rear shield tab into left slot on upper of lower back panel. Insert left and right grease tray rails into slots beneath grease tray opening in upper back panel, shown A. Attach front shield tabs under front brace and attach right and left rails under front brace with three #8x3/8”...
  • Page 21 Insert hinge pin on bottom of door into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of door, and release hinge pin into door. PRESS Top of door Left door Hinge pin on bottom of door Right door...
  • Page 22 Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in back of firebox. Flame tamers Front of firebox Slide into slots Back of firebox Place IR cooking grates onto firebox as shown. Insert the two wire ends at rear of warming rack into holes in back of firebox.
  • Page 23 On back of grill, slide grease tray into opening in upper back panel. CAUTION Failure to install grease tray will cause hot grease to drip from bottom of grill with risk of fire or property damage Grease tray Unscrew electronic ignition cap on cart right side panel. Insert AA battery into electronic ignition module negative ( ) end first.
  • Page 24 LP CYLINDER IS SOLD SEPARATELY. Fill and leak check the cylinder before attaching to grill and regulator (see Use & Care section). Once cylinder has been filled and leak checked, place cylinder into hole in bottom shelf. Make sure cylinder valve is facing front of grill. Secure cylinder with cylinder screw under bottom shelf. See Use &...

  • Page 25: Troubleshooting

    DANGER: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. • Turn off gas at LP cylinder or at source on natural gas systems. If cracked/cut/burned anything but burned, replace valve/hose/regulator.

  • Page 26: Troubleshooting

    Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: using ignitor. • No spark, no ignition noise. • See Section I of Electronic Ignition System. (See Electronic Ignition Troubleshooting also) • No spark, some ignition noise. • See Section II of Electronic Ignition System. •...
  • Page 27 Troubleshooting - Electronic Ignition Problem (Ignition) Possible Cause Check Procedure Prevention/Solution SECTION I No sparks appear at • Battery not installed • Check battery orientation. • Install battery (make sure that “+” and “–” any electrodes when properly. connectors are oriented correctly, with “+” end up Electronic Ignition Button and “–”...
  • Page 28 NOTES...
  • Page 29 NOTES...
  • Page 30 NOTES...
