Char-Broil 463270613 Product Manual

Performancet-22d
Hide thumbs

Advertisement

Quick Links

Download this manual
_®
Grilling's Juicy Little Secret
TM
PRODUCT
GUIDE
MODEL
463270613
Char-BroilPerformanceT-22D
iMPORTANT: Fi, out the product record information below.
Serial Number
See ratinglabel on grill for serialnumber.
Date Purchased
Forsupportandto registeryour
grill, pleasevisit us at
www.charbroil.corn
if you havequestionsor need
assistanceduringassembly,
pleasecall 1-888-430-7870.
© 2013 Char-Broil,LLC Columbus,GA 31902
Printedin China
Assembly instructions© 2013
08/01/12 • G351-001-I50801

Advertisement

loading

Related Manuals for Char-Broil 463270613

Summary of Contents for Char-Broil 463270613

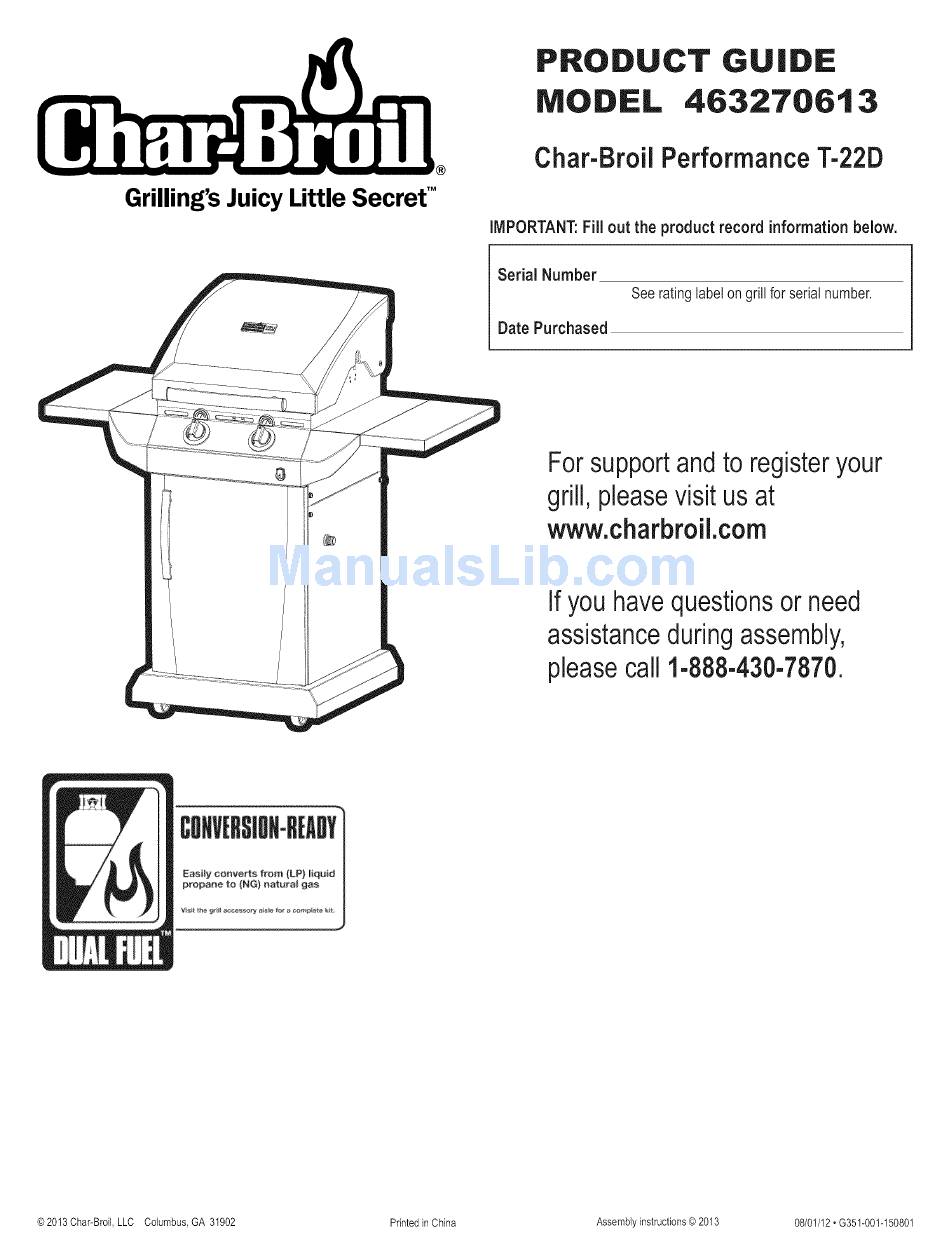

  • Page 1 Fi, out the product record information below. Serial Number See ratinglabel on grill for serialnumber. Date Purchased Forsupportandto registeryour grill, pleasevisit us at www.charbroil.corn if you havequestionsor need assistanceduringassembly, pleasecall 1-888-430-7870. © 2013 Char-Broil,LLC Columbus,GA 31902 Printedin China Assembly instructions© 2013 08/01/12 • G351-001-I50801...
  • Page 2 ForYourSafety........If you smell gas: Useand Care ........1. Shut off gas to the appliance. LimitedWarranty ........2. Extinguish any open flame. PartsList.......... 3. Open lid. PartsDiagram ........4. If odor continues, keep away from the appliance and immediately call your gas Assembly ........

  • Page 3: California Proposition

    CAUTION CALIFORNIA P ROPOSITION 65 1.Combustible by-products produced whenusing this productcontainschemicals knownto theState of California to causecancer, b irthdefects,or otherreproductive harm. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm.
  • Page 4 LP Cylinder •The LP cylinder used with your grill must meet the following requirements: •Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. • NEVER store a spare LP cylinder under or near •LP cylinders must be constructed and marked in accordance the appliance or in an enclosed...
  • Page 5 LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing I.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 6 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completelyopen LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 7 Safety Tips A Before opening LP cylinder valve, check the coupling nut for tightness. A When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious cylinder valve. Injury: A Never move grill while in operation or still hot.
  • Page 8 Burner Flame Check • Remove cooking grates and flame tamers. Light burners, rotate knobs from HIGH to LOW. You should see a smaller flame in LOW position than seen on HIGH. Perform burner flame check Turn controls and gas source or tank OFF when not on sideburner, also.

  • Page 9: Spider Alert

    Remove carryover tubes and burners. CAUTION Detach electrode from burner. NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below. Carefully lift each burner up and away from valve openings. SPIDER ALERT! We suggest three ways to clean the burner tubes. Use the one easiest for you.
  • Page 10 This warranty only applies to units purchased from an authorized retailer. ManuPacturer warrants to the mziginal consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under nolTnal and reasonable home use for the periods indicated below beginning on the date of purchase*.
  • Page 11 NOT Pictured TOP LID DOOR MAGNET HANDLE F/TOP LID CASTER PIN LOGO PLATE HARDWARE PACK RUBBER BUMPER, RECTANGLE, F/TOP ASSEMBLY MANUAL, ENGLISH CLEANING TOOL FIREBOX COOKING GRATE WARMING RACK FLAME CARRYOVER TUBE W/COTTER MAIN BURNER, F/FIREBOX FLAME TAMER ELECTRODE, F/MAIN BURNER, 600MM WIRE SIDE SHELF, FIXED LEFT SIDE SHELF, FOLDING...
  • Page 13 Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster clockwise into the threads on the bottom shelf until secure. Removethe Caster Pin and repeat for remaining casters. Make sure the two locking casters are secured at the rear and the non-locking casters are secured at the front.
  • Page 14 This step requires two people to lift and position grill head onto cart. Carefully lower the grill head onto the cart, aligning slots at bottom of grill head with posts on cart side panels. Make sure the regulator hose is hanging inside the cart.
  • Page 15 Insert temperature gauge stem into the bigger hole above knob, shown A. Make sure the gauge is pushed in as far as it will go, then push the gauge downward until it clips into the panel, as shown in B/C. Tern ure gauge stem Back of the panel...
  • Page 16 Attach foldable side shelf brackets to the tracks under right side shelf using one shoulder screw and 1/4" nut each side, shown A/B. Pull foldable side shelf outward and press it down, shown C. Push foldable side shelf toward right side shelf until they gather up, shown D. Only right side shelf shown for assembly, repeat above steps to Install left side shelf with foldable side...
  • Page 17 Insert flange on right side shelf into side shelf brackets on side of firebox, shown A. Attach right side shelf using three l/4-20xl/2"screws and 1/4" nuts, shown B. Attach rear of shelf using one 1/4o20×1 1/2"screw, shown C. Attach front of shelf using one #Sx3/8"self-tapping screw and using one ll4-20xll2"screwwith 1/4"...
  • Page 18 Insert front brace under control panel and between cart panels. Make sure door hinge pin is on the top side and facing the front. Secure front brace in upper holes using one 1/4-20x11/2" screw and Fiber washer on each side. Secure front brace in lower holes using one 1/4-20x11/2'' screw on each side.
  • Page 19 Insert hinge pin on bottom of door into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of door and release hinge pin into door. Hinge pin onbottom ofdoor I'1" III I IIIII'1'1 I ..
  • Page 20 Connect each of the wires from main burner electrodes into the back of Electronic Ignition Module. Total (2) connections. Connect the two wires [(a) and (b)] from switch wiring harness into the back of the Electronic Ignition Module. Total (2)connections, shown A.
  • Page 21 Place IR cooking grates onto the firebox as shown. Insert the two wire ends at rear of warming rack into holes in back of firebox. Front wires of warming rack rest on sides of firebox. Assembled warming rack Warming rack iMPORTANT:IR cooking grates must be placed keeping both flat walls overlapped to prevent...
  • Page 22 LP CYLINDER IS SOLD SEPARATELY. Fill and leak check the cylinder before attaching to grill and regulator (see Use & Care section). Once cylinder has been filled and leak checked, place cylinder into hole in bottom shelf. Make sure cylinder valve is facing front of grill. Secure cylinder with cylinder screw under bottom shelf.
  • Page 23 DANGER; if a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department, Gasleakingfrom • Damagedhose. •Turnoff gas at LP cylinderor at sourceon naturalgassystems.If cracked/cut/burned anythingbut burned,replacevalve/hose/regulator. If burned, hose. discontinueuseof productuntila plumberhas investigated cause and corrections are made.

  • Page 24: Electronic Ignition

    Troubleshooting (continued) ELECTRONIC IGNITION: Burner(s)will not light usingignitor. • Nospark,no ignitionnoise. • SeeSectionI of ElectronicIgnitionSystem. (See ElectronicIgnition Troubleshooting a lso) • Nospark,someignitionnoise. • SeeSectionII of ElectronicIgnitionSystem. • Sparks,but notat electrodeor at full • SeeSectionIII of ElectronicIgnitionSystem. strength. Burner(s)will not • See "GAS ISSUES:"on previouspage. matchlight.
  • Page 25 Troubleshooting - Electronic ignition pmm ! SECTION I Nosparksappearat • Battery not installed • Checkbatteryorientation. • Installbattery(makesurethat "+"and "-" anyelectrodeswhen properly. connectorsare orientedcorrectly, w ith "+"end up ElectronicIgnitionButton and "-" enddown.) is pressed;no noise can be heardfromspark • Deadbattery. • Has batterybeen used •...
  • Page 27 Which product are you registering? _.Qu_ producto est_i registrando? Mail to: / Enviar a: / Envoyer Quel produit enregistrez-vous? []Gas Grill I Parrilla a gas I Gril au gaz Char-Broil Warranty Registration Electric Grill ] Parrilla el_ctrica I Gril _lectrique []Smoker I Ahumador I Fumoir P.O.
  • Page 28 FO YOU URCHASE Grilling's Juicy Little Secret _° • Valuable product information • Inspiring grilling accessories • Reliable customer support • Delicious recipes and tips from chefs • Exciting events and promotions • And much more!

This manual is also suitable for:

Performance t-22d
