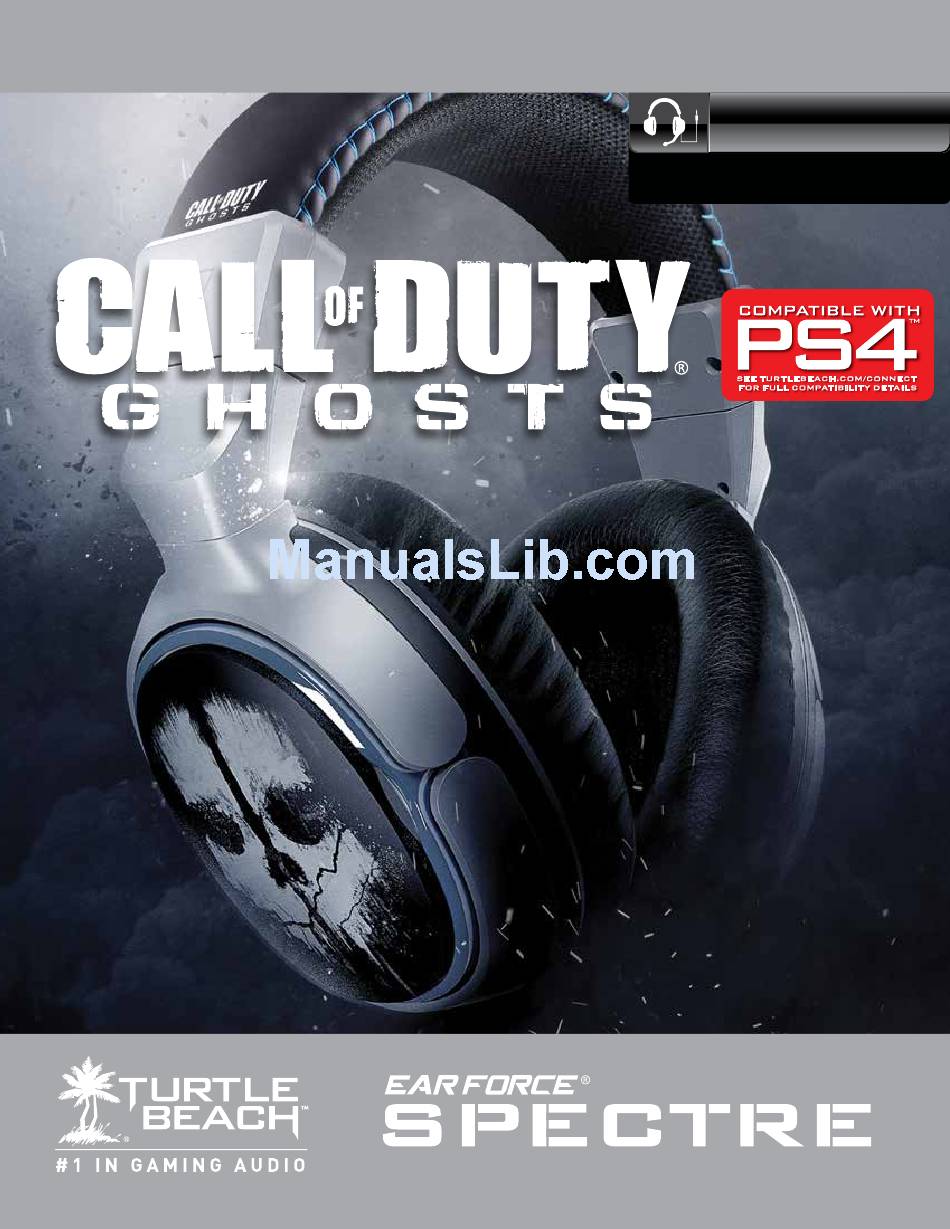

- Page 1 Limi ted e d ition Pr emi U m Am PL i fi ed GAm inG HeAdset Wired For: Xbox 360 I PS3 I PC ® ™ I Mobile ® U s e r G U i de...
- Page 2 ® ® Compatible with PS3™, Xbox 360 , PC and Mac computers, tablets, PS Vita™, and mobile devices. The Spectre, ® ® delivers superior, clear sound over PlayStation Network (PSN), Xbox LIVE or online PC/Mac gaming. For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support...
-
Page 3: Table Of Contents
Table of Contents Package Contents Features Amplifier Features Basic Hardware Setup PS3 Setup HDMI PS3 Setup RCA PS3 System Settings Configuration Xbox 360 Setup - All Models Xbox 360 Setup (HDMI) Xbox 360 Setup (RCA) Xbox 360 E Setup (HDMI) Xbox 360 System Settings Configuration PC/Mac Setup PC System Settings Configuration... -
Page 4: Package Contents
® I Mobile Quick Start Guide For the full user guide or set up video please go to: turtlebeach.com/spectre Pour consulter le guide d’utilisation complet et les vidéos de configuration, veuillez visiter le site: turtlebeach.com/spectre Product support and warranty information: Support du produit et des informations de garantie: www.turtlebeach.com/support... -
Page 5: Features P5
Features · Independent Game and Chat: Separate volume controls for your Game and Chat audio. · Powerful Inline Amp: Mix in Game, Chat, Mic, Music and answer a phone call all through the Inline Amp. · Bass and Treble Levels: Tune bass and treble levels to add depth and realism ·... -
Page 6: Amplifier Features
· Xbox Chat Input: Connect your Xbox 360 Controller for chat using the Xbox 360 Talkback Cable · Headset Jack: Connect your Spectre headset using the Headset Breakaway Cable or the Mobile Adapter Cable. *Note: Phone mode must be switched on in order to talk on the phone while gaming. -
Page 7: Basic Hardware Setup
Basic Hardware Setup Note: When connecting the boom mic, please line up to connect correctly and securely so it is oriented properly for use. Do not force input when not in line with the keying. -
Page 8: Ps3 Setup Hdmi
PS3 Setup HDMI HDMI PS3 AV Cable The PS3 AV Cable is included with your console. -
Page 9: Ps3 Setup Rca
PS3 Setup RCA white yellow The PS3 AV Cable is included with your console. -
Page 10: Ps3 System Settings Configuration
Microphone Level Input Device TURTLE BEACH SPECTRE Output Device TURTLE BEACH SPECTRE PS3 System Settings Configuration X Enter Back PS3 Audio Output Setup 12/14 12:15 PM Audio Output Settings Sets to output audio through multiple connectors simultaneously. Audio output to connectors that are not selected in [Audio Output Settings] is downscaled to 2 Ch. -
Page 11: Xbox 360 Setup - All Models
Xbox 360 Setup - All Models... -
Page 12: Xbox 360 Setup (Hdmi)
Cable for audio output when used with an HDMI connection (available from turtlebeach.com). Note: Note: If your HDMI TV has red/ white AUDIO OUT RCA jacks, you can use them to feed the sound from your TV to your Spectre headset. (AUDIO IN jacks will not send... -
Page 13: Xbox 360 Setup (Rca)
Xbox 360 Setup (RCA) *Xbox 360 AV Cable Yellow INPUT White *The Xbox 360 AV Cable is included with your console. -
Page 14: Xbox 360 E Setup (Hdmi)
Xbox 360 E Setup (HDMI) HDMI HDMI... -
Page 15: Xbox 360 System Settings Configuration
Xbox 360 System Settings Configuration Xbox 360 Configuration Voice Voice Volume Game Volume Mute Kinect Voice Output Play Through Headset 1. Press Xbox Guide button on your controller, Play Through Speakers select Settings > Preferences > Voice. Play Through Both 2. -
Page 16: Pc/Mac Setup
When used as a PC/Mac gaming headset, the Spectre functions as both a USB Stereo Headset and an Amplified Stereo Headset. The Inline Amplifier’s black 3.5mm plug is used for sending the stereo game signal from the computer sound card to the Spectre amplifier, allowing game audio, music and other sounds to be heard from the computer. -
Page 17: Pc System Settings Configuration
4. Click on the “OK” button at the bottom of the window to exit. Note: In order to maintain independent volume controls for chat and game, please make sure to set “TURTLE BEACH SPECTRE” as both the recording and playback device in the audio setting for your voice chat application. -
Page 18: Mac System Settings Configuration
1. Click on the Apple Menu and select System 2. On the Output tab. select “Headphones”. Preferences » Sound. 3. On the input tab, select “TURTLE BEACH SPECTRE”. NOTE: In order to maintain independent volume controls for chat and game, please make sure to set “TURTLE BEACH SPECTRE”... -
Page 19: Mobile Device Setup With The Inline Amplifier
Mobile Device Setup with the Inline Amplifier Once your Spectre headset is set up and ready to use with your game console, you are ready to utilize the functions of the Inline amplifier to full effect. You can use the Auxiliary cable to play music and answer calls from your mobile device while gaming. - Page 20 Mobile Device Setup with the Inline Amplifier Mic Settings Mic on High Bright Blue LED Mic on Low Dim Blue LED Mic routes to Aux Path Purple LED Mic Muted Red LED...
-
Page 21: Mobile Device Setup Without The Inline Amplifier
Mobile Device Setup without the Inline Amplifier 1. Remove the mic boom. 2. Disconnect the Spectre headset from the amp 3. Exchange the breakaway cable for the Mobile Adapter Cable (with Inline mic) 4. Connect to mobile device... -
Page 22: Speaker Plates / Troubleshooting P22
Speaker plates Your Spectre headset speaker plates may be removed and replaced with other speaker plates according to your preference. To purchase additional speaker plates, visit: www.turtlebeach.com/speaker-plates. Limited edition themed speaker plates may also be available from time to time. -
Page 23: Specifications
Specifications · Speaker Dimensions: 50mm · Speaker Core: Neodymium Magnets · Speaker Impedance: 32Ω · Speaker Frequency Response: 20Hz – 20KHz · Headphone Amplifier: Stereo · Output Power: 27mW/Ch @ 16 ohm · Earcup Style: Around Ear · Cushion Material: Memory Foam ·... - Page 24 Regulatory Compliance Statements for the EAR FoRCE SPECTRE Models Federal Communications Commission (FCC) Compliance notices Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules.
-
Page 25: Declaration Of Conformity
Declaration of Conformity Heading Marking by this symbol: indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 (T-Mark License) Also Licensed for Standards: IEC 60950-1: 2005 (2nd Edition) + Am 1: 2009 (CB Scheme Report/Certificate), UL 60950-1: 2007 R12.11 (NRTL License),... - Page 26 Japan Compliance Statement この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。この 場合には使用者が適切な対策を講ずるよう要求されることがあります。 VCCI－A この装置は、クラスB情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジ オやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。 取扱説明書に従って正しい取扱いをして下さい。 VCCI－B This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. Korean Compliance Statement B급...
- Page 27 WARRANTY SERVICE: In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local International Distribu- tors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor’s policy.
- Page 28 EXCLUSIonS FRoM LIMITED WARRAnTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - is modified or tampered with;...
- Page 29 Copyright © 2013 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. Turtle Beach, the Turtle Beach Logo, Voyetra, and Ear Force are either trademarks or registered trademarks of VTB, Inc. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. Playstation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment, Inc.
