Removal Of Outer Rotary Hook Assy - Brother XM3700 Service Manual

Application of Disassembly

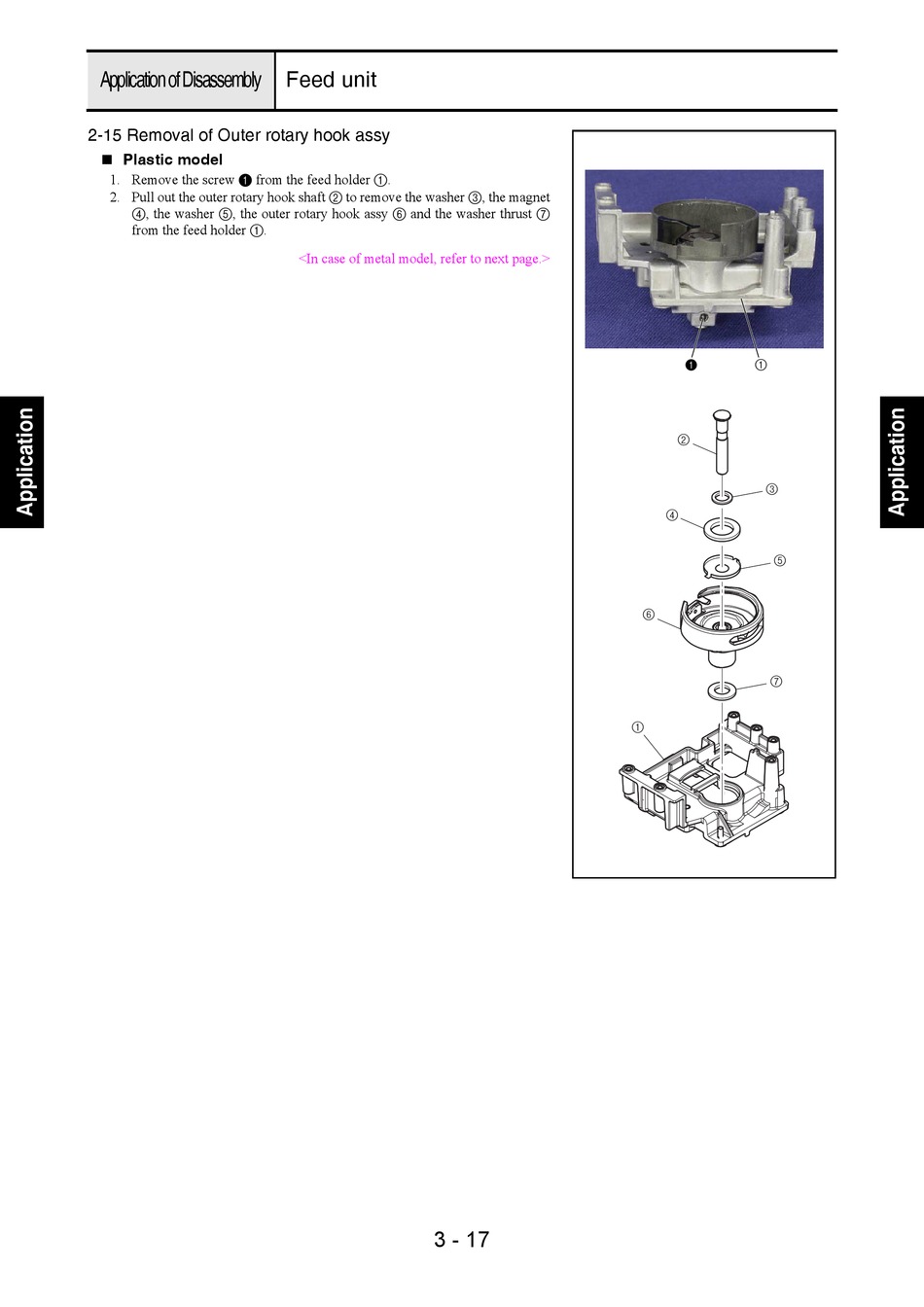

2-15 Removal of Outer rotary hook assy

Plastic model
1. Remove the screw 1 from the feed holder 1.
2. Pull out the outer rotary hook shaft 2 to remove the washer 3, the magnet
4, the washer 5, the outer rotary hook assy 6 and the washer thrust 7
from the feed holder 1.
Feed unit
<In case of metal model, refer to next page.>
