Vivotek FD8371EV User Manual page 13

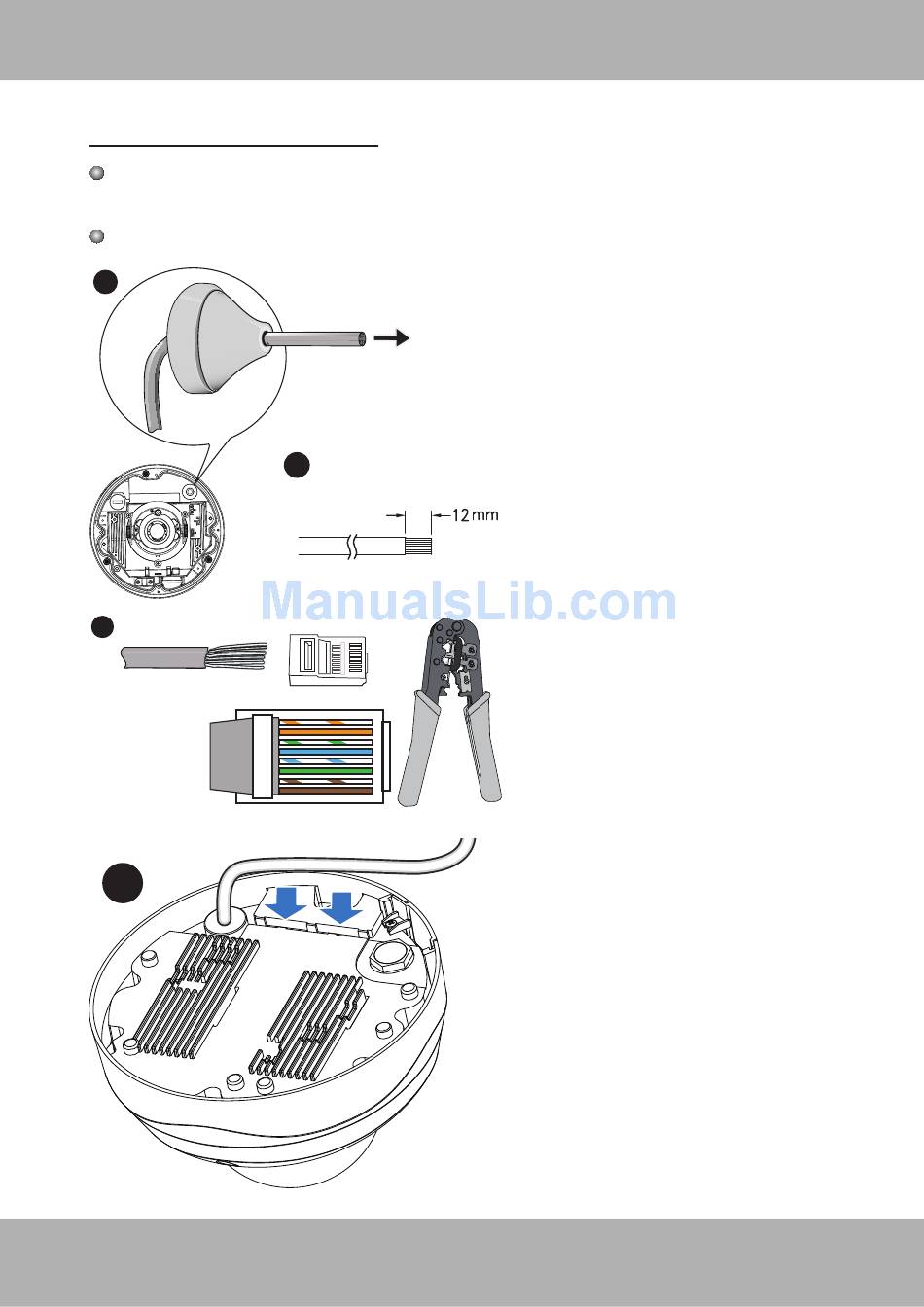

Connecting RJ45 Ethernet Cable
RJ45 Cable Dimension (unit: mm)
Recommended cable gauge: 24AWG (0.51 mm)
Assembling Steps
1
3
o: white/orange stripe
o
O: orange solid
O
g: white/green stripe
g
B: blue solid
B
b: white/blue stripe
b
G: green solid
G
br: white/brown stripe
br
BR: brown solid BR
4
Rubber Seal
Plug
2
1
2
3
4
5
6
7
8
1. Drill a hole on the rubber seal plug
and insert an Ethernet cable through
the opening.
2. Strip part of the sheath from the Eth-
ernet cable.
3. You will need an RJ45 crimping tool
to attach the Ethernet wires to a
connector. When done, connect the
cable to the camera's Ethernet RJ45
socket.
4. Press the Ethernet cable into the routing
path at the bottom of the camera so that
the cable will not get in the way when the
metal mounting plate is attached.
VIVOTEK
User's Manual - 13
