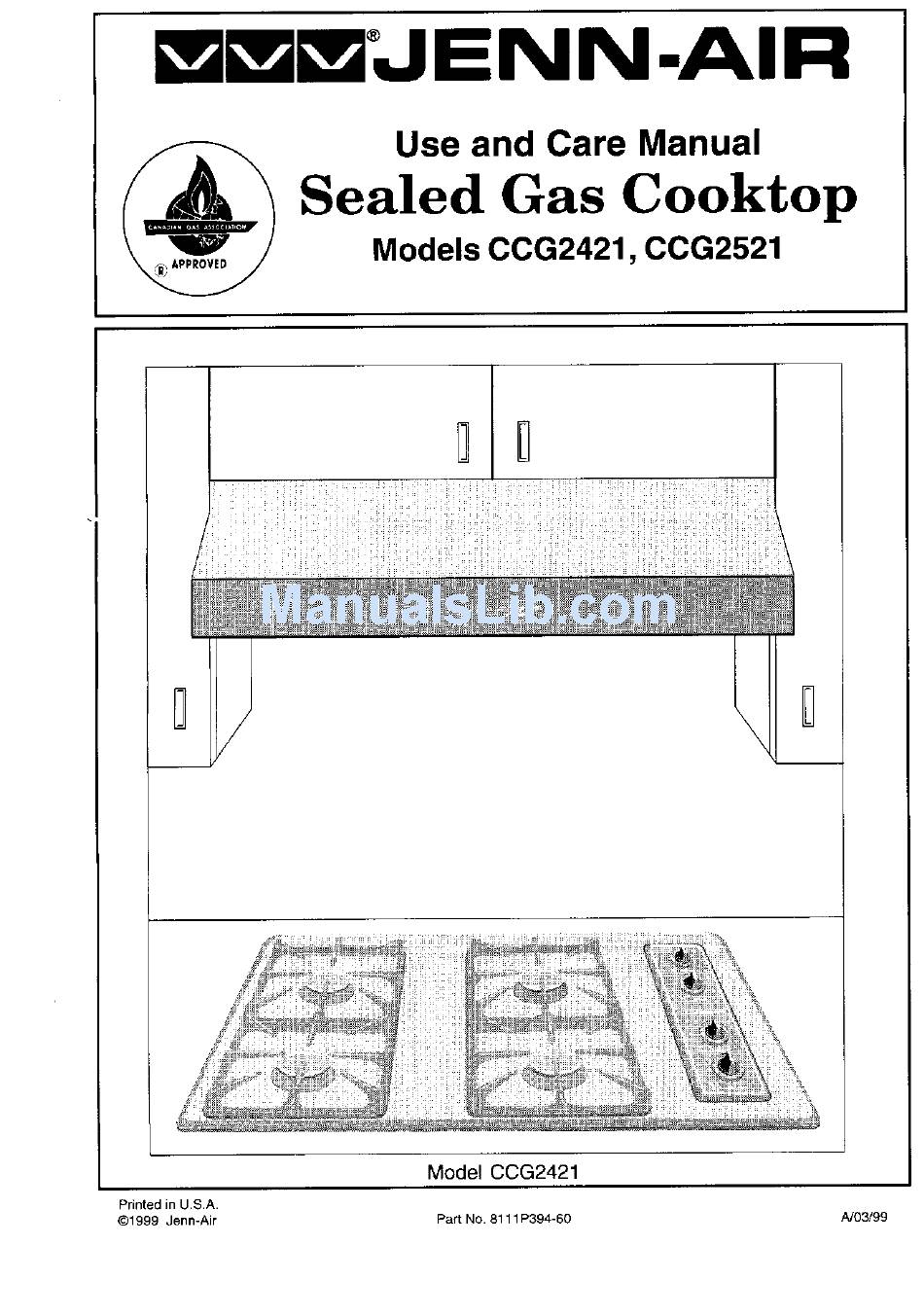

Service Manual
NN-AIR
Use and Care Manual
Sealed
Gas Cooktop
Models CCG2421, CCG2521
Model CCG2421
Printed in U.S.A.
@1999 Jenn-Air
Part No. 8111P394-60
AJ03/99
Advertisement
Related Manuals for Jenn-Air CCG2421
Summary of Contents for Jenn-Air CCG2421
- Page 1 NN-AIR Sealed Gas Cooktop Models CCG2421, CCG2521 Use and Care Manual Model CCG2421 Printed in U.S.A. @1999 Jenn-Air Part No. 8111P394-60 AJ03/99...
- Page 3 Do not repair or replace any part of the appliance unless specifically recom- mended in this manual. All other servicing should be referred to an authorized Jenn-Air Servicer. Do not store combustible materials, gasoline or other flammable vapors and liquid near cooktop, This also applies to aerosol sprays and aerosol spray cans.
-
Page 4: For Future Reference
14. Do not touch surface burner areas or any areas near burners. During and after use, these areas may be hot enough to cause burns. Avoid contact with these areas by clothing or other flammable materials until they have had sufficient time to cool. -
Page 5: Important Safety Notice And Warning
Do notcut or remove the grounding prong from this plug. Congratulationson your choice of a Jenn-Air sealed gas cooktop. The chart below describes the difference between models. - Page 6 Whenthe control knobis turned ON, gas will flow intothe burner. The solid state igniter will click as long as the knob is in the Lite position. (Note: All burner igniters will spark regardlessof which burner is being operatedwhen a knob isturned to the Iite position.) A properly adjusted burner with clean ports will light within a few seconds.
- Page 7 4. Rightfront (9.200BTUs)* 2. Leftfront (9,200BTUs) 5. Center rear(9,200 BTUs) *l_ledel CCG2421: Right front burner BTU rate is 12,000 and right rear is 9,200. Note: Use the surface burners with the higher BTU rate on Hi for large quantity cooking and canning.
- Page 8 To achieve optimum cooking performance, use cookpots with flat bottoms,tight fitting covers, and sized for the surface burner. • Flame size should be adjusted so it does not extend beyond the edge of the cookware. This instruction is based on safety considerations. Adjusting the size of the flame to fit the size of the cookwarealso helps to save fuel.
- Page 9 Check the following list to be sure a service call is really necessary. If surface burner fails to light: • check to be sure unit is properly connectedto power supply. • check for a blown circuit fuse or a tripped main circuit breaker. •...
- Page 10 Be sure all controls are OFF and all cooktop parts are cool before cleaning. The cooktopisdesignedwith contouredwells which containspills untilthey canbe wiped up. Neverwipe a warm or hot porcelainenamel surfacewith a dampcloth. For general daily cleaning and light soil, wash with warm soapy water, rinse, and dry. To remove greasespatters, spray with cleaners such as Fantastikor 409.
- Page 11 • The sealed burners are secured to the cooktop and are NOT designed to be removed.Since the four burners are sealed into the cooktop, boilovers won't seep underneathto the burner box area. Thus, there are no hidden spills in the burner box area to clean.
- Page 12 Model Number Serial Number (Serial Plate is located on the bottom side of the cooktop.) Date Purchased JENN-AIR DEALER FROM WHOM PURCHASED Address city. Phone AUTHORIZED JENN-AIR SERVICE CONTRACTOR Address City_ Phone Important: Retain proof of purchase documents for warranty service.
