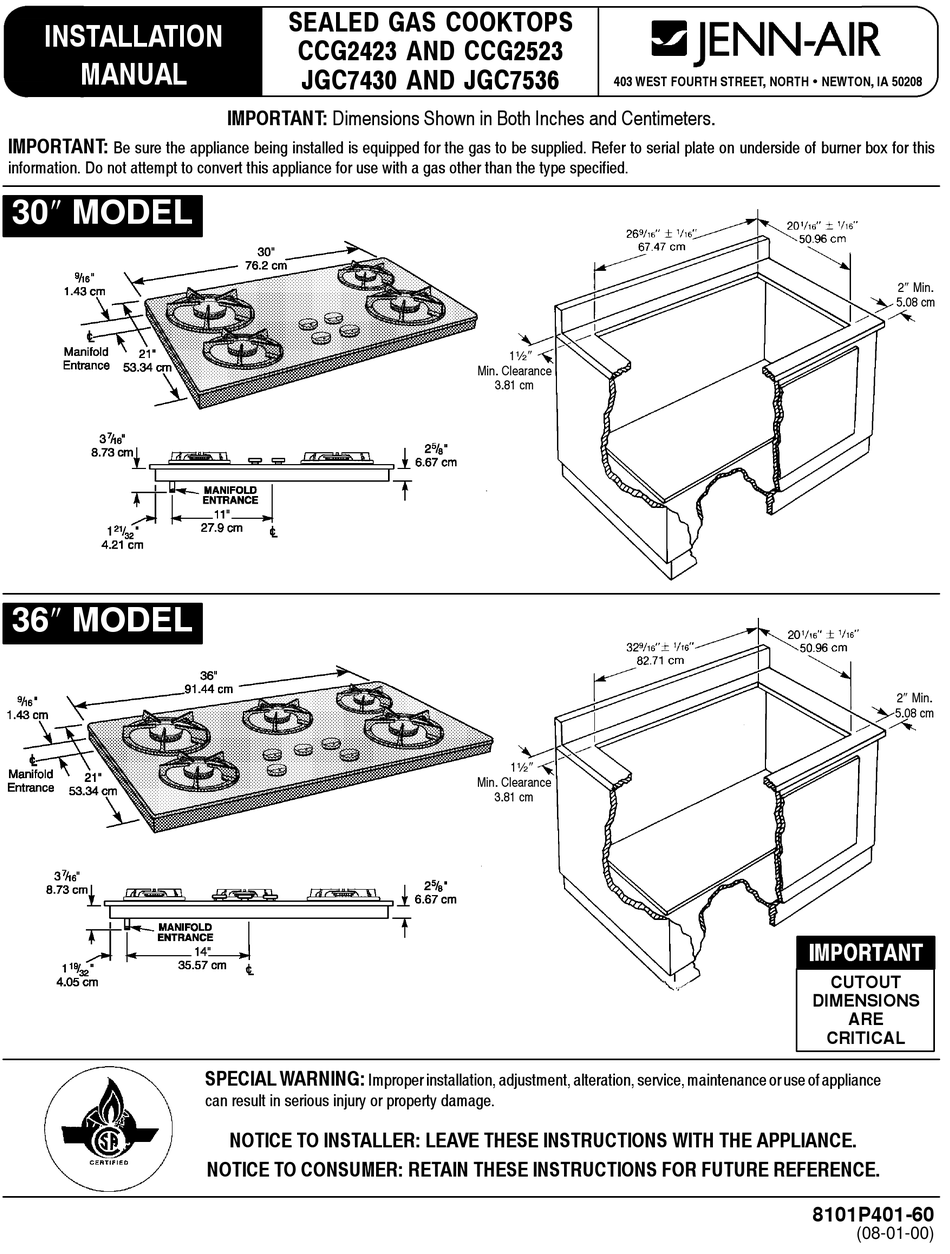

INSTALLATION
MANUAL
IMPORTANT:
Be sure the appliance being installed is equipped for the gas to be supplied. Refer to serial plate on underside of burner box for this
information. Do not attempt to convert this appliance for use with a gas other than the type specified.
30² MODEL
36² MODEL
SEALED GAS COOKTOPS
CCG2423 AND CCG2523
JGC7430 AND JGC7536
IMPORTANT: Dimensions Shown in Both Inches and Centimeters.
SPECIAL WARNING:
Improper installation, adjustment, alteration, service, maintenance or use of appliance
can result in serious injury or property damage.
NOTICE TO INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE.
NOTICE TO CONSUMER: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
403 WEST FOURTH STREET, NORTH · NEWTON, IA 50208
1 2 ²
Min. Clearance
3.81 cm
1 2 ²
Min. Clearance
3.81 cm
2² Min.
5.08 cm
2² Min.
5.08 cm
CUTOUT
DIMENSIONS
ARE
CRITICAL
8101P401-60
(08-01-00)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCG2423 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jenn-Air CCG2423

  • Page 1 SEALED GAS COOKTOPS INSTALLATION CCG2423 AND CCG2523 MANUAL JGC7430 AND JGC7536 403 WEST FOURTH STREET, NORTH · NEWTON, IA 50208 IMPORTANT: Dimensions Shown in Both Inches and Centimeters. IMPORTANT: Be sure the appliance being installed is equipped for the gas to be supplied. Refer to serial plate on underside of burner box for this information.
  • Page 2: Important Preparation Suggestions

    + 1/16² (.159 cm) to ensure proper fit. cm) above the cooking surface is * Jenn-Air Over-the-Range microwave ovens (model #M418 and M438) 1² (2.54 cm) at rear have been listed by UL for use over Gas and Electric Ranges. When 4²...
  • Page 3: Installation Of Appliance

    I. If this is a 30² wide model and a Jenn-Air Model W30XXX or W131 Electric Wall Oven is to be installed in cabinetry below, proceed as instructed under paragraph II.
  • Page 4 2. IF THIS IS A 30² WIDE COOKTOP AND A JENN-AIR, MODEL W30XXX OR W131, ELECTRIC WALL OVEN IS TO BE INSTALLED BELOW THIS COOKTOP. NOTE 1: This appliance and its gas and electrical supply sources must be ILLUSTRATIVE GAS SUPPLY PIPING installed before the wall oven is installed.
  • Page 5: Pressure Testing

    ALTERNATIVE PIPING METHODS TO CONNECT APPLIANCE TO GAS SUPPLY A TRAINED SERVICEMAN OR GAS APPLIANCE INSTALLER MUST CAUTION: Do not attempt to attach the flexible connector directly to an MAKE THE GAS SUPPLY CONNECTION. Leak testing of the appliance external pipe thread. Connection requires flare union adapters. shall be conducted by the installer according to the instructions given.
  • Page 6: Electrical Wiring Information

    ELECTRICAL WIRING INFORMATION This appliance is equipped with a grounded type power cord. A grounded and, if necessary, through the slats supporting the shelf. The clearance outlet must be provided. It is recommended, for convenience, the outlet be hole should be located as near as practical to the rear of the shelf and located (with reference to figure 6) as in A or B, below: (if the oven is model W30XXX) as near as practical to the left rear corner.
  • Page 7: Converting Appliance For Use With Lp Gas

    WITH LP GAS 4 BURNER MODEL (30² WIDE) WARNING Propane conversion is to be performed by a JENN-AIR AUTHORIZED SERVICER (or other qualified agency) in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow instructions could result in serious injury or property damage.
  • Page 8 B. Invert cap in appliance pressure regulator (See figures 10 and 11.) 3. Insert a slender, thin-blade screwdriver into the recess at center of valve stem and engage blade with slot in adjusting screw. With the appliance installed, the appliance regulator should be located as shown in figure 3 or 4.
  • Page 9 TO CONVERT APPLIANCE FOR USE WITH INSTALLATION OF NATURAL GAS NATURAL GAS ORIFICE SPUDS WARNING 4 BURNER MODEL (30² WIDE) Electrical power and gas must be turned off prior to conversion. If this appliance has been converted for use with LP gas, each of the following modifications must be performed to convert the unit back to natural gas.
  • Page 10 BURNER IGNITION AND AUTO-REIGNITION TOP GRATE REPLACEMENT This appliance is equipped for electronic auto-reignition by means of a The top grates on this cooktop have underside projection lugs designed to spark igniter located at the rear of each burner. The burners are designed nest in matching depressions in the spillover trays.
  • Page 11: Instructions D'installation

    TABLES DE CUISSON À GAZ SCELLÉES INSTRUCTIONS CCG2423 ET CCG2523 D’INSTALLATION 403 WEST FOURTH STREET, NORTH · NEWTON, IA 50208 JGC7430 ET JGC7536 ÉTATS- UNIS IMPORTANT : Les dimensions sont indiquées en pouces et en centimètres. IMPORTANT : S’assurer que l’appareil à installer est doté de l’équipement requis pour le type de gaz fourni par le système d’alimentation. Pour le savoir, vérifier la plaque du numéro de série posée sous le caisson du brûleur.
  • Page 12 EMPLACEMENT DE VOTRE APPAREIL PRÉPARATION DU COMPTOIR JENN- AIR Le comptoir doit être découpé conformément à l’illustration de la page 1. Placer cet appareil loin des matières combustibles comme les rideaux de AVERTISSEMENT : Les dimensions des découpures sont précises. Pour fenêtres et les décorations murales combustibles.
  • Page 13: Installation De L'appareil

    INSTALLATION DE L’APPAREIL : INSTALLATEUR D’APPAREILS À GAZ. L’installateur va vérifier la présence de fuites sur l’appareil en suivant les Cet appareil doit être installé conformément aux codes locaux ou, en consignes ci-jointes. l’absence de tels codes, conformément à la dernière édition du National Fuel Gas Code, ANSI Z223.1 aux États- - Unis ou, au Canada, SI AUCUN AUTRE APPAREIL NE DOIT ÊTRE INSTALLÉ...
  • Page 14 SI CET APPAREIL EST UNE TABLE DE CUISSON D’UNE LARGEUR DE 30 PO ET QU’UN FOUR MURAL ÉLECTRIQUE JENN- AIR DE MODÈLE W30XXX OU W131, DOIT ÊTRE INSTALLÉ SOUS L’APPAREIL. REMARQUE 1 : Cet appareil, de même que ses sources d’alimentation en CROQUIS EXPLICATIF - TUYAUTERIE D’ALIMENTATION EN GAZ gaz et en électricité...
  • Page 15 AUTRES MÉTHODES DE RACCORDEMENT DE L’APPAREIL À LA SOURCE D’ALIMENTATION EN GAZ A TRAINED SERVICEMAN OR GAS APPLIANCE INSTALLER MUST AVERTISSEMENT : Ne pas tenter de fixer le raccord souple directement MAKE THE GAS SUPPLY CONNECTION. Leak testing of the appliance à...
  • Page 16: Directives De Mise À La Terre

    RENSEIGNEMENTS SUR LE CÂBLAGE ÉLECTRIQUE Cet appareil est muni d’un cordon d’alimentation avec mise à la terre. qui soutiennent la tablette. Le trou de passage doit être aussi près que Utiliser une prise de courant avec mise à la terre. Pour des raisons d’ordre possible de l’arrière de la tablette et (dans le cas du four de modèle pratique, il est recommandé...
  • Page 17 CONVERSION DE L’APPAREIL À L’UTILISATION INSTALLATION DES TÊTES D’INJECTEURS DU GAZ DE PÉTROLE LIQUÉFIÉ POUR GAZ DE PÉTROLE LIQUÉFIÉ MISE EN GARDE MODÈLE À 4 BRûLEURS (30 PO DE LARGEUR) La conversion au gaz propane doit être effectuée par un CENTRE DE SERVICE JENN- - AIR AGRÉÉ...
  • Page 18 B. Retourner le capuchon du régulateur de pression de l’appareil (Voir les figures 10 et 11). 3. Insérer la lame d’un tournevis dans le renfoncement au centre de la fige de la valve pour rejoindre la vis de réglage. Lorsque l’appareil est installé, le régulateur de pression de l’appareil doit être placé...
  • Page 19 CONVERSION DE L’APPAREIL À L’UTILISATION INSTALLATION DES TÊTES D’INJECTEURS (EN AU GAZ NATUREL LAITON) POUR GAZ NATUREL MODÈLE À 4 BRûLEURS (30 PO DE LARGEUR) MISE EN GARDE Couper l’alimentation électrique et le gaz avant de VERT ROUGE procéder à la conversion. Si cet appareil a été...
  • Page 20 ALLUMAGE ET AUTO- RALLUMAGE DES MISE EN PLACE DES GRILLES DE SURFACE BRûLEURS Les grilles de surface de cette table de cuisson sont munies de pattes de fixation conçues pour se loger dans les creux correspondants pratiqués Cet appareil est doté d’une fonction d’auto- - rallumage électronique assurée dans les bacs de trop- - plein.
