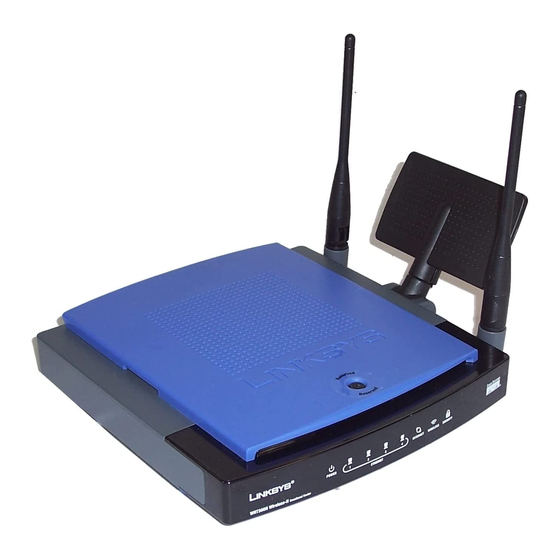

Linksys WRT300N Quick Installation Manual

Wireless-n broadband router
Hide thumbs Also See for WRT300N:
Table of Contents

Advertisement

Quick Links

See also: Product Data , User Manual
24 ,
GHz
Wireless
Wireless
WRT300N (EU/LA/UK)
Model No.
Model No.
Package Contents
• Wireless-N Broadband Router
• Setup CD-ROM with Norton Internet Security
• User Guide on CD-ROM
• Ethernet Network Cable
• Power Adapter
• Quick Installation
Wireless-N

Broadband Router

Quick Installation Guide
1

Advertisement

Table of Contents
loading

Related Manuals for Linksys WRT300N

Summary of Contents for Linksys WRT300N

  • Page 1: Broadband Router

    • Wireless-N Broadband Router • Setup CD-ROM with Norton Internet Security • User Guide on CD-ROM • Ethernet Network Cable • Power Adapter • Quick Installation 24 , Wireless-N Broadband Router Wireless Wireless Quick Installation Guide WRT300N (EU/LA/UK) Model No. Model No.

  • Page 2: Connect The Router

    There are two ways to configure the Router. Choose one of the following: • Run the Setup CD-ROM - Insert the Setup CD-ROM into the CD-ROM drive, and follow the on-screen instructions. • Use this Quick Installation Guide - If you wish, you can use the Router’s Web-based Utility.
  • Page 3 Connect the included power adapter to the Router’s Power port, and then plug the power adapter into an electrical outlet. The Power LED on the front panel will light up when the adapter is connected properly. Make sure you IMPORTANT: Power on your PC(s).

  • Page 4: Configure The Router

    Configure the Router Make sure your PC’s Ethernet NOTE: adapter is set to obtain an IP address automatically. For more information, refer to Windows Help. Open your web browser. Enter http://192.168.1.1 in its Address field. Press the Enter key. A password request screen will appear.
  • Page 5 For the Internet Connection Type setting, six connection types are offered through the drop-down men. Each Setup screen and available features will differ depending on which connection type you select. Internet Configuration Type Automatic Configuration - DHCP: If you are connecting through DHCP DHCP or a dynamic IP address from your ISP , keep this default...

  • Page 6: Telstra Cable

    PPTP: PPTP is a service used in Europe only. Complete the Server IP Address, Subnet Mask, and Default PPTP Gateway fields. Complete the User Name and Password fields. Select Keep Alive if you always want to be connected to your ISP , or select Connect on Demand if you are charged for the time that you are connected to your ISP .
  • Page 7 Select the Network Mode. Mixed: If your network has Wireless-N, -G, and -B devices, then keep the default setting, Mixed. Disable: To disable wireless networking, select Disable. Network Name (SSID). The SSID is the network name shared by all devices in a wireless network.
  • Page 8 Wide Channel. If you selected Wide - 40MHz Channel for the Radio Band setting, then this setting will be available for your primary Wireless-N channel. Select any channel from the drop-down menu. Standard Channel. Select the channel for Wireless-N, -G, and -B networking.
  • Page 9 Restart or power on your PCs so they can obtain the Router’s new settings. To test the Router’s settings, open your web browser from any computer. In the browser’s Address field, enter www.linksys.com/registration and press the Enter key. Congratulations! The installation of the Wireless-N Broadband Router is complete.

  • Page 10: Configure Wireless Security

    Configure Wireless Security Open the Router’s Web Utility as shown in Step 2, and click the Wireless tab. Click the Wireless Security tab. Select the security method you want to use: PSK/PSK2 Personal, WEP , PSK/PSK2 Enterprise, or RADIUS. For PSK/PSK2 Personal and WEP , proceed to the appropriate instructions.

  • Page 11: Wep Security Settings

    Router. Website http://www.linksys.com/international Product Registration http://www.linksys.com/registration Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. WRT300N-EU-LA-UK-QIG-PSK-60406NC JL...
