SERVICE MANUAL

PARTS LIST

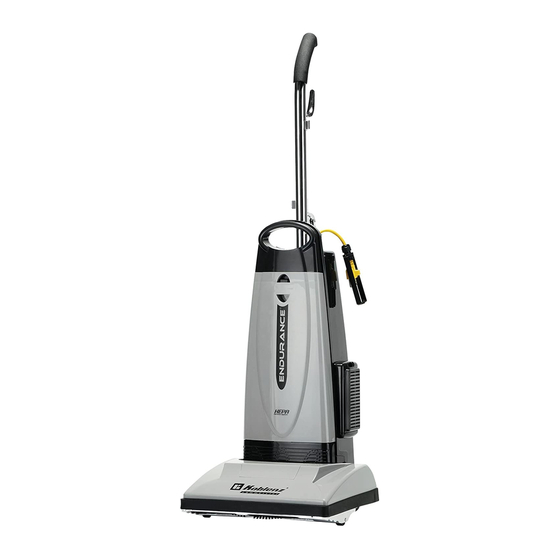

UPRIGHT VACUUM CLEANER
MODELS:
U-800
KOBLENZ ELECTRICA S.A. DE C.V.
OCTOBER-08
LP-UV-200810
E-mail:
thorne_scsm@koblenz-electric.com
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the U-800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Koblenz U-800

Summary of Contents for Koblenz U-800

  • Page 1: Parts List

    SERVICE MANUAL PARTS LIST UPRIGHT VACUUM CLEANER MODELS: U-800 KOBLENZ ELECTRICA S.A. DE C.V. OCTOBER-08 LP-UV-200810 E-mail: thorne_scsm@koblenz-electric.com 1/14...

  • Page 2: Table Of Contents

    INDEX PAGE I. - REPLACEMENT PROCEDURES II. - TROUBLE SHOOTING CHART III. - ELECTRICAL CHARACTERISTICS IV. - NOZZLE GROUP PARTS V. - NOZZLE GROUP PARTS LIST VI. - BODY GROUP PARTS VII. - BODY GROUP PARTS LIST VIII. - HANDLE AND TOOLS GROUP PARTS IX.

  • Page 3: I. - Replacement Procedures

    I. - REPLACEMENT PROCEDURES II. REPLACEMENT PROCEDURES 1. - TO REPLACE DE BELT ( 22 ), FIG 1. 1.1.- Press handle release pedal and put the upright in a horizontal position. Remove the bottom plate ( lock) by unscrewing the bottom plate and pull it out . 1.2.-The rear belt cover (black) (18),fig1 and remove the agitator assembly ( 1 ) , fig 3 .

  • Page 4: Ii. - Trouble Shooting Chart

    11.-TO CHANGE THE SECONDARY FILTER (11),FIG2. 11.1.-Remove motor cover ( 22) 11.2.-Remove the secondary filter , Replace the filter . 11.3.-Reassemble. 12..-TO CHANGE THERMAL SWITCH ( 24),FIG3 12.1.- Follow steps indicated on point 6.1 to 6.5 12.2.-Remove screw (26),fig3, and replace thermal switch(24),fig3. 12.3.-Reassemble.

  • Page 5: Iv. - Nozzle Group Parts

    IV.- NOZZLE GROUP PARTS ( FIG.1) 5/14...
  • Page 6 V.- NOZZLE GROUP LIST PARTS ( FIG.1) Part No. Part No. Part Name and Description 570002527Nozzle housing ass. (gray 423C) 700054301Plastic bushing (black) 570011327Carpet/Floor pedal cover (gray 423C) 570008327Window (gray 423C) M400691 Bottom plate lock screw (M4) 49-5602-06-2 500040300Nozzle housing felt packing 500014304Hose inlet fitting (red) M400391 Set screw (M4*16)

  • Page 7: Vi. - Body Group Parts

    VI.- BODY GROUP PARTS ( FIG.2) 7/14...
  • Page 8 VII.- BODY GROUP LIST PARTS ( FIG.2) Part No. Part No. Part Name and Description 49-5602-07-0 580001328 Dust compartment (graphite 426C) 720013301 Vented support rubber 49-5602-26-0 700023391 Handle fitting (rear) M400191 Set screw (M4*15) 700022391 Handle fitting (front) 49-5602-25-2 700019301 Cord holder (black) M401091 Set screw (M4*12)
  • Page 9 VIII.-MOTOR AND AGITATOR GROUP PARTS ( FIG.3) 9/14...
  • Page 10 IX.-MOTOR AND AGITATOR GROUP LIST PARTS ( FIG.3) Part No. Part No. Part Name and Description 49-5602-33-6 700162400Agitator assembly (metal) 700162392Agitator core (metal) 700227301Rubber end cover (black) 49-5602-35-1 700172300End cap 700174300Agitator felt washer (white) WA00991 Washer (6.0*12*0.5) 49-5602-34-4 700171300Agitator bearing (626DD) 700170300Agitator bearing holder 49-5602-36-9 700175500Agitator brush...
  • Page 11 X.-HANDLE AND TOOLS GROUP PARTS 11/14...
  • Page 12 XI.- HANDLE AND TOOLS GROUP LIST PARTS Part No. Part No. Part Name and Description 570074392Handle tube (C) 570062301Soft grip (black) 570054392Metal cord hook M400591 Set screw (M4*25) ∮ 700925300 Cord protection tube ( 9.0) 570991323Power cord ( SJT 16A WG)-yellow-45CM 49-5602-59-1 760011592Bottom plate assembly (lock) 700308500Packing grip...

  • Page 13: Xii. - Electric Diagram

    XII.- ELECTRIC DIAGRAM 13/14...
  • Page 14 Thorne Electric Company 610 Lanark Suite 205 San Antonio TX, 78218 Tel (210) 590-1226 Fax (210)590-1258 1-800-548-5741 FACTORY KOBLENZ ELECTRICA S.A. DE C.V. AV. CIENCIA NO.26 CUAUTITLAN IZCALLI ESTADO DE MEXICO 54730 Web site : http://www.koblenz..com.mx KOBLENZ ELECTRICA S.A. DE C.V.
