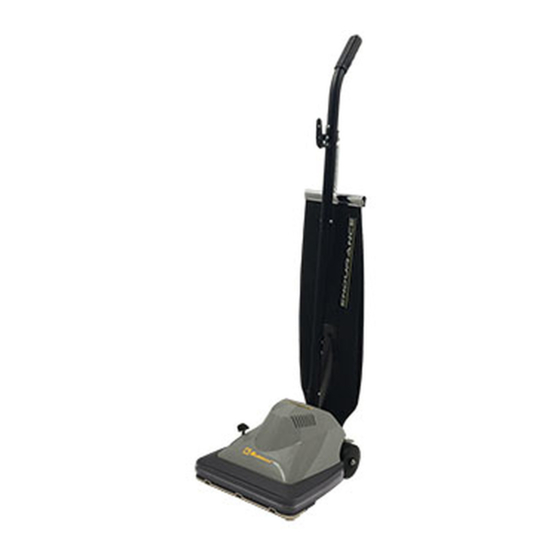

SERVICE MANUAL PARTS LIST UPRIGHT VACUUM CLEANER MODELS: U-40 KOBLENZ ELECTRICA S. A. DE C. V. JUANARY-2010 LP-U40-201001 E-mail: thorne_scsm@koblenz-electric.com... - Page 2 INDEX I.- FINAL TEST FOR PRODUCT SAFETY II.- REPLACEMENT PROCEDURES III.- TROUBLE SHOOTING CHART IV.- UPRIGHT VACUUM CLEANER EXTERNAL PARTS V.- PARTS LIST UPRIGHT VACUUM CLEANER VI.- UPRIGHT VACUUM CLEANER INTERNAL PARTS VII.- PARTS LIST UPRIGTH VACUUM CLEANER VIII.- WIRING DIAGRAM...
-
Page 3: Final Test For Product Safety
I.-FINAL TEST FOR PRODUCT SAFETY After repairs the product should be tested on its electrical function and electric strength as follows. 1.-ELECTRIC TEST 1. Set hi-pot test meter at 1500 Volts 2. Place the handles tube to “ON” position Touch one probe of tester to one blade of power cord plug and touch other probe to handle tube, there should be no breakdown. - Page 4 7.-TO REMOVE THE COVER (2), FIG. 1 AND FIG.2 7.1.-Remove the bag (8) (Fig. 1) 7.2.-Depress handle release pedal (39) and put on horizontal position the handle tube 7.3.-Remove the screw (14) and adjustment knob (1) (Fig.2) 7.4.-To avoid damage on the cover place the upright upward wheels in a soft surface, remove the insur- ance 8.-TO REPLACE MOTOR (51), FIG 2.
-
Page 5: Troubleshooting Chart
NOTE: Drawing numbers are for identification purposes only. III.-TROUBLE SHOOTING CHART. PROBLEM POSSIBLE CAUSE SOLUTION 1.- Not firmly plugged in. 1.- Check attachment plug. 2.- Bad ON-OFF switch. 2.- Replace switch. A) Motor does not work 3.- Line cord open 3.- Replace cord. - Page 6 IV.-UPRIGHT VACUUM CLEANER EXTERNAL PARTS FIG. 1...
- Page 9 VII.-PARTS LIST UPRIGHT VACUUM CLEANER ITEM No PART DESCRIPTION KNOB CAM 13-3147-9 PLASTIC COVER UPRIGHT U-40 13-2949-01-7 BAFFLE 12-0936-0 SCREW B 10-16X3/4 01-15006 REAR WHEEL 13-3144-6 BLIND SECURITY TYPE HAT 04-0671-0 SCREW HEX No 10-16X5/8 01-1499-1 SCREW 10X5/8 01-0664-1 FLAT WASHER 5/16x1/2...
- Page 10 ITEM No PART DESCRIPTION REAR WHEEL AXLE 25-1322-4 ANGLE FOR SOIL 05-4993-1 TURBINE COVER WITH SEAL ASSEMBLY 46-3208-9 TURBINE COVER 43-A 13-3145-3 TURBINE SEAL COVER GASKET 43-B 12-0834-7 SCREW 6X3 01-0270-7 SCREW TYPE T 8-32 01-1683-0 MOTOR SPACER 05-0997-6 STAPLE INSULATED CONNECTOR 10-0137-9 ROCKER SWICTH 11-0159-1...
-
Page 11: Wiring Diagram
VIII.-WIRING DIAGRAM... -
Page 12: Factory Authorized Service
610 Lanark Suite 205 San Antonio TX, 78218 Tel. (210) 590-1226 Fax (210)590-1258 1-800-548-5741 FACTORY KOBLENZ ELECTRICA S.A. DE C. V. Av. Ciencia N.28 Cuautitlán Izcalli Estado de México C. P. 54730 Web site : http://www.koblenz.com.mx KOBLENZ ELECTRICA S.A. DE C. V.
