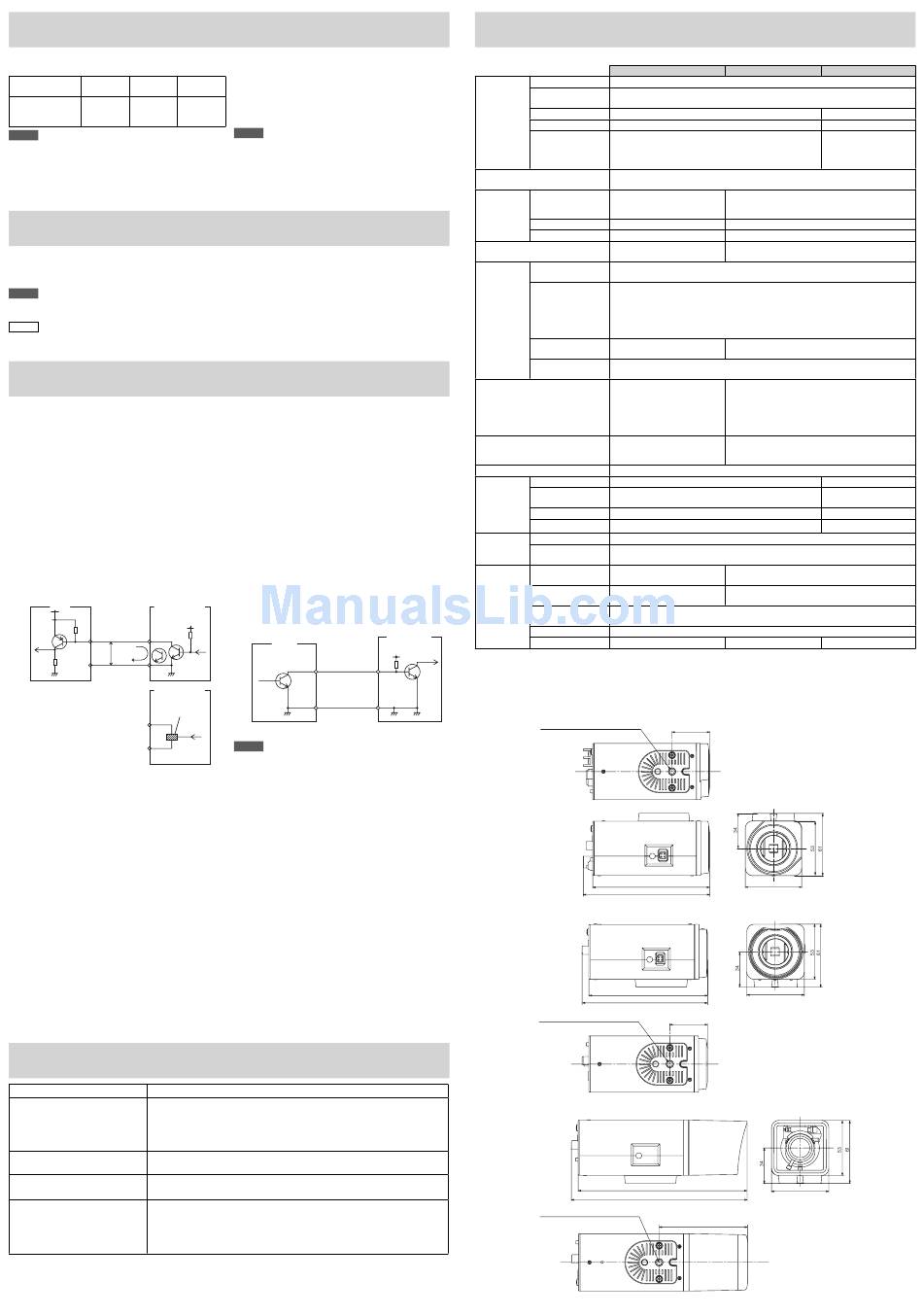

Connecting the power cable to AC 24 V source
(VN-H57U)
Conductor
1.0 mm dia
1.6 mm dia
2.0 mm dia
diameter (mm)
or more
or more
or more
Max cable
distance (meters)
90
240
(Reference value)
Note
• For safety reasons, turn on the power only after
confirming that all the connections are completed.
• Be sure to turn off the camera before connecting cables.
• If you use both the AC 24 V power cable and the PoE-
based LAN cable simultaneously, the camera may fail.
Always supply power using either method.
Audio cable connection
Connect the stereo mini jack cable (Φ 3.5).
R channel (MIC IN)
: Connect to a condenser microphone that has a plug-in power system.
L channel (LINE OUT) : Connect to a speaker that has a built-in amp.
Note
• Always connect an external mic to the R channel only. If you plug the mic jack directly into the [AUDIO IN/OUT]
terminal, a loud noise may be generated.
Memo
• A shielded audio cable is recommended.
* For the location to connect the audio cable, refer to [Cabling] (
Alarm I/O cable connection
Alarm input
Connect an infrared sensor, door sensor, metal
sensor, a manual switch or other device.
To avoid noise entering the internal circuit, enter the
non-voltage contact signal in the Alarm IN terminal.
Do not supply voltage.
The alarm can be set to be activated during close
contact (MAKE) or during open contact (BREAK)
can be set from the menu.
The alarm signal should last for at least 500 msec. If
the alarm signal is short, it may not be recognized.
Input conditions
Connect non-voltage a contact or open collector
output circuit
(For details on how to set polarities, please refer to
"Instructions (Settings)".)
Low level terminal current below 1 mA
High level terminal current 3.3 V
This
camera
Sensor example (1)
DC3.3 V
VCC
Input 1 or
Input 2
R
OUT
3.3 V
1 mA
G
G
(Alarm input equivalent circuit)
Sensor example (2)
Relay switch or
other devices
OUT
G
* For
the Alarm I/O cable, refer to [Cabling] (
connecting

Troubleshooting

Symptom
Movement of network image is
If the monitor image output is turned ON, a lower frame rate is set for
not smooth
network images.
If you turned the monitor image output to OFF, set the frame rate
again.(
"Encoding Page")
The image output may be turned Off on Internet Explorer.
No monitor image is output.
Check the monitor output setting.
Check the MIC connection.
The external mic sound is not heard.
Is the audio setting turned off? (
Is the focus adjustment gear engaged? Check the location of the catch. (VN-H137U)
Make sure that the lens is compatible with a CS mount.(VN-H57U/VN-H37U)
Lens is out of focus
After initializing the back focus position(
perform focus adjustment again. (VN-H57U)
Rotate the back focusing ring to adjust the focus.(VN-H37U)
Cables
LAN cable
When connecting to a switching hub:
Use a straight cable.
When connecting to a computer:
Use a crossing cable.
A 100-meter or less length and Category-5 or higher
370
grade STP (shielded) cable is recommended.
Note
• The crossing cable may not be used for some computer
models. Check the LAN specifications of the computer
when you directly connect this unit to the computer.
Alarm I/O cable (VN-H57U)
A 50-meter or less length shielded cable is
recommended.
(VN-H57U)
page 2).
(VN-H57U)
Alarm output
Connect an alarm device, indicator, lighting, buzzer or
other device.
An alarm output signal is an open collector output.
You can configure the menu to set the alarm to
sound when contacts short circuit (MAKE) or
when the contacts are open (BREAK). (Pressure
resistance lower than 16V, 30 mA)
This terminal has different polarities. The output
voltage at the positive terminal must always be
higher than the output voltage at the negative
terminal. Otherwise, the circuit may be damaged.
Output conditions
Equivalent to NPN open collector output
(For details on how to set the output logic, please
refer to "Instructions (Settings)".)
Safe excitation voltage: DC16 V or lower
Allowable surge current: 30 mA
Momentary (100 ms to 5000 ms) output
(For details on how to set the time, please refer to
"Instructions (Settings)".)
This
camera
Output 1 or
Output 2
G
(Alarm output equivalent circuit)
Note
Connect the G terminal cable of this camera to the
GND of the alarm device.
page 2).
Causes and Countermeasures
"Instructions (Setting)" - "Internet Explorer Setting" -
"Instructions (Setting)" - "Audio Page")
"Instructions (Setting)" - "Focus Page"),
* The specifications and appearance of this unit are subject to change for purposes of improvement without prior notice.
Image sensor
Effective pixels
Lens mount
Camera
Approved lens
section
Minimum illuminance
of subject
Monitor output
Input
Audio input
Reference voltage
Impedance
Audio output
Image compression
format
Frame size
Network
output
Audio compression
formats
Network interface
Alarm input
Alarm output
Alarm record
Focal length
Maximum aperture
ratio
Lens
Aperture range
Zoom ratio
Standards
LAN
Communication
standards
protocol
Power supply
voltage
Current consumption
General
Ambient
temperature
Alarm device
Ambient humidity
example
Mass
DC12 V
R
IN
VN-H57U
External dimensions (unit: mm)
G
Screw hole for the camera-mounting
VN-H37U
External dimensions (unit: mm)
1/4-20UNC
Screw hole for the camera-mounting
VN-H137U
External dimensions (unit: mm)
Screw hole for the camera-mounting

Specifications

VN-H57U
1/3-inch Square-Pixel Progressive Scan CMOS (elementary color filter)
Approximately 2,120,000 pixels
1944 (H)×1092 (V)
CS mount
Refer to our catalog.
(F1.2, 50 % , AGC High, 1/30 s)
Color: 0.3 lx (typ.)
Black and White : 0.03 lx (typ.)
75 Ω, 1.0 Vp-p
NTSC or PAL (switch selectable)
mini-jack (Φ3.5 stereo R ch),
can connect to a microphone
that has a plug-in power system
DC2.47 V(typ.)
2.2 kΩ(typ.)
Line OUT (200 Ω, Max 1.9 Vp-p)
mini jack (Φ3.5 stereo L ch)
JPEG, H.264 High Profile, H.264 Baseline Profile, MPEG-4
μ-Law (64 kbps), AD/DA 16
bits, Fs = 8 kHz, monaural
RJ-45
100BASE-TX/10BASE-T/FULL/HALF/Auto-negotiation enabled
No-voltage a contact input, PNP
open collector input, low level,
latch/momentary (500 msec or
longer) (1 mA circuit current at
low level, and 3.3 VDC applied
voltage at high level)
NPN open collector -output (12
VDC safe excitation voltage, and
30 mA allowable sink current)
16 MB
Compliant with IEEE802.3, IEEE802.3u and IEEE802.3af
TCP/IP, UDP/IP, FTP, ICMP, ARP, DHCP, SNTP, HTTP, SMTP, RTP, RTSP, IPv4, IPv6,
DSCP, HTTPS, SNMP
AC24 V 50 Hz/60 Hz, or
PoE(DC-48 V)
AC24 V 0.5 A, or PoE 150 mA
(7.2 W)
-10 °C to 50 °C (Operation)
0 °C to 40 °C (Recommended)
20 %RH to 90 %RH (without condensation)
Approx. 360 g
1/4-20UNC
37
114
123.5
114
121
37
162
170
1/4-20UNC
85
VN-H37U
VN-H137U
(50 %,AGC High,1/30 s)
Color: 0.3 lx (typ.)
Easy Day and Night :
0.25 lx (typ.)
1920 × 1080
1280 × 960
1280 × 720
640 × 480
640 × 360
320 × 240
f = 2.8 to 10.5 mm
F1.2 (f = 2.8 mm) to F2.6
(f = 10.5 mm)
F1.2 to F360
3.75 x
PoE(DC-48 V)
120 mA
Approx. 340 g
Approx. 390 g
55
55
55
LST1230-001D
4
