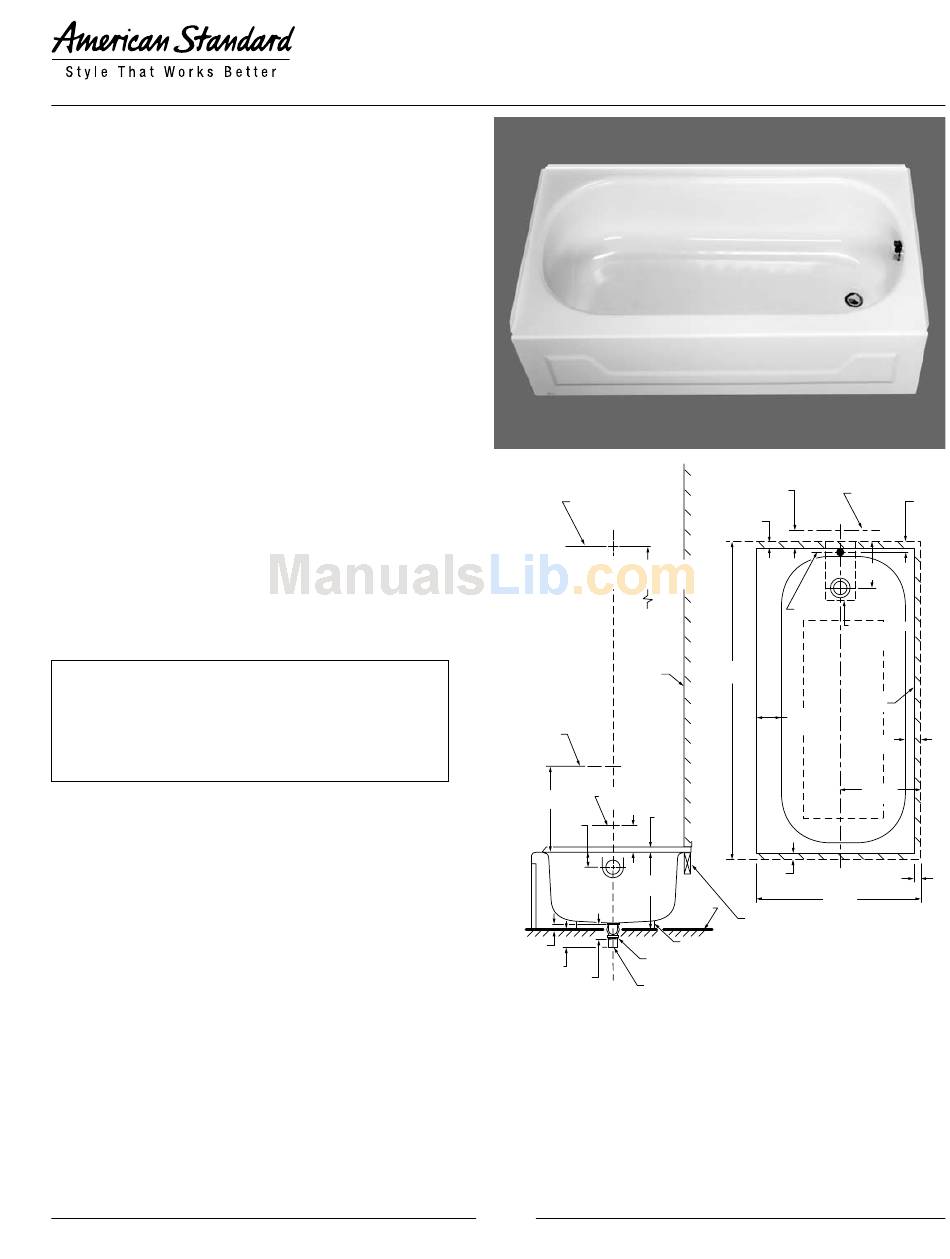

American Standard Mackenzie Recess Bath 0138.014 Specification Sheet

MACKENZIE™ 4-1/2' RECESS BATH
❏

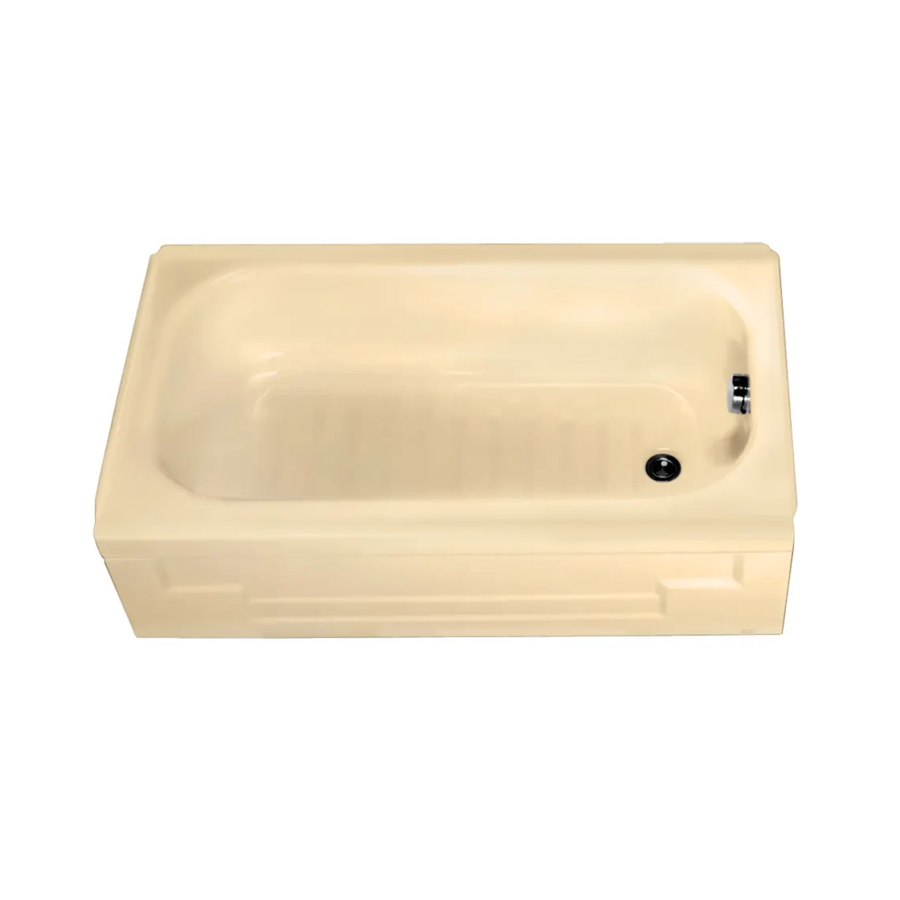

0138.014 Right hand outlet (Illustrated)
❏ 0139.011 Left hand outlet

Product Features:

• Acid resisting, enameled steel construction
• One-piece recess bath
• Integral apron
• End drain outlet
• Full slip-resistant pattern
• Straight tiling flange
• Fully-bonded support pad
Nominal Dimensions:
1372 x 762 x 381mm
(54" x 30" x 15")
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Enameled Steel Plumbing
Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
To Be Specified:
❏ Color:
❏ Bath Faucet*:
❏ Faucet Finish:
❏ Drain:
* See faucet section for additional models available
© 2008 AS America Inc.
C/L OF
SHOWER ARM
OPTIONAL TO FINISHED FLOOR
(USUALLY BETWEEN 1651 mm (65)
& 1981 mm (78)
FINISHED
WALL
C/L OF
VALVES
C/L OF
305mm
SPOUT
(12)
25mm
(1)
64mm
102mm
(2-1/2)
(4)
381mm
(15)
44 mm
(1-3/4)
1-1/2 N.P.T.
114 mm THREADS
38 mm
(4-1/2)
(1-1/2)
1-1/2 O.D. TAILPIECE
NOTES:
0139.011 LEFT HAND OUTLET (SHOWN).
0138.014 RIGHT HAND OUTLET (REVERSE DIMENSIONS).
SHOWN WITH POP-UP C.D. & O.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
CONCEALED PIPING NOT INCLUDED.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.4. These measurements
are subject to change or cancellation. No responsibility is assumed for use of
superseded or voided leaflet.
H163
MACKENZIE™ 4-1/2'
RECESS BATH
ENAMELED STEEL
SEE FITTING SPECS
C/L OF
FOR DIMENSION
SUPPLIES
19 mm
(3/4)
203 mm
C/L OF
DRAIN
229mmx305mm
(9x12) FLOOR
CUTOUT FOR
DRAIN
1372mm
(54)
FINISHED
104mm
(4-1/16)
19mm
(3/4)
762mm
ROUGH
(30)
FLOOR
PLUMBER NOTE –
PROVIDE SUITABLE SUPPORT AT THIS POINT
PAD
Revised 2/08
22mm
(7/8)
(8)
WALL
51mm
(2)
378mm
(14-7/8)
19mm
(3/4)
