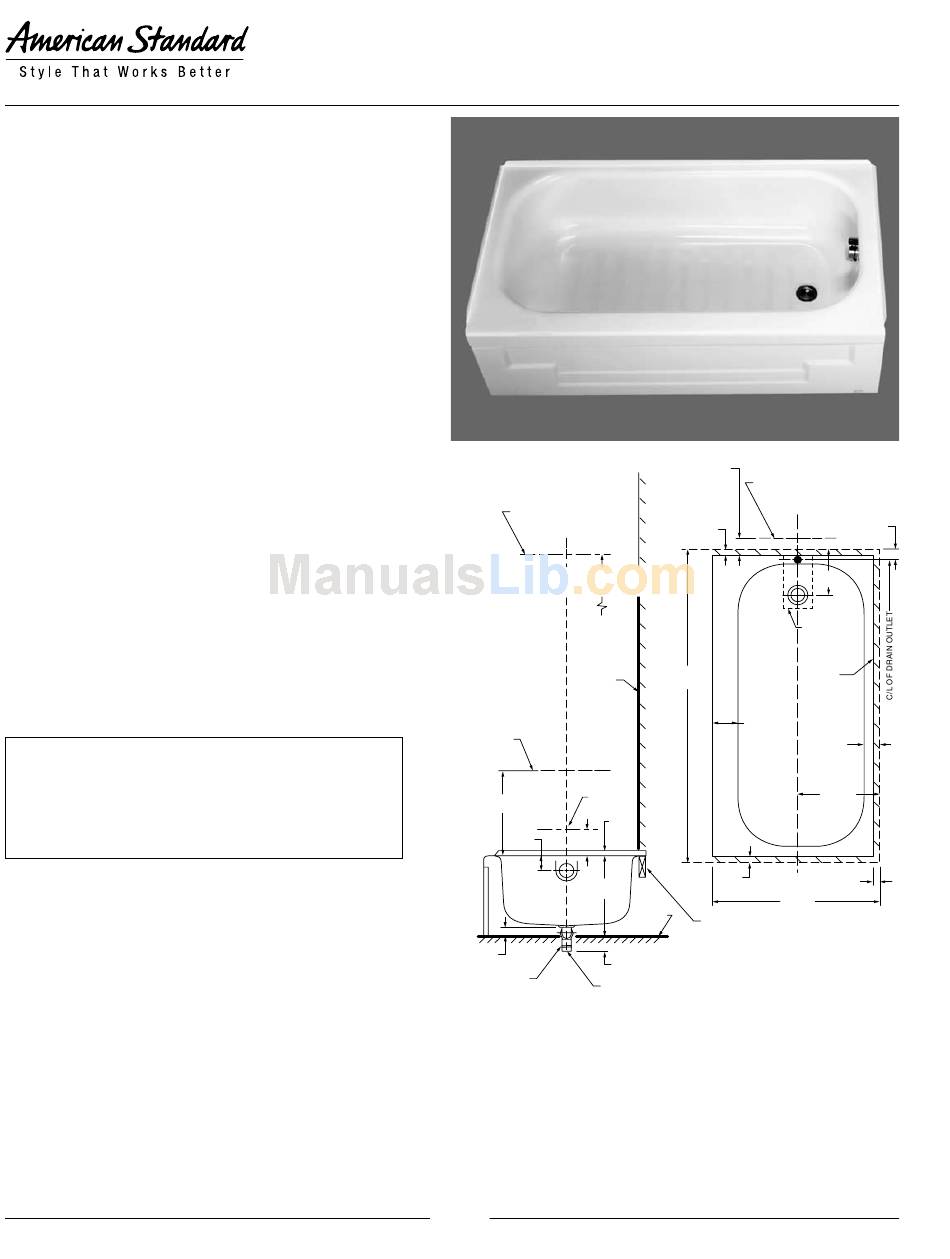

American Standard Huron 4' Recess Bath 0131.012 Specification Sheet

HURON™ 4' RECESS BATH
❏
0131.012 Right hand outlet
❏ 0133.017 Left hand outlet

Product Features:

• Acid resisting, enameled steel construction
• One-piece recess bath
• Integral apron
• End drain outlet
• Full slip-resistant surface
• Straight tiling flange
Nominal Dimensions:
1181 x 686 x 394mm
(46-1/2" x 27" x 15-1/2")
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Enameled Steel Plumbing
Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
To Be Specified:
❏ Color:
❏ Bath Faucet*:
❏ Faucet Finish:
❏ Drain:
* See faucet section for additional models available
© 2008 AS America Inc.
C/L OF
SHOWER ARM
OPTIONAL TO FINISHED FLOOR
(USUALLY BETWEEN 1651mm (65)
& 1981mm (78)
FINISHED
WALL
C/L OF
VALVE
C/L OF
305mm
SPOUT
(12)
25mm
(1)
67 mm
102mm
(2-5/8)
(4)
394mm
(15-1/2)
76mm
(3)
38mm
(1-1/2)
1-1/2 N.P.T.
1-1/2 O.D.
THREADS
TAILPIECE
NOTES:
0133.017 LEFT HAND OUTLET (SHOWN).
0131.012 RIGHT HAND OUTLET (REVERSE DIMENSIONS).
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATH FOR
ADDITIONAL INFORMATION.
SHOWN WITH POP-UP C.D. & O.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
CONCEALED PIPING NOT INCLUDED.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.4. These measurements
are subject to change or cancellation. No responsibility is assumed for use of
superseded or voided leaflet.
H164
HURON™ 4'
RECESS BATH
ENAMELED STEEL
SEE FITTING SPECS.
FOR DIMENSION
C/L OF
SUPPLIES
19mm
(3/4)
229mmx305mm
(9x12) FLOOR
CUTOUT FOR
DRAIN
FINISHED
1181mm
(46-1/2)
104mm
(4-1/16)
19mm
(3/4)
686mm
(27)
ROUGH
FLOOR PLUMBER NOTE –
PROVIDE SUITABLE SUPPORT AT THIS POINT
Revised 2/08
22mm
(7/8)
191mm
(7-1/2)
WALL
51mm
(2)
327mm
(12-7/8)
19mm
(3/4)
