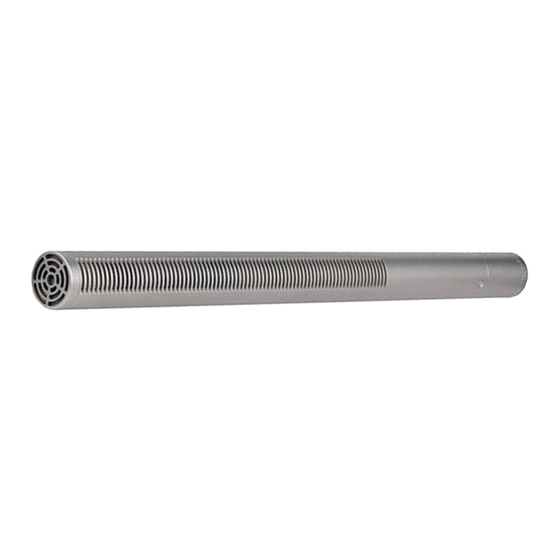

Ntg-3 microphone

Advertisement

Quick Links

NTG-3
Instruction Manual
www.rodemic.com
( EMC, LVD )

Advertisement

loading
Need help?

Need help?

Do you have a question about the NTG-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for RODE Microphones NTG-3

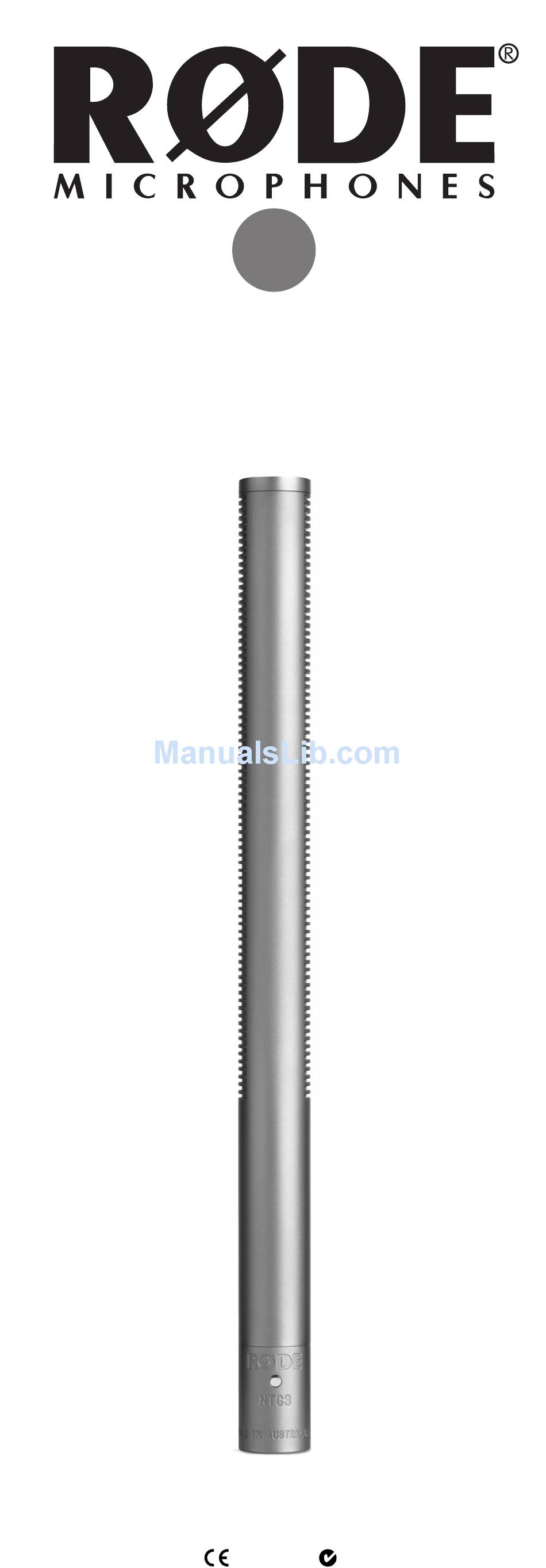

  • Page 1 NTG-3 Instruction Manual www.rodemic.com ( EMC, LVD )
  • Page 2 fi lm industries with an affordable yet uncompromising microphone. One of the key features of the NTG-3 is its ability to withstand adverse conditions. Using a technology known as RF bias the NTG-3 is almost completely...
  • Page 3: Specifications

    Specifi cations Acoustic Line Gradient Principle: Directional Super-Cardioid Pattern: Frequency 40Hz - 20kHz Range: Output 25Ω Impedence: Sensitivity: -30dB ± 2dB (31.6mV/Pa) Equivalent Noise: 13 dBA Maximum 8.2dBu Output: Dynamic Range: 117dB SPL Maximum SPL: 130dB @ 1kHz Signal/Noise: 81 dB Power P48 phantom (4.3mA) Requirement:...
  • Page 4: Frequency Response

    Specifi cations Frequency Response 2 0 H z 1000 10 000 20 000 Polar Response 0˚ +5.0 -2.0 -2.0 -4.0 -6.0 -8.0 -10.0 -10.0 -12.0 -14.0 -16.0 -18.0 -20.0 -20.0 -22.0 -24.0 90˚ 270˚ -25.0 dB rel. 1V/Pa – Frequency: –...
  • Page 5 • Designed & manufactured in Australia • Full 10 year guarantee* Powering the NTG-3 • The NTG-3 requires power to operate. This needs to be supplied via a P48V phantom power supply which is available from most professional video cameras or mixing consoles.
  • Page 6 • The NTG-3 features a custom designed XLR connector that is specially designed to reduce susceptibility to RF interference from devices such as cell phones.
  • Page 7 This makes boompole and handheld operation much easier. • The NTG-3 is supplied with a foam windshield. This windshield should be used whenever recording outdoors, as even an unexpected slight breeze can cause unwanted sound interference.
  • Page 8: Warranty

    Warranty microphones are warranted for one year from date of purchase. You can extend that to a full ten years if you register online at www.rodemic.com. The warranty covers parts and labour that may be required to repair the microphone during the warranty period.
