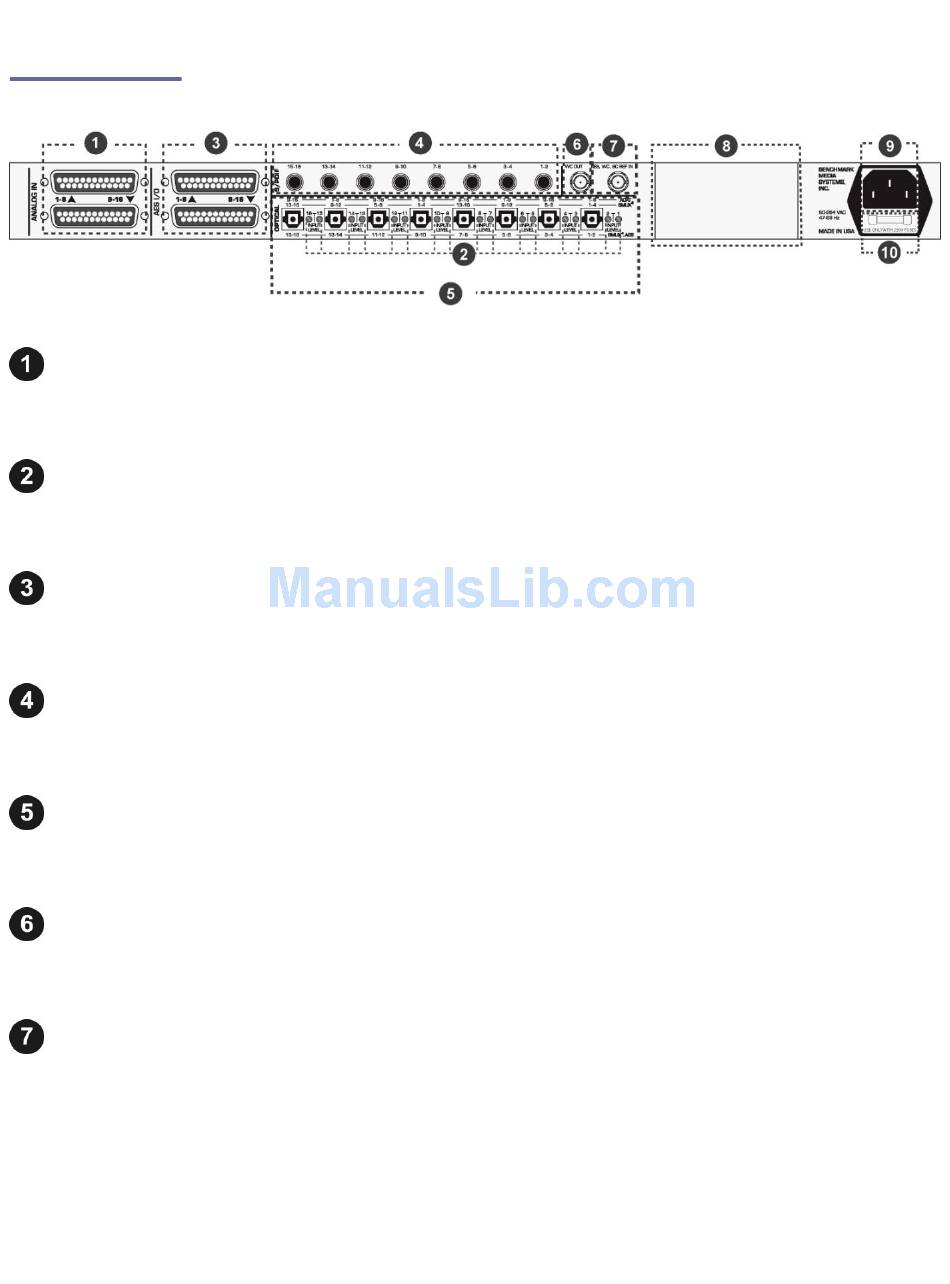

Rear Panel

Analog Line-Level Inputs - page 15
Tascam Analog DB-25 Standard Pinout - 2 Connectors - 16 Channels In
Input Level Trim-Pots - page 15
One 10-Turn Trimmer per Channel, 23 dB Adjustment Range, Preset for +4 dBu @ -20 dBFS
AES Digital Audio I/O - page 16
Tascam AES/EBU DB-25 Standard Pinout - 2 Connectors - 16 Channels Out - 2 Channels In
Coaxial Digital Audio Outputs page 17
AES Professional Format 1Vpp Coaxial Outputs - 16 Channels Out
Optical Digital Audio Outputs - page 18
8 Optical Output Connectors - Supporting AES, ADAT, S/MUX
Clock Reference Input - page 19
75-Ω BNC Input - Accepts Word Clock, Super Clock, and AES Input - Auto Recognizing
Word Clock Reference Output - page 19
75-Ω BNC Output - 2.5 Vpp into 75-Ω Load, DC Coupled
ADC16 Instruction Manual - Rev A
2 4
, and S/Mux
Page 13
