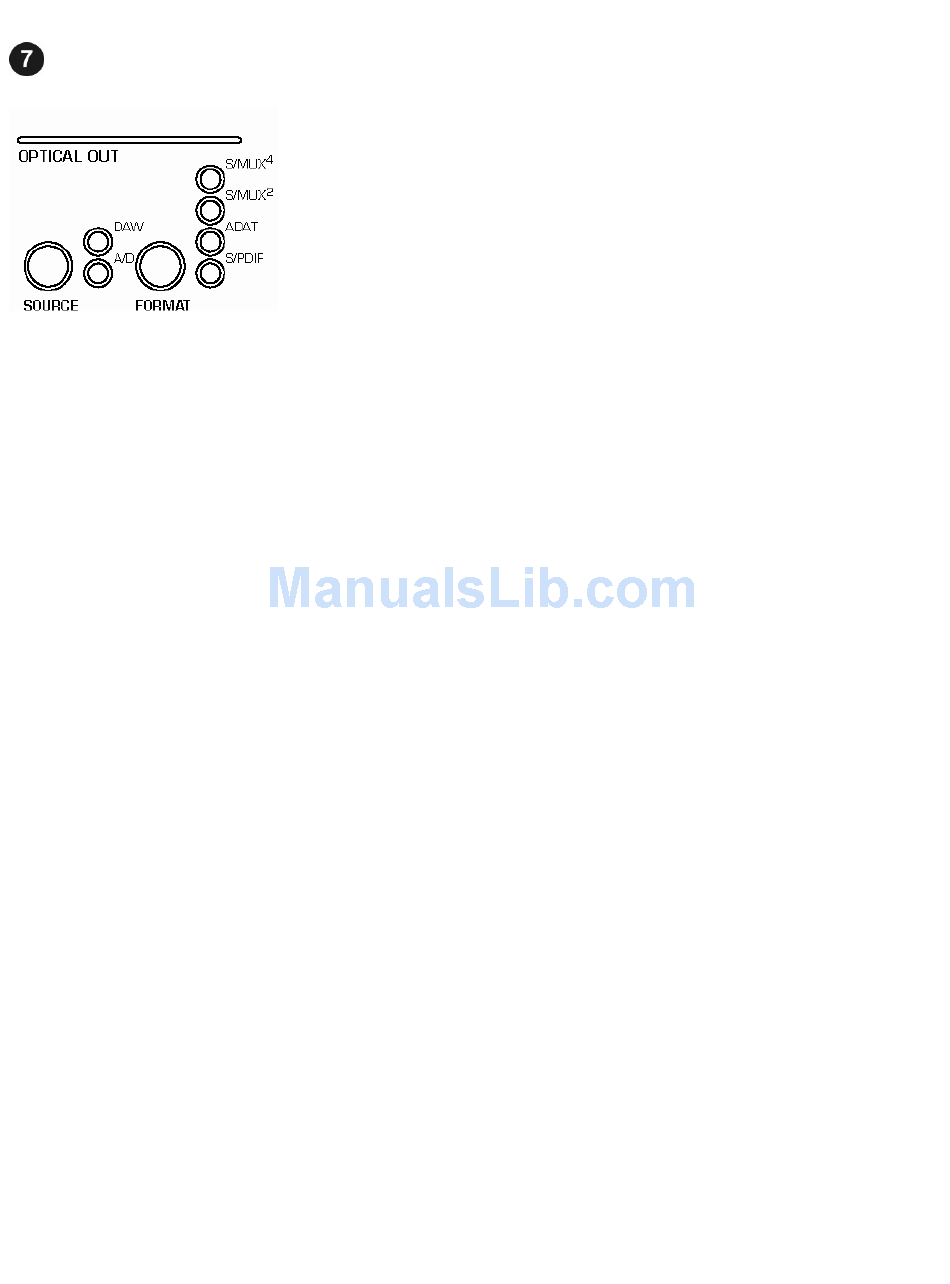

Optical Output Format

The optical output can provide either
AES/EBU or ADAT format. The AES/EBU
mode works with most S/PDIF optical inputs.
Press and hold the 'FORMAT' button to change
the optical output format. The 'press-and-
hold' action prevents accidental changes.
When ADAT is active, S/MUX is automatically
enabled at all 2X and 4X sample rates (88.2
kHz, 96 kHz, 176.4 kHz, and 192 kHz).
