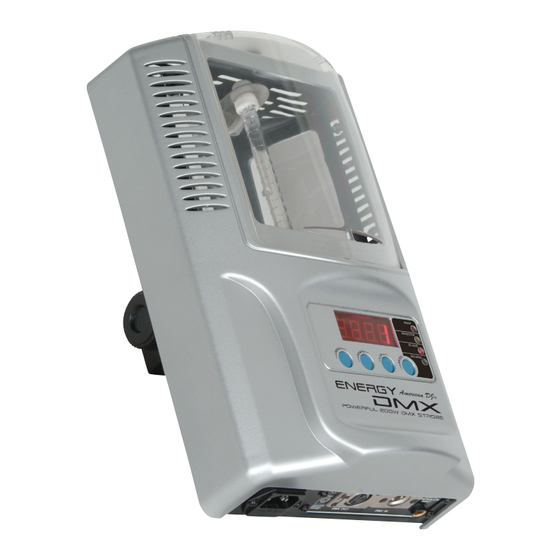

Powerful 200w dmx strobe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

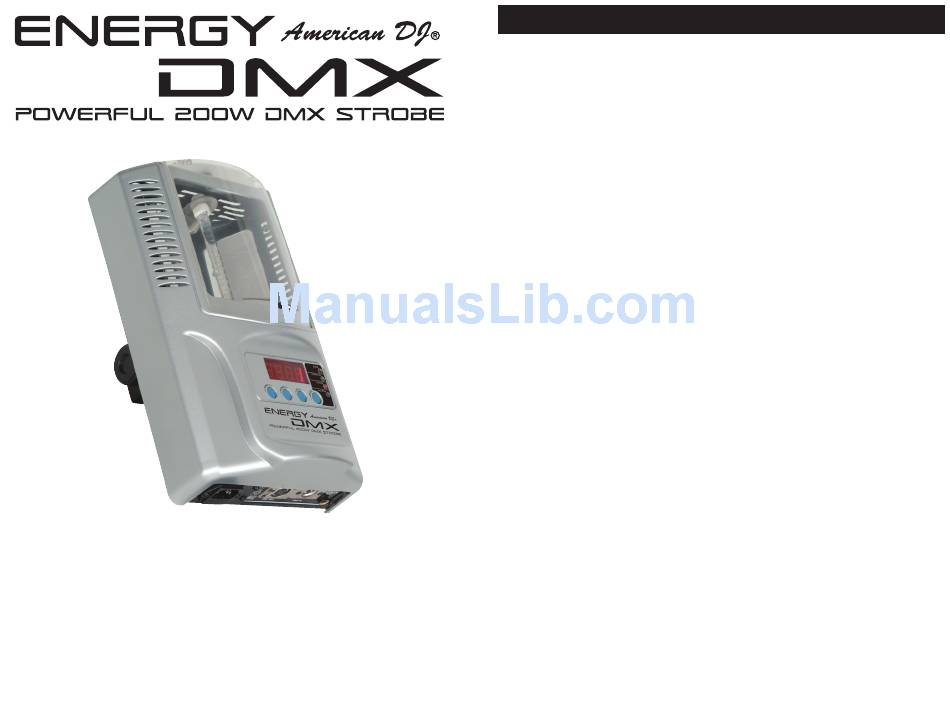

User Instructions
Rev. 4/04
American DJ
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
Energy DMX™

Unpacking:

Thank you for purchasing the Energy DMX™ by Ameri-
can DJ
. Every Energy DMX™ has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your unit for damage
and be sure all accessories necessary to operate the unit have arrived
intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions.
Please do not return this unit to your dealer without first contacting
customer support at the number listed below.

Introduction:

To optimize the performance of this product, please
read these operating instructions carefully to familiarize yourself with
the basic operations of this unit. The Energy DMX™ is a 200 watt
strobe, and is light weight and compact. Up to 8 units may be linked
together and controlled by single controller. A manual dimmer is built
in to the unit, allowing the unit's intensity to be customized. The unit
also has an adjustable flash rate knob built on to the unit.
Customer Support:
American DJ
support line, to answer any questions should you encounter problems
during your set up or initial operation. You may also visit us on the web
at www.americandj.com for any comments or suggestions. For service
related issue please contact American DJ
through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2610
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
Please do not discard the shipping carton in the trash. Please recycle
when ever possible.
American DJ
www.americandj.com - Energy DMX™ Instruction Manual Page 2
©
® -
Introduction
provides a toll free customer
®
. Service Hours are Monday
®
