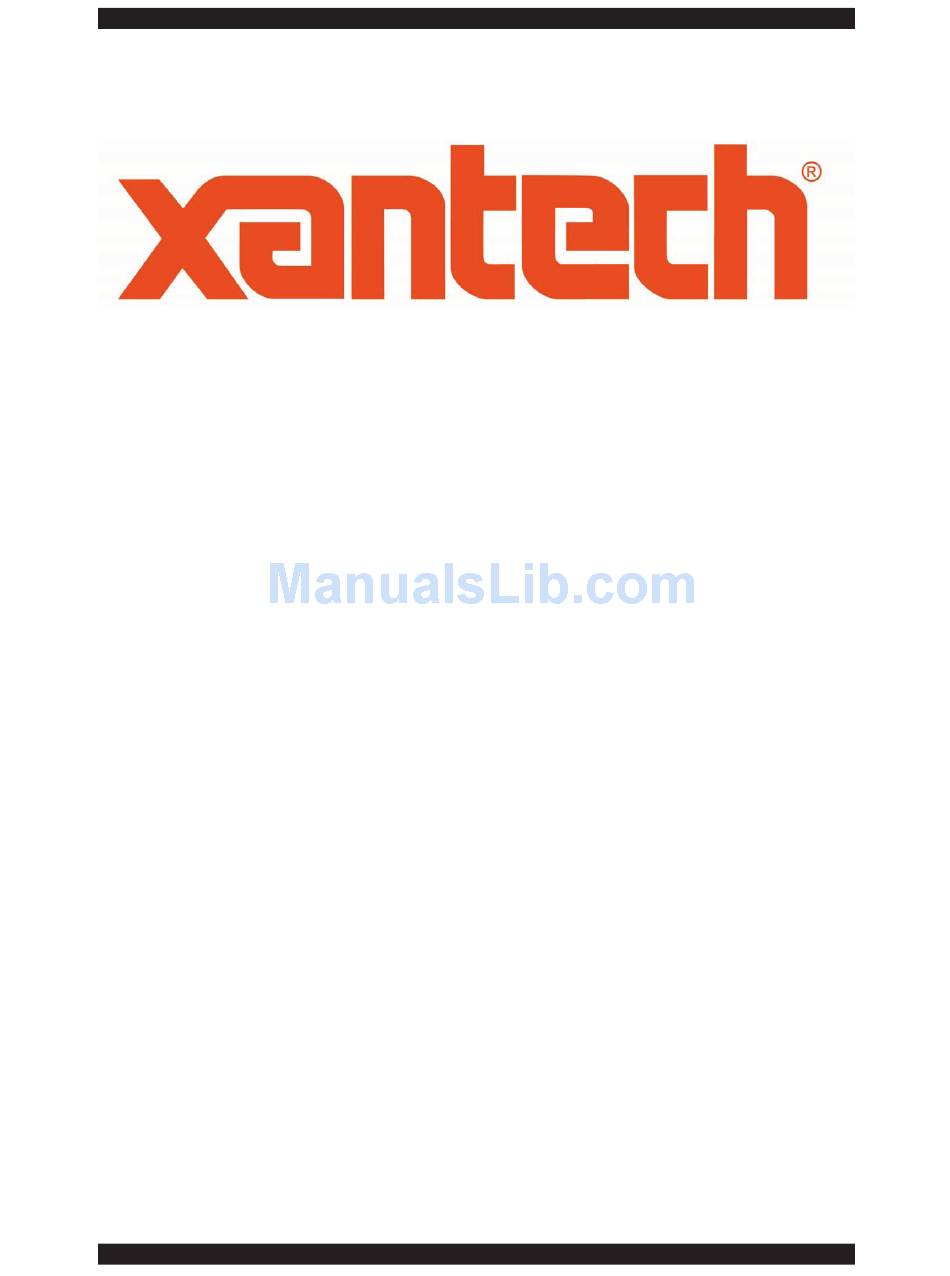

  • Page 1 HDMI1X2 USER MANUAL www.xantech.com...
  • Page 2 CONTENTS Introduction / Operation Notes Features and Package Contents Panel Layout and Descriptions Panel Descriptions, Continued Connecting The Xantech 1X2 Splitter For HDMI 1.3 / EDID Mode Specifi cations...
  • Page 3 How It Works The Xantech 1X2 Splitter for HDMI 1.3 is a distribution hub that sends the same HDMI signals to two HDMI-compatible digital display devices. An HDMI video source is connected to the input jack on the 1X2 Splitter for HDMI 1.3.
  • Page 4 FEATURES Features • Connects up to two HDMI / DVI displays from one HDMI source • Optionally add more displays by connecting splitters • Easily attains resolutions up to 1080p, 2k, and 1920 x 1200 • HDMI and HDCP compliant HDMI 1.3 Features •...
  • Page 5 PANEL LAYOUT AND DESCRIPTIONS Front Panel Back Panel Power LED This LED will activate once a valid power source is applied. Internal EDID LED This LED will activate only when the pre-programmed internal EDID is being used. Please see page 5 for more details on the internal EDID. External EDID LED (default EDID routing) This LED will activate only when the external EDID is being used.
  • Page 6 PANEL DESCRIPTIONS, CONTINUED HDMI Input This is the input for the HDMI source device. When a valid source is detected by the splitter, the Link LED will activate. HDMI Out 1 This is the fi rst HDMI output port. Connect a valid HDMI display to this port. When the External EDID mode is active, the EDID form the display connected to this port will be used to send to the source.
  • Page 7 Please see below for the activation process. EDID MODE The HDMI1X2 has an EDID button which will determine if the EDID is used from the display attached to output 1 (Ext. mode) or if the onboard EDID (Int. mode) will be used.

  • Page 8: Specifications

    HDMI1X2 User Manual © 2008 Xantech Corporation This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Xantech Corporation. Xantech Corporation shall not be liable for operational, technical, or editorial errors/omissions made in this document.
  • Page 9 www.xantech.com...
