Xantech XT-SP12-4K18G User Manual

Table of Contents

Download this manual

Introduction

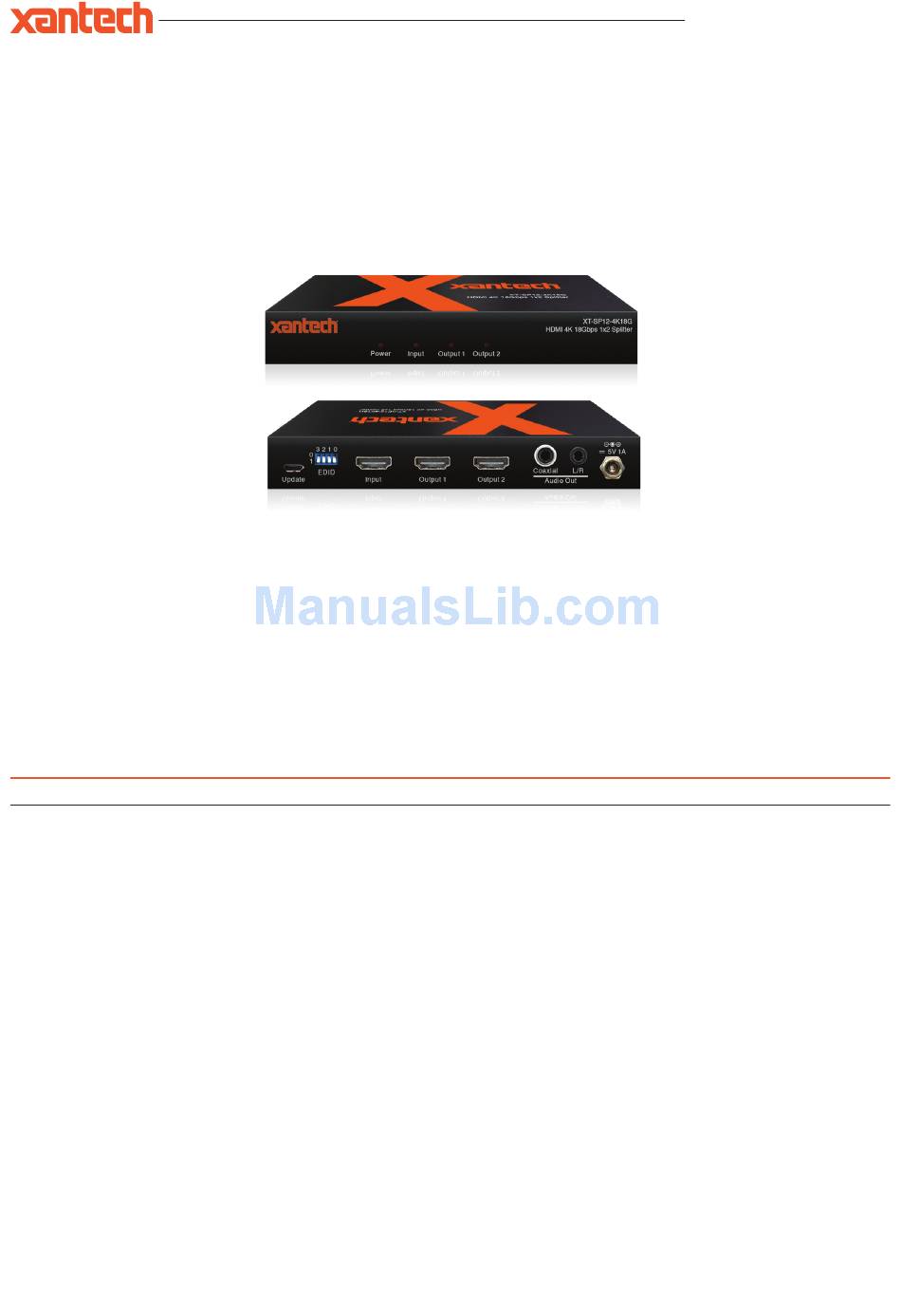

The XT-SP12-4K18G 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs. The splitter supports full HDMI 2.0 and

HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. The 2-way splitter also includes the advanced features of audio breakout

and EDID management.

• Features 1x HDMI input that is replicated to 2x HDMI outputs

• Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)

• HDCP 2.2 compliant

• Not support CEC

• Supports 3D signal display

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission

• Advanced EDID management

• HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently

is a registered trademark of Nortek Security & Control.

XT-SP12-4K18G

User Manual

XT-SP12-4K18G

USER MANUAL

10019330 REV-A0

Table of Contents

Do you have a question about the XT-SP12-4K18G and is the answer not in the manual?

Page 1 Introduction The XT-SP12-4K18G 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. The 2-way splitter also includes the advanced features of audio breakout and EDID management.
Page 2: Panel Description
Power Input Output 1 Output 2 3 2 1 0 5V 1A Power LED - indicates if XT-SP12-4K18G is on or off Output LED - indicates if HDMI output is active XT-SP12-4K18G Coaxial EDID HDMI 4K 18Gbps 1x2 Splitter Input LED - indicates if HDMI input is active...
Page 3: Specifications
Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply : 5V/1A DC Package Contents: • 1x XT-SP12-4K18G • 1x 5V/1A DC power supply • 1x Mounting kit • 1x Quick reference guide © 2018 XANTECH is a registered trademark of Nortek Security & Control.
