The Model CPL10 extracts or injects IR control signals when used with TV coaxial RF cable systems,
employing the patented Xtra Link™ principle.
SPECIFICATIONS
• 2 - "F"-type threaded coaxial connectors
• 1 - IR signal I/O jack (3.5mm mono mini jack)
• Dimensions: 3" x 1-1/2" x 7/8"
INSTALLATION

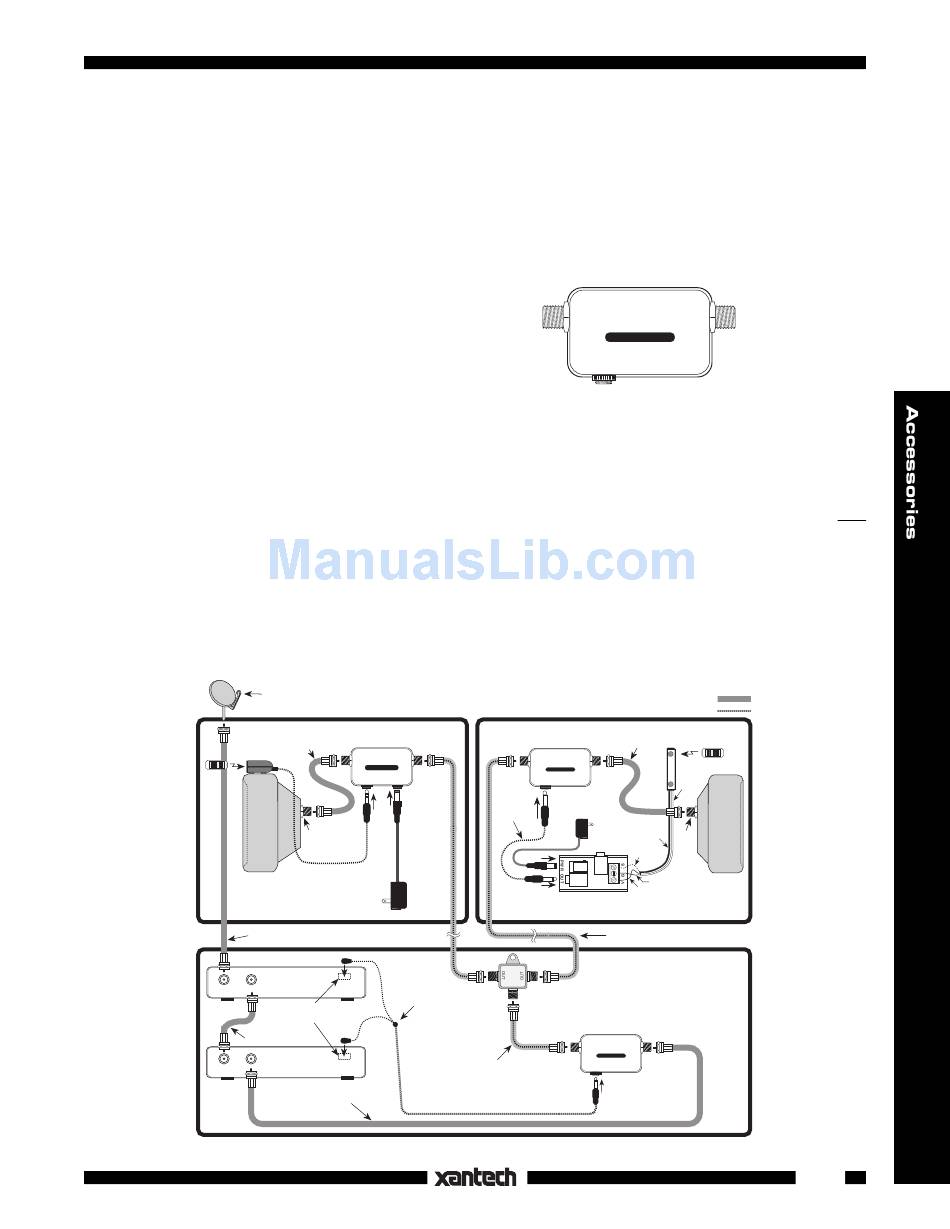

Fig. 2 illustrates a simple installation using CPL10 Couplers in an IR repeater system. Control of a satellite
receiver and a VCR from two remote rooms is accomplished over the same coaxial cable that carries the
TV signal. When configuring this type of system, keep the following items in mind:
1. CPL10's may be used for both injecting and extracting the IR signal on the coax at the IR receiver and
equipment ends, as shown.
2. REMOTE ROOM 1 is an example of how any 3-lead Xantech IR receiver (or keypad) may be used in
an Xtra Link type system. A CB12 Connecting Block makes the necessary connections between the
three leads of the 480-00 "Dinky Link" IR Receiver, the 781RG Power Supply and the CPL10 Coupler.
3. REMOTE ROOM 2 shows the use of a 291-10 IR Receiver and an INJ94 Injector. Use the INJ94
instead of the CPL10 any time you use a Xantech IR receiver equipped with a quick connect stereo
mini plug.
291-00
IR RECEIVER
Hand Held
Remote
TV
REMOTE
ROOM 2
Coaxial Cable
RF IN
OUT TO TV
Coaxial
Cable
RF IN
OUT TO TV
Fig. 2 Using CPL10's in a Basic System
INSTALLATION INSTRUCTIONS
CPL10
RF/IR COUPLER
Satellite Dish
Short Coaxial
INJ94 INJECTOR
Cable
TV
INPUT
INJ94 INJECTOR
IR
RCVR
+12 V
RF IN
781RG
Power Supply
To 120 V AC
(unswitched)
Emitter
SATELLITE
286M
RECEIVER
Dual Blink-IR™
(Back Panel)
Mouse Emitter
Assembly
IR Sensor Windows
on
Front Panels
Emitter
VCR
(Back Panel)
Coaxial
Cable
RF
CPL10 COUPLER
IR
Fig. 1 Model CPL10 RF/IR Coupler
IR REMOTE CONTROL PATH
CPL10
Short Coaxial
Cable
COUPLER
RF/IR
RF
CPL10 COUPLER
IR
3.5/3.5mm
781RG
Power Supply
Cable
To 120 V AC
(unswitched)
OUT
RCVR
IR
+12V
CB12
Connecting Block
Room-to-Room Coaxial Cables
EQUIPMENT
IN
200-00
2-Way RF SPLITTER
DC Passing
CPL10
COUPLER
RF/IR
RF
CPL10 COUPLER
Short Coaxial
IR
Cable
RF/IR
TV SIGNAL PATH
480-00
Dinky Link™
IR Receiver
Hand Held
Remote
3-Wire
Ribbon
Cable
TV
Red
(or white)
RF IN
Stripe
GND
REMOTE
ROOM 1
AREA
1
