Summary of Contents for Hitachi RAS-80YHA
- Page 1 SPLIT TYPE INDOOR UNIT/OUTDOOR UNIT MODEL RAS-80YHA/RAC-80YHA INDOOR UNIT OUTDOOR UNIT RAS-80YHA RAC-80YHA Instruction manual Page 1~22 To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely. – 1 –...
-
Page 2: Safety Precaution
SAFETY PRECAUTION Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit. Pay special attention to signs of “ if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result in serious consequences if not observed properly. - Page 3 PRECAUTIONS DURING OPERATION The product shall be operated under the manufacturer specification and not for any other intended use. Do not attempt to operate the unit with wet hands, this could cause fatal accident. When operating the unit with burning equipments, regularly ventilate the room to avoid oxygen insufficiency.
-
Page 4: Names And Functions Of Each Part

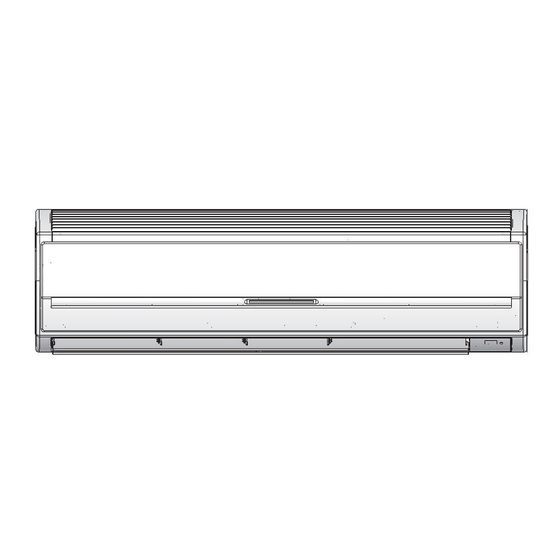

NAMES AND FUNCTIONS OF EACH PART INDOOR UNIT OUTDOOR UNIT MODEL NAME AND DIMENSIONS MODEL RAS-80YHA RAC-80YHA AIR FILTER To prevent dust from coming into the indoor unit. (Refer page 21) FRONT PANEL (AIR INLET). INDOOR UNIT INDICATORS Light indicator showing the operating condition. -
Page 5: Operation Indicator
OPERATION INDICATOR INDOOR UNIT INDICATORS TEMPORARY SWITCH Temporary Switch emporary Switch Press Press Non-conductor Stick Non-conductor Stick Use this switch to start and stop when the remote controller does not work. [Use non-conductor stick (example toothpick)] By pressing the temporary switch, the operation is done in previously set operation mode. - Page 6 NAMES AND FUNCTIONS OF EACH PART REMOTE CONTROLLER This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is controlled electronically, the range of control may be shorter. This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be controlled from the remote controller.
-
Page 7: Auto Restart Control
VARIOUS FUNCTIONS I Auto Restart Control If there is a power failure, operation will be automatically restarted when the power is resumed with previous operation mode and airflow direction. (As the operation is not stopped by remote controller.) If you intend not to continue the operation when the power is resumed, switch off the power supply. When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode and airflow direction. -
Page 8: Heating Operation
HEATING OPERATION Use the device for heating when the outdoor temperature is under 21°C. When it is too warm (over 21°C), the heating function may not work in order to protect the device. Press the FUNCTION selector so that the display indicates (HEAT). -
Page 9: Dehumidifying Operation
DEHUMIDIFYING OPERATION Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work. I Dehumidifying Function When the room temperature is higher than the temperature setting: The device will dehumidify the room, reducing the room temperature to the preset level. -
Page 10: Cooling Operation
COOLING OPERATION Use the device for cooling when the outdoor temperature is 21-43°C. If humidity is very high (over 80°C) indoors, some dew may form on the air outlet grille of the indoor unit. Press the FUNCTION selector so that the display indicates (COOL). -
Page 11: Fan Operation
FAN OPERATION You can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the end of summer. START RESET ... When the AUTO fan speed mode is set in the cooling/heating operation: FAN SPEED (AUTO) For the heating operation For the cooling operation... -
Page 12: How To Set The Timer
HOW TO SET THE TIMER TIME, DAY, MONTH (current time, day, month) OFF TIMER RESET ON TIMER RESERVE CANCEL ON-Timer ON/OFF-Timer Start Stop G The device will turn on (off) and off (on) at the designated times. G The switching occurs first at the preset time that comes earlier. - Page 13 Set the current time with the Press the TIMER control button. (TIME) button. Example: The current time is 1:30 p.m. Set the turn-off time with the TIMER control button. Set the turn-on time with the TIMER control button. Set the turn-on time with the TIMER control button.
-
Page 14: How To Set The Sleep Timer
HOW TO SET THE SLEEP TIMER Set the current time at first if it is not set before (see the pages for setting the current time). Press the shown below. SLEEP How to Cancel Reservation Point the signal window of the remote controller toward the indoor unit, and press the button. - Page 15 Explanation of the sleep timer The device will control the FAN SPEED and room temperature automatically so as to be quiet and good for people’s health. NOTE If date or current time is not set, sleep timer can not be set. If you set the sleep timer after the off-, on/off- or off/on- timer has been set, the sleep timer becomes effective instead of the off-, on/off- or off/on-timer set earlier.
-
Page 16: Adjusting The Air Deflector
ADJUSTING THE AIR DEFLECTOR Adjustment of the conditioned air in the upward and downward directions. The horizontal air deflector is automatically set to the proper angle suitable for each operation. The deflector can be swung up and down continuously and also set to the desired angle using the “... -
Page 17: How To Exchange The Batteries In The Remote Controller
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER Remove the cover as shown in the figure and take out the old batteries. Install the new batteries. The direction of the batteries should match the marks in the case. CAUTION 1. -
Page 18: Suitable Room Temperature
THE IDEAL WAYS OF OPERATION Suitable Room Temperature Warning Freezing temperature is bad for health and a waste of electric power. Ventilation Caution Do not close the room for a long period of time. Occasionally open the door and windows to allow the entrance of fresh air. - Page 19 FOR USER’S INFORMATION The Air Conditioner And The Heat Source In The Room Caution If the amount of heat in the room is above the cooling capability of the air conditioner (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be...
-
Page 20: Attaching The Air Cleansing And Deodorizing Filters
Air-cleansing & deodorizing filters are not washable and can be use in 1 year time. Type number for this air cleansing filter is <SPX-CFH13>. Please use this number for ordering when you want it. Do not operate the air conditioner without filter. Dust may enter the air conditioner and fault may occur. Claws (4 places) –... -
Page 21: Maintenance
MAINTENANCE CAUTION Cleaning and maintenance must be carried out only by qualified service personal. Before cleaning, stop operation and switch off the power supply. AIR FILTER Clean the air filter, as it removes dust inside the room. In case the air filter is full of dust, the air flow will decrease and the cooling capacity will be reduced. - Page 22 Attaching the minus ion stick to the filter frame. Put the minus ion stick to the lower hooks and install it so as to push up the upper hooks at the left side of front cover. Washable Front Panel Remove the front panel and wash with clean water.
-
Page 23: Regular Inspection
CAUTION Cleaning and maintenance must be carried out only by qualified service personal. Before cleaning, stop operation and switch off the power supply. MAINTENANCE AT BEGINNING OF LONG OFF PERIOD Run the unit by setting the operation mode to (COOL), the temperature to 32°C and the fan speed to HI for about half a day on a fine day, and dry the whole of the unit. - Page 24 When it does not hot well Notes Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above inspections. Inform your agent of the model of your unit, production number, date of installation. Please also inform him regarding the fault.
- Page 25 The conditions of the local Power Supply Companies are to be observed. Note Avoid to use the room air conditioner for cooling operation when the outside temperature is below 21°C (70°F). The recommended maximum and minimum operating temperatures of the hot and cold sides should be as below: Dry bulb °C...
- Page 26 MEMO – 26 –...
