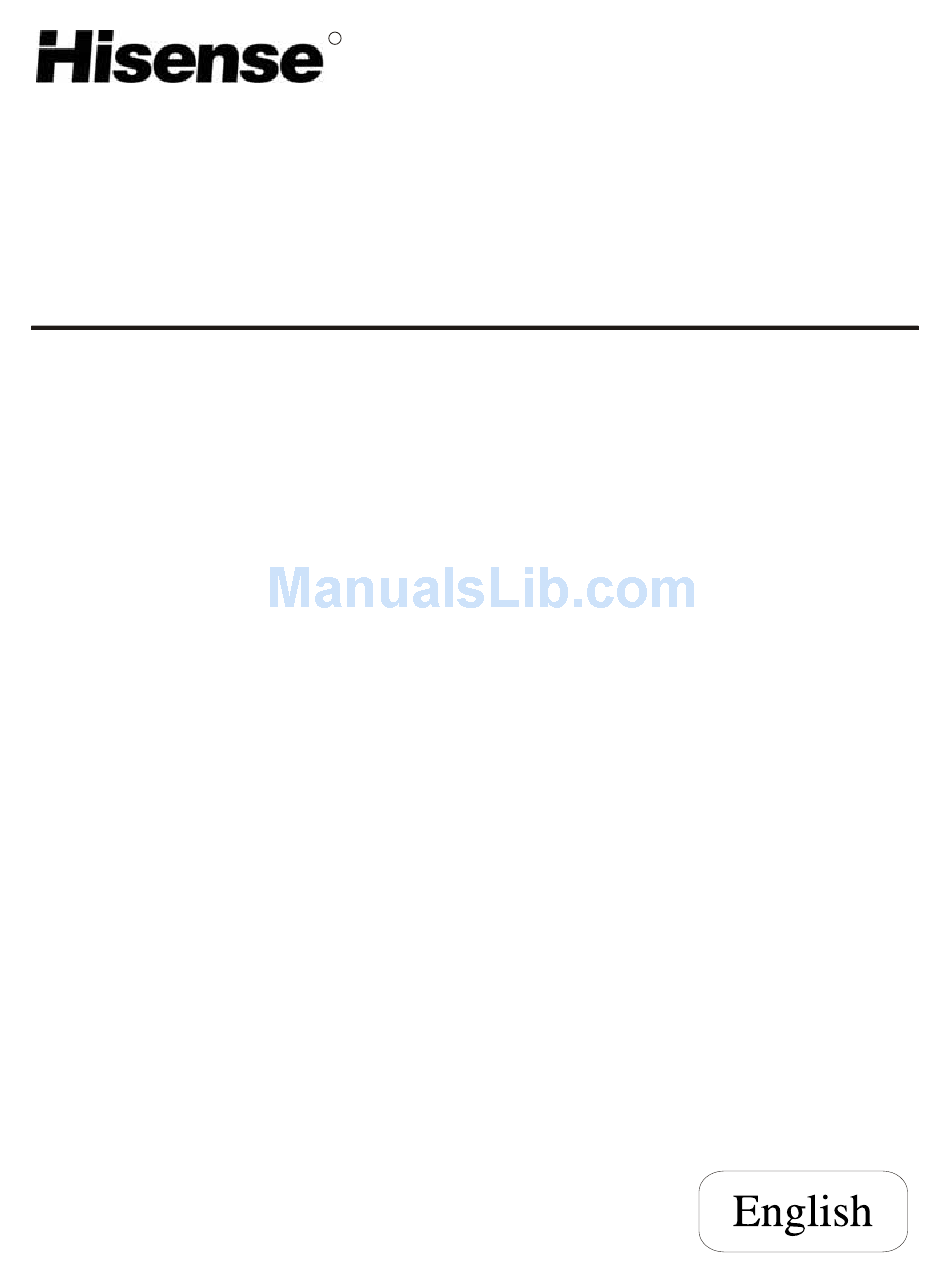

  • Page 1 LCD COLOR TV USER'S MANUAL TL3220 Part No: IES041201...

  • Page 2: Table Of Contents

    WELCOME TO THE Wonderful World Dear customer, Thank you for choosing this LCD color TV. We expect our product and service will comfort you for long. This manual is to guide you to set up and operate your TV as quickly as possible. Please read all the safety and operation instructions carefully before you begin and follow that the handbook tells, which we recommend, though we also pro- vide Brief Operating Instructions.

  • Page 3: Important Safety Instructions

    WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION CAUTION: TO REDUCE THE RISK OF ELEC- TRIC SHOCK, DO NOT REMOVE COVER(OR BACK).NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the users authority to operate this equipment.

  • Page 4: Important Safety Instruction

    IMPORTANT SAFETY INSTRUCTION 8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS, HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE HEAT. 9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING-TYPE PLUG. A POLARIZED PLUG HAS TWO BLADES WITH ONE WIDER THAN THE OTHER.

  • Page 5: Brief Operating Instructions

    Brief Operating Instructions 1.Connection Connect the antenna lead or CATV cable or external equipments(such as Antenna, Cable TV ,VCD,DVD, VTR,Set top box,etc.)to the corresponding terminals or interface on the TV rear(please refer to the owner s manual of the equipment to be connected as well)and confirm that the signal source is available and works normally.

  • Page 6: Signal Source Selection

    Brief Operating Instructions 3.Switching on/off 1)Connect the TV to power outlet, the power indicator will be red and then turn blue. Several seconds later, TV picture will display on the screen. 2)Press stand by button on the machine or the [Power] button on the remote control to turn off the TV. 4.Signal source selection Press the number [1-9] button or [ press the [S-VIDEO] button to select S-VIDEO input;...

  • Page 7: Preparation For Your New Tv

    Preparation for Using your new TV Selecting a location for the TV 1)Place the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen. 2)Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.

  • Page 8: Connecting Your Tv

    Preparation for Using your new TV Remote sensing window Power indicator Headphone output Menu button Source select Volume down / cursor left Volume up / cursor right Channel down / cursor down Channel up / cursor up Connecting your TV Caution: Do not plug the TV in until you have finished connecting all of your equipment.

  • Page 9: Connecting To A Computer

    Preparation for Using your new TV Connecting to a Computer You can use your TV as a monitor/speakers for interface and PC audio interface. Connect the devices as shown below. PC/NB To speaker Connecting to an antenna To enjoy the terrestrial signal transmitted by your local TV station, you need an indoor or outdoor antenna (not supplied).

  • Page 10: Connecting To A Cable Converter Box

    Preparation for Using your new TV Connecting to a cable converter box This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer premium pay channels in which signal is scrambled.

  • Page 11: Using The Remote Control

    Using the remote control Preparing the remote control for use Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment.

  • Page 12: Learning About The Remote Control

    Using the remote control Learning about the remote control : Select sound mode Mono/stereo/SAP selection Select picture mode Channel up : Volume down Channel down Mute the sound Channel Number Direct channel selection Return to previous channel Switch to S-VIDEO mode Switch to VIDEO mode Switch to YPbPr/YCbCr mode No use...

  • Page 13: Using The Tv Features

    Using the TV features Understanding the TV features Multimedia - TV receiver, Video monitor and PC display, all in one. Wider viewing angle, 16:9 display - over 150 viewing angle, 16:9 ergonomical display panel Digital display device - truthfully reproducing the images, without distortion or blurring, irrespective of magnetic or geomagnetic effect.
  • Page 14 Using the TV features Select channels by numbers To select a channel : Press the channel numbers in series to select channel directly. For example, to seclect channel 120, then press the button 2, 12- will display, press the button zero, you can enjoy the program of channel 120. Adjust Volume When menu is not displayed on the screen, press [ Use PIP button...

  • Page 15: Using The Preset Menu

    Using the TV features Using the PRESET menu POSITION 1) Press the [MENU] button to enter the main menu. 2) Press the button to select the item PRESET.. 3) Press the button to select POSITION. 4) Press the button to select the present channel. SKIP 1) Press the MENU button to enter the main menu.

  • Page 16: Using The Audio Settings Menu

    Using the TV features Using the AUDIO SETTINGS menu Adjust audio settings 1) Press the MENU button to enter the main menu. 2) Press the button to select the item audio settings. 3) Press the button to select the item you want to adjust. 4) Press the button to adjust the level.
  • Page 17 Using the TV features DISPLAY 1) Press the MENU button to enter the main menu.Press the [ ] button to select the FUNCTION SETTINGS. 2) Press the button to select the item CCD CONTROL,and press the 3) Press the button to select the DISPLAY. 4) Press the button to enter DISPLAY menu , button to select...

  • Page 18: Using The Pc Parameters Menu

    Using the TV features Using the PC PARAMETERS menu AUTO 1) Press the MENU button to enter the main menu. ) Press the button to select the pc parameters. 3) Press the button to select the item AUTO, and press the to adjust the picture position.

  • Page 19: Using The Vchip Setup Menu

    Using the TV features Using the VCHIP SETUP menu VCHIP SETUP VCHIP enables parents to prevent their children from viewing certain programs or channels. 1) Press the MENU button to enter the main menu. 2) Press the button to select the item VCHIP SETUP.

  • Page 20: Using The Pip Menu

    Using the TV features About MPAA Ratings CLOCK The Motion Picture Association of America(MPAA) uses a rating system to qualify motion picture content.Television broadcasters employ a rating system to qualify the content of televison programs as well.The MPAA and TV ratings work with the V-CHIP feature and allow you to block out programming above the rating limits you determine.

  • Page 21: Universal Remote Control User's Manual

    Universal Remote Control User's Manual Application: Universal Remote Control for TV, VCR, SAT, Cable TV, Hi-Fi Audio System, DVD, STB etc. Application Manual MANUAL SETTING 1.Look up the three-digit code for your brand and type of device in the Code Tables, then turn on the device. 2.Press and hold the SET key then press the DEVICE Key, then the indicator lights will turn on.

  • Page 22: Code Table

    Code Table of The Universal Remote Aiwa Akai Atle Caabletime Caravell Denon Dynatech Emerson Fisher Haitai Hitachi Inkei Inkel Karcher Kenwood Lenco Luxman Luxor Magnavox Marantz Mission Mitsubishi/MGA Nakamichi Onkyo Optimus Panasonic Philips Pioneer Proton Radiotone Rotel Sansui Sanyo Sharp Sherwood Sony Sylvania...
  • Page 23 Code Table of The Universal Remote Kenwood Magnavox Panasonic Philips Pioneer Sony Toshiba Zenith Brand of HIFI Fisher Hitachi Kenwood Lenco Nordmende Onkyo Panasonic Pioneer Sanyo Sharp Sherwood Sony Technics Yamaha Brand of RCVR Denon Kenwood Magnavox Marantz Onkyo Panasonic Philips Sansui Sharp...
  • Page 24 Code Table of The Universal Remote Brand of DVD Aiwa Ames Apex Atle Classic Daewoo Denon Elta Govideo Harman Kardon Hisense Hitachi Integra Konka Lasonic Lenco Magnaox Marantz Mitsubishi/MGA Mustek Nakamichi Optimus Oritron Others Panasonic Philco Philips Pionner Proscan Radioshack Rotel Sampo Samsung...
  • Page 25 Code Table of The Universal Remote CODE Brand of VCR Admiral 089, 094, 212 Aiko 124, 258 Aiwa 073, 098, 104, 185 Akai 001, 002, 032, 033, 070, 071, 101, 107, 108, 109, 110, 165, 166, 167, 244, 164, 181, 236, 000 Alba 046, 010 American High...
  • Page 26 Code Table of The Universal Remote Erres Ferguson Fidelity Finlandia 039, 054 Finlux 007, 073, 029, 002, 039, 020, 011, 054 First - line Fisher 009, 020, 039, 037, 095, 096, 097, 099, 140, 141, 142, 283, 197, 204, 229, 266 Formenti -Phoeix 011, 054 Fuji...
  • Page 27 Code Table of The Universal Remote LXI(sears) 095, 097, 098, 104 M Electroinc Magnadyne Magnasonic Magnavox 087, 088, 090, 098, 103, 120, 121, 147, 162, 282, 172, 241, 190 Magnin Manest h Marantz 003, 007, 011, 036, 054, 087, 090, 114, 120, 121, 148, 186, 240 Mark Marta Matsui...
  • Page 28 Code Table of The Universal Remote Portland 116, 118 Proline Proscan Pulsar 088, 162 Quarter Quartz Quasar 087, 120, 121, 173, 249, 195 Quelle 003, 006, 007, 015, 026, 081, 018, 011, 054 Radio 114, 120, 121, 125, 140, 141, 161, 080 Shack/Realistic Radioshack 197, 204, 212, 181, 229...
  • Page 29 Code Table of The Universal Remote Tashiro Tatung 007, 073, 054, 165 TEAC 073, 165 Technics 087, 120 Teknika 073, 011, 087,098, 104,257, 208, 120, 121, 279, 284 Telefunken 001, 004, 021, 041, 042, 044, 049 Telemeister Tenosal Thomas Thomson 001, 004, 021, 043, 047 Thorm Thorn-Ferguson...
  • Page 30 Code Table of The Universal Remote Brand of AUX CODE A mark 018, 023 Akai Alleron Anam Archer Audio Dynamics Audiovox Autovox Beko Bell&howell Blaupunkt Brionvega Broksonic Cabletime Candle Capehart 016, 017 Carver Chaparral Citizen 017, 019 Concerto Coronado Crosley Crown Daewoo Daytron...
  • Page 31 Code Table of The Universal Remote Brand of TV CODE A mark 318,360 Aasic Line Abex Accuscan 105,331,336,339,362 Admiral 032,136,243,246,257,253,331,336,347,381,464,487 Aico Aiwa 225,424,471,222 005,045, 085,087,140,168 , 224,247,319,354,382 Akai Alba Albiral 001,009 Alleron 344,512 Amark Ambassador Amenicaction Amstrad 006,204,359,551 Atron Anam 105,240,321,339,360 Anam National 455,504,586,484,185...
  • Page 32 Code Table of The Universal Remote Daytron 204,334,449,081 Decca(UK) 002,004,026,028,031 Degraaf Denon Dimensia 315,380,560,096 Dorig Dual 041,221 Dual - Tec 004,011,019,029,033 Dumont 007,024,091,136,566,316 Dynatech 377,222 Edison 005,032,115,046,064 Elbe 001,009 Electroband 365,231,382,489,087 Electtohome 333,335,365,484,583,481,388 Elite Elman 019,029,033 Emerson 129,136,105,204,103,123,233,239,240,243,247,258,262,263,264,265,283,318,319,333,334, 337,338,339 ,343,344, 345,350,355,359,482,504,545,512,489,490,385,390,391,392,393,394, 395,396,397,449,451,452,505,507,555,510,511,561,426,398,399,401,400,523,524,530, 475,534,476,578, 222,070,062,185,186,188,229,217,211,203,200 ,485,486,554,551,491, Envision...
  • Page 33 Code Table of The Universal Remote Interfunk 005,007,024,027,039,044,051,067,068,069,071,091,136 Irradio 008,007,024,038,042,059,091,134,226 007,024,031,063,091,127,154, ITT-Nokia 005,007,024,032,039,040,044,048,063,067,068,069,072,073,091,127,143,149,154,158 Janco 215,216 235,327 JC Penny 096,089,074,135,130,380,388,403,449,458,506,493,560,570,481,573,579,272,247,251 365,231,382,087 Jensen 070,109,127,159,167,168,270,271,346,234,445,385,404,405,493,527,477, Kaisui 007,024,091,144 Kamp 105,316,339 Karcher 007,024,026,091,140,144,156 Kawasho 355,382,087 Kendo Kennedy 025,075,076 Kenwood 045,354,583 Kloss 371,376 Kloss Novabeam 450,501,536,546 Konka 038, 141,173,509,514,525,531 Korting...
  • Page 34 Code Table of The Universal Remote Onwa 105,240,339 Optimus Optonica 347,362,487,171 Orion 005,006,016,028,031,032,046,056,064,085,099,103,105,115,167,168,169, 224,239,243,334,339,345,566 Osume Otto Versand 025,027,043,051,054,065 Pael 003, 007,008,,024,091 Palladium Panasonic 001,003,019,036,039,065,100,102,104,170,208,251,260,289,290,308,321,322, 327,358,478,493,484,569 Penny 232,233,236,319,325,327,328,329,334,341,342,353,354 Perdio 024,091,007,033,149 Philco 019,023,024,025,133,136,150,151,577,237,243,247,255,273,277,309,318,319, 327,341,354,371,235,546,536,474,484,583,385,074,070 Philips 003,026,027,071,136,070,172,173,174,074,228,209,024,091,007,149,141,005,032, 115,046,064,155,235,255,284,288,296,297,298,312,327,328,332,356,357,483,484, 583,385,536,472,387,516,425,460,515, 543,546,477,584,585,488 Philips/Magnavox 387,389,543,585,488 Phonola 149,156 Pice Club Pilot...
  • Page 35 Code Table of The Universal Remote Sharp 022,038,043,053,065,109,114,178,201,171,204,233,565,576,582,487,498,499, 449,385,395,419,420 Shogun 250,319 Siarem 000,025,029,136 Sicatel 001,009,022,065 Siemens Siesta Signature 2000 904,903,912,318,319,320,329,334,336,344,347,381,408,578,902,253,257,098 Silver 141,208 Simpson 242,328,353,074 Singer 025,029, 131,136 Sinudyne 005,006,016,025,026,029,031,032,046,056,064,115,136,172,177,219, Sonic Sonoko Sony 028,109,005,117,118,119,120,163,179,224,123,231,245,330,364,365,369,539,382, 463,466,46 9,460,087 SounDesign 105, 334,339,344,353,239,240,512 Spectravision 587,360 Squareview 551,116 105,240,339...
  • Page 36 Code Table of The Universal Remote White Westinghouse 003,026,036,140,243,244,557,029,030 XR-1000 Yamaha 045,583 Yoko 004,033,140 Yorx Zanussi 005,026,032,046,064,075,076,115, Zenith 181,243,253,254,316,336,363,367,368,494,507,519,534,566,578,408,442,443,468 Zonda Zoppas 005,032,046,064,115 Brand of SAT Alba AlphsStar American High Amstrad Ankaro Apollo Astra Aura Barcom Benjamin BEST Bush Cambridge Canon Carver Chaparral Columbus...
  • Page 37 Code Table of The Universal Remote Lenco Leng Luxor Macom Magnavox Marantz Maspro Maxab Memorex Metz Mina Minerva Mitsubishi Morgans Motorolat Neckermann Next Level Nokia Norsat Obritech Olympus Pace Palcom Palladium Palsat Panasonic Pansat Penny Philico Philips Philips/Magnavox Pioneer Primestat Prosat Proscan Quasar...
  • Page 38 Code Table of The Universal Remote Brand of CABLE Adelphia Aeon Allegro Americast Antronix Archer Asiagiant AT&T Bell&howell BEST Cabletenna Cableview Century Citizen Colour Voice Comtronics Contec/Cony Eastern Emerson Everquest Garrard Gemini General Instrument Goldster/LG Goodmind Hamlin Hughes Hytex IEEC Jasco Jebsee Jeemon...

  • Page 39: Appendix

    Appendix Cleaning and care WARNING: Do not try to remove the cabinet back. Refer servicing to qualified service technicians. To clean the TV screen: 1) Unplug the TV to avoid possible shock hazard. 2) Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm water to clean the TV screen and trim.

  • Page 40: Troubleshooting

    Appendix Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solutions. Symptoms TV will not turn on No picture, no sound No sound, picture OK Poor sound, picture OK Poor picture, sound OK Unable to select a certain channel Poor color or no color...

  • Page 41: Specifications

    Height: 675mm Depth: 370mm Weight 51Ibs Supplied accessories Remote control,ACcord,Batteries Design and specifications are subject to change without notice. CUSTOMER NOTICE: Operate carefully to prevent damage to the screen. TL3220 Cable/ antenna VIDEO S-VIDEO C: 75 YPbPr/YCbCr YPbPr/YCbCr : 75 (480P/60Hz,480i/60Hz,720P/60Hz,1080i/60Hz)

  • Page 42: Limited Warranty

    HISENSE HOME ENTERTAINMENT WARRANTY We appreciate your purchase of a HISENSE Home Entertainment product. We take pride in the quality of our products and have manufactured your new Home Entertainment unit to exacting quality standards. We feel confident that in normal use, it will provide you with satisfactory performance.
  • Page 43 HISENSE reserves the right to make changes in design or to make additions to or improvements upon this product without incurring any obligation to install the same on products previously manufactured. The foregoing is in lieu of all other warranties expressed or implied and HISENSE neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale or service of this product.
