  6. Operator's manual

White 969D Shown Operator's Manual

950 - 959 series; 960-969 series; e960-e969 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
Model Series
950 - 959
960-969
E960-E969
Model 969D Shown
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
MTD PRODUCTS INC. P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.
FORM NO. 770-10061
(10/98)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 969D Shown and is the answer not in the manual?

Questions and answers

Related Manuals for White 969D Shown

Summary of Contents for White 969D Shown

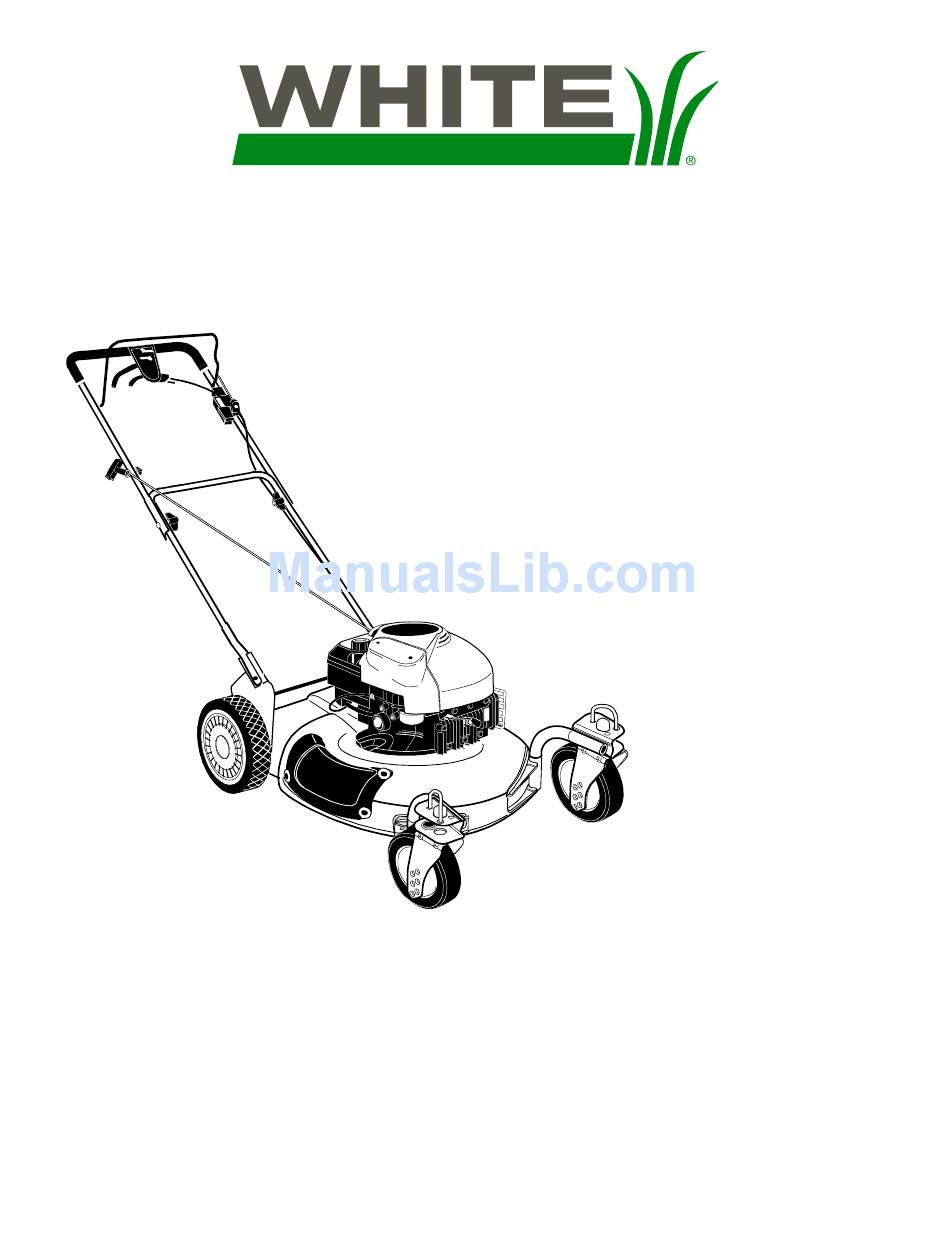

  • Page 1 Model Series 950 - 959 960-969 E960-E969 Model 969D Shown IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest- covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).

  • Page 2: Section 1: Finding Your Model Number

    • The model plate will look like Figure 1. This is where your model number will be. XXX-X-XXX-X-XXX XXXXXXXXXXX This is where your serial number will be. Copy the model number here: WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 Copy the serial number here: CLEVELAND, OHIO 44136...

  • Page 3: Section 3: Slope Gauge

    SECTION 3: SLOPE GAUGE...

  • Page 4: Section 4: Important Safe Operation Practices

    SECTION 4: IMPORTANT SAFE OPERATION PRACTICES Warning: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE YOUR LAWN MOWER. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

  • Page 5: Slope Operation

    footing, RELEASE THE BLADE CONTROL HANDLE • Do not mow on wet grass. Reduced footing could IMMEDIATELY and the blade will stop rotating within cause slipping. three seconds. • ON MOWERS WITH CASTER WHEELS: Mow on • Mow only in daylight or good artificial light. slopes with casters unlocked since the mower has a tendency to drift down hill.
  • Page 6 worn). Replace with blade which meets original • Grass catcher components are subject to wear, equipment specifications listed in this manual. damage and deterioration, which could expose moving parts or allow objects to be thrown. For safety • Keep all nuts, bolts, and screws tight to be sure the protection, frequently check components and replace equipment is in safe working condition.

  • Page 7: Section 5: Unpacking Instructions

    SECTION 5: UNPACKING INSTRUCTIONS REMOVE UNIT FROM CARTON • See Figure 3. • Remove staples, break glue on top flaps, or cut tape at carton end and peel along top flap to open carton. • Remove loose parts if included with unit (i.e., operator’s manual, etc.). •...

  • Page 8: Section 6: Set-Up Instructions

    SECTION 6: SET-UP INSTRUCTIONS This guide covers two model series. Models 950 thru 959 have fixed front wheels; models 960 thru 969 have caster front wheels. All models are six speed, self propelled mowers. Much of this owner’s manual pertains to both models. However, there are some model-specific information too. Use only the information appropriate for your mower model.

  • Page 9: Section 7: Controls

    Step 6. Attach control cables to handle with pull ties located on the handle. Here Step 7. Loosen the wing nut holding the rope guide to the upper handle. Step 8. Squeeze the blade control handle against the upper handle and pull out starter rope slowly. Step 9.
  • Page 10 BLADE CONTROL HANDLE The blade control handle is located on the upper handle of the mower. See Figure 5 . The blade control handle must be depressed in order to start and operate the unit. Release the blade control handle to stop the engine and the blade.

  • Page 11: Section 8: Operation

    CUTTING HEIGHT ADJUSTMENT LEVER (Model 960 thru 969) The rear wheel cutting height adjustment lever is located above the left rear wheel. To adjust the cutting height, pull the lever out and away from the mower. Move it forward or backward to the desired cutting height. See Figure The front wheel cutting height is determined by the selection of one of six positions in each caster assembly.To adjust, remove the wing nut from the axle bolt.
  • Page 12 Protective cap Battery pack lead Figure 7 To charge the battery, remove the protective cap from the end of the battery pack lead. Plug charger lead into battery pack lead and then insert battery charger plug into 120 volt standard household outlet. See Figure 7. Follow this order of action every time you charge the battery.
  • Page 13 TO STOP ENGINE AND BLADE • Release the blade control handle to stop the engine and the blade. WARNING: The blade continues to rotate for a few seconds after the engine is shut off. USING YOUR ROTARY MOWER Be sure that the lawn is clear of stones, sticks, wire, or other objects which could damage the lawn mower or engine.

  • Page 14: Section 9: Adjustments

    SECTION 9: ADJUSTMENTS W a r n i n g : Do not at any time make any adjustment to lawn mower without first stopping engine and disconnecting spark plug wire. HANDLE HEIGHT ADJUSTMENT Lower Handle Notch Figure 8 Your mower is shipped with the handle in the higher height position. To lower the handle height, proceed as follows.

  • Page 15: Section 10: Maintenance

    Note:For some operators, the drive clutch handle may not be in a comfortable position. You can adjust the handle by tightening or loosening the adjustment wheel. SHIFT LEVER CABLE ADJUSTMENT Periodic adjustment of the six-speed shift cable may be required due to normal wear on the cable. Adjustment is needed if all six speeds do not work.

  • Page 16: Storage Of The Battery

    DECK The underside of the mower deck should be cleaned after each use to prevent a build-up of grass clippings, leaves, dirt or other matter. If this debris is allowed to accumulate, it will invite rust and corrosion, and may prevent proper mulching, discharge or bagging.
  • Page 17 When sharpening the blade, follow the original angle of grind as a guide. It is extremely important that each cutting edge receives an equal amount of grinding to prevent an unbalanced blade. An unbalanced blade will cause excessive vibration when rotating at high speeds. It may cause damage to the mower, and it could break causing personal injury.

  • Page 18: Drive Belt Removal And Replacement

    DRIVE BELT REMOVAL AND REPLACEMENT Step 1. Disconnect the spark plug wire and ground it Step 7. Remove the hex bolt holding the transmission against the engine. to the mower housing. Step 2. Drain the fuel tank or place a piece of plastic Rear Height Adjustment Lever beneath the cap to prevent gasoline leakage.
  • Page 19 Step 13. Squeeze the belt together and push belt Step 14. Place the new belt over the transmission forward. Press the control arm inward towards pulley. Start the belt in pulley groove and rotate the deck and remove the six speed cable from pulley until belt is seated in transmission pulley.

  • Page 20: Section 11: Lubrication

    Step 21. Pinch belt together so that it is not in the Step 22. Pivot the control arm back to its original pulley groove, and the lower pulley can be position and reinstall the six-speed cable into the pushed towards the engine. slot.

  • Page 21: Section 12: Off-Season Storage

    Blade Control: Lubricate the pivot points on the blade control handle and the brake cable at least once a season with light oil. See Figure 11. The blade control must operate freely in both directions. Wheels: Lubricate the wheel at least once a season with light oil (or engine oil). Also, if the wheels are removed for any reason, lubricate the surface of the axle bolt and the inner surface of the wheel with light oil.

  • Page 22: Section 13: Trouble Shooting Guide

    SECTION 13: TROUBLE SHOOTING GUIDE Trouble Possible Cause(s) Corrective Action Engine fails to start Blade control handle disengaged. Engage blade control handle. Spark plug wire disconnected. Connect wire to spark plug. Throttle control lever not in correct Move throttle lever to FAST or START posi- starting position.
  • Page 23 Models 950 thru E969 Ref. Part No. Code Description 712-3025 Hx. Jam Nut 5/16-24 736-0425 Bell Wash. .325 x .930 x .045 756-0656 Pulley 736-3084 Fl. Wash. .510 x 1.120 x .060 712-0896 Hx. Jam Nut 1/4-28 782-7598 Belt Keeper 741-0600 Bearing 750-1050...
  • Page 24 Models 950 thru 959 Transmission and pulley for reference only Pulley Assembly for reference only...
  • Page 25 Models 950 thru 959 Ref. Ref. Part No. Code Description Part No. Code Description 710-1348 Scr. AB 1/4-14 x .500 710-0134 Scr. Carr. 1/4-20 x .62 731-1901 Trail Shield 710-0654A Scr. TT:3/8-18:1.00 710-0703 Scr. 1/4-20 x .750 732-0842 Trail Shield Wire 712-0397 Wing Nut 1/4-20 611-0064-...
  • Page 26 Models 960 thru E969 Transmission and pulley for reference only Pulley Assembly for reference only...
  • Page 27 Models 960 thru E969 Ref. Ref. Part No. Code Description Part No. Code Description 710-0134 Scr. Carr. 1/4-20 x .62 682-9021A- Caster Ass’y L.H. 0662 710-0654A Scr. TT:3/8-18:1.00 682-9024A- Brkt. Ass’y, Wheel Caster 710-0703 Scr. 1/4-20 x .750 0662 712-0397 Wing Nut 1/4-20 710-0260 Carr.
  • Page 28 Models E969 42 41...
  • Page 29 Danger - discharge chute 777S30128 Warning - deck above 777I20293 Drive lever on Handle opening 777-5242 Caster Wheel Lock (969, 777D02253 White LC 210 Logo (959) E969) 777-4724 White LC 215 Logo (969) 777-5902 Electric Start Instructions (E969) 777-4725 White Logo...
  • Page 30 Models 950 thru 969 Ref. Ref. Part No. Description Part No. Description 710-1174 Bolt Curv. Carr. 5/16-18 x 2.0 710-1667 CSunk Tap Scr #10 x .75 L 714-0104 Cotter Pin .072 x 1.12 Lg. 732-0627 Shift Lever Spring 720-0241 Knob Assembly 16864 6 Spd.
  • Page 31 Models 950 thru E969 Ref. Part No. Code Description 746-0939 6 Spd. Cable 656-0613 Pulley Ass’y Mult - Spd. 710-0167 Scr. 1/4-20 x .50 Carr. 710-1652 Scr. AB 1/4-14 x .625 Hex hd. Wsh. 711-1114 Pivot Shaft 712-0287 Nut 1/4-20 732-0807 Torsion Spring LH 736-0270...
  • Page 32 5. The provisions as set forth in this warranty provide the sole and exclusive remedy of White Outdoor Products Company’s obligations arising from the sales of its products. White Outdoor Products Company will not be liable for incidental or consequential loss or damage.
