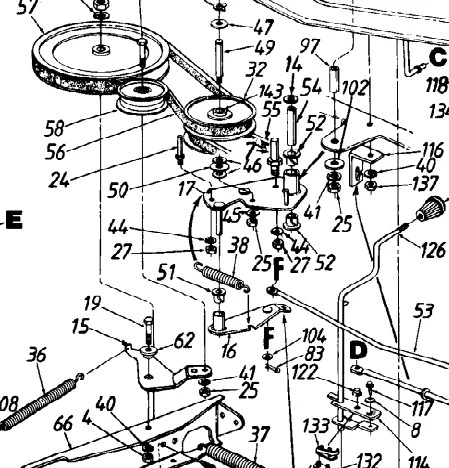

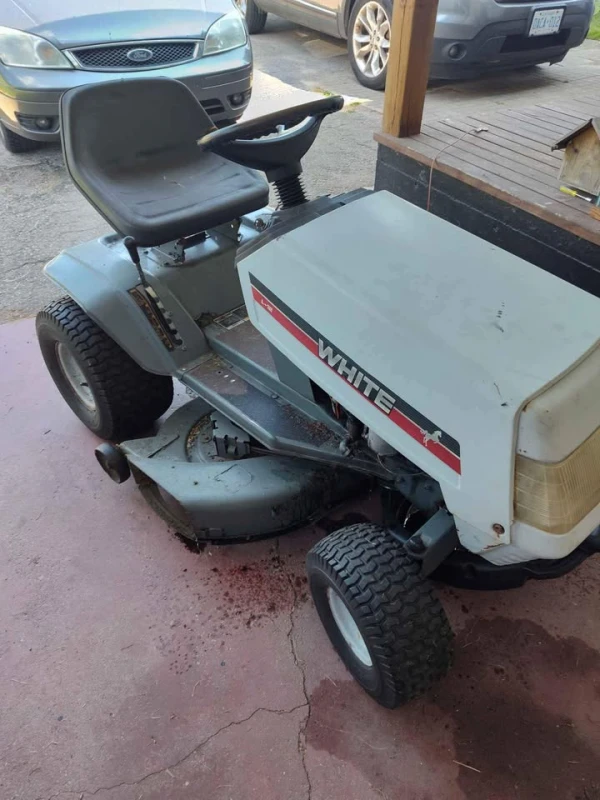

Hello, My question is on the L-12 Model 133H471F mower deck parts diagram. I know part# 38 which is a spring hooks to the front of part# 16. I dont know where the back of the spring attches to. Any help would be great. I do see a hoop at the end of the small drive pully, I belive that is part# 32 , does it hook in there?
Thanks,
Dan
3 comments:
Mr. Anderson
April 9, 2025
The back of the spring on the White L-12 Model 133H471F mower deck attaches to the mower frame or bracket designed to hold spring tension. Based on the parts layout, the spring does not hook into the hoop at the end of part #32. Part #32 is typically part of the engagement or idler arm assembly, and the spring usually connects to a fixed point on the frame or a specific spring anchor bracket, not the hoop of part #32.
To ensure proper installation, refer to the diagram for correct spring orientation and attachment points.
This answer is automatically generated
Daniel
April 10, 2025
@Mr. Anderson
Daniel
April 10, 2025
I have looked at the diagrams but it just kind of ends at a arrow. Any chance you have a more pin pointed diagram or a pic?
Thanks
