AXE4BL User Manual with DAHDI

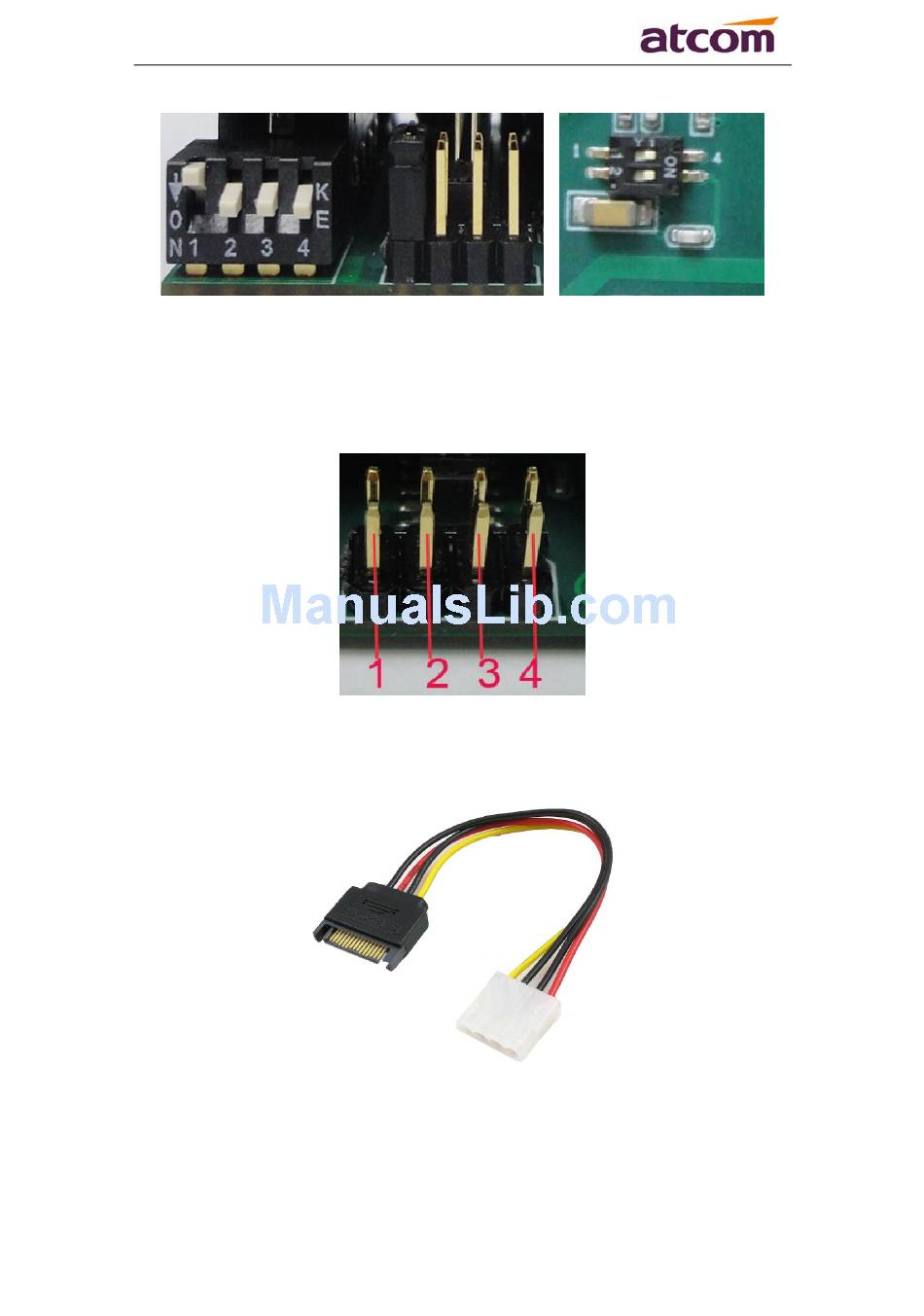

C2 C1 C4
To set up the C1 component, customer should use a jumper to connect two pins, the 1,2,3,4 are
used to set port1, port2, port3, port4 orderly and independently. If users do not use ISDN phone,
please do not set the C1 component.
C1
LED: If the driver of the card is loaded correctly and the /etc/dahdi/system.conf file is configured
correctly, the LED of the four ports will be red clearly; If the BRI line is connected correctly, and
it synchronizes to the other end successfully, then the LED will be green clearly.
Convert Cable: when users need to connect the ISDN phone to the ISDN card, the card should be
provided with extra power supply by C3 component and the power supply of server. At this
situation, users may need the extra convert cable, because there is no IDE interface in the power
supply of some servers. It contains a convert cable in the package like the picture above.
