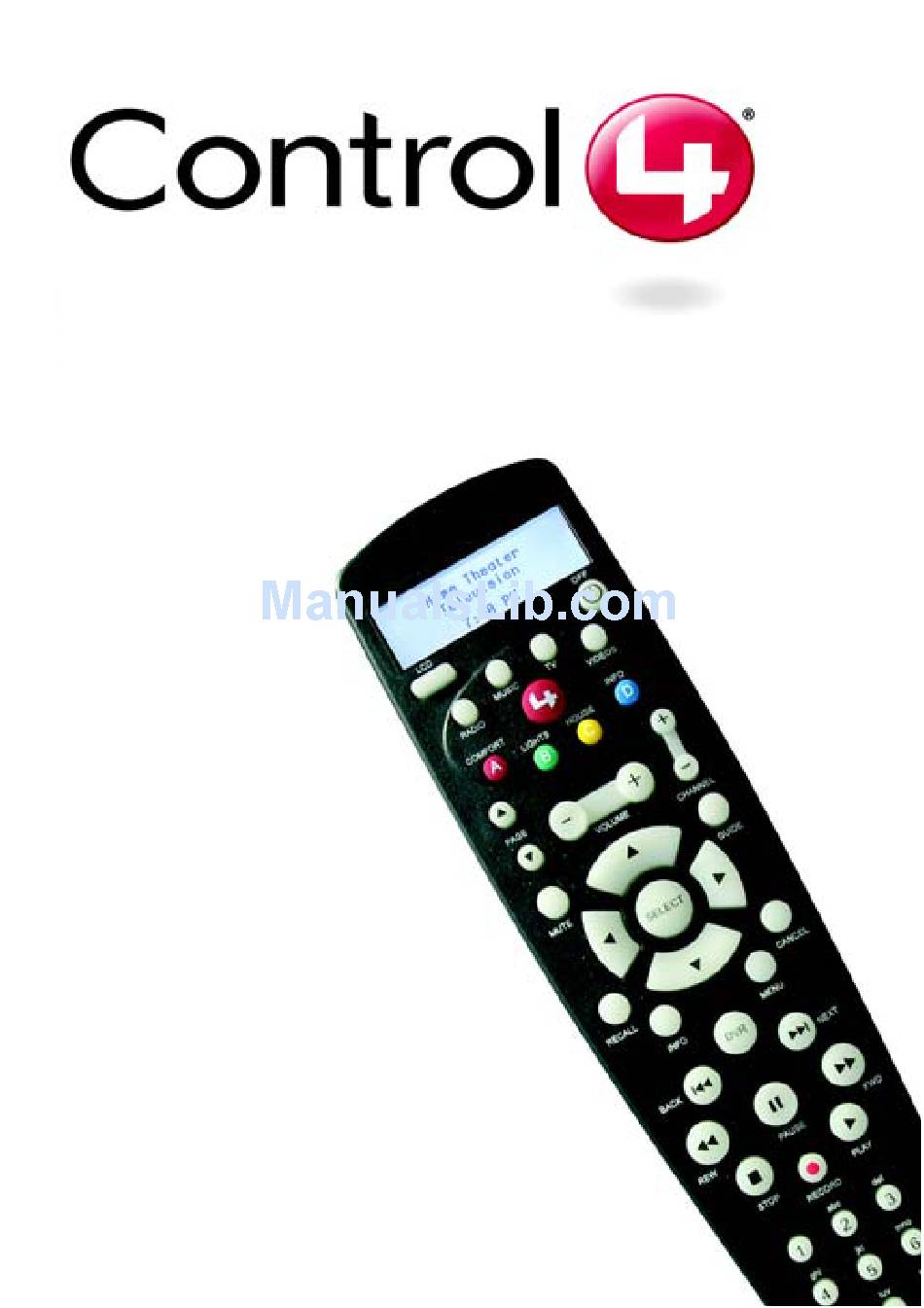

- Page 1 System Remote Control Version 2 User Guide...
- Page 2 Control4 reserves the right to make changes to any and all parts of Control4 hardware, software, and this publication at any time, without any obligation to notify any person or entity of such changes.
-
Page 3: Table Of Contents
Uses and Features ........1 About the Modes ...........2 What’s New in this Model ......4 Install and Maintain Batteries ......6 About System Remote Control RCZ-SRC2-B ..........7 Chapter 2 Use the Remote Control ....17 Use Remote with On-Screen Navigator ..17 Use LCD Navigator........19 Control Devices ...........19... -
Page 5: Chapter 1 Get Started
C H A P T E R Get Started Uses and Features Control4 System Remote Control Version 2 (model # RCZ- ® is intended for use in a Control4 system. It is SRC2-B) included with the purchase of a Media Controller or Home Theater Controller, but may also be purchased separately. -
Page 6: About The Modes
TV on-screen menu (On-Screen Navigator). Press the Control4 button to access the On- Screen Navigator home page (or main menu) and then press a system button (such as Radio or TV) to display the specific submenu on the TV screen. - Page 7 Control Navigator mode: mode: Section: mode: Displays LCD menus related to current system. Control4 Button Press view On-Screen Navigator on your monitor/TV. System Buttons If a video device Press one to Press Radio, Music, is currently on, display system- TV, or Videos to start...
-
Page 8: What's New In This Model
What’s New in this Model System Remote Control Version 2 (Model # RCZ-SRC2-B) the next generation of Control4 system remotes: • We renamed, relocated, and replaced several buttons. • We replaced black rubber with light, glow-in-the-dark rubber. • We added device-level programmable buttons so that installers could program one-button shortcuts. - Page 9 Was...RCZ-SRC1-B: Now is...RCZ-SRC2-B: Old Button Name and Function New Button Name and Function COMFORT, LIGHTS, HOUSE, COMFORT ( , LIGHTS ( , HOUSE and INFO , and INFO ( • Short press entered LCD • If in On-Screen Navigator mode,...
-
Page 10: Install And Maintain Batteries
Install and Maintain Batteries Install Batteries Install the four AAA batteries (included with the product) into the back of the device. Ensure that you insert them into the remote control according to the diagram provided in the battery compartment (with the + and - terminals aligned correctly). -
Page 11: About System Remote Control Rcz-Src2-B

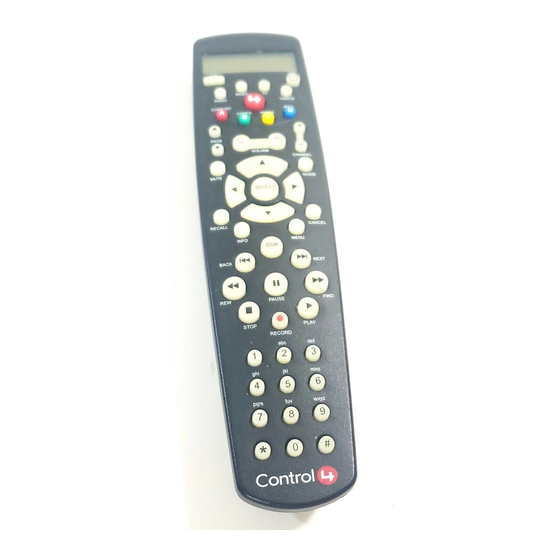

About System Remote Control RCZ-SRC2-B System Remote Control Model #RCZ-SRC2-B can be divided into these sections: 1. LCD, LCD Button, and Off Button 2. Control4 Button and Sys- tem Buttons (also referred to as the “Circle of Power” buttons) 3. Navigation Buttons 4. - Page 12 LCD, LCD Button, and Off Button LCD (liquid crystal display)—Provides information related to system activity. The LCD uses highlighting to show a selected item. It includes a white backlight that stays on for 15 seconds after a button is pressed. LCD button—Changes the remote mode to LCD Navigator mode and displays the menu in the LCD.
- Page 13 Control4 Button and System Buttons Control4 button—If a TV or monitor (TV device) is available in the current location, it puts the remote control in On-Screen Navigator mode and displays the On- Screen menu on the TV device. The On-Screen Navigator...
- Page 14 System buttons (or “Circle of Power” buttons)— The buttons surrounding the red Control4 button (Radio, Music, TV, Videos, Comfort [A], Lights [B], House [C], and Info [D]) are system buttons that respond differently depending on when they are pressed and if and how they...
- Page 15 Music When the remote control is in a Navigator mode (when either On-Screen Navigator or LCD Navigator are active), the MUSIC Button acts as a shortcut into the music submenu in the appropriate navigator. When devices in the room are off or the remote control is in Device-Control mode (when no Navigator screen is active), the MUSIC button functions as a Quick Access button.
- Page 16 When the remote control is in a Navigator mode (when either On-Screen Navigator or LCD Navigator are currently displayed), the TV Button acts as a shortcut into the TV submenu in the appropriate navigator. When devices in the room are off or the remote control is in Device-Control mode (when no Navigator screen is active), the MUSIC button functions as a Quick Access button.
- Page 17 button. Press it to begin playing a video and to be able to control the video source with the device-control buttons. Initial Press of VIDEO button • Turns on the audio endpoint for the room and the last video source used. •...
- Page 18 When devices in the room are off or the remote control is in Device-Control mode (when no Navigator screen is active), pressing one of these buttons will run the custom program assigned to that button for the current room or device.
-
Page 19: Navigation Buttons
Navigation Buttons The following buttons are for screen and menu navigation. • • • PAGE VOLUME - + CHANNEL + - Page Up/Down Control Channel Up/ • MUTE volume Down • • Mute audio GUIDE • RECALL Menu/Option Program list- Toggle to previ- Navigation ings... - Page 20 Device Control Buttons These familiar buttons are for device control. • DVR (Digital Video Recorder) • BACK l • NEXT • • PAUSE ll • • STOP • RECORD • PLAY Keypad The alphanumeric keypad is for changing TV channels, setting lighting levels, or entering text.
-
Page 21: Use The Remote Control
“Use LCD Navigator” on page 19 • “Control Devices” on page 19 For specific, task-oriented instructions, refer to the Control4 System User Guide. Use Remote with On-Screen Navigator Note: This document explains only general access to On-Screen Navigator. For specific instructions, refer to the On-Screen Navigator sections in the Control4 System User Guide. - Page 22 Screen Navigator menu on the monitor or TV. To navigate or choose an On-Screen Navigator item, (on the monitor or TV), use the arrows and Select button to move the cursor around the screen and choose an option. Refer to Control4 System User Guide for user instructions.
-
Page 23: Use Lcd Navigator
Use LCD Navigator Use LCD Navigator to choose a variety of options. Press the LCD button to choose LCD Navigator mode and view the system menu. Use the arrows and Select button to choose a system: House Lights Radio Music Comfort Videos Info... - Page 24 on the remote that has been associated with a controllable device. Radio, Music, TV, or Videos: When the devices in the current room are OFF, the Radio, Music, TV, or Videos buttons function as a Quick Access button to Device- Control mode.
-
Page 25: Chapter 3 Regulatory Info
C H A P T E R Regulatory Info Regulatory Compliance North America This product complies with standards established by the following regulatory bodies: • • Industry Canada FCC ID: R33050110011: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may... - Page 26 • Consult the dealer or an experienced radio/TV techni- cian for help. IMPORTANT! Changes or modifications not expressly approved by Control4 could void the user’s authority to operate the equipment. Industry Canada This Class B digital apparatus complies with Canada ICES-003.
-
Page 27: Ce Declaration Of Conformity
Salt Lake City, UT 84020-6432 Tel (801) 523-3100 Product: System Remote Control Model No: RCZ-SRC2-B The undersigned hereby declares, on behalf of Control4 Corporation, that the above-referenced product, to which this declaration relates, is in conformity with the provisions of:... - Page 28 CB Bulletin No. 109A December 2005: AS/NZS 60950-1: 2003. The Technical Construction File required by these Directives is maintained at the corporate headquarters of Control4, Salt Lake City, Utah, U.S.A. Signed, Paul E. Nagel—Vice President of Engineering, January 26, 2007 Recycling For information on recycling, please go to www.control4.com/recycling...
