Control 4 SR-250 User Manual

System Remote Control
SR-250 User Guide
Introduction
Before you use the Control4
C4-SR250-Z-B and C4-SR250B-Z-B), ensure that
the devices in your Control4 system are added and
configured.
Note: The SR-250B runs on OS 2.0 and later.
Uses and Features

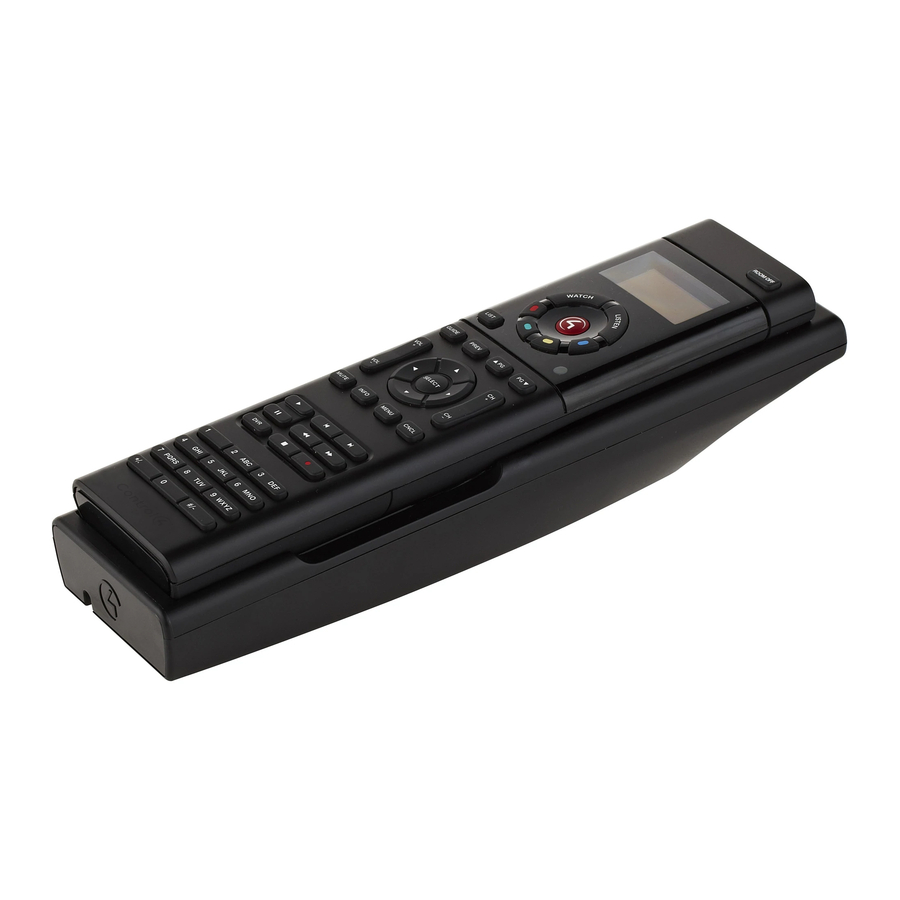

Use the System Remote Control SR-250 (SR-250)
with a Control4 system. Use this guide along with
the Control4 System Quick Start Guide and Control4
System User Guide for best results. The guides are
located on the Control4 web site.
Use the SR-250 to:
• Navigate system menus and access media on a
TV's monitor using the On-Screen Navigator.
• Navigate system menus and access media using
the SR-250's List Navigator.
The SR-250 extends the capabilities of a 'universal'
remote that simply learns the IR codes from TVs,
VCRs, and CD/DVD players.
Features:
• Bi-directional communication with system
components.
• Backlit display that converts the Control4
Navigator into a text format.
• 47 buttons total: 2 for quick access, 4
programmable, 8 transport control, plus
alphanumeric keys.
• ZigBee wireless.
• Wakes up when picked up or moved.
Install and Maintain Batteries
Install the Batteries
Install the four (4) AA batteries (included) into
the back of the SR-250. Insert them according to
the diagram provided in the battery compartment
(with the + and - terminals aligned correctly).
Battery Use and Care Tips
• Keep battery contacts and compartment
clean.
• Remove batteries from the System Remote
Control if it is not expected to be in use for
several months.
• Extreme temperatures reduce battery
performance. Avoid putting the System
Remote Control in very
Battery Replacement Safety Rules
CAUTION! To prevent battery shorting, leakage or
rupture:
SR-250 (models
®
warm places.
• Use AA Alkaline batteries only in the SR-250.
• Do not mix battery types, such as Alkaline and
rechargeable NiMH batteries.
• Do not attempt to recharge a battery unless
the battery is specifically marked "recharge-
able."
• Never dispose of batteries in a fire.
Attention ! Pour empêcher court-circuiter, fuite ou
rupture de batterie :
• Utilisez les accumulateurs alcalins d'AA seule-
ment dans le commutateur.
• Ne mélangez pas les types de batterie, tels
que les batteries alkalines et rechargeables de
NiMH.
• N'essayez pas de recharger une batterie à
moins que la batterie soit spécifiquement mar-
qué « rechargeable ».
• Ne vous débarassez jamais des batteries dans
un feu.
SR-250 Buttons
Room Off:
Turns off the devices in the room.
Room and List Navigator:
Lists room, op-
tions, current time.
List:
Displays system list in window. Use with
arrow and Select buttons.
Ambient Light Sensor:
Enables backlight on
buttons when the room is dim.
Watch/Listen:
Watch movies, TV. Listen to the
radio, CDs, etc.
4:
Press to turn on TV and the On-Screen
Navigator.
Programmable Buttons:
Have your
Installer program these buttons for shortcuts. See
"Programmable Buttons" below
to identify and write down the functions.
Guide:
Displays the channel guide (program
lists) for the device's channels On-Screen.
Also used to toggle List or Grid views.
Prev: .
Goes to the previous screen
PG Up/PG Dn:
Pages up or down for the
device's menus.
Vol +/ Vol -:
Increase or decrease the volume.
Left/Right, Up/Down Arrows:
Moves
through the List Navigator or On-Screen.
Select:
Selects an option on the
On-Screen or List Navigator.
Ch +/ Ch -:
Move up or down channels.
MUTE:
Mutes the audio.
INFO:
Displays current channel/program info for
the device.
MENU:
Displays the menu for devices.
CNCL:
Cancel last action for the device.
Play:
Plays a movie or video.
Skip Forward/Skip Back:
Skips through
a movie or video.
Pause:
Pauses the movie or video.
Press Play to start.
Fast Forward/Rewind:
Advances or rewinds
the movie or video.
DVR:
Plays the DVR (digital video recorder) or
device.
Stop:
Stops the movie or video. Press Play to
start.
Record:
Activates the current device's record
function.
Alphanumeric Keypad:
Use to type letters or
numbers if you have an on-screen keyboard, or to
change channels, set light levels, or enter text.
